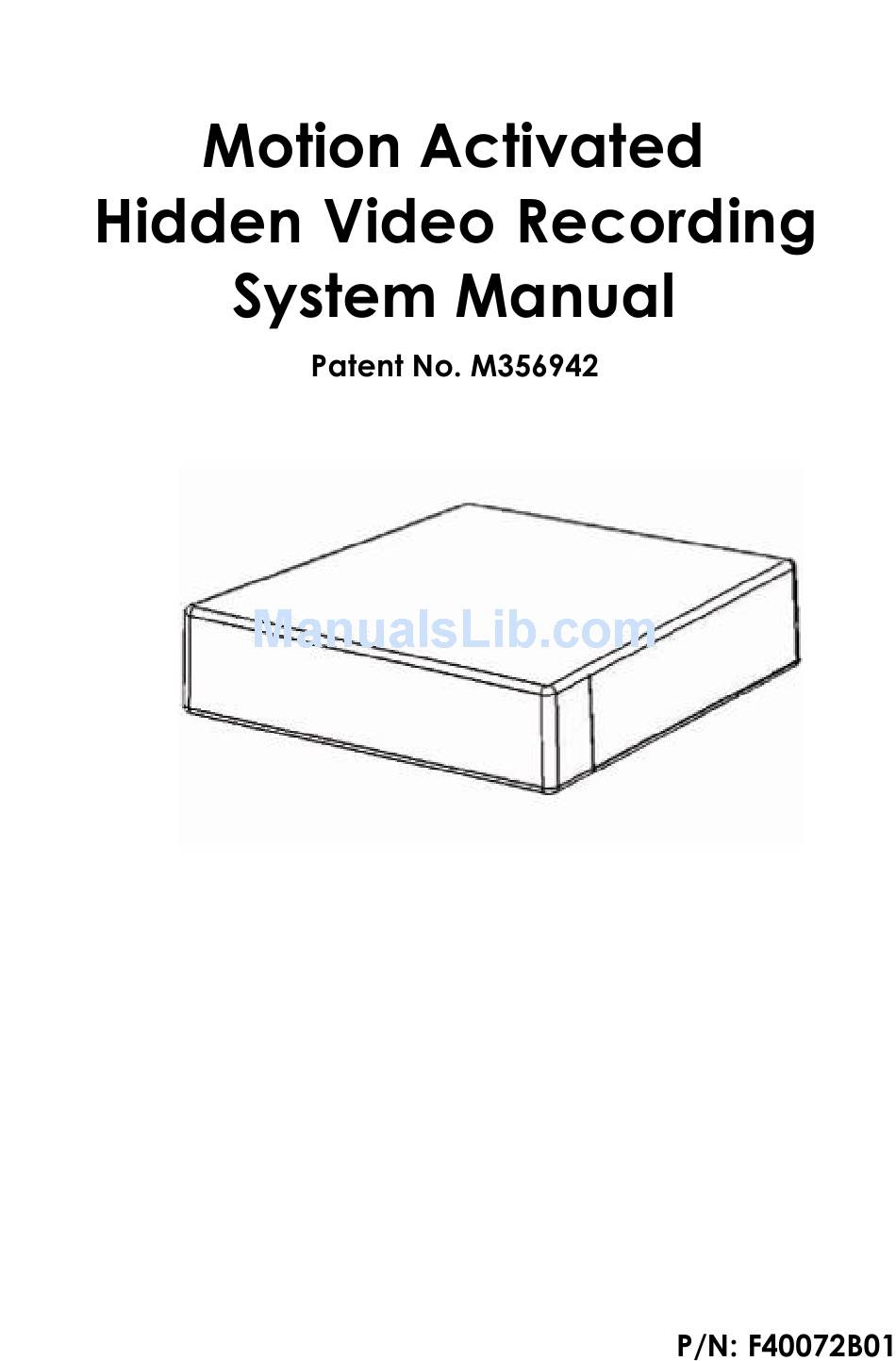

  • Page 1 SleuthGear Recluse...

  • Page 2: Table Of Contents

    Contents Package Contains ............2 Quick Setup ..............3 How to open Motion Activated Black Box ......3 Interface ................4 LED Indicator status ............4 Installation ............... 5 1. How to open battery cover........5 2 How to insert and remove the batterty .....

  • Page 3: Package Contains

    Package Contains Motion Activated Black Box IR remote control Power adapter (12VDC) AV Output cable 3.7V 4800mA Li-polymer User manual battery Software CD Charger cradle for Li-polymer battery (optional) Micro SD card (optional) - 2 -...

  • Page 4: Quick Setup

    Quick Setup Step 1: Open the back cover Step 2: Fully charge the battery for 10 hours for the first time using (please backup or format Micro SD card regularly to keep it efficient) Step 3: Insert Micro SD card into Micro SD slot. Class 6 or above level would be highly recommended.

  • Page 5: Interface

    Interface LED Indicator status Power on Power off Green Blinking System ready, System and Micro System not Micro SD card SD card normal, ready or Micro normal, and has but doesn’t have SD card schedule schedule abnormal Yellow Blinking Battery not Battery charging Running out of charging...

  • Page 6: Installation

    Installation 1. How to open battery cover Turn the device upside down. After removing the battery Firstly open back cover and cover, take out the battery for then slide off the battery cover charging or changing the according to the direction of battery.

  • Page 7: Coverage Angle Of The Camera And Pir Sensor

    3. Coverage angle of the camera and PIR sensor **The best IR performance distance will be 3 meters. 4. How to charge the battery Connect bundled power adapter to power DC jack. The yellow LED will be on if the battery is charging. Please fully charge for 7~8 hours.

  • Page 8: Compatible Storage

    Compatible Storage The below micro SD cards are tested with CH0705. * Apacer class 6 4GB micro card * Toshiba 4G MicroSD * Sandisk 2GB micro card * Team 2G MicroSD / 4G MicroSD * Transcend class 6 16GB micro card * Transcend 1G MicroSD * Kingston 4G MicroSD * For those micro SD cards aren ’t be tested which doesn ’t...

  • Page 9: Playback Function

    Playback Function Press key on remote control to get in to playback menu. You can use “Time search” to enter the date/time which you would like to view. Or get into “Event Search” to see the event list and press button to playback from a selected recording.

  • Page 10: Remote Control Diagram

    Remote Control Diagram Numeric Key Button Function Description Universal password: UP/UP/DOWN/DOWN/+/+/ -/- Panic Start to Record manually. Press again Record to cancel recording mode KEYPAD Virtual keypad input Key lock Lock MENU/Exit Menu mode or Exit to last page UP (7) DOWN (0) Confirm the setting/change LEFT (8)

  • Page 11: Screen Icons

    Into playback menu or start to play Play (1) Pause playback, press again to play Pause (2) frame by frame Re-wind (4) Rewind playback Fast Fast forward play 2/4/8 times forward (6) Fast rewind Fast rewind play2/4/8 times Stop playback Stop (3) Screen Icons When you get into MENU or PLAY mode, it would need...
  • Page 12 O: Write once to Micro SD card. If Micro SD card is full, #3194075 will stop recording (appear only when Micro SD card is inserted) 00000001: Camera ID LOCK: Key locked LOSS: Camera input loss, it will go back to blue screen 10.

  • Page 13: Osd Menu Structure Tree

    OSD Menu Structure Tree I. CHANNEL SETUP TITLE SETUP COLOR SETUP AUTO BRIGHTNESS II. DATE/TIME SETUP III. SD CARD SETUP SD INFORMATION SD REC MODE SD FORMAT IV. RECORD SETUP RECORD MODE CONTINUOUS RECORD PIR RECORD V. PERIPHERAL BUZZER SETUP KEY BEEP SETUP VIDEO...
  • Page 14 Menu Operation Press to enter MAIN MENU MAIN MENU Press CHANNEL SETUP DATE/TIME SETUP select item SD CARD SETUP Press to enter RECORD SETUP the selected item PERIPHERAL SETUP SYSTEM SETUP Press to get back to live view I. Channel Setup Press select item CHANNEL SETUP...

  • Page 15: Display Format

    Press select item COLOR SETUP Press BRIGHTNESS CONTRAST change value SATURATION (1 -63) II. DATE/TIME SETUP Press select item DATE/TIME SETUP DISPLAY FORMAT: YY/MM/DD Press TIME FORMAT: 12H YEAR: 2012 change value MONTH: 02 * Display Format: DAY: 09 HOUR: 05 YY/MM/DD, MM/DD/YY, or MINUTE: 25 DD/MM/YY.
  • Page 16 III. SD CARD SETUP Press select item SD CARD SETUP SD INFORMATION SD CARD INFORMATION : SD REC MODE: OVERWRITE Press to enter SD FORMAT AUTO FORMAT: ON SD REC MODE: Press to change mode (FULLSTOP:OVERWRITE ) SD FORMAT: Press enter AUTO FORMAT: Press to change...

  • Page 17: Recording Mode

    IV. RECORD SETUP Press select item RECORD SETUP Press to enter the RECORD MODE selected item CONTINUOUS RECORD PIR RECORD Press change cursor RECORD MODE Press change value 0 - - 3 - - 6 - - 9 - - 0 - - 3 - - 6 - -9 - - SSSSSSSSSSSSSSSSSSSSSSSS *Default value: Sensor (PIR) S: SENSOR (PIR)
  • Page 18 Press change value PIR SETUP Frame rate adjustable FRAME RATE: H4L 30(N) / 25(P) by users: QUALITY: SUPER SENSITIVITY: HIGH H4L 30(N)/25(P); PRE-RECORD: ON H4L 15(N)/12(P); STANDBY TIME: 60 SEC H4L 8(N)/6(P); H4L 4(N)/4(P); H4L 2(N)/2(P); JPEG 2(P)/(N); JPEG 4(P)/4(N); JPEG 6(P)/8(N);...
  • Page 19 Press select item BUZZER SETUP Press KEY BEEP: change value VIDEO LOSS: ON BEEP TIME: 02 SEC (2~6 SEC) Press select item RELAY OUT Press RELAY OUT TIME: 10 SEC change value (10~60 SEC) VIDEO LOSS: NO VI. SYSTEM SETUP Press select item SYSTEM SETUP...

  • Page 20: Password Setup

    Press change value FACTORY DEFAULT LOAD DEFAULT: NO PRESS ENTER KEY TO RUN Press select item FIRMWARE UPGRADE Press EXISTING VERSION: P.0.13.1 change value NEW VERSION: _ _ _ _ UPDATE: NO PRESS ENTER KEY TO RUN Key in default value (1234) first and press PASSWORD SETUP It will enter “NEW...

  • Page 21: Software

    PLAYBACK MODE In the Playback screen Press to enter SEARCH SEARCH MENU TIME: 2012/02/01 16:03 RUN Press EVENT SEARCH BEGIN: 2012/02/01 16:03:38 select item & END: 2012/02/02 15:37:37 to change value Press to run EVENT SEARCH (PAGE 001) Press EVENT SEARCH select item NO YY/MM/DD HH:MM :SS MODE Press...
  • Page 22 Backup Search Files DVR file Login Select Path Backup Enter format Set Start Set End Time Time Export Cancel backup file Time/ Date Time/ Date on format Change Time/ Date account and top left password Multiply 32 Save JPEG times the picture original speed Enhance the...

  • Page 23: Software Operation Procedure

    File information: * Computer Requirement: Dual Core CPU or above , 1GB RAM or above * Operation System Requirement: Windows XP , Windows Vista 32bit, Windows7 32bit, Windows7 64bit or above * PC has to be installed with Sound Card, which makes PC have audio function.
  • Page 24 Select a folder with DVR files and press “OK” Double click the selected recording file to playback or click the selected recording file and press “Open” to playback. File searching method: List all time : list all the recording sessions in the folder you browse.
  • Page 25 Backup Files Press choose backup format (DVR/ WMV/ AVI/ JPG) and choose backup channel. Backup as DVR format: Can only backup four channels Backup as WMV/ JPG format: backup four channels or individual channel Backup as AVI format: backup four channels or individual channel;...
  • Page 26 Playback Files Move the mouse cursor to the place you want to enlarge. Right click to zoom in. Right click again to get back to the original scene. Admin Click and key in account and password. Default: root/ root Display information: On/Off Date format: yyyy/mm/dd...

  • Page 27: Faq

    Q1. What player software should I use to playback the recording files? Ans. Our bundled software is most recommended. You could use the bundled software to transfer the files into AVI, WMV format, then you could use “Windows Media Player” for playing.

  • Page 28: Specifications

    Specifications NTSC / PAL Video System H.264 Compression 720x480 (NTSC) / 720x288 (PAL) Video resolution Recording frame rate 6/8, 13/15, 25/30 fps Continuous, Sensor Recording Mode Suported Pre-recording Yes, 10 secs Post Recording 1/4”, 720x480 (NTSC)/ 720x576 (PAL) Image Sensor 2.5mm Lens 940nm...
  • Page 29 Thank you for purchasing our Hidden Video Recorder System. Please read this manual before installation. Please fully charge the battery immediately after you receive the unit; otherwise, the unit may not be turned on. For customer support, please contact your dealer, and please keep your Invoice for further support.
