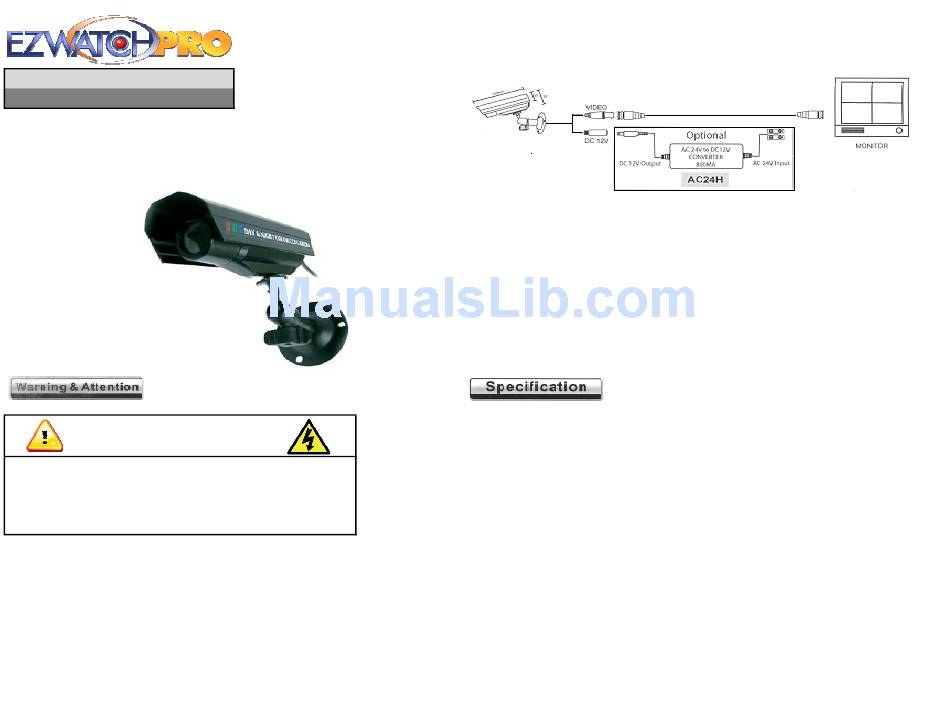

DIGITAL VIDEO CAMERA
User's Manual
SKU# CS35F
Long Range Outdoor Bullet Camera
25mm Lens
WARNING
Attention:
To reduce the danger of electric shock, please do not open the case (or back
cover) of camera; everything needed for user operation is on the surface of
the camera; please seek help from a qualified professional for repair.
Attention items:
• Do not touch CCD or lens
• Do not use any unidentified power supply
• Avoid installation in unstable places
• Do not use camera in the following conditions,
Temperature: -20⁰C/+50⁰C
• Suggested mounting height 8'-12'
• Do not mount camera directly to a metal surface
• Do not point camera directly into light sources
Image Sensor
1/3" SONY High Resolution CCD
Effective Pixels
PAL:512(H)x582(V) NTSC:512(H)x492(V)
Signal system
Horizontal resolution
Minimum illumination
Electronic shutter
Auto:1/50(1/60)-1/100,000Sec
S/N ratio
Gamma
Lens
Video output
Power supply
Power consumption
PAL/NTSC
420TVL
0Lux(IR LED ON)
>48dB
0.45
25mm
1.0Vp-p, 75Ω
DV 12V±10%
less than 3.0W
Advertisement
Table of Contents
Related Manuals for EzwatchPro CS35F
Summary of Contents for EzwatchPro CS35F
- Page 1 DIGITAL VIDEO CAMERA User's Manual SKU# CS35F Long Range Outdoor Bullet Camera 25mm Lens • Suggested mounting height 8'-12' • Do not mount camera directly to a metal surface • Do not point camera directly into light sources WARNING Image Sensor 1/3"...
- Page 2 Installing a power wire pigtail Installing a power wire pigtail Contact Contact EZWATCHPRO Step 1: At the camera location, take the power cable and strip away the outer sheathing to expose www.ezwatch-security-cameras.com the inner two wires (black & red). Then strip away Phone/Fax about 1/4"...
