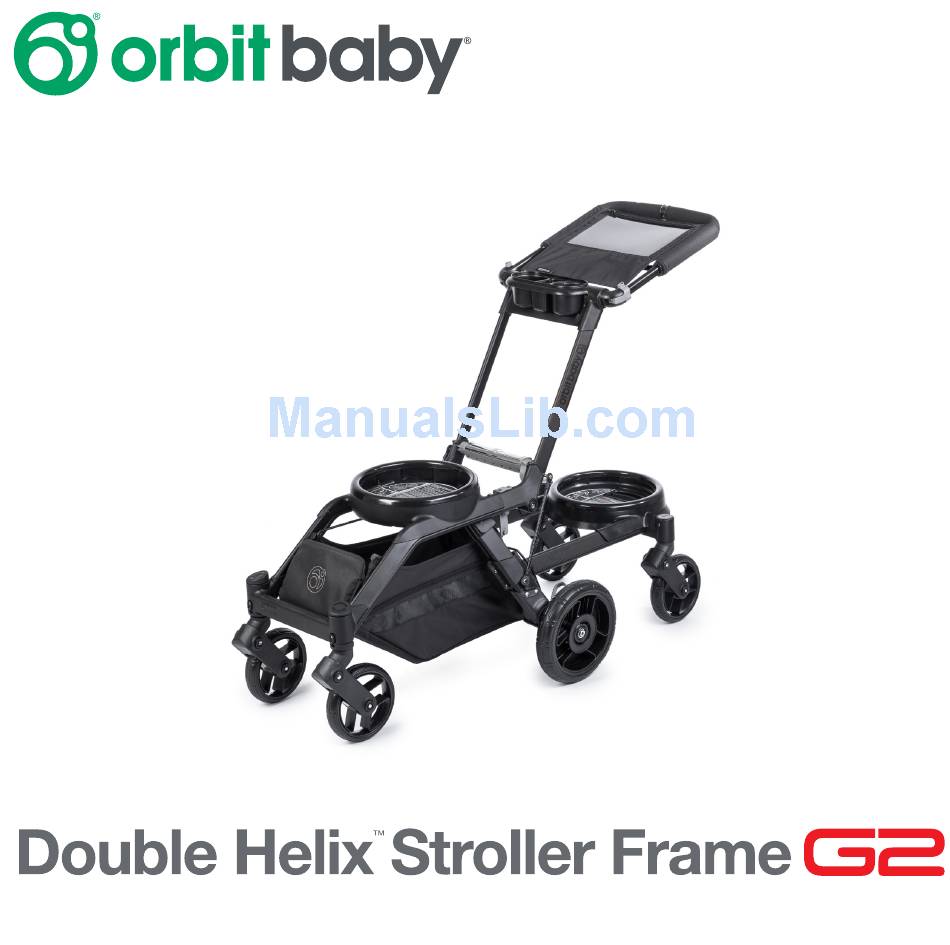

Orbit baby Double Helix G2 User Manual

Frame
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Double Helix G2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Orbit baby Double Helix G2

Summary of Contents for Orbit baby Double Helix G2

  • Page 4 ‘CLICK’ ‘CLICK’ ‘CLICK’ ‘CLICK’...
  • Page 7 ‘CLICK’...
  • Page 9 ® ® Scan this code with your mobile phone to access the most updated manual and see other helpful videos. Double Helix Stroller Frame...
  • Page 10 2 – ENGLISH – Manual Text Booklet – Orbit Baby Double Helix Stroller Frame...
  • Page 11 Bassinet on a stroller frame may be called pram. Rocker may be called stand. In this manual, the word seats refers to all Orbit Baby products that can be docked into that particular SmartHub position. For example, seats, when referrring to the rear SmartHub, refers to the bassinet, stroller seat and infant car seat.
  • Page 12 4 – ENGLISH – Manual Text Booklet – Orbit Baby Double Helix Stroller Frame ShadePad™ Ⓐ Ⓘ handlebar thumbscrews Ⓑ Ⓙ handlebar twist grip levers lock Ⓒ Ⓚ water twist grip Ⓓ bottle tray Ⓛ stroller basket fold lock Ⓔ...
  • Page 13 SmartHub. ◦ Never use any Orbit Baby Toddler Car Seat on the rear SmartHub. Use any Orbit Baby Toddler Car Seat only on the front SmartHub. FALL HAZARD: Avoid serious injury from falls or tipover.
  • Page 14 ◦ Do not place parcels or accessory items in the stroller unless made by or specifically approved by Orbit Baby. Added parcels or accessory items can make the the stroller become unstable. ◦ Do not place more than 1 lb (0.5 kg) in the water bottle tray. Excessive weight may cause a hazardous unstable condition to exist.

  • Page 15: Pinch Hazard

    Manual Text Booklet – Orbit Baby Double Helix Stroller Frame – ENGLISH – 7 ⚠ ⚠ WARNING AVOID PINCH INJURY: ◦ Keep fingers clear of stroller when folding and unfolding the stroller. ◦ Keep your children's hands and fingers clear of moving parts when adjusting the stroller or handlebar.

  • Page 16: Fall Hazard

    8 – ENGLISH – Manual Text Booklet – Orbit Baby Double Helix Stroller Frame Assembling the stroller frame ⃞ Insert the rear wheels into the rear legs. You will hear a CLICK when they are locked in place. ⃞ Insert the front wheels into the front cross brace. Note that the front wheels have a long metal rod coming out of the fork while the wheels for the Helix SmartHub Attachment have a short metal rod.
  • Page 17 Manual Text Booklet – Orbit Baby Double Helix Stroller Frame – ENGLISH – 9 they are fully inserted and the red warning triangles have been fully covered by the stroller frame leg connectors. You will hear a CLICK when the Helix SmartHub Attachment is locked in place. Check that the Helix SmartHub Attachment is fully locked into the stroller frame by letting go of the release lever and pulling back on the attachment.
  • Page 18 ◦ Listen for audible CLICK which indicates that seats are locked into the SmartHubs. ◦ Always check that the Orbit Baby seats are securely locked into the SmartHubs by tugging upwards and turning. ◦ Lock the stroller wheels and check stability of the stroller before placing your children in or removing your children from seats.
  • Page 19 SmartHub. ⃞ The Orbit Baby bassinet, infant car seat, stroller seat or toddler car seat can be used on the front SmartHub. The bassinet, infant car seat and toddler car seat will lock in four rotational positions.
  • Page 20 12 – ENGLISH – Manual Text Booklet – Orbit Baby Double Helix Stroller Frame ⚠ ⚠ WARNING ◦ Do not place more than 5 lb (2 kg) in the stroller basket. Do not use the stroller basket as a child or pet carrier. Excessive weight may cause a hazardous unstable condition to exist.
  • Page 21 Manual Text Booklet – Orbit Baby Double Helix Stroller Frame – ENGLISH – 13 ⃞ Push forward to get the remaining wheels up the curb. To go down a curb, slowly drive each set of wheels off the curb holding the handlebar to minimize any movement of your children in the seats.
  • Page 22 14 – ENGLISH – Manual Text Booklet – Orbit Baby Double Helix Stroller Frame ⚠ ⚠ WARNING PINCH HAZARD: ◦ Keep child's hands clear of all moving parts when making adjustments or docking the seat. Converting your stroller into single mode ⃞...
  • Page 23 Manual Text Booklet – Orbit Baby Double Helix Stroller Frame – ENGLISH – 15 ⃞ Release the twist grip lock Ⓒ on the stroller frame. ⃞ Grasp the twist grip Ⓓ on the stroller frame. ⃞ Rotate the twist grip Ⓓ and lift to fold the stroller.
  • Page 24 ® www.orbitbaby.com ORB300006 | Rev. 2.1 | 2014FEB ©2014 Orbit Baby, Inc. All rights reserved.
  • Page 25 ® ® Helix Double Stroller Frame Helix Plus Double Stroller Upgrade Kit for Stroller...
  • Page 26 What Orbit Baby will do: If you believe the product is defective please return it to Orbit Baby in the manner described below within the limited warranty period. If Orbit Baby determines a defect is covered by this limited warranty, Orbit Baby will, at its option, repair or replace the product or components of the product.
  • Page 27 State. • What you must do to get service under this limited warranty: To make a claim under this limited warranty you must first contact Orbit Baby. Please write to: Orbit Baby, Inc. 8445 Central Ave. Newark, CA 94560, U.S.A.
  • Page 28 ® www.orbitbaby.com ORB380006 | Rev. 1.0 | 2012JUN ©2012 Orbit Baby, Inc. All rights reserved.
