Summary of Contents for Orbit baby Double Stroller Kit

  • Page 3 Ⓐ  Ⓗ  Ⓑ Ⓘ  Ⓙ   Ⓒ Ⓓ     Ⓚ Ⓔ Ⓛ  Ⓜ  Ⓝ  Ⓞ  Ⓟ  Ⓠ  Ⓡ  Ⓢ  Ⓕ Ⓣ  Ⓤ ...
  • Page 4 ‘CLICK’ ‘CLICK’...

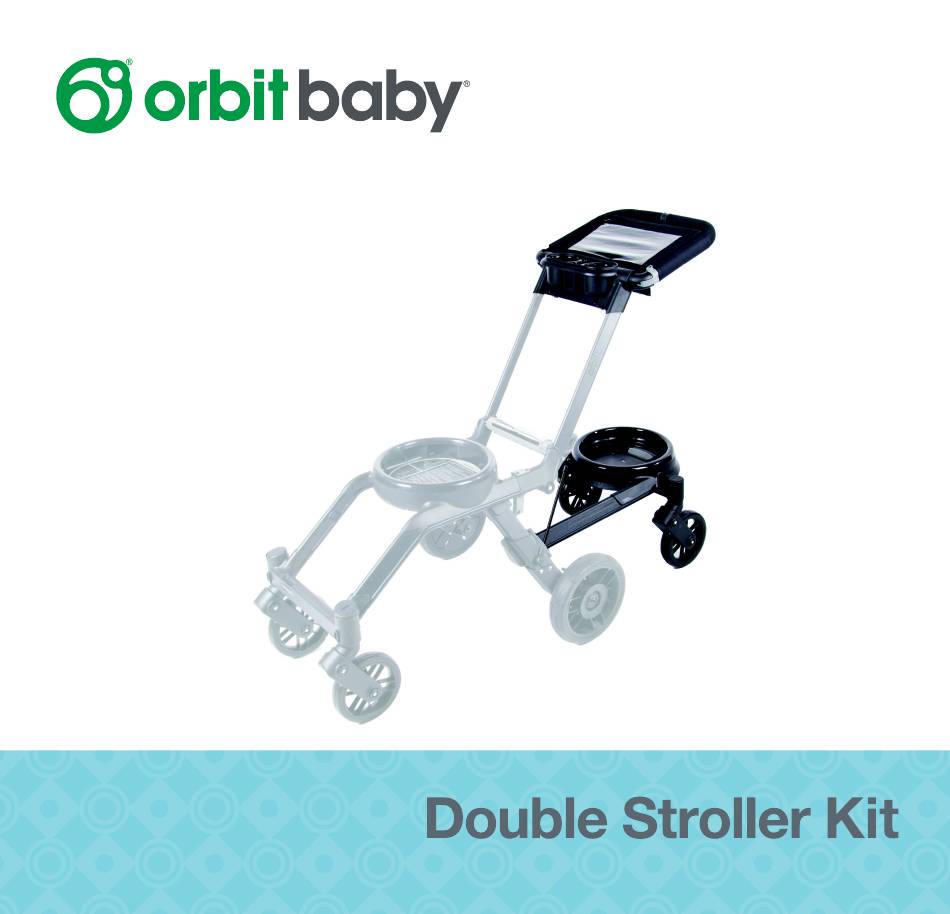

  • Page 9 ® ® Double Stroller Kit...
  • Page 10 2 – ENGLISH – Manual Text Booklet – Orbit Baby Double Stroller Kit...
  • Page 11 Your children's safety may be affected if you do not follow these instructions. The Orbit Baby Double Stroller Kit is made up of seven parts, the Rear SmartHub Attachment, the Stroller Unibar, two stroller frame leg connectors, two sets of stroller rear wheel disks, and a ShadePad.
  • Page 12 4 – ENGLISH – Manual Text Booklet – Orbit Baby Double Stroller Kit ShadePad™ Ⓐ Ⓗ Unibar Philips screws Ⓑ Ⓘ Unibar levers Ⓙ water bottle tray twist grip Ⓒ fold lock Ⓓ Ⓚ release lever Ⓛ curb step front SmartHub™...
  • Page 13 FAILURE TO FOLLOW THESE WARNINGS AND THE INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH ◦ Do not let others use the Orbit Baby Double Stroller Kit or other connected Orbit Baby products unless they understand how to properly use them. ◦...
  • Page 14 To lift the stroller onto the curb, pull back on the handlebar and push forward with one foot on the Double Stroller Kit Attachment curb step to lift the stroller onto the curb. Do not allow the stroller to drop off the curb.
  • Page 15 Getting Started Remove all the parts from the box. You should have received a Double Stroller Kit SmartHub Attachment, two (2) Double Stroller Kit SmartHub Attachment wheels, a Unibar, two (2) stroller frame leg connectors, a set of stroller rear wheel disks, and a ShadePad. These parts are illustrated in your manual foldout.
  • Page 16 8 – ENGLISH – Manual Text Booklet – Orbit Baby Double Stroller Kit ⚠ Installing your new Unibar ⚠ WARNING ◦ Proper assembly is required. Check that Unibar is properly installed and screws are tight. ⃞ Remove the two loose Phillips screws from the metal clamps in the bottom of the Unibar assembly;...

  • Page 17: Fall Hazard

    Pull backwards on the Double Stroller Kit SmartHub Attachment and check that the red warning triangles on both sides are NOT visible. ⃞ Insert the two Double Stroller Kit SmartHub Attachment wheels Ⓞ. You will hear a CLICK when they are locked in place.
  • Page 18 10 – ENGLISH – Manual Text Booklet – Orbit Baby Double Stroller Kit ⃞ Check that the Double Stroller Kit SmartHub Attachment is fully locked into the stroller frame by letting go of the release lever and pulling back on the attachment. You should not see the red warning triangles or be able to remove the attachment.

  • Page 19: Pinch Hazard

    ◦ Listen for audible CLICK which indicates that seats are locked into the SmartHubs. ◦ Always check that the Orbit Baby seats are securely locked into the SmartHubs by tugging upwards and turning. ◦ Lock the stroller wheels and check stability of the stroller before placing your children in or removing your children from seats.
  • Page 20 12 – ENGLISH – Manual Text Booklet – Orbit Baby Double Stroller Kit ⚠ ⚠ WARNING ◦ Always make sure that the seat is locked in forward-facing position [front and rear SmartHubs] or rear-facing position [front SmartHub] before strolling. Side-facing locked positions are for stationary use only.
  • Page 21 Manual Text Booklet – Orbit Baby Double Stroller Kit – ENGLISH – 13 ⃞ The Orbit Baby bassinet, infant car seat, stroller seat or toddler car seat can be used on the front SmartHub. The bassinet, infant car seat and toddler car seat will lock in four rotational positions.
  • Page 22 ⃞ Lift the front wheels over the curb by pushing forward with one foot on the curb step Ⓛ of the Double Stroller Kit SmartHub Attachment and pulling back on the Unibar with both hands. ⃞ Push forward to get the remaining wheels up the curb.
  • Page 23 ◦ Keep child's hands clear of all moving parts when making adjustments or docking the seat. ⃞ Remove the Double Stroller Kit SmartHub Attachment by grasping the release lever Ⓝ and pulling back. ⃞ Set the Unibar in the single position by fully opening both Unibar levers Ⓙ, pushing the Unibar forward, and locking the Unibar levers closed.
  • Page 24 ⃞ The fold lock Ⓔ will engage when the stroller is fully folded. You will hear a CLICK. ⃞ To ensure the most compact folded dimensions, place the stroller frame so that the Unibar is facing up and the Double Stroller Kit SmartHub Attachment lies on top of the folded frame.
  • Page 25 ⃞ Remove both of the stroller front wheels by twisting the release cap Ⓖ and pulling down on the wheel. Fold the stroller frame. ⃞ Remove both of the Double Stroller Kit SmartHub Attachment wheels by pressing the release button Ⓠ and pulling down on the wheel. Nest the stroller and Double Stroller Kit SmartHub Attachment. Cleaning Avoid excessive exposure to sun or heat, which may cause fading or warping.
  • Page 26 18 - NOTES...
  • Page 27 NOTES - 19...
  • Page 28 ® www.orbitbaby.com ORB300069 | Rev.1.0 | 2016FEB ©2016 Orbit Baby, Inc. All rights reserved.
  • Page 29 Warranty and Contact Information ENGLISH Double Stroller Kit...
  • Page 30 • What Orbit Baby will do: If you believe the product is defective, please return it to Orbit Baby in the manner described below within the limited warranty period. If Orbit Baby determines a defect is covered by this limited warranty, Orbit Baby will, at its option, repair or replace the product or components of the product.
  • Page 31 This limited warranty gives you specific legal rights, and you may have other rights which vary from state to state. • What you must do to get service under this limited warranty: To make a claim under this limited warranty, you must first contact Orbit Baby. Please write to: Orbit Baby, Inc. 8678 Thornton Ave.
  • Page 32 ORB380041 | Rev. 1.0 | 2016FEB ©2016 Orbit Baby, Inc. All rights reserved. ORBIT BABY ® and related logo, PAPARAZZI SHIELD ® SMARTHUB ® are registered trademarks of Orbit Baby, Inc. in the United States and certain other jurisdictions.
