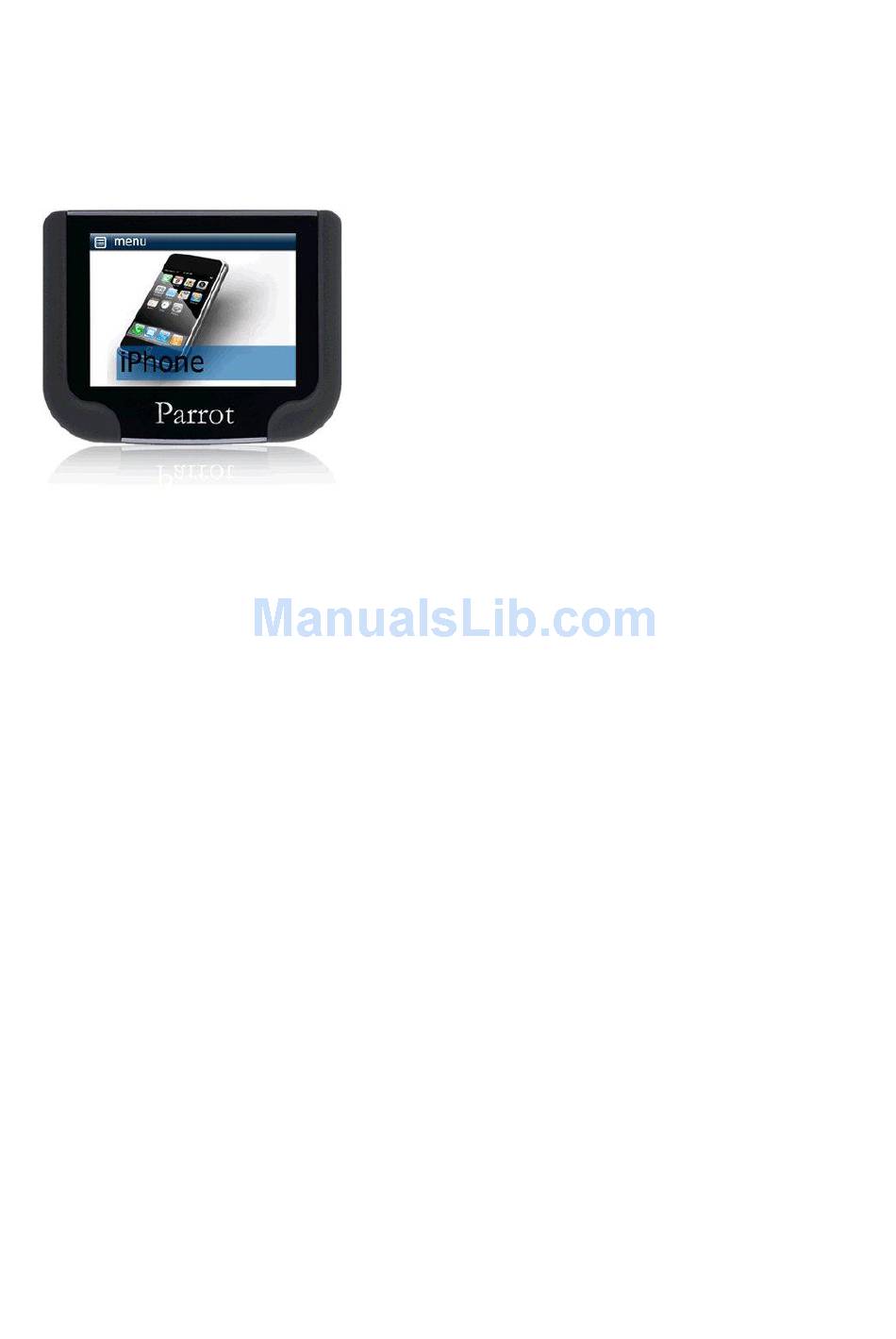

  • Page 1 Parrot MKi9200 User guide...

  • Page 2: Table Of Contents

    Commands ..........................12 Using the vocal menus ........................ 13 Establishing a Bluetooth connection with a phone ................13 Using a phone with the Parrot MKi9200 for the first time ............13 Managing Bluetooth devices ....................... 14 Synchronizing the phonebook ....................... 15 Display parameters ..........................
  • Page 3 Using the Parrot MKi9200 with an SD card ................. 27 Using the Parrot MKi9200 with a USB peripheral ............... 28 Using the Parrot MKi9200 with an audio player connected via Bluetooth ........28 Using the Parrot MKi9200 with an analogue audio player ............29 Commands ............................

  • Page 4: Installation

    Installation WARNING: We advise our customers to have the Parrot MKi9200 fitted by a professional. Before you begin Checking the car configuration  The cables supplied with the kit feature ISO connectors and two pairs of line-out jacks. The line-out jacks can be used if your audio system features this option (use of an amplifier).

  • Page 5: Installing The Kit

    Car stereo with ISO connectors 1. Connect the male connectors of the hands-free kit to the car stereo. 2. Join the vehicle‟s audio and power supply cables to the female connectors of the Parrot MKi9200. 3. On the installation cable, connect the free yellow wire to one of the audio system‟s corresponding mute-in jacks if available (mute in 1, mute in 2 or mute in 3).

  • Page 6: Car Stereo With Line-In

    Car stereo with line-in  Use this type of connection by wiring the line-out (brown & white wire or red & black wire) to your car stereo‟s line-in.  Using the two pairs of line-out will enable you to take advantage of the music function in stereo over your vehicle‟s speakers.

  • Page 7: Installing The Kit"S Power Cable

    Checking the wiring  To perform the installation check, turn the ignition on then off once the Parrot MKi9200 is installed: the message “Goodbye!” must be displayed. ...

  • Page 8: Installing The Individual Components

    Installing the individual components Installing the double microphone Selecting a In order to get hi-quality conversations, we advise you to respect the following recommendations: location  Make sure the microphone is installed as close to the mouth of the user as possible.

  • Page 9: Installing The Remote Control

     Make sure the microphone is not exposed to the air stream from air vents.  Do not install the microphone cable in heating, ventilation or air conditioning systems.  Be careful of the side airbags and SRS systems while running the microphone cable.

  • Page 10: Installing The Screen

    Installing the remote If you want to place the remote control on the dashboard, stick the double- sided tape located on the flat side of the bracket to fix it against the control on the dashboard. You can then insert the remote onto the bracket. dashboard WARNING: Once you have stuck the support on the dashboard, wait...
  • Page 11 Avoiding theft Remember to remove your screen when leaving the vehicle to avoid tempting any would- and sunlight be thieves and to prevent prolonged exposure to sunlight. exposure...

  • Page 12: Getting Started

    Navigating through the menus Associating the remote control to the electronic box If the remote control doesn‟t seem to be associated to the electronic box while using the Parrot MKi for the first time, press several times the button while holding down the buttons until the «Pairing remote control»...

  • Page 13: Using The Vocal Menus

    Using a phone with the Parrot MKi9200 for the first time Adjusting the kit Before pairing your phone with the Parrot MKi9200, make sure that it is visible visibility by all Bluetooth ® devices. To do so press the jog wheel and select Settings >...

  • Page 14: Managing Bluetooth Devices

    Connecting an The Parrot MKi9200 automatically connects itself to the last phone you already used used with it. If you want to connect the Parrot MKi9200 to another phone phone you already paired: 1. Press the jog wheel and select Settings >...

  • Page 15: Synchronizing The Phonebook

    Synchronizing the phonebook Only contacts stored in the memory of the phone will be synchronised in the kit’s memory. Note : Automatic With most of the Bluetooth phones, the phonebook is automatically synchronized in the kit‟s memory. Refer to the synchronisation compatibility section of our website for more...

  • Page 16: Display Parameters

    3. Press the jog wheel to confirm. Changing the wallpaper You can change the wallpaper of the Parrot MKi9200 by selecting one of the wallpapers proposed by default. You can also customize it by sending a photo directly to the kit.
  • Page 17 Deleting a wallpaper To delete a picture sent to the Parrot MKi9200 as wallpaper, press the jog wheel and select Settings > Display > Wallpaper > Custom > Delete.

  • Page 18: Phone

    Note : The availability of some functionality only depends on the model of your mobile phone. Before using your Parrot MKi9200 telephone function, you first have to connect it with your phone / PDA. ► For more information,refer to the Establishing a Bluetooth connection with a phone section.

  • Page 19: Receiving A Call

    Receiving a call An incoming call is indicated by a ringtone. The name of the caller is announced if their details are stored in the phonebook of the phone connected to the Parrot MKi9200. Note : You can also associate a picture to a contact. This picture will be displayed each time you receive a call from this contact.
  • Page 20 Managing voice mail During a call, the Parrot MKi9200 allows you to send DTMFs to manage your voice mail for example. To do so : 1. Press the jog wheel to access the DTMF menu. > « 0 » is displayed by the kit.

  • Page 21: Using Voice Recognition

    1. Press the button to launch the voice recognition feature. one phone number > The Parrot MKi9200 asks you the name of the contact you want to call. 2. Say the name of the contact. > The call is automatically launched if the voice tag is correctly understood.

  • Page 22: Settings

     Calling a contact with If there are several phone numbers associated to the contact several phone you want to call, you can specify the type of number. numbers  To do so, the following vocal commands are available: - Home - Work - Mobile - Other...

  • Page 23: Call

    Making an You can configure the Parrot MKi9200 to add a prefix while making a call international call from or towards a foreign country. To do so: 1.

  • Page 24: Activating The External Noise Elimination

    Activating the external noise elimination  In order to improve the listening comfort of your conversation, the Parrot MKi9200 allows you to tone down the noise from outside your car (motorcycles, trucks) if your window is open.  To activate / deactivate this setting, press the jog wheel and select Settings >...
  • Page 25 effect deactivated – Microphone misplaced Lateral noise detection...

  • Page 26: Music

    Now Playing screen. Using the Parrot MKi9200 with an iPod / iPhone WARNING: Make sure your iPod is updated before using it with the Parrot MKi9200.  Compatibility If you are using the Parrot MKi9200 with the iPod Mini, iPod Photo, iPod 3G and iPod Shuffle, then connect your iPod to the Parrot MKi9200 using the Jack cable.

  • Page 27: Using The Parrot Mki9200 With An Sd Card

    Transferring music 1. Insert the SD card into the appropriate slot. files onto an SD 2. Connect the Parrot MKi9200 to your computer using a USB / mini-USB card cable. 3. Copy your music files in MP3 or WMA formats as if it was a USB flash drive.

  • Page 28: Using The Parrot Mki9200 With A Usb Peripheral

    Using the Parrot MKi9200 with a USB peripheral WARNING: If your Parrot MKi9200 is connected to an iPhone and an USB flash drive, the iPhone has priority: you can only browse through your iPhone content. 1. Connect the USB flash drive or the MP3 player using the USB cable.

  • Page 29: Using The Parrot Mki9200 With An Analogue Audio Player

    Note : Volume for calls and for streaming audio work separately. Using the Parrot MKi9200 with an analogue audio player 1. Connect your audio player to the Parrot MKi9200 using the Jack connector. 2. Press the jog wheel and select Line 3.

  • Page 30: Settings

    If no picture is included in the tags of your audio files (MP3 ID3v2), you can to an album add a picture in .jpg format in the corresponding folder. If various pictures are in this folder, the Parrot MKi9200 primarily displays the “cover.jpg” one. WARNING : The picture size needs to be less than 1Mb.
  • Page 31 MKi9200 to repeat songs 2. Activate or deactivate the option by pressing the jog wheel. Note: If you are using the Parrot MKi9200 with an iPod, select Audio effects > Settings > Repetition (iPod). Modifying this option on the Parrot MKi9200 will not modify your iPod settings.
  • Page 32 Settings > Audio > Mute on Streaming. Press the jog wheel to deactivate this option.
