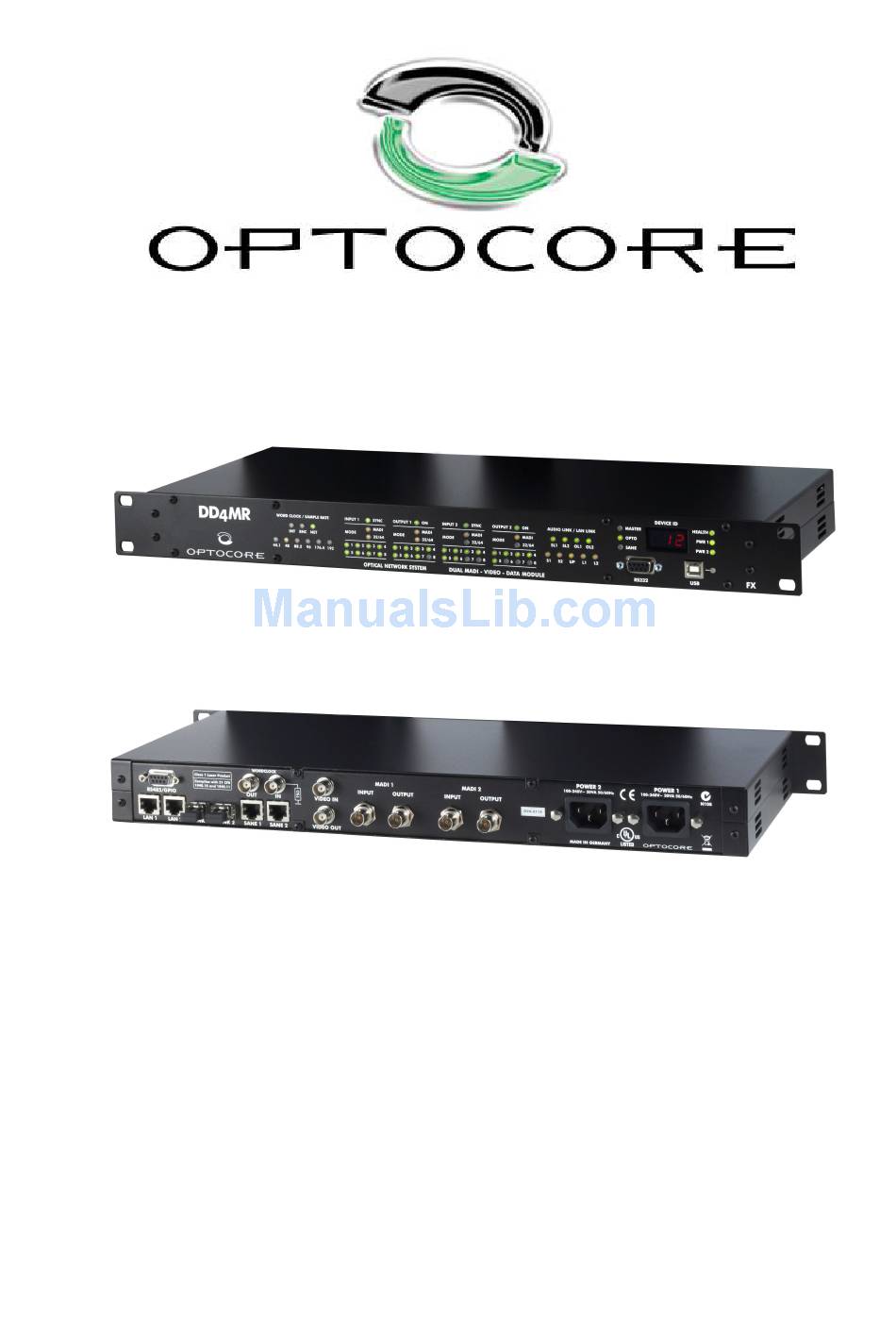

- Page 1 Operating Manual for OPTOCORE DD4MR-FX DUAL MADI / SANE / VIDEO / DATA MODULE WITH ETHERNET Optical Digital Network Device © Copyright 2015 All rights reserved OPTOCORE GmbH Lohenstr. 8 82166 Munich-Gräfelfing Germany DD4MR-FX Operating Manual Rev. 2.1...
- Page 2 Page intentionally left blank.
-
Page 3: Important Safety Instructions
• Never switch on power amplifiers before the complete system is stable and the level meters of the OPTOCORE CONTROL software indicate a normal level. • Do not place this device on an unstable table, tripod, cart, etc. The device may fall, causing serious damage to the device. -
Page 4: Purchaser Information
Leave sufficient space (minimum ½ RU) between the device and any heat emitting devices housed in the same rack. A DD2FR-FX may be placed on top or beneath other Optocore products,. except a DD32E, without additional space for up to 4 adjacent rack spaces. - Page 5 Never push objects of any kind into the device through openings in the casing. They may come into contact with dangerous voltage points or short out parts that could result in fire or electric shock. Never spill liquid of any kind on the device. DD4MR-FX 5 / 21 rev. 2.1...
- Page 6 Such operation can lead to damage of the device’s components due to lack of air-flow through the device. The device may not be serviced, altered or modified without authorization from Optocore or an Optocore authorized distributor / dealer. Only qualified service personnel may carry out repair and maintenance work on the device.
-
Page 7: Ce/Fcc-Conformity
Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at his own expense. Changes or modifications not expressly approved by Optocore GmbH could void the user’s authority to operate this equipment. - Page 8 Page intentionally left blank.
-
Page 9: Table Of Contents
DD4MR-FX – DUAL BNC MADI device for Optocore and SANE Table of Contents Important Safety Instructions ........................... 3 Purchaser Information.............................. 4 CE/FCC-Conformity ..............................7 Device Description ..............................10 Front Panel ................................11 Rear Panel................................12 Device Details ................................ 13 Optocore Fibre Optic Connection ....................... 13 MADI Ports .............................. -
Page 10: Device Description
The DD4MR-FX enables connectivity to the SANE network via RJ45 ports. It is possible to use SANE as a Cat5 based cost-efficient extension to the optical core system. SANE ports may be used as point-to-point MADI over Cat5 or as a bridge interface between SANE and OPTOCORE, providing in total up to 128 input and 128 output additional channels. -
Page 11: Front Panel
SL1: Communication is established via SANE 1 (rear panel) SL2: Communication is established via SANE 2 (rear panel) OL1: Communication is established via Optocore LINK 1 (rear panel) OL2: Communication is established via Optocore LINK 2 (rear panel) System status... -
Page 12: Rear Panel
RS485/GPIO plug: 4 x RS485/RS422 (D-Sub-9) auxiliary port for data transmission Word Clock IN: BNC Word clock input allowing synchronization of Optocore devices/network from an external word clock source Word Clock OUT: BNC Word clock output for synchronization of external devices... -
Page 13: Device Details
The user is free to decide how many channels are needed for the transport of MADI in groups of eight. LEDs on the front panel of the DD4MR-FX indicate the number of channels received at the MADI input ports. -
Page 14: Power Supply
Transmission Delay The Optocore system delay including the matrix is fixed to 41,6 µs @ 48 kHz for all channels. The additional transport delay per Optocore unit (<200 ns) in the network is insignificant in comparison. Overall system delay is dependent on the converters used and the length of network cables in the system. -
Page 15: Sane Bandwidth Allocation
SANE bandwidth allocation The standard bandwidth allocation of a SANE link is as follows: Audio 64 Channels @ 48 KHz Ethernet 100 MBit Fast Ethernet DD4MR-FX 15 / 24 rev. 2.1... -
Page 16: Connectors And Cables
> 40 dB between 30 MHz up to 1 GHz. The shield of the cable should have contact to the connector hood. USB-Connection Use a USB-A to USB-B cable between PC and Optocore device. LAN-Connection Use standard twisted-pair-cable (Cat-5, Cat-6) with RJ-45 connector. -
Page 17: Hardware Connection
During the self-configuring of the network the system word clock master will be automatically determined as indicated down under Optocore Network Setup – General . If the DD4MR-FXs and other Optocore devices are previously configured, the network is ready to work. With a PC connected to any unit in the loop and by running the OPTOCORE CONTROL software, the network may be analyzed, supervised, parameters may be changed and the matrix can be accessed for signal-routing. -
Page 18: Network Examples
Network Examples DD4MR-FX devices can be used as a fibre optic extender for BNC MADI based devices or as a extender for consoles which use BNC based MADI (e.g. AVID – requiered special firmware version). Configuration below shows how to transport MADI stream from console or other MADI interface to remote located recording system using redundant fiber connection. - Page 19 Connection diagram below shows how to use OPTOCORE devices as a I/O for 3 party producers consoles. DD4MR-FX can pick up the channels directly from the stage and integrate them with the console using BNC MADI connectivity. Fig. 4: Redundant network with one DD4MR-FX and X6R SANE-based stagebox. 48 analog inputs and 16 analog outputs are available at the X6Rs.
-
Page 20: Connection Tables
Power Internally Channel Bridged Use 1-modem cable, male – female, to +5VS connect to PC 1, 4, 6 7, 8 D-Sub-9- female Locking system acc. to 4-40 UNC Pin-out USB-Port Channel USB device-connector VBUS DD4MR-FX 20 / 24 rev. 2.1... - Page 21 BI-C Cable The D-Sub-9 BI-C enables the bi-directional transmission of control data between DD4MR-FX and Yamaha HA Remote port. The RS485 Ports 3 and 4 of the DD4MR-FX are used. DD4MR-FX Auxiliary Port 4 x RS485 COM RS422 X3...X4: I/Os...
-
Page 22: Technical Specifications
USB 2.0 - Device 12 Mbit/s TIA-568A/B, IEEE - 802.3 10/100 Mbit/s SANE, LAN Convention Audio TIA - 568A/B, Optocore 200 Mbit/s TIA - 568A/B, IEEE - 802.3 10/100 Mbit/s Optical Connection Complies with 21 CFR 1040.10 and 1040.11 Power supply... -
Page 23: Warranty And Liability
The warranty will be void if you tamper with internal components. Please address any questions or inquiries to OPTOCORE or your distributor/dealer. For a full warranty conditions refer to the Warranty Card attached to every Optocore device with a first shipment. How to Obtain Warranty Service When discovering a problem with an OPTOCORE device, you should contact either Optocore directly or a dealer/distributor to determine and confirm a hardware fault. -
Page 24: Shipping Contents
Shipping Contents The standard shipment of a DD4MR-FX unit contains the following: • 1 DD4MR-FX unit • 1 operators manual • 1 fibre patch cable LC-LC • 2 power cables (according to number of PSU units installed) Any additionally purchased equipment such as optical wave-guide cables in required lengths, D-Sub cables and adapters, RS232 cables, and international electric cables which have been supplied on your request and your purchase order, cannot be listed above.
