Summary of Contents for Optocore AutoRouter

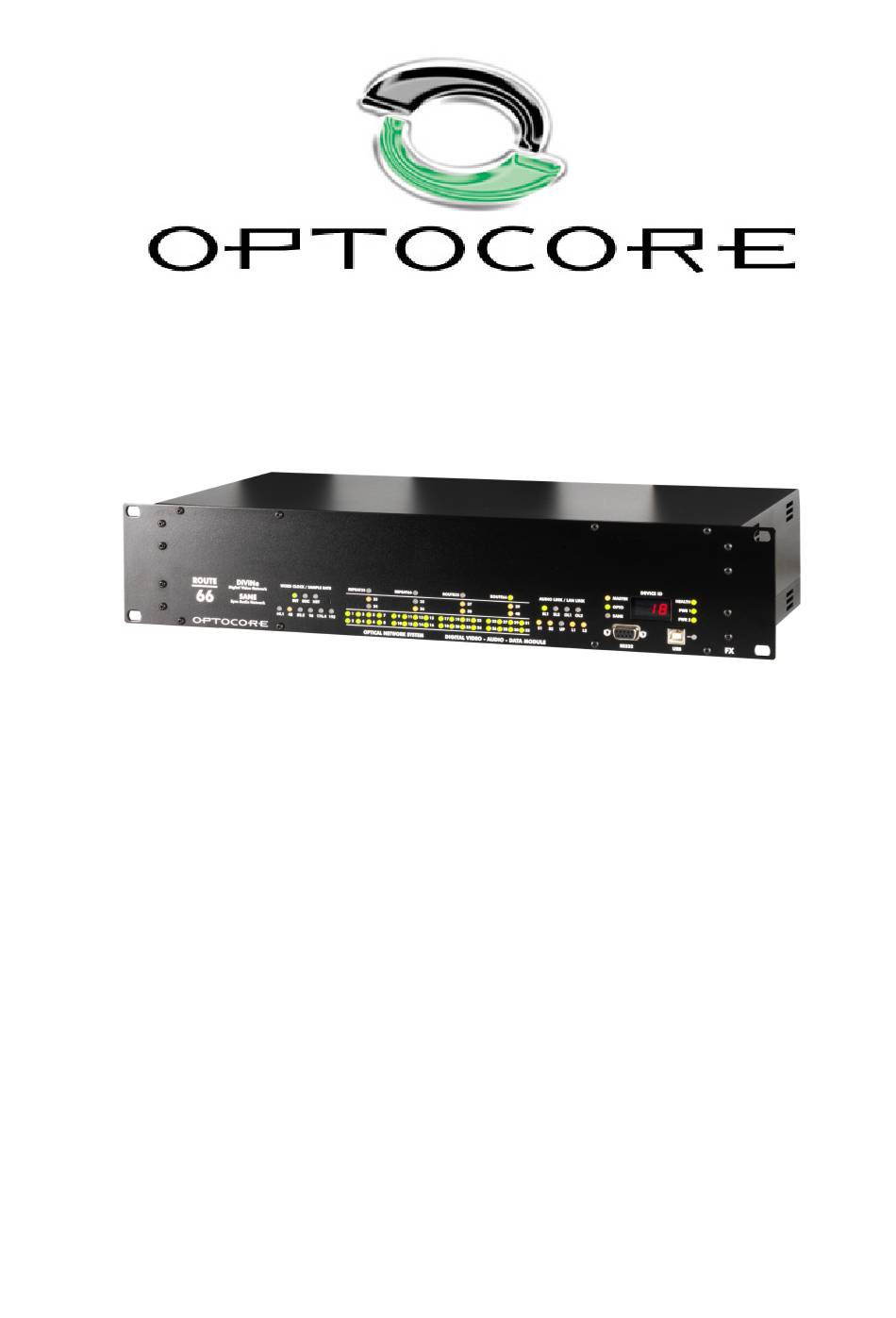

- Page 1 Quick Start Guide for OPTOCORE AUTOROUTER © Copyright 2019 All rights reserved OPTOCORE GmbH Lohenstr. 8 82166 Munich-Gräfelfing Germany OPTOCORE AUTOROUTER Quick Start Guide Rev. 1.0...
- Page 2 Page intentionally left blank.
-
Page 3: Device Description
Congratulations on your purchase of Optocore AutoRouter Optocore Autorouter is a plug-and-play solution that is ready to be used straight from the box. It does not require any initial setup or configuration. It contains pre-programmed special firmware stored in the device. The firmware is not related to any externally connected devices or their firmware. - Page 4 15,16) Optocore Autorouter will patch with the following order: 2 -> 7, 8 -> 15, 16 -> 1. All inactive ports are skipped. Once another device is added in SLOT 3 (ports 5,6) the Autorouter will reroute to: 2 -> 5, 6 -> 7, 8 -> 15, 16 ->...
- Page 5 13,14). Optocore Autorouter will make the following cross-points: 6 -> 9, 10 -> 11, 12 -> 13, 14 -> 15, 16 -> 5. If stagebox is moved to Wall Box #3, which connects to SLOT 1, the patching in Autorouter will change automatically to: 2 ->...
- Page 6 Example 1. Please note that due to Yamaha TWINLANe IN and OUT port layout the connection to Autorouter odd and even ports should be done in proper order – all IN should be connected to odd while all OUT should connect to even ports.
- Page 7 EXAMPLE 3 AVID AVB connectivity is also supported by Optocore Autorouter, which is shown on the third example . Connection scheme is similar as in Example 1. Here again the Autorouter connections should follow the proper order for A and B ports in Avid – A to even, B to odd ports within a SLOT.
-
Page 8: Company Information
Company Information Mailing Address: OPTOCORE GmbH Lohenstr. 8 D-82166 Munich-Gräfelfing Germany Telephone: +49 – (0)89 – 8999640 Facsimile: +49 – (0)89 – 89996455 Internet: www.optocore.com Email: OPTOCORE AUTOROUTER 8 / 8 Quick Start Guide rev. 1.0...
