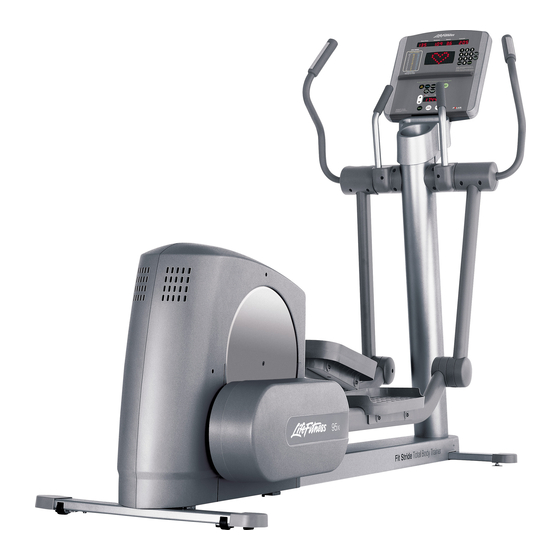

- Page 1 ARCTIC SILVER CROSS TRAINER 95X-0XXX-02 Customer Support Services PARTS MANUAL rev 31 Jul 2008...
- Page 2 ARCTIC SILVER 95Xi REFERENCES OPERATION MANUAL SERVICE MANUAL TOUCH UP PAINT: SPRAY CAN .5 OZ BOTTLE W/APPLICATOR .33 OZ PEN HARDWARE BAG PLUG IN OPTION 120/60 PLUG IN OPTION 240/50 UK PLUG IN OPTION 240v AUS PLUG IN OPTION230/50 CONT. DESCRIPTION CABLE-TIE: L=3-7/8’’...
-
Page 3: Table Of Contents
ARCTIC SILVER 95Xi 95X-0XXX-02 CONTENTS S/N ACJ100000 and up Page CONSOLE SUPPORT & DEADSHAFT COVERS ...4 HANDLEBARS AND BULLHORNS ...5 CONSOLE AND RELATED COMPONENTS...6 UPPER FRAME HARDWARE ...7 ROCKER ARMS AND PEDAL LEVERS ...8 CRANK COVER AND LOWER CAPS ...9 LOWER FRAME SHROUDS AND HARDWARE...10 PEDAL LEVER COMPONENTS ...11 DRIVE MODULE COMPONENTS AND MAIN CABLE ...12... -
Page 4: Console Support & Deadshaft Covers
ARCTIC SILVER 95Xi Console Support & Deadshaft Covers Console Support AK62-00123-0000 Console Support Cap 0K62-01030-0000 Console Support Shroud 0K62-01023-0000 Console Support Grommet 0017-00042-0754 Right Inside Deadshaft Cover 0K62-01010-0000 Left Inside Deadshaft Cover 0K62-01011-0000 Front Inside Deadshaft Cover (2) 0K62-01009-0000 S/N ACJ100000 and up Right Bullhorn Cover 0K62-01007-0001... -
Page 5: Handlebars And Bullhorns
ARCTIC SILVER 95Xi Handlebars and Bullhorns Right Handlebar AK62-00086-0000 Medallion Bug AK58-00245-0000 Bug Adaptor 0K62-01034-0000 S/N ACJ100000 and up *Right Bullhorn AK62-00053-0001 Left Bullhorn AK62-00054-0001 HR Sensor Kit GK20-00002-0005 Left Handlebar AK62-00087-0000 Heart Rate Cable AK61-00051-0001 (one per handlebar) 95X-0XXX-02... -
Page 6: Console And Related Components
ARCTIC SILVER 95Xi Console & Related components Console Case with decal AK62-00142-0000 Programmed PCB A084-92219-A032 A084-92221-A023 (Jap) Lower Display Cable AK63-00038-0000 Polar Cable AK39-00063-0000 Overlay/Bezel/Switch (see chart below) CONSOLE AK62-00149-0001 AK62-00149-0003 AK62-00149-0004 AK62-00149-0006 AK62-00149-0007 AK62-00149-0008 AK62-00149-0009 AK62-00149-0010 Console Case Screws 0017-00101-1242 Polar PCB with receiver... -
Page 7: Upper Frame Hardware
ARCTIC SILVER 95Xi Upper Frame Hardware 4 - Console Mounting Screws 0017-00101-1796 6 - Console Support Mounting Screws 0017-00101-1791 Console Support Shroud Mounting Screws 0017-00101-1796 Inside Deadshaft Cover Screws 0017-00101-1796 (2 per side) Bullhorn Mounting Screws GK62-00002-0042 (kit includes 4 screws) Items Not Shown: Accessory Tray 0K62-01022-0000... -
Page 8: Rocker Arms And Pedal Levers
ARCTIC SILVER 95Xi Rocker Arms & Pedal Levers contents: Rocker Arms (2) Hardened Spacers (2) Oilite Washers (2) Retaining Rings (2) Loctite 620 Alcohol pad LF Bug Medallion Assy. AK58-00245-0000 Rocker Arms AK62-00002-0070 Shaft Collar w/Screws 0K61-01259-0000 Right Pedal Lever Assembly AK62-00236-0000 Left Pedal Lever Assembly AK62-00235-0000... -
Page 9: Crank Cover And Lower Caps
ARCTIC SILVER 95Xi Crank Cover and Lower Caps Front frame Cap 0K62-01004-0000 Mounting Screws (Located on front sides of Ladder Frame Cover) 2- 0017-00101-1795 Stabilizer Caps 4 - 0K62-01003-0000 95X-0XXX-02 S/N ACJ100000 and up Crank Cover 0K61-03100-0002 2 - Mounting screws 0017-00101-1837... -
Page 10: Lower Frame Shrouds And Hardware
ARCTIC SILVER 95Xi Lower Frame Shrouds & Hardware Leg Levelers AK62-00124-0000 Rocker Cover Kit (includes clip & screw) GK62-00002-0066 Mounting Screw 0017-00101-1796 Right Inside Rocker Cover 0K62-01037-0000 Right Inside Lever Joint Cover 0K62-01039-0000 Inside Pedal Joint Cover 0K62-01035-0000 Mounting Screw 0017-00101-1836 Rocker Cover Kit (includes clip &... -
Page 11: Pedal Lever Assembly Components
ARCTIC SILVER 95Xi Pedal Lever Assembly Components Control Link Kit GK62-00002-0071 (contains 2 control links, part nos. AK62-00384-0000) Left Pedal 0K62-01005-0000 Right Pedal 0K62-01006-0000 Pedal Mounting Hardware 4 - Screw - 0017-00101-1805 4 - Washer-0017-00104-0469 Pedal/Rocker Shaft & Bearings Order Kit GK62-00002-0001 E-Ring 0017-00100-0107 Thrust Washer... -
Page 12: Drive Module Components And Main Cable
ARCTIC SILVER 95Xi Drive Module components Flexonic Belt J8 0K62-01134-0000 Metric Poly-V pulley 0K35-01186-0007 Right Crankarm AK62-00204-0000 Poly-V Crank Pulley 0K61-02409-0000 Left Crankarm weld assembly Order Kit GK62-00002-0027 Crankshaft w/Bearings Kit GK62-00002-0028 Magnet/Standoff Assembly AK62-00186-0000 Resistor with harness assembly AK62-00171-0000 Battery 0017-00003-0685 Crankshaft Plate... -
Page 13: Drive Module Hardware
ARCTIC SILVER 95Xi Drive Module Hardware Alternator mounting bolt 0017-00101-0986 Resistor mounting rod 0K63-01166-0000 Cable mounting screws 0017-00101-1839 Cable mounting nuts 0017-00103-0159 Screw 0017-00101-1836 Washer 0017-00104-0465 Machine Key 0K53-01183-0000 Set Screws 0017-00101-1833 Thrust Washer 0K47-01104-0000 Alternator mounting bolt and nut 0017-00101-1793 0017-00103-0332 Crankarm nut... -
Page 14: Cables
ARCTIC SILVER 95Xi Cables Power Control Cable AK62-00092-0000 ORANGE POWER RES. 2 x .75 OHM RED/BLK 240W RED/BLK RED/BLK AC TAP GREEN Valt GREEN GREEN FIELD FIELD BLK/WHT YELLOW User Arm HR Cables AK61-00051-0001 4POS. MINI FIT JR. WHITE RT SIGNAL BLACK BLACK WHITE...
