Summary of Contents for AVS AVS S5

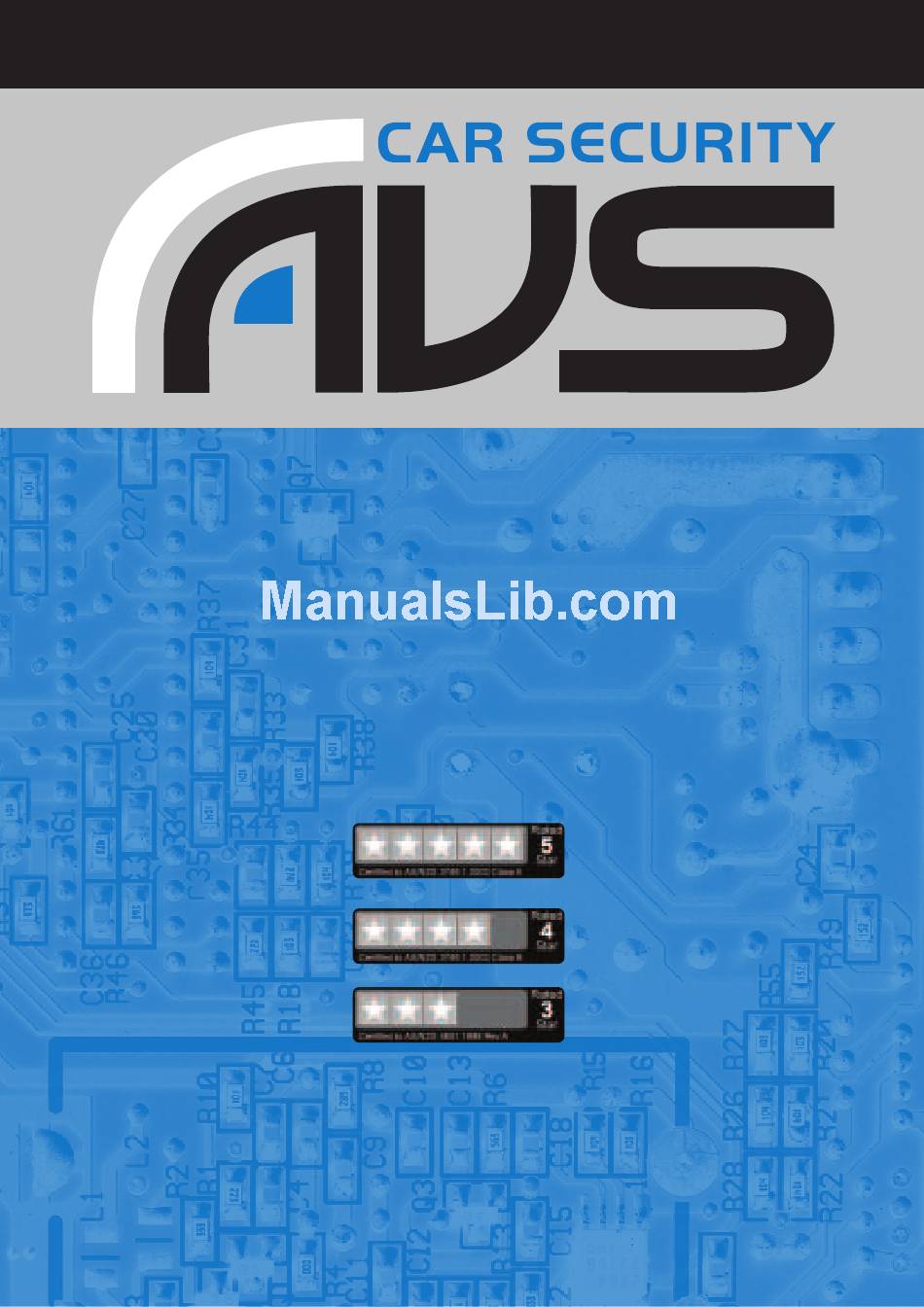

- Page 1 Owner’s manual for the AVS S-Series car alarm range Models: AVS S5 AVS S4 AVS S3 Owner’s manual version: Generation 2, V4...
-
Page 2: Remote Controls
The remotes are also waterproof in normal use conditions. Button Functions Used when As required A. With the addition of the AVS Garage Door receiver your AVS remote may be able to open/close your garage door. Learn more at avscarsecurity.com. A. ARMS alarm and locks doors... -
Page 3: Remote Batteries
DISARM not arm the system. Press it again to arm. The indicators will flash once and the siren will chirp once (AVS S5/S4) to confirm the system has armed. See auto-immobilisation for more information. -
Page 4: Alarm Trigger
ALARM TRIggER If a door, bonnet or boot is opened or a sensor is triggered (AVS S5/ S4) while the system is armed the siren will sound and the indicators will flash for 30 seconds. The system will then re-set itself. - Page 5 If you want to arm the alarm from the immobilised state you will need to press the button twice. The first press will disarm and the second press will arm the alarm. Panic/car finder (AVS S5/S4) 1. Ensure the car ignition is off. 2. Press the button for 5-seconds.
-
Page 6: Emergency Disarm
This will override the alarm whether it is armed or auto-immobilised. 1. Enter the vehicle. If the alarm is armed the siren will sound (AVS S5/S4). Turn the siren off with the siren key if required. 2. Make sure the bonnet and boot are shut. The doors can be shut or open. - Page 7 Data battery back-up siren • Included with the AVS S5/S4 and can be fitted to the AVS S3 for an additional charge. • Has its own battery and charging system so it will continue to sound if power is cut to it from the car. • Communicates with the alarm module via an independent data line to make it more difficult for a would be thief to disable it. SIREN kEyS The siren is supplied with two keys that fit the switch on the top of the siren.
- Page 8 Digital tilt sensor • Included with the AVS S5 and can be fitted to the AVS S4/S3 for an additional charge (the AVS S3 will also require a data battery back-up siren). • The digital tilt sensor sets itself to the angle you are parked on when you arm the alarm. If the car is tilted in ANY direction from one degree it triggers the alarm. Normal sensors like shock sensors will not protect the wheels so a tilt sensor is an essential upgrade if you have expensive tyres or mags.
-
Page 9: Optional Features
3. The engine will continue to run for a preset run time of 1, 2 or 4 minutes. 4. If the system detects an intrusion during the preset run time the system will immobilise the engine and the siren will sound (AVS S5/S4). 5. The engine can be stopped before the set time by pushing the button on the remote for 3-seconds. - Page 10 For more information talk with your AVS installer. CONTROL OTHER DEvICES wITH yOuR AvS REMOTE With the addition of an optional module your AVS alarm may be able to open/close your garage door, arm/disarm your house alarm or control many other common remote control devices.
-
Page 11: Glass Break Sensor
COuRIER FuNCTION Courier function allows the engine to continue running indefinitely while the system is armed. For more information talk with your AVS installer. 1. Leave the key on in the ignition with the car running and exit the vehicle. Make sure the doors, bonnet and boot are shut. - Page 12 Digital tilt sensor Essential protection for mag wheels. Will trigger if the car is tilted in any direction from 1 degree. The AVS S5 comes with a digital tilt sensor. glass break sensor Detects the sound frequency of breaking glass.
-
Page 13: Frequently Asked Questions
I get four chirps when I disarm the alarm instead of the usual two chirps? The system has been triggered. See your AVS installer if you would like a diagnosis of what has triggered the alarm as this can be retrieved from the system’s memory. - Page 14 www.avscarsecurity.com...
-
Page 15: Installation Details
3-year warranty Complete the information below and keep with your original receipt for the three year warranty period. Installation details: Date of Installation: Installer: Product Installed: Additional accessories: Alarm serial #: PIN code #: Siren key #: Your details: Surname: Initials: Address: Vehicle Rego #:... - Page 16 AVS and the AVS logo are registered trademarks of Manta Electronics Ltd Find us on Facebook www.facebook.com/avscaralarms www.avscarsecurity.com AVS is proudly owned and distributed by: PO Box 302 396, North Harbour North Shore 0751, New Zealand 00 64 9 476 8052 100% recycled paper...
