Summary of Contents for Eurotech ED-D60CM 12P WH

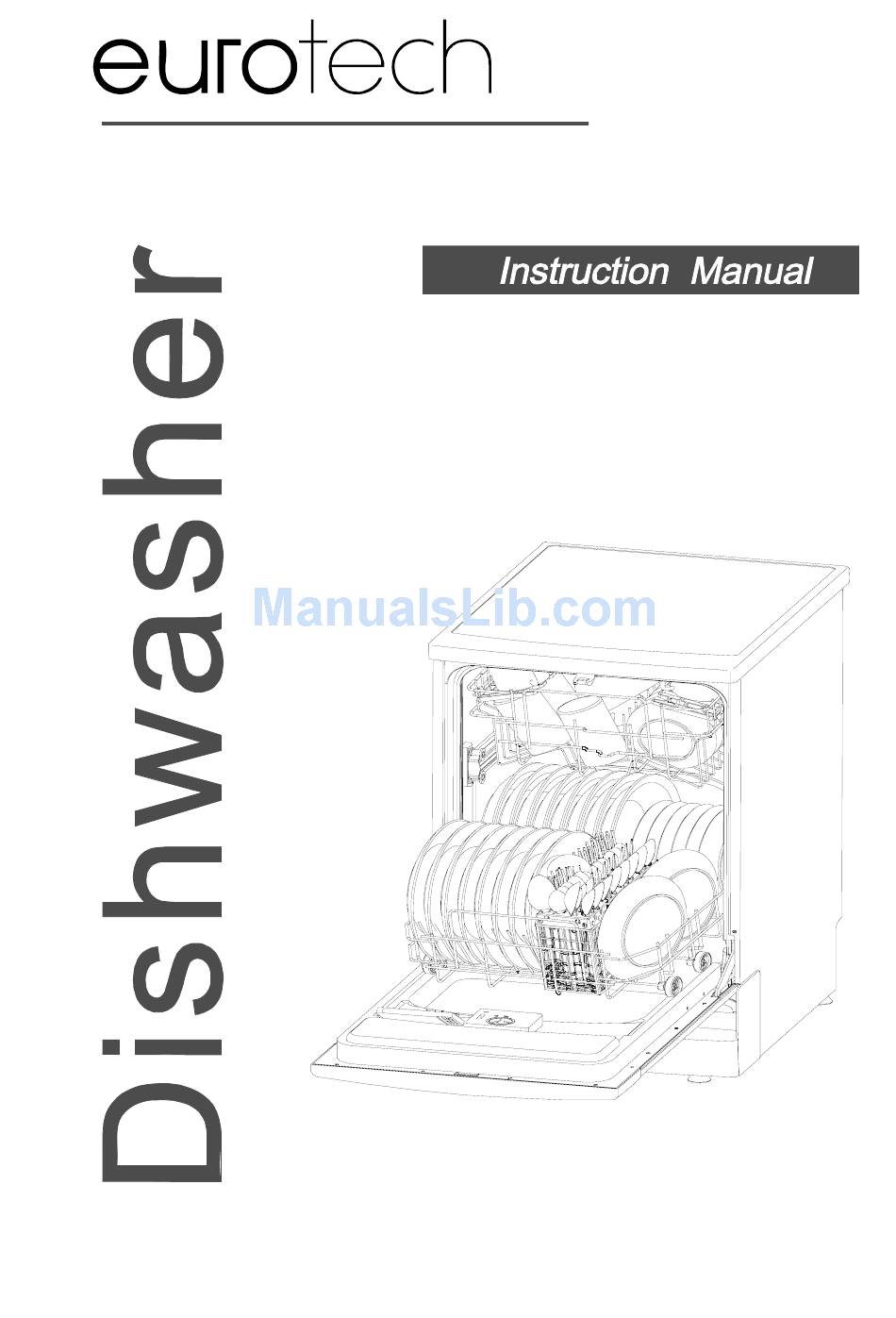

  • Page 1 ED-D60CM 12P WH, ED-D60CM 12P SS...
  • Page 2 For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Press the On/Off button to switch on the appliance, Open the door. Compartment Fill main-wash detergent. Compartment Fill the detergent dispenser Fill pre-wash detergent. (Follow the user instructions!) Mechanical indicator Check the rinse aid level...
  • Page 3 Dear Customer, Please carefully read this manual bef ore using the dishwasher, it will help you to use and maintain the dishwasher properly. Keep it to refer to it at a later date. Control Pan el...........2 Pass it on to any subsequent owner of the appliance. Dishwasher Features........
  • Page 4 When using your dishwasher, follow the precautions listed below: This appliance must be grounded. In the event of a Improper connection of the equipment-grounding malfunction or breakdown, grounding will reduce conductor can result in the risk of an electric shock. the risk of anelectric shock by providing a path of Check with a qualified electrician or service least resistance of electric current.
  • Page 5 To get the best performance from your dishwasher, read all operating instructions before using it for the first time. 3in1 1 H our Prog . St a r t /Res et O ff Heavy Normal Rapid Inten. Start /Reset button: To start the selected Po wer indicator light: To show the power supply.

  • Page 6: Rinse Aid Dispenser

    Before using your dishwasher for the first time: A. Fill the rinse aid disp enser B. Fill in detergent Rinse Aid Dispenser The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks.

  • Page 7: Adjusting Rinse Aid Dispenser

    Adjusting Rinse Aid Dispenser The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a p roblem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes are still not drying properly or are show spots, adjust the dial to the next higher lever until your dishes are spot-free.

  • Page 8: Amount Of Detergent To Use

    Amount of Detergent to Use If the lid is closed: press release button. T he lid will sp ring open. Always add the detergent just before starting each wash cycle. Only use branded detergent and rinse aid for dishwasher. Dishwasher detergent is corrosive! Take care to keep it out of reach of c hildren. Prop er Use of De terg ent Use only deterge nt specifically made for the use in dishwashers.
  • Page 9 Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low a temperature as possible. To prevent damage, take glass and cutlery out of the dis hwa sher as soon as possible after the program has ended.
  • Page 10 The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and sau cers, as well as plates, small bowls and shallow pans (as long as th ey a re not too dirty). Position the dishes and cookware so that they will not be moved by the spray of water.

  • Page 11: Adjusting The Upper Basket

    Adjusting the Upper Basket The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper/lower basket. The height of the upper basket can be adjusted by placing the wheels on different h eight of the rails. Long items, serving cutlery, salad servers and knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms.
  • Page 12 Means: need to fill rinse into the Rinse-Aid Dispenser. （ ℃ ） Pre-wash 50 （ ℃ ） Wash 50 For com monly soiled 3in1 3in1 1.30 15.0 Rinse loads,Use multifunctional （ ℃ ） Rinse 70 detergent Drying ℃ Pre-wash(50 ) For heaviest soiled Pre-wash ℃...

  • Page 13: Switch Off The Dishwasher

    When you press the Star t/Reset button to pause during washing, the program light will stop blinking and the dishwasher will mooing every minute unless you press the Start/Reset button to start. Premise: A cycle that is underway can on ly be modified if it has only been running for a short time. Otherwise, the detergent may have already been re leased, a nd the appliance may have already drained the wash water.

  • Page 14: Filter Assembly

    The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter,a flat (Main filter) And a microfilter(Fine filter). Main filter Fo od and soil particles trap ped in this filter are pulverized by a specia l jet on the lower spray arm and washed down to drain.

  • Page 15: Cleaning The Filter

    Remarks: - Inspect the filters for blo cking a fter e very time the dishwa sher has been used. - By unscrewing the coarse filter, you can remove the filter system. Re move any foo d remna nts and clean the filters under running water. The entire filter assembly should be cleaned once a week.
  • Page 16 When not in Use for a LongTime After Every Wash It is recommend that you run a was h cy cle with the After every wash, turn off the water supply to the dishwasher empty an d the n remove the plug from the appliance and leave the door slightly open so that socket, turn off the wa ter supply and leave the door of moisture and odours are not trapped inside.
  • Page 17 Improper connection of the equipment earthing conductor can result in the risk of an for personal safety: electric shock. DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE. Check with a qualified electrician or service representative if you are in doubt whether the DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING appliance is properly earthed.

  • Page 18: Water Outlet

    How to Drain Excess Water From Hoses If the sink is 1000mm higher from the floor, the excess water in hoses cannot be dra ined directly into the sink. It will be necessary to drain excess water from hoses into a bo wl o r suitable container that is held outside and lower th an the sink.
  • Page 19 Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker triggered appliances sharing the same circuit with the dishwasher Power supply is not Make sure the dishwasher is turned on and the door is closed securely. turned on Make sure the power cord is properly plugged into the wall socket.
  • Page 20 The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. The programme was Select a more intensive programme. not powerful enough. See" Wash Cycle Table . " Not enough detergent Use more detergent, or change your detergent. was dispensed.
  • Page 21 Height : 850mm Width : 600mm Depth : 580mm Voltage connected Load : see rating label Water pressure: 0.04-1.0MPa Power supply: see rating label Capacity: 12 Place settings...
