Dishwasher Owner's Manual
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
Version 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDW154E and is the answer not in the manual?

Questions and answers

Related Manuals for Eurotech EDW154E

Summary of Contents for Eurotech EDW154E

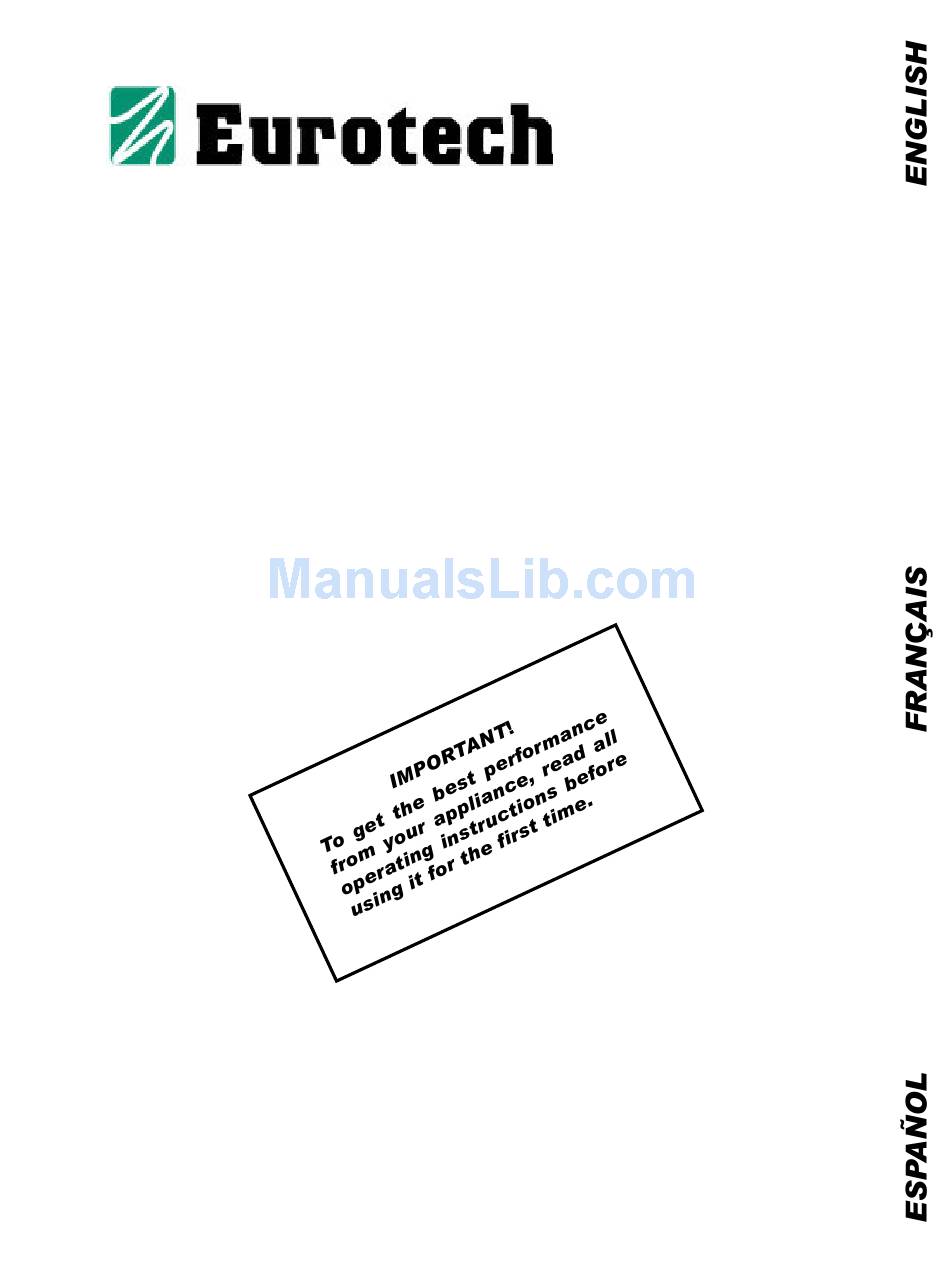

  • Page 1 Dishwasher Owner’s Manual SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE Version 4...

  • Page 2: Table Of Contents

    Dishwasher Features Dishwasher Dimensions Installation Instructions Loading the Dishwasher Detergent Dispenser Rinse Aid Dispenser Model EDW132C Operating Instructions Model EDW154E Operating Instructions Model EDW174E Operating Instructions Model EDW194E Operating Instructions Care and Maintenance Overfill Protection Solutions to Common Dishwashing Problems Troubleshooting...

  • Page 3: Important Safety Instructions

    HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for two weeks, before using the dishwasher turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

  • Page 4: Dishwasher Features

    Your new dishwasher features our EuroStyle™ wash system. This means that after the prewash, the water is drained out and the main wash starts with clean water. If you plan to start your dishwasher right away, it’s not necessary to rinse the dishes. You do, however, need to scrape off the large particles of food before loading.

  • Page 5: What You Need

    If a dishwasher is being installed in this area for the first time, most of the cabinet work, plumbing, and electrical has to be done before you move the machine into place.
  • Page 6 3. Using 2-1/2” squeeze clamps, secure the fill strip to the installation lip, as illustrated below. 4. Fasten the fill strip to the dishwasher using the four 3/4” screws supplied with the unit in the holes on the installation lip.

  • Page 7: Adjusting The Leveling Legs

    5. Grip the unit at the top or side edges and gently slide the unit into the dishwasher opening using the slide cups provided with the unit. WARNING! Never use your knee or shoulder to push the unit in place.

  • Page 8: Fastening The Dishwasher To The Cabinet

    FASTENING THE DISHWASHER TO THE CABINET It’s necessary to fasten the dishwasher to the cabinet so it won’t tilt when the door is opened or if something heavy is placed on the door. Use only the screws provided with the machine. The dishwasher can be fastened to the cabinet on the top, at the sides, or both, depending on the type of installation.

  • Page 9: Technical Data

    The dishwasher comes with a 5-foot PEX water supply line that has a 3/8" NPT female connection. Be sure to insert the black rubber washer (enclosed in the hardware package) into the PEX hose connection before you attach it to the water supply.

  • Page 10: Drain Connections

    CONNECTIONS: Failure to provide the proper drain connection height (minimum of 20" (508 mm)) above the bottom of the dishwasher base) or a 20" (508 mm) high loop will result in improper drainage, which will damage the machine. No part of the drain hose should be higher than 35" (889 mm) from the bottom of the dishwasher.

  • Page 11: Electrical Connections

    There should be an opening through the partition between the opening for the dishwasher and the area under the sink that is large enough for the power cord to pass through. This opening should not be more than 1-1/2” (38 mm) in diameter and the edges should be smooth and rounded.

  • Page 12: Testing For Leaks

    TESTING FOR LEAKS 1. Turn on the water supply and check for leaks. 2. Turn the power on at breaker/fuse box and test the dishwasher operation by running a Rinse cycle. (This should take about four minutes.) 3. Turn off the electrical power and check for leaks under the dishwasher and sink.
  • Page 13 For this installation, we recommend that you install the 2” fill strip (see page 6) that comes with the unit to hide the top of the dishwasher and further reduce water noise. NOTE: Do not fasten the dishwasher to the cabinet until after you have installed the door panel. Remove the custom panel and parts from the packaging.
  • Page 14 This installation also leaves a 2” gap between the top of the dishwasher and the cabinet. We recommend that you install the 2” fill strip that comes with the unit between the upper edge of the dishwasher and the counter to hide the top of the dishwasher and further reduce water noise.
  • Page 15 WOOD PANELS THE SAME HEIGHT AS THE DISHWASHER DOOR (23-1/4”) If the custom panel is the same height as the dishwasher door, a 2” decorative fill strip or pull-out cutting board must be used to fill the area between the panel and the counter top (as illustrated at right).

  • Page 16: Loading The Dishwasher

    You can pull the upper basket all the way out of the dishwasher. To do so, pull it out until it stops, then tilt it up then out, as illustrated below. ADJUSTING THE UPPER BASKET You can adjust the height and slant of the upper basket.

  • Page 17: Loading The Lower Basket

    (See page 32.) CUTLERY CADDY Models EDW154E, EDW174E, and EDW194E come with a cutlery caddy that snaps down over the entire cutlery basket. This lid is ideal for keeping small, lightweight items safely in the cutlery basket. The cutlery...

  • Page 18: Detergent Dispenser

    DETERGENT DISPENSER The detergent and rinse aid dispensers are on the inside of the dishwasher door. If the detergent dispenser is not open, push the small lever at the top, as illustrated. There are two compartments. The one marked “15” holds about one tablespoon of detergent.
  • Page 19 * 12 grains and higher is extremely hard water and detergent alone may not be enough. You may need to use a water softener to maximize the performance of your dishwasher. Also, in areas with extremely hard water (9+) you may need to wash at lower temperatures to prevent hard water deposits from forming in tank and wash system.

  • Page 20: Rinse Aid Dispenser

    RINSE AID INDICATOR LIGHT Models EDW154E, EDW174E, and EDW194E have a rinse aid indicator light on the control panel that comes on when the dispenser is empty. After you refill the dispenser, the light will continue to glow until the...

  • Page 21: Model Edw132C Operating Instructions

    MODEL EDW132C OPERATING INSTRUCTIONS CONTROL PANEL HEAT TEMP. PREWASH Option Buttons PROGRAM KNOB Turn the program knob to the right until the program you wish to select aligns with the small vertical line above the knob. OPTION BUTTONS Please note that you must select the options after you’ve selected the wash program and before you close the door to start the program.

  • Page 22: Model Edw154E Operating Instructions

    MODEL EDW154E OPERATING INSTRUCTIONS CONTROL PANEL LCD Window Delay Start Start Top Load ON/OFF BUTTON Press this button to turn the power to the machine on and off. The LCD will light up when the power is on. You must turn the power on before you select a program or option.

  • Page 23: Model Edw174E Operating Instructions

    EDW154E PROGRAMS Wash Wash Program Temp (° F) Temp (° F) Soak & Hold House Quick Light Delicate Normal Pots & Pans Rinse House MODEL EDW174E OPERATING INSTRUCTIONS CONTROL PANEL Programs Soak & Hold Pots & Pans Heavy Wash Normal Wash...
  • Page 24 To add an item after a program has started, open the door slightly until the spray arms stop turning. You can then open the door fully and place the item into the dishwasher. Close the door and press the Start button to restart the program from where it stopped.

  • Page 25: Model Edw194E Operating Instructions

    START BUTTON Once you have selected a program and options, press this button and close the door to start the dishwasher. A signal will sound to indicate the program has begun and the LCD will display the estimated program run time.
  • Page 26 CANCELLING A PROGRAM To cancel a program after it has started, press and hold the Start button until “00” displays in the LCD window. You will have to reselect the program and options and press Start again to restart the unit. Before you restart the unit, make sure the detergent dispenser is still closed;...

  • Page 27: Care And Maintenance

    CARE AND MAINTENANCE The interior of your Eurotech dishwasher is made of surgical quality stainless steel that has been electro- polished to make it the smoothest surface available. The smooth surface prohibits the accumulation of dirt and bacteria inside the unit. If the water in your area is especially hard, however, lime deposits could form inside the machine.

  • Page 28: Cleaning The Water Inlet Filter

    OVERFILL PROTECTION Your Eurotech dishwasher has an overfill protection device that automatically shuts off the inlet valve and starts the drain pump if the water level in the unit should rise above the normal level. If this happens, turn the water off at the main supply and call for service.

  • Page 29: Solutions To Common Dishwashing Problems

    The dishes may not be loaded properly. Make sure that soiled surfaces are facing downward or toward the center of the dishwasher. Also, make sure that the bowls, pots, etc., are not stacked so closely that water can’t reach the soiled surfaces.

  • Page 30: Troubleshooting

    2. Remove all metal dishware, such as cutlery, pans, etc., from the dishwasher. 3. Do not add detergent. 4. Pour two cups of vinegar into a bowl and set the bowl face up on the bottom rack of the dishwasher. 5. Run the dishes through a Normal wash program.
  • Page 31 Raising your water heater setting may help to shorten the cycle times. Make sure that the cycle was complete before you opened the dishwasher. If not, allow it to complete and check again.

  • Page 32: Washing Special Items

    Most common dishware items can be safely washed in an automatic dishwasher. If you have any doubts about a particular item, check with the manufacturer to see if it is dishwasher safe. If that isn’t possible, you might wash one item of a set a few times and compare it to the rest of the set to determine if washing it in the dishwasher had any affect on it.

  • Page 33: Product Warranty

    D. Any shipping costs for parts during the limited warranty period. E. Replacement parts or repair labor costs for units operated outside the continental United States. F. Pickup and delivery. Eurotech appliances are designed to be repaired in the home. IN NO EVENT SHALL AM APPLIANCE GROUP BE RESPONSIBLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES.

  • Page 34: Index

    Door panels, fully-integrated Drain connections problems Drain hose Dry time EDW174E EDW194E EDW132C operating instructions EDW154E operating instructions EDW174E operating instructions EDW194E custom door panel installation 13, 14, 15 EDW194E operating instructions Electrical connections INDEX Electrical cord and plug End-of-program buzzer EDW154E...
  • Page 35 No Prewash button EDW174E EDW194E Noises, unusual On/Off button EDW132C EDW154E EDW174E EDW194E One-piece door panels (EDW194E) Operating instructions EDW132C EDW154E EDW174E EDW194E Overfill protection Panels, fully-integrated PEX inlet tubing Placing the unit Power Power cord, connecting Problems and solutions...
  • Page 36 Eurotech Dishwasher Owner’s Manual_Version 4...
