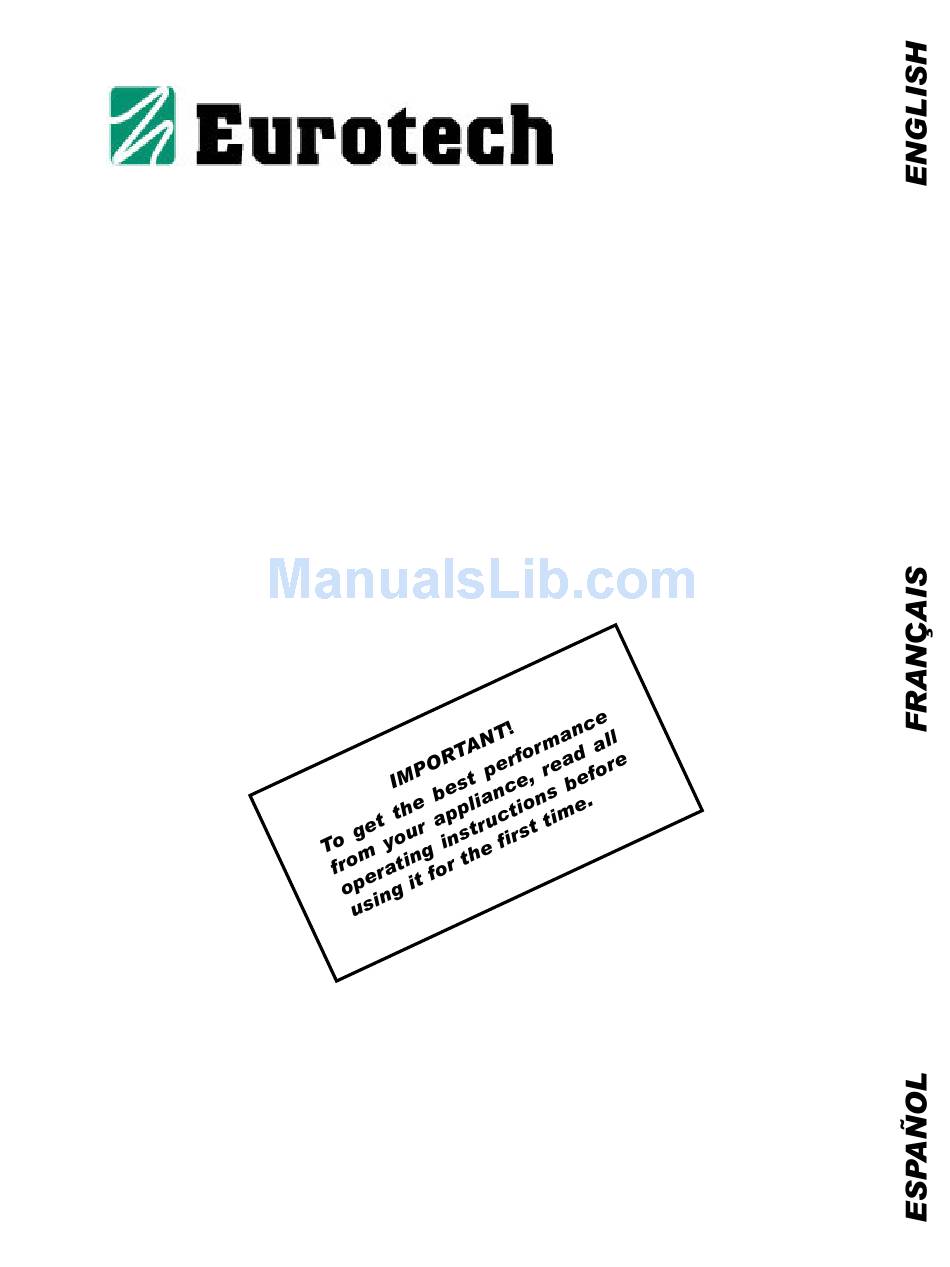

Dishwasher Owner's Manual
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
Version 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dishwasher and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eurotech Dishwasher

Summary of Contents for Eurotech Dishwasher

  • Page 1 Dishwasher Owner’s Manual SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE Version 4...

  • Page 2: Table Of Contents

    CONTENTS Important Safety Instructions Child Safety Tips Dishwasher Features Dishwasher Dimensions Installation Instructions Loading the Dishwasher Detergent Dispenser Rinse Aid Dispenser Model EDW132C Operating Instructions Model EDW154E Operating Instructions Model EDW174E Operating Instructions Model EDW194E Operating Instructions Care and Maintenance...

  • Page 3: Important Safety Instructions

    HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for two weeks, before using the dishwasher turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

  • Page 4: Dishwasher Features

    Your new dishwasher features our EuroStyle™ wash system. This means that after the prewash, the water is drained out and the main wash starts with clean water. If you plan to start your dishwasher right away, it’s not necessary to rinse the dishes. You do, however, need to scrape off the large particles of food before loading.

  • Page 5: Installation Instructions

    If a dishwasher is being installed in this area for the first time, most of the cabinet work, plumbing, and electrical has to be done before you move the machine into place.
  • Page 6 3. Using 2-1/2” squeeze clamps, secure the fill strip to the installation lip, as illustrated below. 4. Fasten the fill strip to the dishwasher using the four 3/4” screws supplied with the unit in the holes on the installation lip.
  • Page 7 5. Grip the unit at the top or side edges and gently slide the unit into the dishwasher opening using the slide cups provided with the unit. WARNING! Never use your knee or shoulder to push the unit in place.

  • Page 8: Fastening The Dishwasher To The Cabinet

    FASTENING THE DISHWASHER TO THE CABINET It’s necessary to fasten the dishwasher to the cabinet so it won’t tilt when the door is opened or if something heavy is placed on the door. Use only the screws provided with the machine. The dishwasher can be fastened to the cabinet on the top, at the sides, or both, depending on the type of installation.
  • Page 9 The dishwasher comes with a 5-foot PEX water supply line that has a 3/8" NPT female connection. Be sure to insert the black rubber washer (enclosed in the hardware package) into the PEX hose connection before you attach it to the water supply.

  • Page 10: Drain Connections

    CONNECTIONS: ♦ Failure to provide the proper drain connection height (minimum of 20" (508 mm)) above the bottom of the dishwasher base) or a 20" (508 mm) high loop will result in improper drainage, which will damage the machine. ♦ No part of the drain hose should be higher than 35" (889 B) Connection to air gap then to the trap.
  • Page 11 There should be an opening through the partition between the opening for the dishwasher and the area under the sink that is large enough for the power cord to pass through. This opening should not be more than 1-1/2” (38 mm) in diameter and the edges should be smooth and rounded.
  • Page 12 TESTING FOR LEAKS 1. Turn on the water supply and check for leaks. 2. Turn the power on at breaker/fuse box and test the dishwasher operation by running a Rinse cycle. (This should take about four minutes.) 3. Turn off the electrical power and check for leaks under the dishwasher and sink.
  • Page 13 For this installation, we recommend that you install the 2” fill strip (see page 6) that comes with the unit to hide the top of the dishwasher and further reduce water noise. NOTE: Do not fasten the dishwasher to the cabinet until after you have installed the door panel. Remove the custom panel and parts from the packaging.
  • Page 14 This installation also leaves a 2” gap between the top of the dishwasher and the cabinet. We recommend that you install the 2” fill strip that comes with the unit between the upper edge of the dishwasher and the counter to hide the top of the dishwasher and further reduce water noise.
  • Page 15 WOOD PANELS THE SAME HEIGHT AS THE DISHWASHER DOOR (23-1/4”) If the custom panel is the same height as the dishwasher door, Custom-built 2-inch decorative fill strip or a 2” decorative fill strip or pull-out cutting board must be used...

  • Page 16: Loading The Dishwasher

    You can pull the upper basket all the way out of the dishwasher. To do so, pull it out until it stops, then tilt it up then out, as illustrated below. ADJUSTING THE UPPER BASKET You can adjust the height and slant of the upper basket.
  • Page 17 Load larger items in the lower basket, such as, dinner plates, pots and pans, serving dishes, and casseroles. Be sure to load dishware facing downward or toward the center of the dishwasher. When loading tall items in the lower basket, make sure the upper spray arm turns freely.

  • Page 18: Detergent Dispenser

    DETERGENT DISPENSER The prewash detergent The detergent and rinse aid dispensers are on the inside of the dishwasher door. goes here. If the detergent dispenser is not open, push the small lever at the top, as illustrated. There are two compartments. The one marked “15” holds about one tablespoon of detergent.
  • Page 19 * 12 grains and higher is extremely hard water and detergent alone may not be enough. You may need to use a water softener to maximize the performance of your dishwasher. Also, in areas with extremely hard water (9+) you may need to wash at lower temperatures to prevent hard water deposits from forming in tank and wash system.

  • Page 20: Rinse Aid Dispenser

    RINSE AID DISPENSER Eurotech dishwashers are designed to use liquid rinse aids in hard water areas. The rinse aid dispenser is located inside the door next to the detergent dispenser. The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes that can leave spots and streaks.

  • Page 21: Model Edw132C Operating Instructions

    MODEL EDW132C OPERATING INSTRUCTIONS CONTROL PANEL Program Knob On/Off Button HEAT HEAT TEMP. PREWASH PREWASH TEMP. Option Buttons Indicator Lights PROGRAM KNOB ON/OFF BUTTON Turn the program knob to the right until the program Press this button to turn the power to the machine you wish to select aligns with the small vertical line on and off.

  • Page 22: Model Edw154E Operating Instructions

    MODEL EDW154E OPERATING INSTRUCTIONS CONTROL PANEL Program Knob LCD Window Indicator Lights Prewash Stop Wash Rinse Soak & Hold Rinses Drying Pots pans Quick Normal Light Delicate Delay Start Start Top Load On/Off After you have selected the wash program and option(s) ON/OFF BUTTON you prefer, press this button to start a program.

  • Page 23: Model Edw174E Operating Instructions

    EDW154E PROGRAMS Wash Wash Rinse Program Temp (° F) Temp (° F) Recommended Loads Soak & Hold House House For extra-heavily soiled loads that require a presoak, such as pans or baked-on casseroles Quick Lightly soiled loads Light Lightly soiled loads Delicate Delicate items, e.g., china or crystal Normal...
  • Page 24 3. Press the Program button to toggle between B0 You can then open the door fully and place the item and B1. Release the Program button when your into the dishwasher. Close the door and press the preference displays. Start button to restart the program from where it 4.

  • Page 25: Model Edw194E Operating Instructions

    Once you have selected a program and options, press you’ve selected the wash program and before you this button and close the door to start the dishwasher. A start the dishwasher. signal will sound to indicate the program has begun and Delay Start the LCD will display the estimated program run time.
  • Page 26 CANCELLING A PROGRAM END-OF-PROGRAM BUZZER To cancel a program after it has started, press and At the end of the program, a prolonged buzzer will hold the Start button until “00” displays in the LCD sound to indicate the program is complete. To disable window.

  • Page 27: Care And Maintenance

    CARE AND MAINTENANCE The interior of your Eurotech dishwasher is made of surgical quality stainless steel that has been electro- polished to make it the smoothest surface available. The smooth surface prohibits the accumulation of dirt and bacteria inside the unit. If the water in your area is especially hard, however, lime deposits could form inside the machine.

  • Page 28: Overfill Protection

    OVERFILL PROTECTION Your Eurotech dishwasher has an overfill protection device that automatically shuts off the inlet valve and starts the drain pump if the water level in the unit should rise above the normal level. If this happens, turn the water off at the main supply and call for service.

  • Page 29: Solutions To Common Dishwashing Problems

    The dishes may not be loaded properly. Make sure that soiled surfaces are facing downward or toward the center of the dishwasher. Also, make sure that the bowls, pots, etc., are not stacked so closely that water can’t reach the soiled surfaces.

  • Page 30: Troubleshooting

    2. Remove all metal dishware, such as cutlery, pans, etc., from the dishwasher. 3. Do not add detergent. 4. Pour two cups of vinegar into a bowl and set the bowl face up on the bottom rack of the dishwasher. 5. Run the dishes through a Normal wash program.

  • Page 31: Dishwasher Does Not Drain Properly

    Dishwasher does not drain properly ♦ Make sure that the cycle was complete before you opened the dishwasher. If not, allow it to complete and check again. ♦ Some water left in the sump area near the drain is normal.

  • Page 32: Washing Special Items

    Most common dishware items can be safely washed in an automatic dishwasher. If you have any doubts about a particular item, check with the manufacturer to see if it is dishwasher safe. If that isn’t possible, you might wash one item of a set a few times and compare it to the rest of the set to determine if washing it in the dishwasher had any affect on it.

  • Page 33: Product Warranty

    This warranty gives you specific legal rights and you may also have other rights which vary from state to state. For warranty service, contact the dealer from whom you purchased the unit or an authorized Eurotech service agent. Service will be provided during normal business hours. Should you have a service problem that cannot be resolved locally, contact AM Appliance Group at the numbers listed below.

  • Page 34: Index

    EDW194E EDW154E drain connections EDW174E easy connection EDW194E electrical connection Detergent fastening dishwasher to cabinet amount to use grounding unit dispenser materials you will need left in compartment moving machine into place type to use testing for leaks...
  • Page 35 INDEX Type plate (also Data tag) No Prewash button EDW174E Unit dimensions EDW194E Unusual noises Noises, unusual Upper basket On/Off button Warranty information EDW132C Wash programs (see Programs) EDW154E Washing special items EDW174E Water flow volume EDW194E Water hardness One-piece door panels (EDW194E) Water inlet filter, cleaning Operating instructions Water pressure...
  • Page 36 Eurotech Dishwasher Owner’s Manual_Version 4...
