The USFT AT-V3 Pro Install Guide
Thank you for purchasing your new GPS vehicle tracking system!
Installation of your new GPS tracking device couldn't be easier.
Step 1 > Wiring and Installation
We recommend installation of your device by a professional installer.

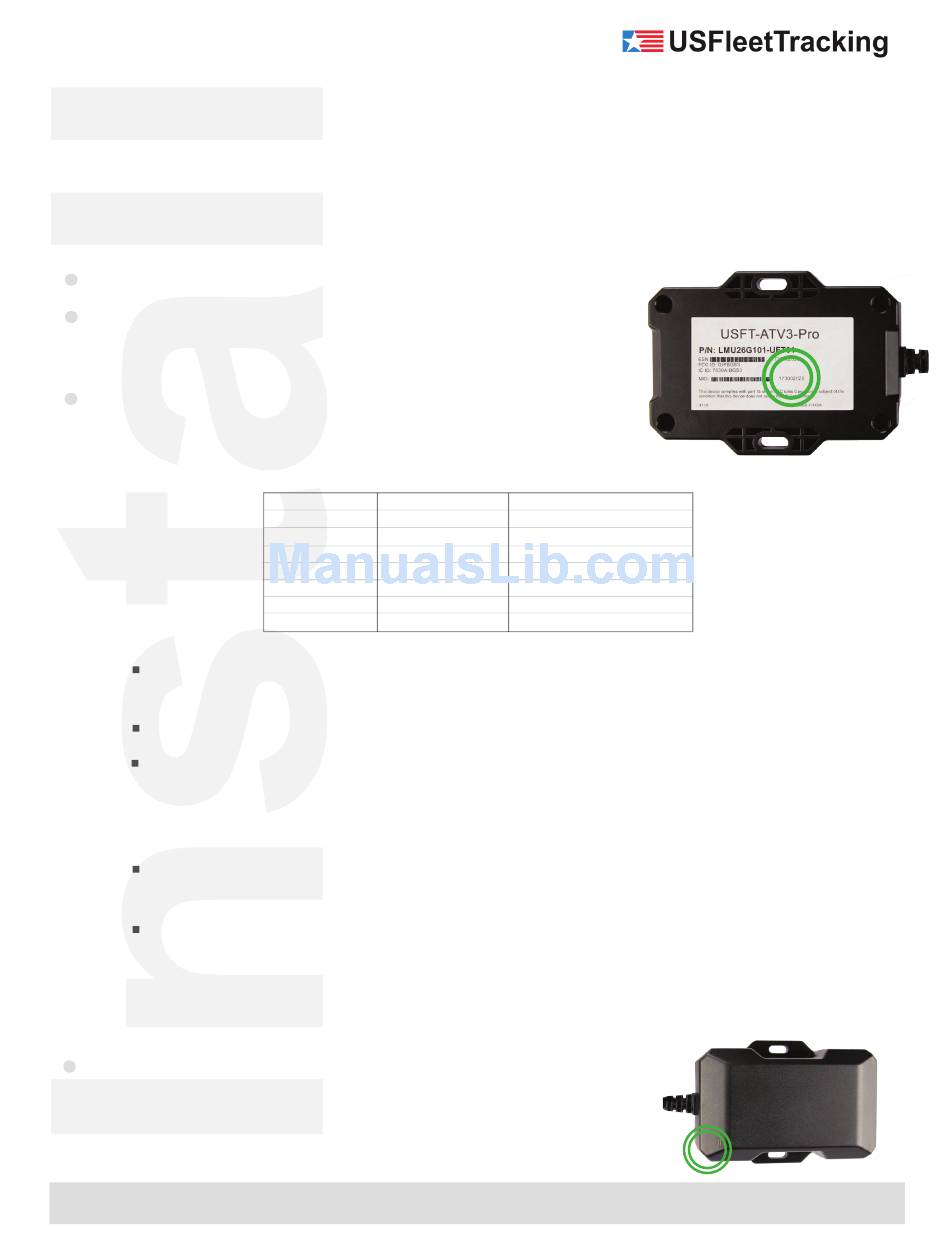

Please verify that your device is activated prior to installation. When
activating a unit, refer to the device MID# on the underside of the
tracking device. (Reference Image A.)
The AT-V3 Pro requires a standard 3-wire installation to operate effectively.
Please familiarize yourself with the following wire colors and functions.
NOTE: Do not cut the wiring harness to shorten the length of the cable as
this will void the product warranty.
The
red
wire (power) should be directly wired to a constant 9V - 30V power source found at the key
source or fuse panel.
The black wire (ground) should be securely fastened to a grounded screw or to chasis ground.
The
white
wire (ignition) is the ignition event wire that is best installed directly to the ignition wire.
Ensure that power to the ignition wire is available ONLY when the vehicle ignition is turned on. All
makes and models of vehicles are different - we recommend you make sure that you know your
particular vehicle's Constant and Ignition wires and their specific color(s) prior to installation.
The
blue
and
such as emergency lights, doors opening, flat-bed operation, buckets, etc.
The green, brown, and
starter, locking and unlocking doors, honking the horn, etc.
Step 2 > Status LED Lights
After installing the unit, and prior to securing it under the dash area, make
sure the unit has a solid
for 1 second, then repeats the pattern. See the table for troubleshooting when
one or both does not occur. (Reference Image B and Table on Page 2.)
405.726.9900 | 2912 NW 156th Street | Edmond, Oklahoma 73013 | usft.com
AT-V3 Pro
Just follow these simple steps.
Red
wire
Power
*
Black
wire
Ground
*
*
White wire
Ignition input
Blue
wire
Input 1
Orange
wire
Input 2
Green
wire
Output 1
Brown
wire
Output 2
Yellow
wire
Output 3
*
Must be connected for device to work properly.
orange
wires are input wires. These can be used to monitor PTO activity (Power Take Off)
yellow
wires are output wires. These can be used for enabling and disabling the
green
light and a blinking
12 VDC constant
Ground
Key (on)
Ground
12 VDC
Starter
Honk horn/lock doors
Unlock doors/remote start
orange
light that goes solid
Image A
Image B
