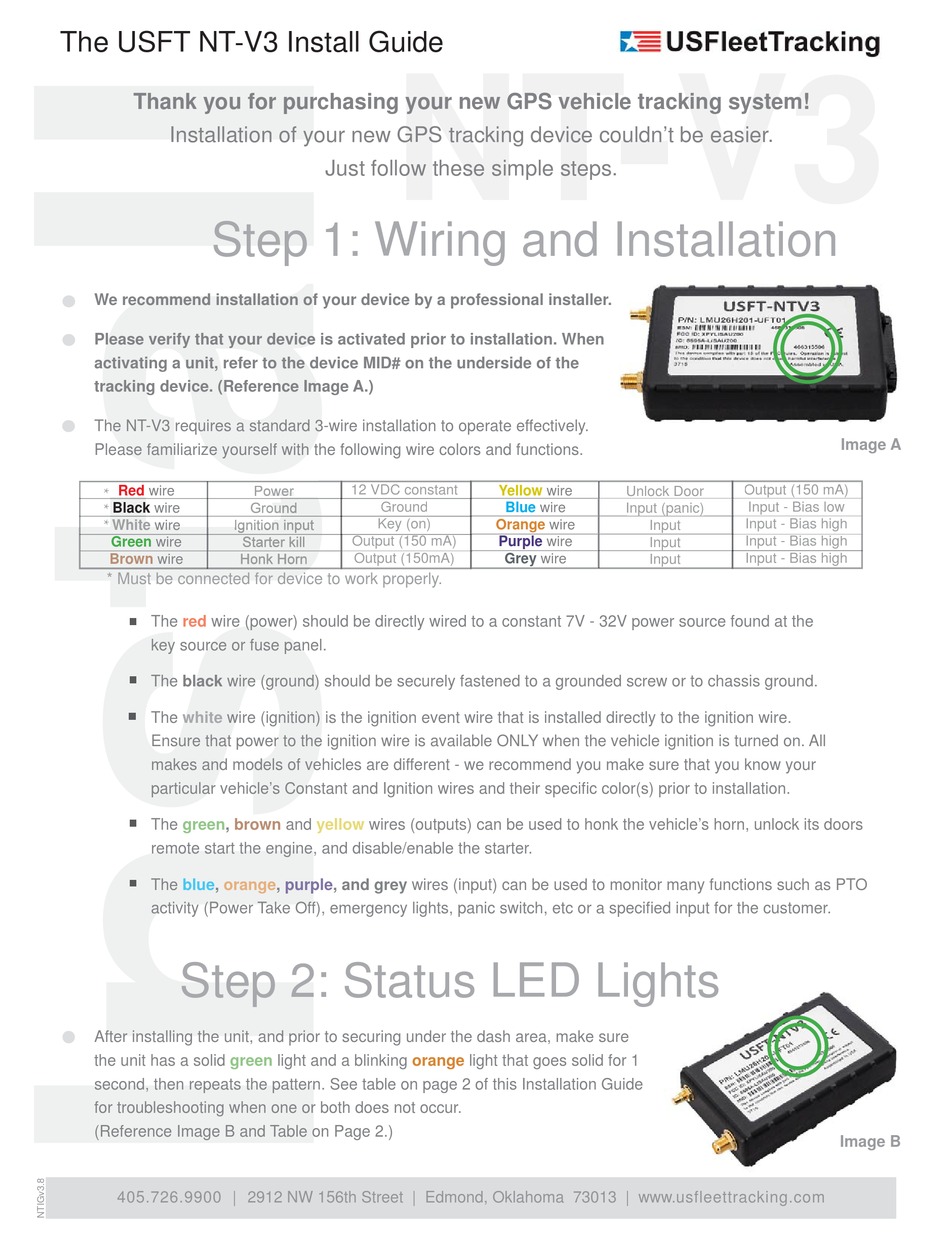

USFleetTRacking USFT NT-V3 Install Manual

The USFT NT-V3 Install Guide
Thank you for purchasing your new GPS vehicle tracking system!
Installation of your new GPS tracking device couldn't be easier.
Step 1: Wiring and Installation
We recommend installation of your device by a professional installer.
Please verify that your device is activated prior to installation. When
activating a unit, refer to the device MID# on the underside of the
tracking device. (Reference Image A.)
The NT-V3 requires a standard 3-wire installation to operate effectively.
Please familiarize yourself with the following wire colors and functions.
Red wire
*
* Black wire
*
White wire
Green wire
Brown wire
* Must be connected for device to work properly.
The red wire (power) should be directly wired to a constant 7V - 32V power source found at the
key source or fuse panel.
The black wire (ground) should be securely fastened to a grounded screw or to chassis ground.
The white wire (ignition) is the ignition event wire that is installed directly to the ignition wire.
Ensure that power to the ignition wire is available ONLY when the vehicle ignition is turned on. All
makes and models of vehicles are different - we recommend you make sure that you know your
particular vehicle's Constant and Ignition wires and their specifi c color(s) prior to installation.
The green, brown
remote start the engine, and disable/enable the starter.
The blue, orange, purple, and
activity (Power Take Off), emergency lights, panic switch, etc or a specifi ed input for the customer.
Step 2: Status LED Lights
After installing the unit, and prior to securing under the dash area, make sure
the unit has a solid green
second, then repeats the pattern. See table on page 2 of this Installation Guide
for troubleshooting when one or both does not occur.
(Reference Image B and Table on Page 2.)
405.726.9900 | 2912 NW 156th Street | Edmond, Oklahoma 73013 | www.usfleettracking.com
NT-V3
Just follow these simple steps.
12 VDC constant
Ground
Key (on)
Output (150 mA)
Output (150mA)
and yellow wires (outputs) can be used to honk the vehicle's horn, unlock its doors
grey wires (input) can be used to monitor many functions such as PTO
light and a blinking orange
Yellow wire
Unlock Door
Blue wire Input (panic) p
Orange wire
Purple wire
Grey wire
light that goes solid for 1
Output (150 mA)
Input - Bias low
(p )
Input - Bias high
Input
Input - Bias high
Input
Input - Bias high
Input
Image A
Image B
