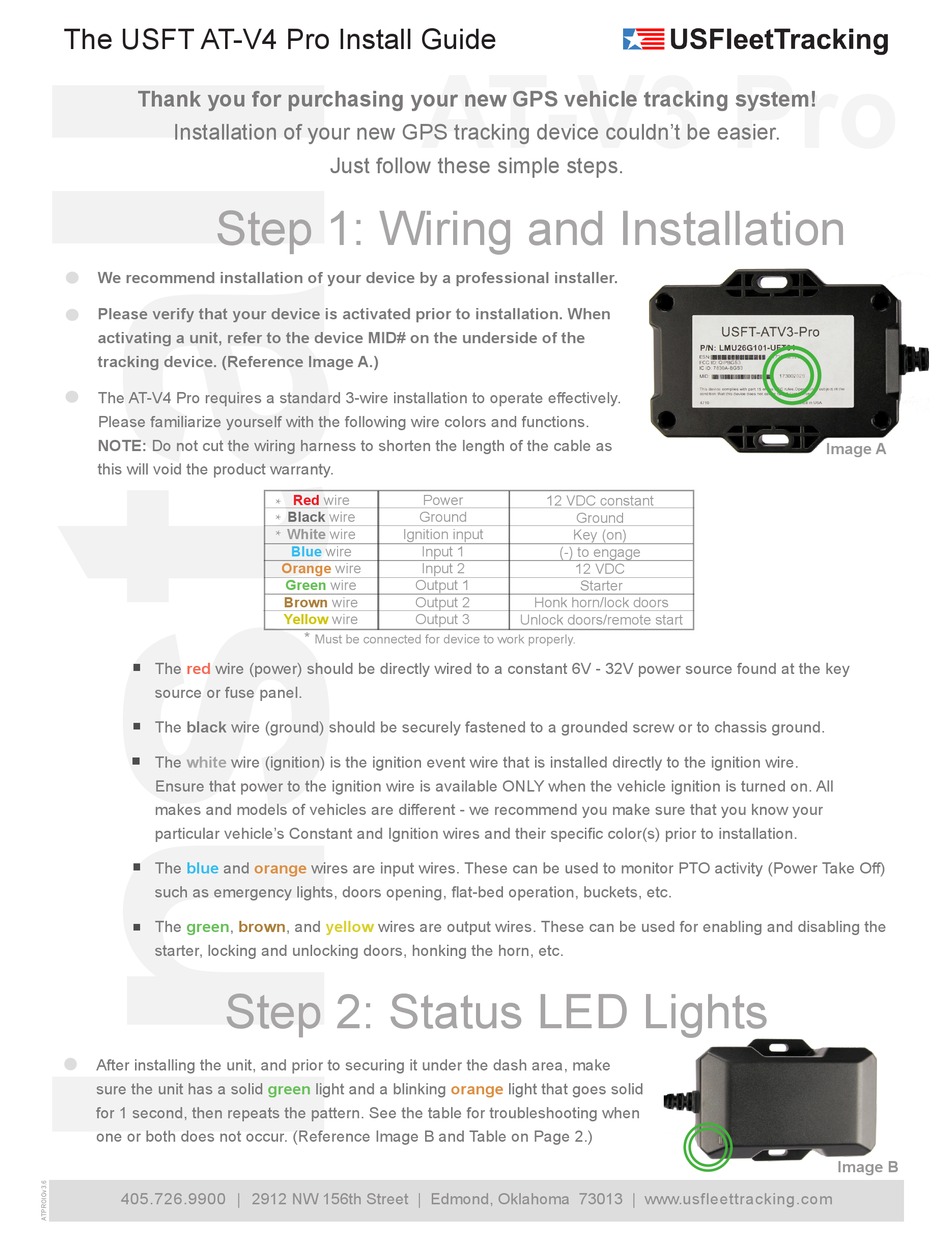

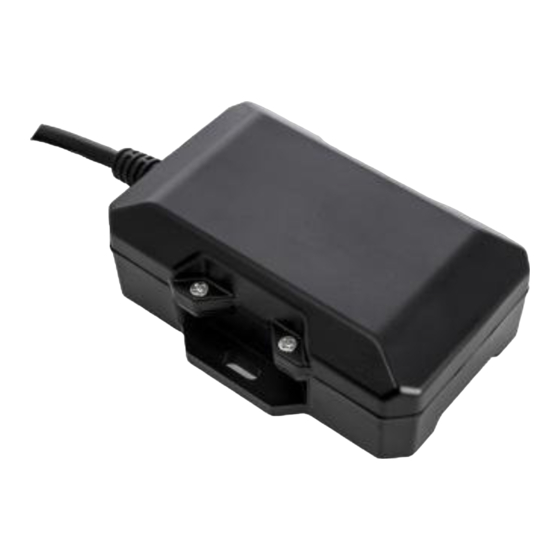

USFleetTRacking AT-V4 Pro Install Manual

The USFT AT-V4 Pro Install Guide
Thank you for purchasing your new GPS vehicle tracking system!
Installation of your new GPS tracking device couldn't be easier.

Step 1: Wiring and Installation

We recommend installation of your device by a professional installer.
Please verify that your device is activated prior to installation. When
activating a unit, refer to the device MID# on the underside of the
tracking device. (Reference Image A.)
The AT-V4 Pro requires a standard 3-wire installation to operate effectively.
Please familiarize yourself with the following wire colors and functions.
NOTE: Do not cut the wiring harness to shorten the length of the cable as
this will void the product warranty.
red
The wire (power) should be directly wired to a constant 6V - 32V power source found at the key
source or fuse panel.
The black wire (ground) should be securely fastened to a grounded screw or to chassis ground.
The white wire (ignition) is the ignition event wire that is installed directly to the ignition wire.
Ensure that power to the ignition wire is available ONLY when the vehicle ignition is turned on. All
makes and models of vehicles are different - we recommend you make sure that you know your
particular vehicle's Constant and Ignition wires and their specific color(s) prior to installation.
The blue and
such as emergency lights, doors opening, flat-bed operation, buckets, etc.
The green, brown, and
starter, locking and unlocking doors, honking the horn, etc.

Step 2: Status LED Lights

After installing the unit, and prior to securing it under the dash area, make
sure the unit has a solid
for 1 second, then repeats the pattern. See the table for troubleshooting when
one or both does not occur. (Reference Image B and Table on Page 2.)
405.726.9900 | 2912 NW 156th Street | Edmond, Oklahoma 73013 | www.usfleettracking.com
AT-V3 Pro
Just follow these simple steps.
Red wire Power
*
Black wire Ground
*
White wire Ignition input
*
Blue wire Input 1
Orange
wire Input 2
Green wire Output 1
Brown wire Output 2
Yellow wire Output 3
*
Must be connected for device to work properly.
orange wires are input wires. These can be used to monitor PTO activity (Power Take Off)
yellow wires are output wires. These can be used for enabling and disabling the
green light and a blinking
12 VDC constant
Ground
Key (on)
(-) to engage
12 VDC
Starter
Honk horn/lock doors
Unlock doors/remote start
orange light that goes solid
Image A
Image B
