AT&T activeARC Hardware Installation Manual

activeARC
®
active500EM
Access Control Data Networking Switch
Hardware Installation Guide

Package contents

Item
active500EM
Metal brackets
Screws
Rubber feet
RJ-45 Console Cable
US power cord
activeARC Support Contact Card
®

Safety precautions

WARNING:
Before working on this equipment, be aware of good
safety practices and the hazards involved with electrical circuits.
WARNING:
To reduce risk of fire hazard and electric shock, do not
install the unit near wet or damp locations.
CAUTION:
To reduce the risk of fire, use only number 26 AWG or
larger UL Listed or CSA Certified telecommunication line cord for all
network and telecommunication connections.
• Keep the product in a dry, clean, and dust-free location. Use only a soft,
damp cloth to clean the product. Inspect and maintain the site and
switch regularly.
• DO NOT expose the product to liquid or moisture.
• DO NOT expose the product to extreme temperatures.

Description of hardware

Front panel

Type active500EM
RJ-45 24
Combo port (SFP 4
and RJ-45 port)
Console port
Uplinks
LEDS
Console description
The active500EM has a RJ-45 serial console port for local and telnet
configuration. The console port supports asynchronous mode. To achieve
asynchronous mode, set the data bit as 8, the stop bit as 1, the parity bit as
none, and the default baud rate as 9600bps.
In addition, the baud rates supported by the console port under Bootrom
mode includes 14400, 19200, 38400, 57600, and 115200(bps). The setting
will not take effect until after the switch is rebooted.
Units

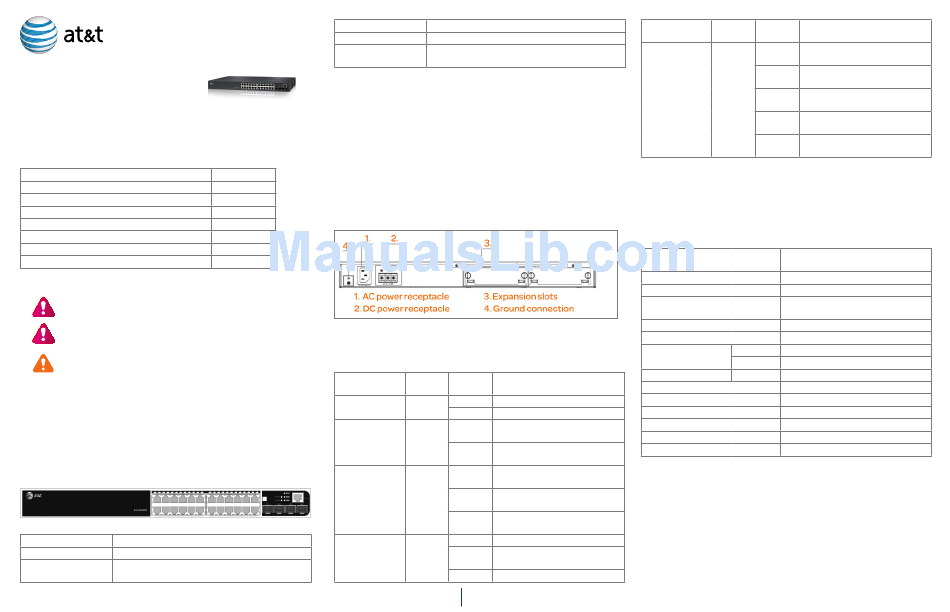

Back panel
1
The active500EM has one 100-240V 50/60Hz 5A AC power receptacle,
2
one standby DC power receptacle (48V), one ground connection, and two
8
expansion slots.
4
1
1
1
Status LEDs
The active500EM includes 24 port LEDs, power LED, AC power LED, system
automatic diagnoses LED, and 1/2 state LED of the extended module.
LED
Power LED
Redundancy
power LED
System
automatic
diagnoses LED
Extended
module LED
1 RJ-45 serial console port
4 SFP
24 LEDs of the port and 5 LEDs of the system
function
Panel Status Description
symbol
PWR Green Power is operating normally.
Off Power is off or malfunctioning.
RPU Green Redundancy power unit is
charging.
Off Redundancy power unit is off or
malfunctioning.
DIAG Blink System automatic diagnoses
(Green) are underway.
Green System automatic diagnoses
completed.
Amber System automatic diagnose is
malfunctioning.
Module1/ Green Extended module is installed.
Module2
Amber The installed extended module
is disabled.
Off No extended module.
1
LED Panel Status Description
symbol
Link/Activity Amber Ports are in the link state of 10M
or 100M.
Green Ports are in the link state of
1000M.
Blink Ports are in the active state of
(Amber) 10M or 100M.
Blink Ports are in the active state of
(Green) 1000M.
Off No link connection or link
connection has failed.
Power system
AC Power - Rated AC power voltage range: 100V-240V
Current: AC: 5A
Frequency: 50/60Hz (±3Hz)
System specifications
Dimension (W x H x D)
440x328.4x43.4 mm
(17.33 x 12.93 x 1.71 in.)
Extended card dimension (Wx H) 107x145.9 mm (4.21x5.75 in.)
Weight 4.85kg (9.67 lb)
Fixed port 20 RJ-45 ports and 4 combo ports (4
SFP and 4 RJ-45)
Management port 1 RJ-45 serial console port
Extended slot 2
Power input AC 100V–240V
DC
-48V (-48V– -60V)
Max consumption System 160W
Operating temperature 0°C–50°C
Storage temperature -40°C–70°C
Relative humidity 5%–95%, non-condensing
Mean time between failure
Min 120,000 hours MTBF
Maximum operating altitude 7000 ft (2km)
Current AC: 5A; DC: 4A
IMPORTANT: The weight is the machine chassis weight with two extended
modules.
Environmental requirements
• The switch must be installed in a clean area; otherwise, the switch may
be damaged by electrostatic adherence.
• The switch must be maintained within system specifications.
• Ensure sufficient spacing around the switch for good air circulation.
• Avoid placing the switch in direct sunlight. Keep the switch away from
heat sources and strong electromagnetic interference sources.
