Forensic RTX™410-QJ
Thank you for purchasing WiebeTech's Forensic RTX410-QJ.
WiebeTech's write-blocked technology, quadruple connectivity for each bay, and power/access LEDs all
inside of a tough, durable aluminum frame and lid. The latest feature of Forensic RTX is the new front
panel, with power LEDs for the interface boards as well as HPA/DCO detection on bays 1 and 3.
Whether in the field or in a lab Forensic RTX is a must-have for forensic investigators.
Features
TrayFree™ technology! Simply slide in a SATA drive and shut the door. Each SATA bay offers a
•
lock for additional security, and shock protection for longer drive life. All metal bays.
Copy data from IDE or SATA drives. Bays one (PATA) and three (SATA) are write-blocked. Bays
•
two and four (SATA) are read/write making it possible to write to SATA drives from the write-
blocked drives.
Quadruple connectivity. Forensic RTX410-QJ comes with all the cables you need to connect to
•
eSATA, FireWire 800, FireWire 400 and USB.
Each hard drive has its own data channel for maximum speed.
•
Power and access LEDs let you know status of your hard drives.
•
Sturdy aluminum case provides excellent heat dissipation and rugged durability.
•
Heavy duty handle allows for easy transport.
•
HPA/DCO detection for write-blocked bays.
•
Power LEDs for interface boards
•
F o r e n s i c R T X 4 1 0 - Q J U s e r M a n u a l ( A9 - 4 1 0 - 0 0 0 1 )
R E V 1 . 0

USER MANUAL

Revised May 17, 2010

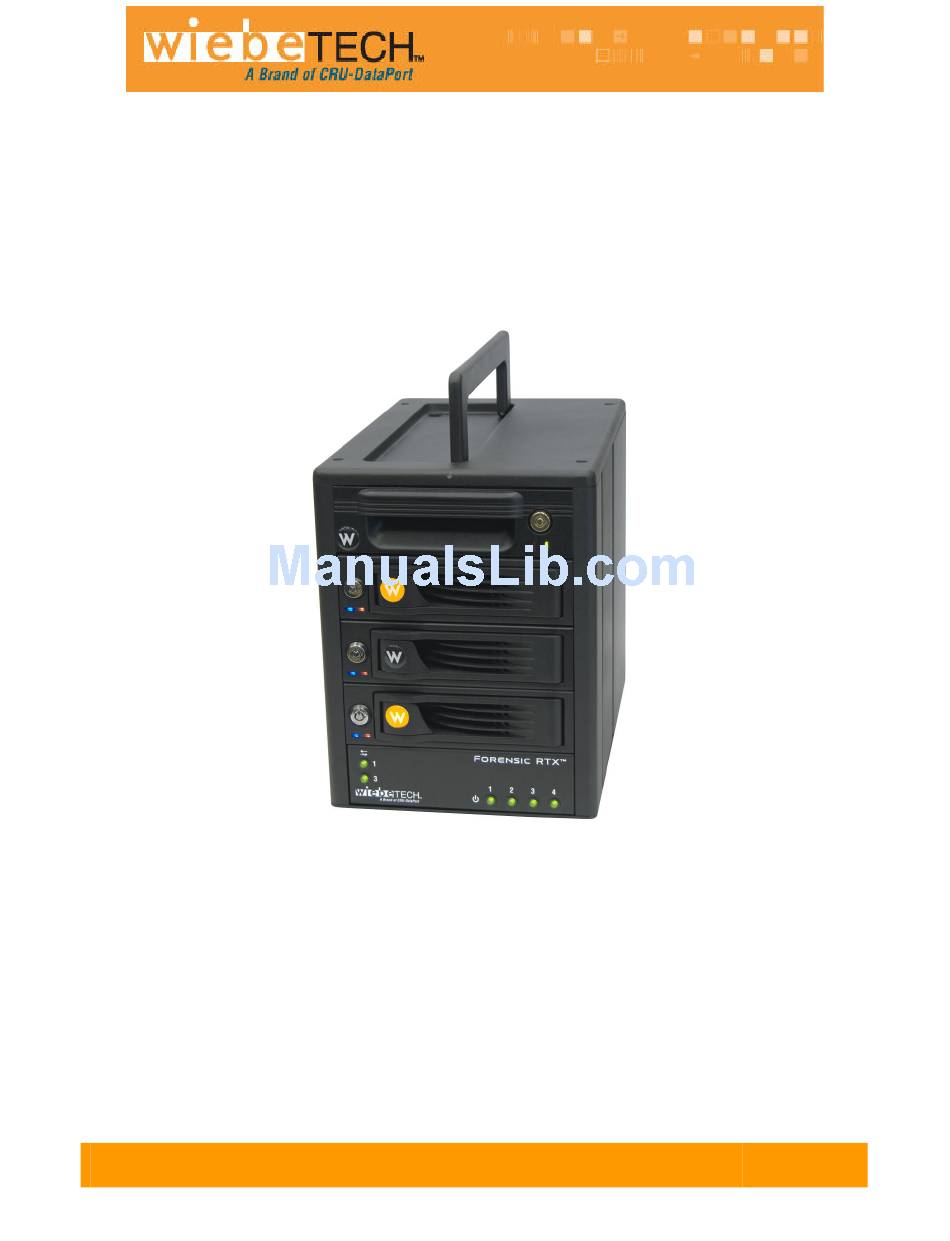

Forensic RTX410-QJ features
- 1 -
