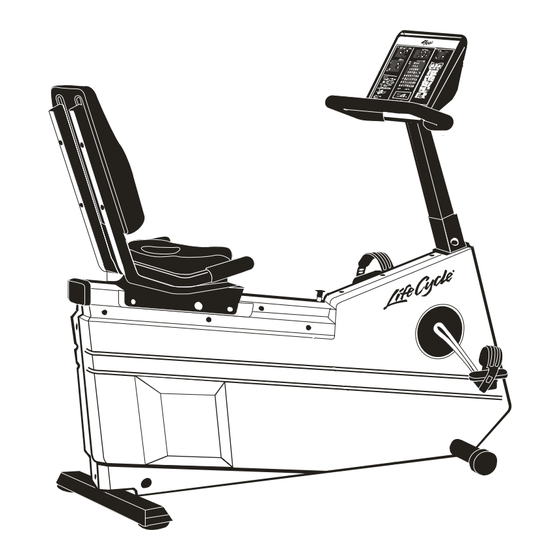

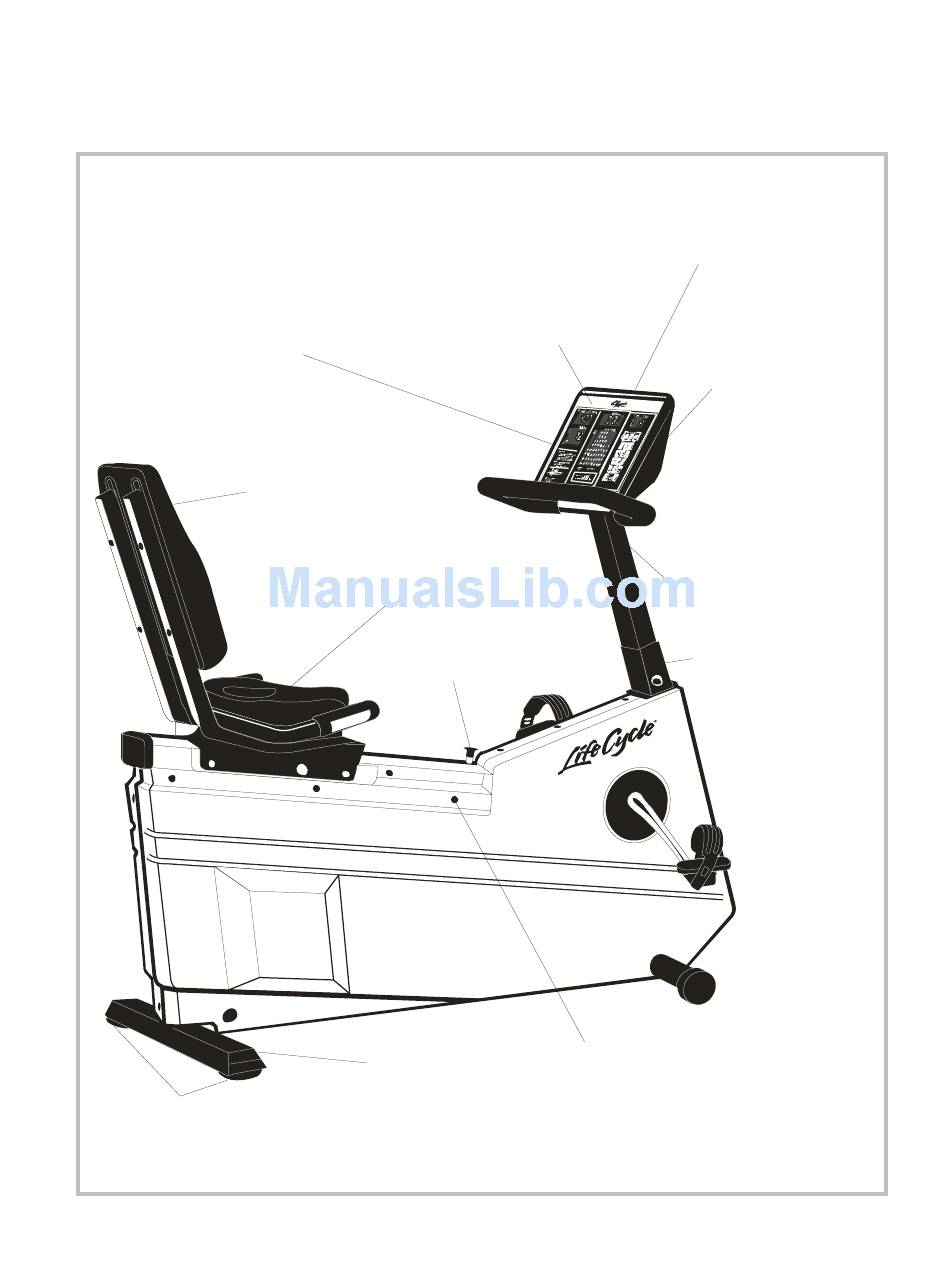

LC-9500RHR (RE)
Exercise Bike
Console Assembly
AK19-00105-0001(R) Eng/Eng
AK19-00105-0002(R) Eng/Met - R&R only
AK19-00105-0003(R) Ger/Met - R&R only
AK19-00105-0004(R) Spn/Met - R&R only
AK19-00105-0006(R) Jap/Met - R&R only
AK19-00105-0008(R) Itl/Met - R&R only
AK19-00105-0009(R) Dut/Met - R&R only
Levelers w/Pads (2)
SK18-00021-0000
Overlay Bezel
AK18-00191-0001 Eng/Eng
AK18-00191-0002 Eng/Met
AK18-00191-0003 Ger/Met (NLA)
AK18-00191-0004 Spn/Met (NLA)
AK18-00191-0006 Jap/Met
AK18-00191-0008 Itl/Met
AK18-0
Seat Back
0K19-01078-0003
Pad Screws (4)
0017-00101-1131
Washer
0017-00104-0253
Bottom Seat
0K19-01079-0003
Push/Pull Knob
0K14-01150-0000
Stabilizer Bar
SK18-00017-0000
Stabilizer End Caps
0K18-01008-0000
(NLA)
(NLA)
(NLA)
0191-0009 Dut/Met
(NLA)
Shroud to Extrusion Screw
0017-00101-1159
1 of 3
GK19-00011-XXXX
Console Logo Decal
0K18-01178-0007
Console Case
0K18-01243-0003
Battery Door
0E09-00903-0002
Console Case
Screws
0017-00101-0991
Console Post w/Decal
SK19-00035-0000
Console Post Cap
0K19-01125-0000
rev. 06/21/05
Advertisement
Related Manuals for Life Fitness LC-9500RHR (RE)
Summary of Contents for Life Fitness LC-9500RHR (RE)
- Page 1 LC-9500RHR (RE) Exercise Bike Console Assembly AK19-00105-0001(R) Eng/Eng AK19-00105-0002(R) Eng/Met - R&R only AK19-00105-0003(R) Ger/Met - R&R only AK19-00105-0004(R) Spn/Met - R&R only AK19-00105-0006(R) Jap/Met - R&R only AK19-00105-0008(R) Itl/Met - R&R only AK19-00105-0009(R) Dut/Met - R&R only Seat Back 0K19-01078-0003 Pad Screws (4) 0017-00101-1131...
- Page 2 LC-9500RHR (RE) Exercise Bike Master Link Assembly GK18-00004-0002 End Cap 0K19-01208-0000 Seat Assembly SK19-00075-0000 Alternator Control Assembly - R&R only SK19-00087-0000(R) HR Flex Cable AK19-00082-0001 6 Volt Battery 0017-00003-0685 Tabbed Lockwasher 0K18-01280-0000 Crankarm Locknut 0K18-01059-0002 Bearing Nut, LT AK18-00029-0001 Seat Stop 0K19-01184-0000 Plastic Shield 0K19-01185-0000...
- Page 3 LC-9500RHR (RE) Exercise Bike Alternator, Mando 0017-00009-0841 Brushes 0017-00009-0895 Leg Cover Washers (2) 0K18-01023-0100 Leg Cover Screws (2) 0017-00101-1017 Pedal w/Strap, RT AK17-00026-0014 Pedal w/Strap, LT AK17-00026-0015 Crankarm Dust Cover 0K19-01134-0000 Screws (3) 0017-00101-1003 Leg Covers (2) 0K18-01006-0001 Wheels & Bearings (2) SK18-00016-0000 Shroud w/Decal, RT &...
