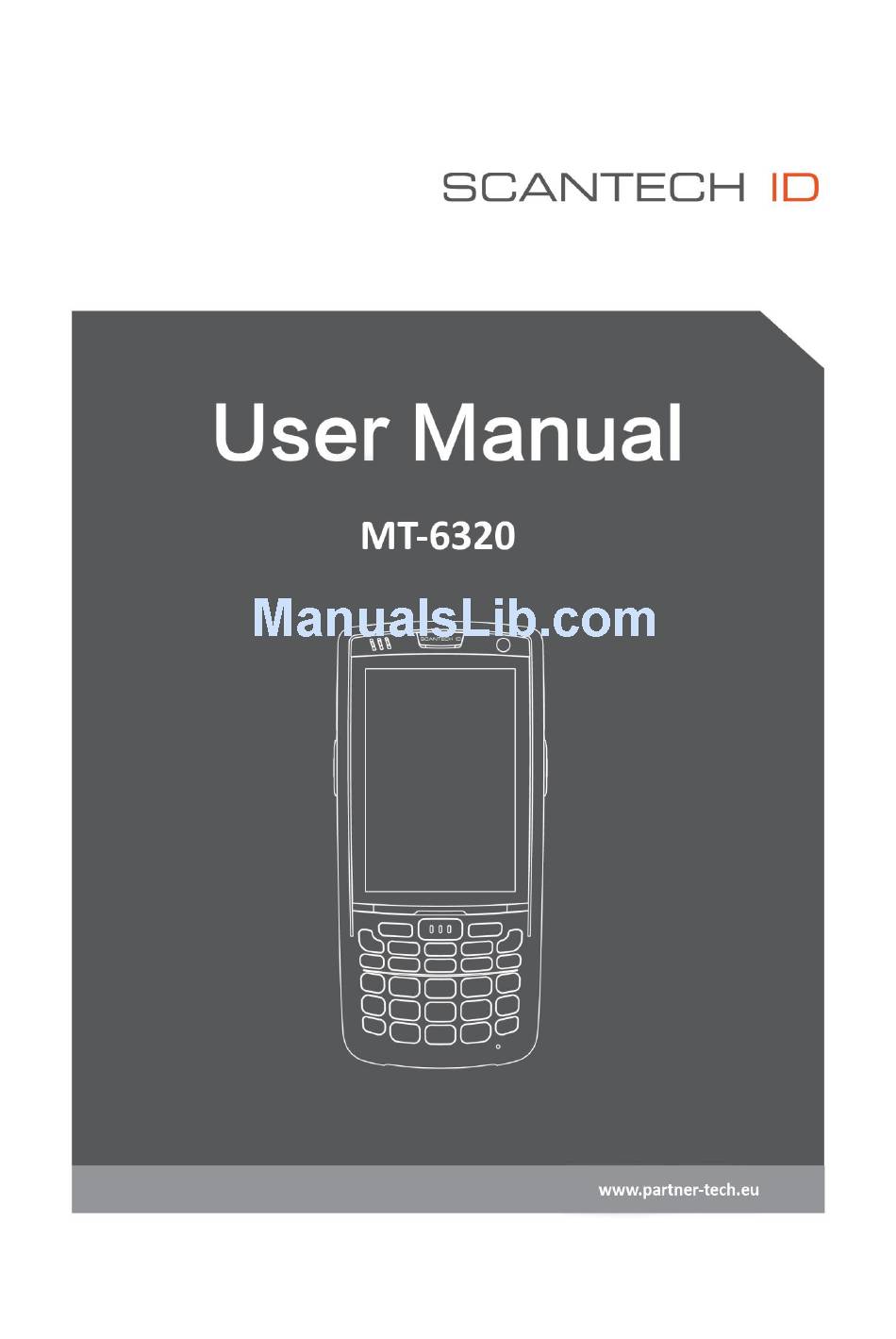

Scantech MT-6320 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT-6320 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Scantech MT-6320

  • Page 1 V1.0...

  • Page 2: Table Of Contents

    MT-6320 User Manual Table of Contents 1 Introduction .................. 1 1.1 Appearance of MT-6320 ......................1 1.2 Installing an SD Card ......................... 2 1.3 Installing a SIM Card ........................3 1.4 Installing a Battery ........................3 1.5 Disassembling the Battery Cover ..................... 4 1.6 Charging ............................
  • Page 3 MT-6320 User Manual 6 Managing MT-6320 ..............31 6.1 Installing Software ........................31 6.2 Removing Installed Programs....................31 6.3 Using Task Manager ......................... 31 6.4 Using File Explorer ........................32 6.5 Restoring Factory Settings ...................... 32 7 Precautions and Troubleshooting ........... 34 7.1 Precautions ..........................

  • Page 4: Introduction

    MT-6320 User Manual 1 Introduction 1.1 Appearance of MT-6320 Figure 1-1 Front view of MT-6320 Figure 1-2 Rear view of MT-6320 - 1 -...

  • Page 5: Installing An Sd Card

    MT-6320 User Manual 1.2 Installing an SD Card To install an SD card, do as follows: 1. Push the card cover along the direction marked on the cover and open the cover. 2. Insert an SD card. 3. Press the SD card downward and lock the card along the IN direction marked on the cover.

  • Page 6: Installing A Sim Card

    MT-6320 User Manual 1.3 Installing a SIM Card To install a SIM card, do as follows: 1. Insert a SIM card along the direction, as shown in Figure 1-4. 2. Press the card cover downward. 3. Push the SIM card along the LOCK direction to lock the card cover.

  • Page 7: Disassembling The Battery Cover

    In the charging status, the LED is red. When the LED becomes blue, charging is complete. If you charge the battery when the MT-6320 is powered on, the battery icon on the upper right part of the screen changes, indicating that charging starts.

  • Page 8: Power-On

    When you power on the MT-6320 for the first time, the MT-6320 initializes the file system of the flash memory. During the period, the initial page remains for about one minute. Then some basic settings such as screen calibration, date and time, and Email setting appear.

  • Page 9: Instructions On Mt-6320

    At Home, you can add items or change the background by selecting Start > Settings > Home. Click a program at Home to open it. The default page of the MT-6320 is Home. If the MT-6320 is not at Home, select Start > Home to switch to Home.

  • Page 10: Applications Window

    MT-6320 User Manual Notification that one or more emails or short messages are received Notification that one or more voice messages are received There are multiple notification icons, which are beyond the scope of display. Click it to display remaining icons.

  • Page 11: Icons Of Applications

    Notepad Creates, views and edits files. Browses web pages and WAP websites and downloads new Internet Explorer programs and files from the Internet. Synchronizes information between the MT-6320 and the host or ActiveSync Exchange Server. Camera Shoots photos or videos.
  • Page 12 Views the help information about the current screen or program. Setting Icons Table 2-3 lists the control applications that are preinstalled on the MT-6320. Select Start > Settings. The Settings window is displayed. Table 2-3 Setting icons in the Settings window...
  • Page 13 Programs Device Displays the device version, hardware and features. Information Error Reporting Enables or disables the error report function of the MT-6320. Changes the screen direction, recalibrates the screen, and Screen changes the text size and font. - 10 -...

  • Page 14: Keypad Operations

    Sets the duration for closing the backlight when the MT-6320 is Backlight powered by a battery or external power supply and the MT-6320 is idle and adjusts the screen brightness. Phone Record Sets the storage location of call recordings.
  • Page 15 MC90KEY_Notify.CAB is the notification program of the physical keypad. 1. Copy MC90KEY_Notify.CAB to My Device\Program Files\SetupNotify (if the SetupNotify directory does not exist, create the directory). 2. Run MC90KEY_Notify.CAB. 3. After the MC90KEY_Notify.CAB program is installed, the MT-6320 automatically restarts. - 12 -...

  • Page 16: Adjusting Volume

    Figure 2-6 Volume dialog box 2.7 Date and Time To change the date and time in the MT-6320, do as follows: 1. Select Start > Settings > Clock & Alarm. The Clock & Alarm window is displayed. 2. Click Time Zone, Date, and Time to set the items.

  • Page 17: Setting Ringtone

    You can also click the icon of clock at Home or the icon of alarm in the applications window. 2.8 Setting Ringtone To change the ringtone of the MT-6320, do as follows: 1. Select Start > Settings > Sounds & Notifications. The Sounds & Notifications window is displayed.

  • Page 18: Call Function

    3.2 Answering Calls The MT-6320 displays a dialog box when receiving an incoming call. If the phone is set to ringing, the phone rings. You can answer or ignore the call. To answer the call, click the Call-dial dialog box or press the green call key on the keypad of the MT-6320.

  • Page 19: Contacts

    SIM card to the MT-6320 or synchronize the contacts in the PC. You can view and add contacts directly on the MT-6320. If someone calls you or sends an Email or short message to you, you can add the person to the contact list. (Select the...
  • Page 20 MT-6320 User Manual 2. Click Setup E-mail and enter your Email account and password. 3. Select Try to get e-mail settings automatically from the Internet and click Next. 4. Click Next to complete the setting and download Emails. 5. Enter your name and click Next.

  • Page 21: Connection And Synchronization

    4.1 GPRS Data Connection After a GPRS data connection is established, you can access the Internet. To establish a GPRS data connection, ensure that a SIM card is installed in the MT-6320. Configuring a GPRS Data Connection 1. Click the status bar on the screen. A drop-down list box is displayed.

  • Page 22: Wi-Fi Network Connection

    DHCP, select Use server-assigned IP address. Figure 4-3 Wi-Fi connection setting 5. After setting the IP address, click the Wireless tab. The MT-6320 searches for and displays available Wi-Fi networks, which are open or secure networks. 6. Select one Wi-Fi network to connect to the network. If you intend to connect to a secure Wi-Fi network, you are required to enter the password of the network.

  • Page 23: Mt-6320 Wi-Fi Optimization

    Connected. ★ Caution The MT-6320 memorizes the connected Wi-Fi network. Next time when you need to access and connect to the Wi-Fi network, the MT-6320 automatically connects to the network. 4.2.2 MT-6320 Wi-Fi Optimization The Wi-Fi optimization tool helps users adjust different values based on the usage environment to achieve the optimal setting.

  • Page 24: Bluetooth

    Figure 4-5 Parameter settings using the WiFiConfig tool 4.3 Bluetooth On the MT-6320, after you enable the Bluetooth function, you can establish wireless connections with other Bluetooth devices such as computers and mobile phones. In the scope without solid obstacles, the effect of Bluetooth connections is good.
  • Page 25 3. In the Devices tab, click Add new device… to search for and connect to another Bluetooth device. Figure 4-7 Bluetooth Devices tab 4. The MT-6320 starts to search for Bluetooth devices in the area. The searched Bluetooth devices appear in the list box. Figure 4-8 Searching for Bluetooth devices 5.
  • Page 26 MT-6320 User Manual Figure 4-9 Selecting a Bluetooth device 6. Enter a predefined password and click Next. Figure 4-10 Entering a password 7. In another device, enter the same password and click Next. 8. Click Finish. The added device is displayed in the list in the Devices tab.
  • Page 27 10.Click Save to return to the Devices tab. 11.Click Connect. ★ Caution  Ensure that the device to be connected to the MT-6320 enables the Bluetooth function and enables Bluetooth visibility.  During the connection process, set the password. The MT-6320 does not support connection without a password.

  • Page 28: Connecting To A Pc Through Usb

    You can connect the MT-6320 to a PC by using a USB cable or Bluetooth. When you connect to a PC for the first time, an option box is displayed on the MT-6320 for you to select the connection mode. After selecting a connection mode, select the No Longer Ask check box.
  • Page 29  The ActiveSync can synchronize information with Microsoft Outlook rather than Microsoft Outlook Express.  When the MT-6320 synchronizes information with a PC through ActiveSync, ensure that the Internet sharing function is in the disconnected status. Otherwise, ActiveSync cannot establish a connection automatically.
  • Page 30 MT-6320 User Manual Through the Bluetooth function, you can also create a connection between the MT-6320 and a PC and synchronize the two devices. For details, see the help information about ActiveSync on the PC. - 27 -...

  • Page 31: Introduction To Iscan

    MT-6320 User Manual 5 Introduction to iScan To collect data, you must install and start the scan application on the MT-6320. Partner Tech. provides the embedded system component iScan, which can send the data decoded by a barcode scanner to applications by simulating keypad input. The Partner Tech products that are equipped with RFID modules are supported.

  • Page 32: Rfid Reading

     WiFi Conn. Keepon: The built-in power management module in the Windows Mobile system disables Wi-Fi by default to save power when the MT-6320 is in the standby status. After this function is enabled, the Wi-Fi connection can be always retained.
  • Page 33 MT-6320 User Manual 5. After the label is read successfully, the buzzer rings and the read label ID is sent to the relevant application. - 30 -...

  • Page 34: Managing Mt-6320

    Settings > System > Remove Programs to remove relevant programs. 6.3 Using Task Manager When the MT-6320 runs at a low speed, click Task Manager in the lower right part of Home or select Start > Settings > System > Task Manager to open the task manager, select the required programs, and click End Task to close the programs.

  • Page 35: Using File Explorer

    6.4 Using File Explorer The file explorer can manage files in the MT-6320 and a memory card. It can sequence and transfer the files. You can click File Explorer in the lower left part of Home or select Start >...
  • Page 36 MT-6320 User Manual Figure 6-3 Restore Factory Defaults window You can also press and hold the left function key + right function key + power-on/power-off key to restore factory settings. - 33 -...

  • Page 37: Precautions And Troubleshooting

     Do not try to disassemble the MT-6320. Otherwise, the MT-6320 may be damaged.  Do not touch the screen surface of the MT-6320 by using a pen, a pencil or other sharp articles in case the screen may be scratched.

  • Page 38: Troubleshooting

     Scan lens Clean the scan lens regularly by using lens paper or other articles suitable for cleaning optical materials. 7.2 Troubleshooting Table 7-1 MT-6320 troubleshooting Fault Cause Solution The battery volume is too low or the battery is not Charge the battery or replace the battery.
  • Page 39 1 to 5 minutes inactive state. The MT-6320 is closed. and the interval to 1 minute. If the MT-6320 is powered by external power supply, set the time segment to 1, 2, 10, 15, or 30 minutes.
  • Page 40 MT-6320 User Manual previous paired MT-6320 The MT-6320 does not A Bluetooth device can support connecting be detected but cannot Set a password for the Bluetooth device. Bluetooth device without a be connected. password. Table 7-3 Cable faults Fault Cause Solution Charging fails.

  • Page 41: Appendix

    Used to communicate with the host or charge the USB data cable MT-6320 Instructions Warranty card One-slot USB charging base Optional Four-slot battery charger Optional Table 2 Technical specifications of MT-6320 Item Description System Configuration 600 MHz high-performance ARM processor  Operating System Microsoft Windows Mobile 6.5...
  • Page 42 MT-6320 User Manual Operating Environment Development Tools Visual Studio 2005/2008, with Software Development Kit (SDK) Programming C++, C#, .NET Language Operating Temp. -10℃ to 50℃ Storage Temp. -20℃ to 60℃ Relative Humidity 0 to 95% (non-condensing) Drop Specification 1.5-meter drops to concrete ground (10 drops each side) Tumble Specification 500 0.5-m tumbles (1000 hits)
  • Page 43 MT-6320 User Manual Infrared Communication Module Built-in Infrared Structure with two emitting tubes, meter reading distance of up to 5 meters, Communication Module fully supporting DL/T645 protocol and communication protocols of worldwide mainstream meter manufacturers Interface Initial rate: 1200 bps, supported rates: 1200, 2400, 4800, and 9600 bps...
  • Page 44 MT-6320 User Manual  Partner Tech Europe GmbH. All Rights Reserved. This guide is prepared by Partner Tech Europe GmbH according to the existing information. The content in this document is subject to update without notice. Without written approval of Partner Tech Europe GmbH., no one shall copy, extract, back up, modify, spread, or translate any part of this document in any form or method or use the whole or part of this document for business purposes.
  • Page 45 MT-6320 User Manual - 42 -...
