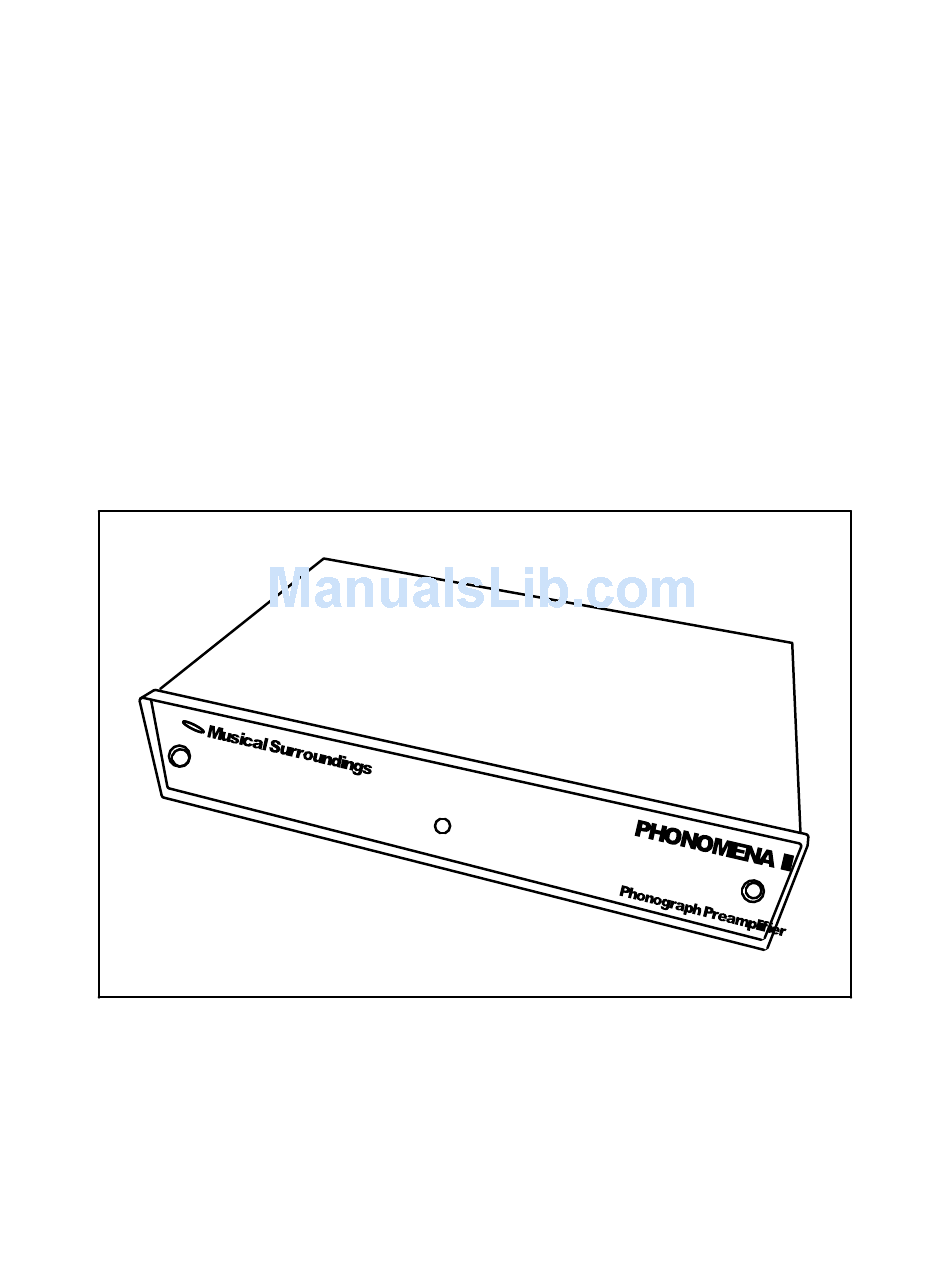

- Page 1 USICAL URROUNDINGS RESENTS HONOMENA HONOGRAPH REAMPLIFIER ’ WNER S MANUAL...
-
Page 2: Table Of Contents
1.0) INTRODUCTION………………………………………………………….…..3 2.0) INTERNAL CONFIGURATION SETTINGS………………………………...4 2.1) BASIC GAIN SETTINGS………………………………………………….4 2.2) GAIN SETTINGS CHART………………………………………………...4 2.3) BASIC INPUT LOADING…………………………………………………5 2.4) INPUT LOADING SETTINGS CHART…………………………………..5 3.0) POWER SUPPLY……………………………………………….……………..6 4.0) INPUTS AND OUTPUTS………………..……………………………………6 5.0) UNIT PLACEMENT……………………………….………………………….6 6.0) USING YOUR PHONOMENA II…….……………………………………….6 7.0) WARRANTY INFORMATION……………………….………………………7... -
Page 3: Introduction
(preamplifier) is required before the power amp, since there is no independent volume control for the Phonomena II unit. The Phonomena II’s power supply connects to the wall with the supplied wall-mount transformer. Installation and set-up of the Phonomena II is quite simple. It involves: a.) Setting the two internal configuration settings (one for each channel) -
Page 4: Internal Configuration Settings
GAIN SWITCHES To Set the Gain, there are two sets of four dip switches, located on the Phonomena II’s back panel (one set each for the left and right channels). Refer to your phonograph cartridge’s instruction manual for the suggested Gain setting. -
Page 5: Basic Input Loading
2.3) BASIC INPUT LOADING SETTINGS INPUT LOADING SWITCH To set the Input Loading, there are two eight-position switches, one for each channel, located on the rear panel. Refer to your cartridge owner’s manual to determine proper Input Loading settings. The factory setting for Input Loading is 50,000 Ohms. -
Page 6: Power Supply
3.0) POWER SUPPLY The Phonomena II connects to a wall outlet or power strip with the supplied wall-mount transformer. The unit will not operate without the wall-mount transformer. 4.0) INPUTS AND OUTPUTS Please make sure that the volume control on your receiver, integrated amp, or pre-amp is turned completely down before plugging in the audio connections. -
Page 7: Warranty Information
We do not assume any liability for any damage to any other component in the system due to a failure in the Phonomena II. If you believe your unit is malfunctioning, please contact the dealer where you purchased...
