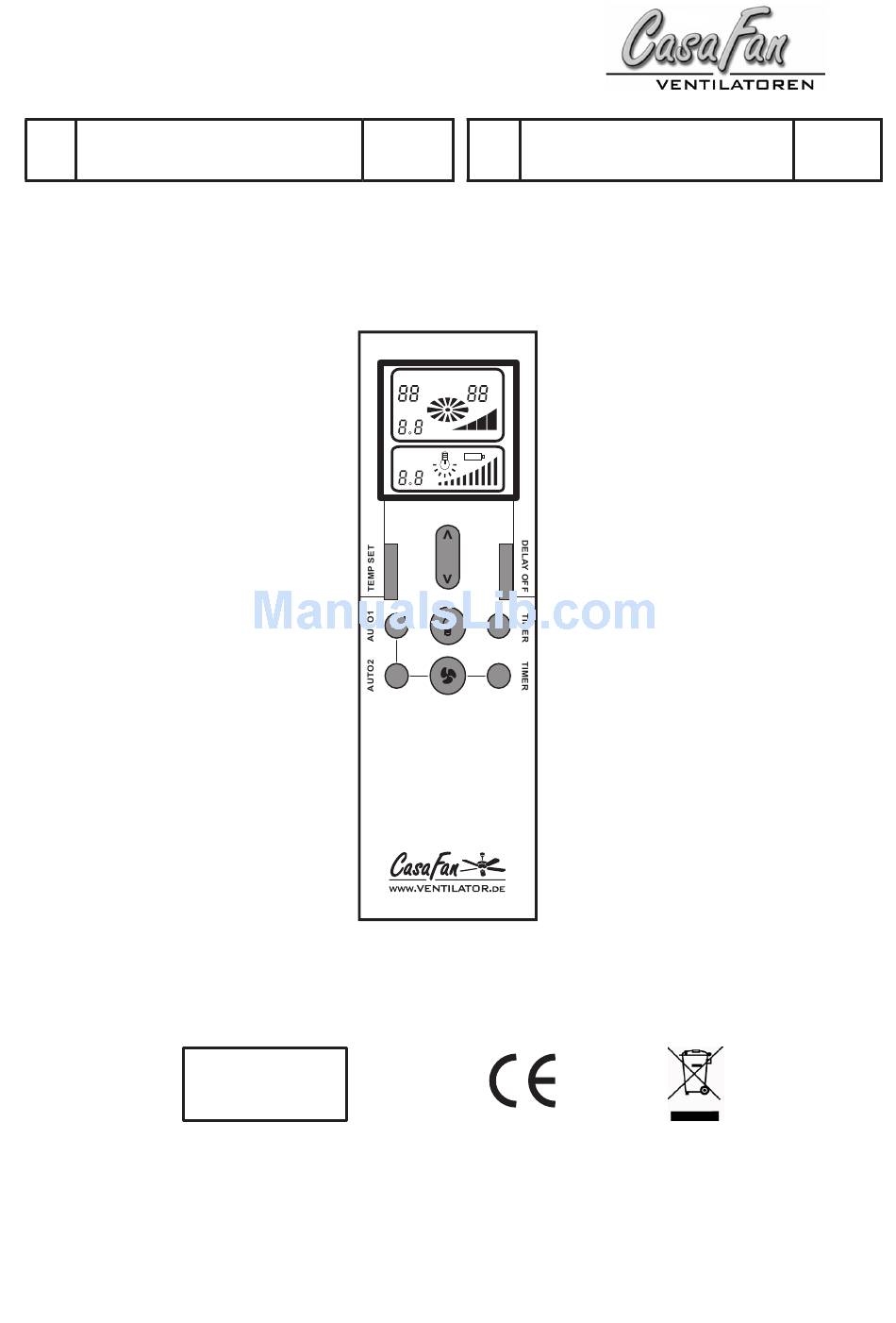

- Page 1 17 - 19 service e l´uso ROOM TEMP AUTO SET TEMP °F AUTO °F °C °C TIMER 1 2 3 4 TIMER FB-FNK Advanced Equipment Class 1 Sub-class 20 433,9 MHz Funk-Fernbedienung für Deckenventilatoren RF Remote Control for Ceiling Fans...

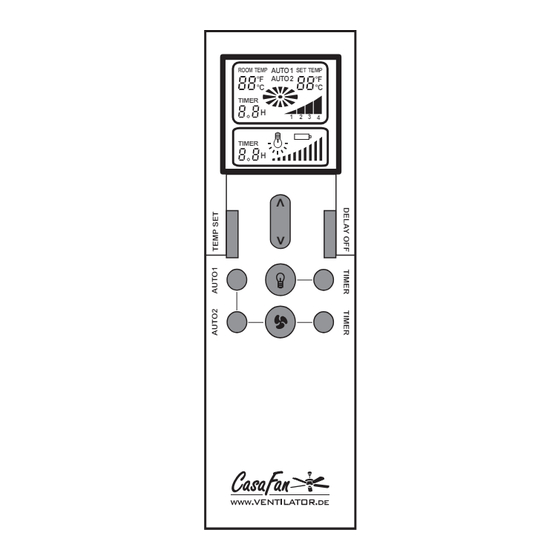

- Page 2 AUTO1 or AUTO2 function activated Preset temperature AUTO Current room tempera- ROOM TEMP SET TEMP °F °F AUTO for AUTO function ture on remote control °C °C TIMER 1 2 3 4 Display for battery low (replace battery) TIMER Button “/” Button DELAY OFF Button TEMP SET Button LIGHT and...
- Page 3 About this operating instructions Before using the CasaFan product, read the operating instructions carefully. Keep the operating in- structions within reach. Never pass the fan onto another person without the operating instructions. Explanation of symbols: Dangerous electric voltage Warn the user of the dangers caused by electricity.
-
Page 4: Installation
Before installation: Attention! CasaFan remote controls may only be installed by a professional electrician under observance of the German VDE 0100 industrial standard (or the applicable federal and/or state code). The specified voltage on the model tag must correspond with the available mains voltage. - Page 5 Once the mains voltage is switched on again, the ceiling fan is available to operation with the remote control. Installation of the remote control of CasaFan fans in an extremely flat construction, e.g. FLAT, GLASHAUS FLAT or OFFICE FAN Please install the receiver unit of the remote as shown in diagram 3. Once the device is electrically in- stalled, you may stick the receiver unit to the ceiling with the double-sided sticky points.
- Page 6 Downrod Lower Canopy Coding of the FB-FNK Advanced The remote control receiver (diagram 4) and transmitter unit (diagram 5) must have the same code. Put the switch in the desired position you selected (factory default is up for all swit- ches).
- Page 7 (motor OFF)! If this fundamental issue is not observed, any resulting damage to the motor and/or the remote control is not covered by the warranty. Operation and functions of the remote control FB-FNK Advanced Button LC-Display/FUNCTION...
- Page 8 Automated Temperature Programs The AUTO 1 function ma- - The symbol AUTO 1 is activated on the display kes it possible to run the by pressing the button AUTO 1. By pressing the fan depending on room button TEMP SET again, the max. room tempera- temperature.
- Page 9 When the room tempera- - The program AUTO 2 is started by pressing the ture drops to, or below button AUTO 2 twice. a certain value, the fan - The fan operates at the highest speed (max. pre- continues to run at the set fan speed), when room temperature is higher lowest fan speed.
- Page 10 ACHTUNG Dieses Gerät entspricht der EG-Richtlinie 2002/96/EG. Das Symbol mit der durchgestrichenen Abfalltonne am Gerät bedeutet, dass das Gerät nach seiner Aussonderung nicht im Haushaltsmüll entsorgt werden darf, sondern an einer Sammelstelle für Elektro- und Elektronikgeräte oder beim Kauf eines gleichwertigen Neugerätes beim Händler abzugeben ist. Der Benutzer hat Sorge zu tragen, dass das Gerät nach seiner Aussonderung an einer geeig- neten Sammelstelle abgegeben wird.
- Page 11 Richtlinie 1999/5/EG (R&TTE) Declaration of Conformity in accordance with the Radio and Telecommunications Terminal Equipment Act (FTEG) and Directive 1999/5/EC (R&TTE Directive) Hersteller/Manufacturer EVT/Casafan-Ventilatoren Inh.: Wolfgang Kissling Gelnhäuser Str. 35 D 63505 Langenselbold Fernbedienung für Deckenventilatoren / Remote Control for ceiling fans...
- Page 12 Produktänderungen, die der Verbesserung dienen, behalten wir uns ohne besondere Ankündigung vor. CasaFan reserves the right to make improving changes on products on sale. CasaFan * Gelnhäuser Str. 35 * D-63505 Langenselbold © CasaFan 2011...
