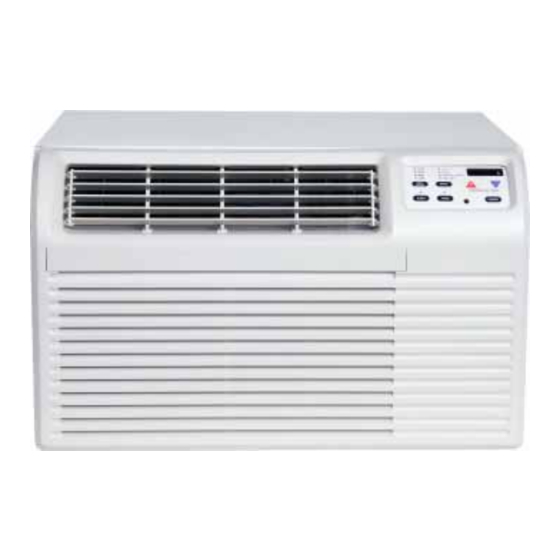

Through-the-wall r-410a air conditioners & heat pumps pbc/pbe/pbh series
Hide thumbs Also See for PBC092E00AX:

Advertisement

Table of Contents

Through-The-Wall R-410A
Air Conditioners & Heat Pumps
•
All safety information must be followed
See Installation instructions for more safety precautions.
•
Refer to the appropriate Parts Catalog for part number information.
•
Models listed on page 3.
PBC/E/H***E00AX
This manual is to be used by qualified, professionally trained HVAC technicians only. Goodman does
not assume any responsibility for property damage or personal injury due to improper service
procedures or services performed by an unqualified person.
is a registered trademark of Maytag Corporation or its related companies and is used under license to Goodman Company, L.P., Houston, TX. All rights reserved.
TECHNICAL MANU
TECHNICAL MANU
TECHNICAL MANU AL
TECHNICAL MANU
TECHNICAL MANU
PBC/PBE/PBH
Copyright © 2010 - 2012 Goodman Company, L.P.
AL
AL
AL
AL
PBC/E/H***E00B*
RT4271001r3
