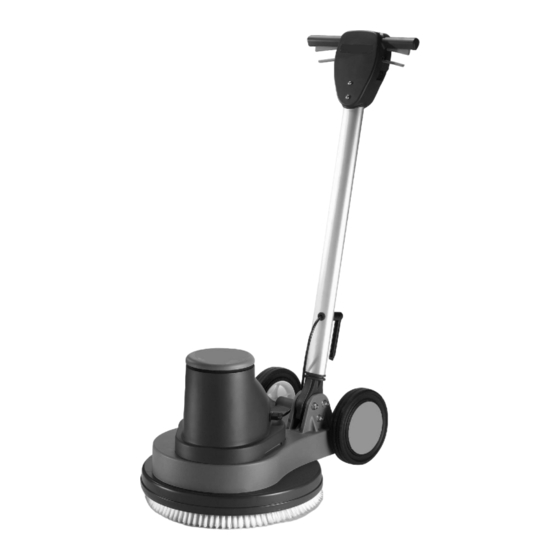

- Page 1 ORIGINAL INSTRUCTIONS CAUTION – READ THESE INSTRUCTIONS BEFORE USING THE MACHINE User instructions Orbis – OB38200, OB38400, OB45200, OB45400, OB50200, OB50400, OBLP452/400 Rotary floor cleaning machines 03-6120-0000 Iss.2 03/10...
-
Page 3: Table Of Contents
Contents Diagrams ............................4 Product Information........................5 1.1 Important Safety Advice....................5 1.2 Guidelines for the operator....................5 1.3 Transporting the machine ....................6 1.4 Symbols & Markings ......................6 Preparing for use ........................6 2.1 Electrical connection ......................6 Preparing for use ........................ -
Page 4: Diagrams
Diagrams... -
Page 5: Product Information
These instructions are valid for the following models: supply cord or plug, or after the machine malfunctions or is damaged in any way. OB38200, OB38400, OB45200, OB45400, Contact an authorised Service Agent for repair OB50200, OB50400, OBLP452/400 or adjustment. • The plug of the power supply cord must be 1.1 Important Safety Advice... -
Page 6: Transporting The Machine
• Operators should be physically capable to Take extreme care when moving the machine up or down steps or stairs. manoeuvre, transport operate machine. • Operators should be able to recognise unusual 1.4 Symbols & Markings operation of the machine and report any problems. -
Page 7: Preparing For Use
Preparing for use Cable winder Used to hold supply cord in place on handle 3.1 Fitting the handle when machine is not in use. Can be turned to enable quick release of cord. Carefully remove the machine base and Motor overload cut-out handle from their respective packaging. -
Page 8: Polishing
thumbs and squeeze both switch triggers to empty the solution tank and clean and dry the start the machine (Fig.3). machine. • IMPORTANT - Dispose of unused cleaning WARNING - Never start the machine without pads fitted. solution in accordance with the manufacturer’s directions. -
Page 9: Fitting The Vacuum Unit
• The spring is a reasonably tight fit to prevent Maintenance accidental movement in use and therefore must WARNING Before undertaking be pulled onto the buffer by stretching. maintenance operations • With the skirt on the buffer it can be moved in adjustments switch off machine and unplug from the electricity supply. -
Page 10: Guarantee
11 Guarantee repair or replacement of parts due to normal wear and tear. Your product is guaranteed for two year from the • Damage caused by accident, misuse or date of original purchase, or hire purchase, neglect, or the fitting of other than genuine against defects in materials or workmanship Truvox parts. -
Page 11: Technical Specification
Orbis 400 Orbis 400 Orbis 400 Orbis Duo Model 38cm 43cm 50cm 43cm 38cm 43cm 50cm 43cm OB38200 OB45200 OB50200 OB45200/HD OB38400 OB45400 OB45400 OB38200 Voltage AC (~) / V / Hz 230 / 50 230 / 50 230 / 50... -
Page 12: Accessories
14 Accessories Item Part No. Usage Polypropylene scrubbing brush 03-3431-0000 wet scrubbing Tynex scrubbing brush 03-3432-0000 heavy duty wet scrubbing Shampoo brush 03-3433-0000 carpet cleaning Bassine polishing brush 03-3434-0000 polishing and spray cleaning Gumati polishing brush 05-3435-0000 polishing and spray cleaning Standard drive disc (see note 1) 05-3436-0000 retains cleaning pads... -
Page 14: Declaration Of Conformity
Make Rotary floor cleaning machines Type Orbis Rotaries Model OB38200…, OB38400…, OB45200…, OB45400…, OB50200…, OB50400…, OBLP452/400… Serial Number : from 000001 Year of Construction : 2010 has been manufactured using the following transposed harmonised European Standards and technical specifications. - Page 16 Authorised dealer: Truvox International Limited Third Avenue, Millbrook, Southampton, Hampshire SO15 0LE, England Tel: +44 (0) 23 8070 2200 Fax: +44 (0) 23 8070 5001 e-mail: truvox@truvox.com Web: www.truvox.com...
