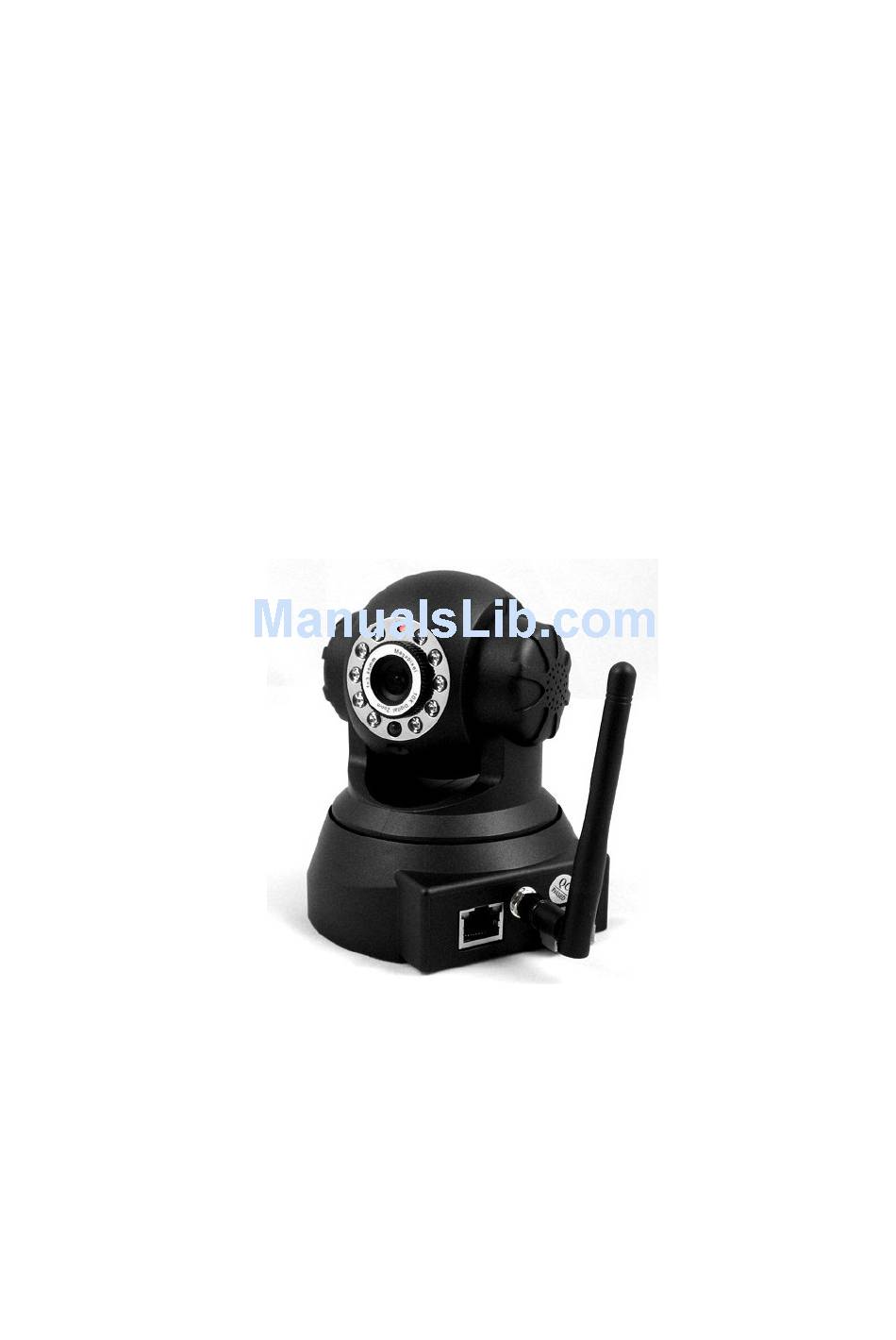

Page 1: User Manual

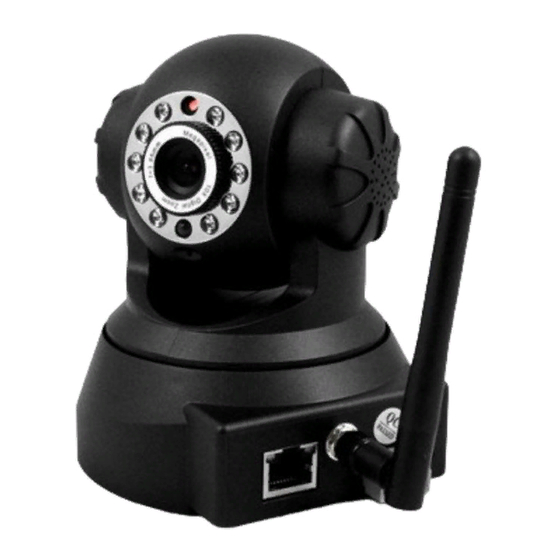

IP Wireless / Wired Camerea User Manual SP-FJ01W... -
Page 2: Table Of Contents
User manual Contents WELCOME........................-3- 1.1 Features........................-3 1.2 Pcking list......................-4- 1.3 Product view......................-4- 1.3.1 Front View......................-4- 1.3.2 Rear Panel......................-5- 1,4 PC System Requirements..................-5- 1.5 Hardware Instruction....................-6 1.6 Software installation.....................-6- SOFTWARE OPERATION..................-8- 2.1 IP Camera Finder .....................-8- 2.2 Camera Login.......................-13 Camera Icon Functions .................. -
Page 3: Welcome
User manual 1 WELCOME IP Camera is a new generation product combined with analog camera & IP video technology. Despite all functions which analog cameras have, IP camera can compress and encrypt video and audio signal then through internet send them to remote terminals with its built-in processor and web server. -
Page 4: Product View
User manual when alarms. Supporting multiple network protocols:HTTP/TCP/IP/UDP/STMP/DDNS/SNTP/DHCP/FTP Support mobile surveillance like Smart phone,3G phone,IPhone,PDA,etc. Free 16ch or 64ch software clients support. Five language (English, Simplified Chinese, Traditional Chinese, Spanish, French) support Support Firefox browser Reset button available if lost password 1.2 Packing List Untie the pack and check the items contained against the following list;... -
Page 5: Rear Panel
User manual 1.3.2 Rear panel LAN: RJ-45/10-100 Base T DC5V: 5V/2A Power supply RESET BUTTON: press and hold down the RESET BUTTON(Figure 1.3 underpan) for 7-10 Seconds .Release the power button and IP Camera will be reset back to the factory default Parameter. -
Page 6: Hardware Instruction
User manual Hardware Instruction Follow the steps below to set up your camera hardware.Make sure to follow each step Carefully to ensure that the camera operates properly 1) Plug the network cable into the camera and then into your Cable/DSL router. 2) Plug the power adapter into the camera and then into the power outlet. - Page 7 User manual From the computer desktop you can find an icon appears on the Desktop automatically. NOTE:Before installing and using the product, please read the following precautions carefully and make sure they are fully understood. Use only the power adapter attached with the product .Use of unauthorized power adapter may cause damages to your IP Camera.
-
Page 8: Software Operation
User manual 2 SOFTWARE OPERATION 2.1 IP Camera Finder When the Device has been mounted properly, you can double click the Icon “IP Camera Finder” and a dialog box will pop up. Wizard Mode(if you not familiar the settings pls chose this mode):... - Page 9 User manual...
- Page 10 User manual (you can use One key Set or Manually set)
- Page 11 User manual Advanced Mode (if you are already familiar with the settings pls chose this mode): Basic Properties There are some device informations in the Basic Properties ,such as Device MAC,System Firmware Version, Web UI Version.
- Page 12 User manual Note: The software searches IP Servers automatically over LAN. 1 .The ip camera and the pc should be in the same LAN 2 To install more than one cameras in the LAN,all of the cameras port and IP address can not be same.
-
Page 13: Camera Login
User manual Camera Login in IE (LAN) You can access the camera through IP Camera Tool or IE directly. Click the inner access: “open” To access the camera ,start your web browser and type in the camera’s IP address,Such as http://192.168.1.126:81 The Camera Login page pop-up. - Page 14 User manual Administrator’s username is: admin and no password… Sign in with ActiveX Mode(for IE)
-
Page 15: Camera Icon Functions
User manual 2.3 Camera Icon Functions Rotate the cameras(pan/title) Auto Pan/Titlt Ajust Pan/Tilt Speed: If you want to detect 4 or 9 views, need to click this ico Flip: To see the flip image. Mirror: To see the mirror image. Resolutions: can chose 320*240 or 640*480 Mode: can chose 50HZ ,60HZ or outdoor Brightness and Contrast:can set the brightness and contrast... -
Page 16: Setting Details(User&Password)
User manual Setting Details Alias Serrings: You can Input the new name as you like. Data&Time Settings: Data&Time Settings page. Users Settings:Eight accounts are acceptable for this system.Here the eight users can Configure their user names and password as administrator,Operator or Visitor. Administrator:You can sertup the advanced configurations of the IP Camera. -
Page 17: Multi-Device Settings
User manual 2.4.1 Multi-Device Settings Use multiple cameras in LAN In the Multi-Device Settings page, you can see all devices searched in LAN. You can add more cameras list in LAN for monitoring... - Page 18 User manual...
-
Page 19: Network Settings
User manual 2.4.2 Network Settings: Http Port: In most cases, you can leave this value as however numbers 2.4.3Wireless Lan Settings: Click the Scan button (at least two times),select your wifi SSID, and write in your wifi’s password. ADSL Settings ( pls don’t use it ,if you use routers) When connected to the Internet through ADSL directly ,you can enter the ADSL username and password obtained from ISP. -
Page 20: Ddns Service Settings
User manual Upnp Settings: If you have done the port forwarding in the routers, you can do not care about it. 2.4.4DDNS Service Settings DDNS Service: The system support protocols from some DDNS providers,and our own ddns IPCAM( built-in).. User and Password: the user name and password used when applying for the domain name .(if use our Built-in ddns, and you can find the ddns user and password from the label of ip camera) DDNS or Proxy Server: If you access the DDNS host through a proxy, you should input... -
Page 21: Mail And Ftp Serivce
User manual 2.4.5Mail and FTP Service Configure the E-mail box to receive and send mails. The E-mail box is used for receiving the images sent after alarm and the system IP address after successful dial-up. Settings the FTP Service:... -
Page 22: Motion Detection Alarm
User manual 2.4.6Alarm Service Settings: Enter Alarm Service Settings page to configure Motion Detection function. Sheduler You can set the exact time when the alarms will be open on. Send Mail on Alarm Sent picture and mail inform to customer’s e-mail after alarmed. (firstly you should finish the Mail Service Settings.) REC automatically and save to PC When you enable motion detect and open the camera monitoring page on the PC. - Page 23 User manual Maintenance: Upgrade Device Firmware: Upgrade Device Firmware and device embeded web UI sofeware in This page. Restore Factory Settings: Restore factory settings of the device. Reboot Device:Rebboot the device. Back: Back to Monitoring Mode.
-
Page 24: Ip Camera Super-Client Software
User manual 3IP Camera Super-Client) 3.1 Step by Step Registery ( you can find the register code from the label of disc or last page of manuals):... -
Page 25: Add Equipment Ip Camera
User manual 3.2 Add equipment: LAN:(local network) WAN(outside network): if you are using our built-in ddns: you can use Serial NO Mode: the Serial NO Mode is the ddns account,you can find it on the labels of cameras... - Page 26 User manual if you use your own ddns: you can use IP/Domain Mode with your own ddns.
-
Page 27: Email&Motion Detection Alarms Settings
User manual 3.3 Email&Motion Detection Alarms Settings... -
Page 28: Record Settings By Schedule
User manual 3.4 Record Settings by Shedule 3,5 Paly Back the Videos Click... -
Page 29: Setting Storage Path
User manual 3.6 Setting Storage Path Click... -
Page 30: More Details Help About This Software
User manual 3.7 More details help about this software… click... -
Page 31: How To View The Camera At Outise Networks And On Mobile Phone,Iphone
User manual 4.HOW TO View in Outside Netwrok 4.1Using a router to access the Internet Using a router to access the Internet by shared ADSL If a router is set for dial-up Internet access, it is not required to set ADSL dial-up account and password on the IP Camera. -
Page 32: 1Do Port Forwarding In The Lan Routers
User manual 4.1.1 Do port forwarding in your routers: 1) Pls make sure the Server IP Address,start port and end port be same with your camera’s. 2) Enter IP Camera Finder to set the basic configuration,... -
Page 33: Static Ip User
User manual 3) Login the Camera homepage as Administration. 4) Enter DDNS Settings Page and ennable DDNS service. Click <Submit> and the device will reboot 5) You can access the Camera from Internet by domain name( like: http://demo.ipcam.hk 4.2Static IP user Static IP user is not need to use DDNS for remote access. -
Page 34: How To Use Other Ddns
3) Re-login the Camera homepage and enter “DDNS Service Settings” page to check the DDNS Status is DynDns Succeed or not. 4) You only need to enter the domain name(domain name+Port number http://suneyes.kicks-ass.net:81/ ) in the IE address bar, the browser will visit the IP Camera. - Page 35 User manual 3. If you are using our camera’s built-in DDNS, can also directly use this DDNS into your mobile browser like Http://ddns.pda.ipcam.hk (ddns is your camera’s ddns account)
-
Page 36: Use The Mobile Software
User manual 4.4.2 Use the mobile Software Marks To accomplish this function, pls make sure that your phone support JAVA program and have been open to the internet,and your IP cameras are using our own DDNS built-in. Install the software in your phone by the two ways below: 1. - Page 37 User manual Choose Menu-Add to add new device, see below： Input URL/SN：Enter the ip camera’s ddns account or ip address, (i.e. if the ip camera’s ddns a/c is guest, then type in guest here) Input User Name：Enter the ip camera’s username. Input Password：Enter the ip camera’s password.
- Page 38 User manual Click Open to watch live video: Users can press 2 and 8 on the phone keyboard to control up and down, 4 and 6 for left and right.
-
Page 39: Faq
User manual 5 FAQ 5.1 Frequently Asked Questions Note: Any quesetions you would meet, please check Network connections firstly. Check the working status revealed by the indicators on the network server, hub, exchange and network card. If abnormal, check the network connections. 5.1.1 I have forgotten the administrator username and/or password. - Page 40 User manual Enable: Initialize and script ActiveX controls not marked as safe Enable: Run ActiveX controls and plu-ins 5.1.5 Problems with network bandwidth The image frame rate is subjected to the following factors: 1, network bandwidth; 2, PC performance, network environment and display preference setting (brightness, theme, etc);...
- Page 41 User manual Step3: After a minute, you will receive a E-mail from DynDNS Support and it will give you a confirmation address (e.g. https://www.dyndns.com/account/confirm/vXMVT78-KvenhydmKMWH5kg) Step4: When the Account Confirmed, login and start using your account. Choose Add Host Services and enter Add New Hostname page.
- Page 42 User manual Step5: On the Add New Hostname page 1) input your Hostname. 2) Choose Host with IP address 3) Click Use auto detected IP address xxx.xx.xx.xxx Then click Create Host. Step6: Now you obtained a Dynamic Domain Name(Figure 4.6), and can use it in the DDNS Service Settings (details:2.5.3) 5.3 Specification Item...
-
Page 43: Obtaining Technical Support
User manual Communication interface One 10M/100Madaptive Ethemet interface Wi-Fi Module Supporting IEEE802.11b/g Power Supply DC 5V/1A Maximum Power < 5W ～+55 ～ +122 ℃ ℃ /+14℉ ℉ Operating Temperature ～+70 ～+158 Storage Temperature ℃ ℃/ -44℉ ℉ Operating Humidity 10～85% System Requirements Microsoft Windows 98/ME/2000/XP/Vista Explorer...
