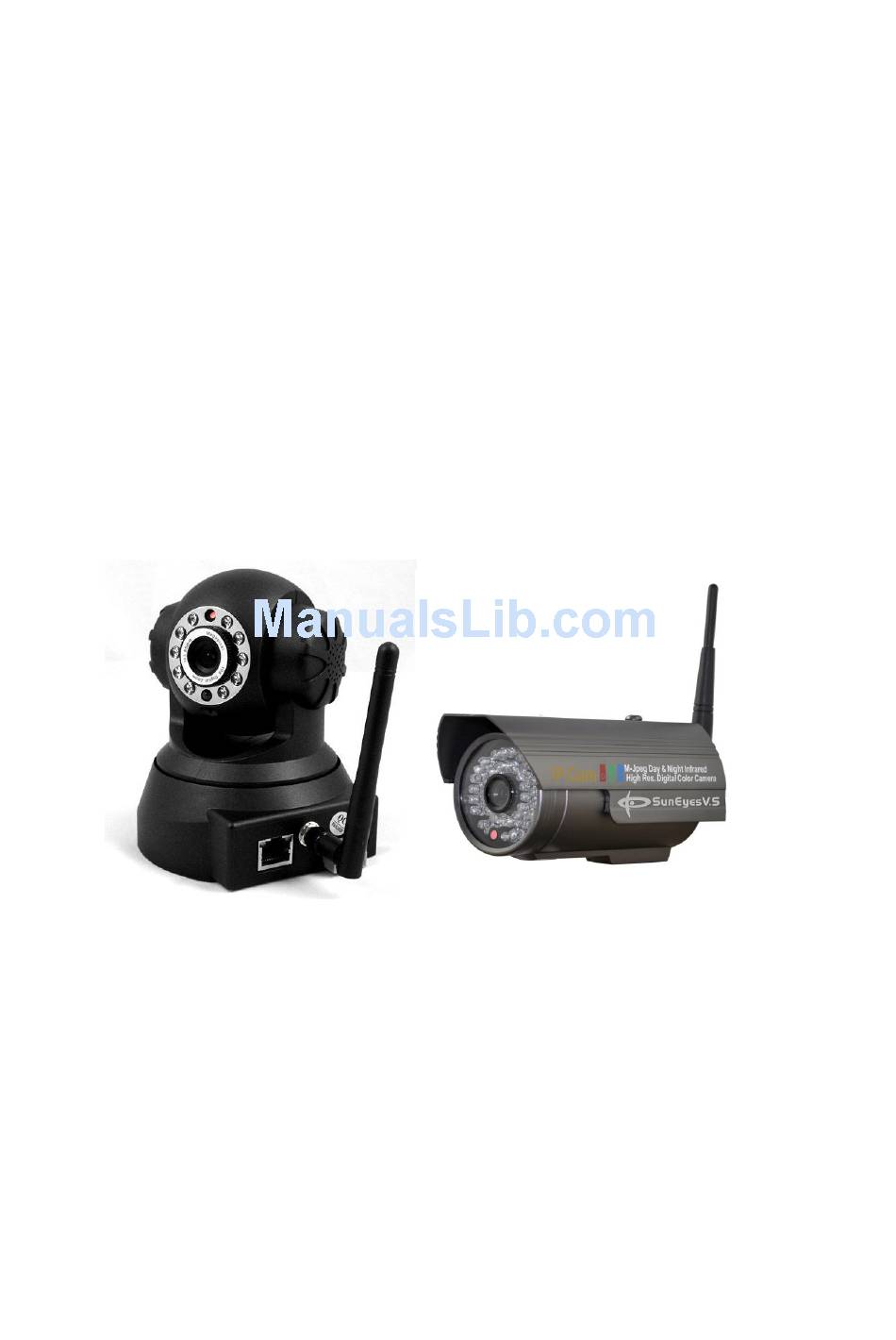

Wireless IP Camerea SunEyes Group Co.,Ltd User Manual SP-FJ01W SP-FJ02W... -
Page 2: Table Of Contents
User manual Contents WELCOME........................-3- 1.1 Features........................-3 1.2 Pcking list......................-4- 1.3 Product view......................-4- 1.3.1 Front View......................-4- 1.3.2 Rear Panel......................-5- 1,4 PC System Requirements..................-5- 1.5 Hardware Instruction....................-6 1.6 Software installation.....................-6- SOFTWARE OPERATION..................-8- 2.1 IP Camera Finder .....................-8- 2.2 Camera Login.......................-13 Camera Icon Functions .................. -
Page 3: Features
1.1 Features MJPEG video compression Wireless(Wifi 802.11B/G/N,WEP,WPA,WPA2) Remote Pan Tilt (P: 355°T:90°Speed adjustable) (SP-FJ01W) IR night vision(Range:10~15m) Support two-way audio function (SP-FJ01W) High-sensitivity CMOS sensor Resolution:640 x 480(VGA), 320 x 240(QVGA) Video Frame Rate:25fps(QVGA), 15fps(VGA) Minimum Illumination:0.5Lux @ F2.0... -
Page 4: Product View
Wireless IP Camera 1 Wi-Fi Antenna DC Power Supply 1 (User Manual﹑software) Mounting bracket NOTE:Contact us immediately in the case of any damaged or short of contents. 1.3 Product views 1.3.1 Front view SP-FJ01W SP-FJ02W 1.3.2 Rear panel... -
Page 5: Pc System Requirements
User manual LAN: RJ-45/10-100 Base T DC5V: 5V/2A Power supply RESET BUTTON: press and hold down the RESET BUTTON(Figure 1.3 underpan) for 7-10 Seconds .Release the reset button and IP Camera will be reset back to the factory default Parameter. 1.4 PC System Requiements Minimum Hardware Configuration CPU: Pentium 1.6 GHz... -
Page 6: Software Installation
User manual Follow the steps below to set up your camera hardware.Make sure to follow each step Carefully to ensure that the camera operates properly 1) Plug the network cable into the camera and then into your Cable/DSL router. 2) Plug the power adapter into the camera and then into the power outlet. 1.6 Software installation Software installation is the key to the successful use of this product. - Page 7 IP Camera is delivered out of the factory. If you turn the lens,it may cause incorrect focus and vague images. Do not turn the Pan/Tilt by force for it may cause damage to intemal components of the Pan/Tilt. IP Camera terminal shall be installed in an indoor environment.(SP-FJ01W)
-
Page 8: Software Operation
User manual 2 SOFTWARE OPERATION 2.1 IP Camera Finder When the Device has been mounted properly, you can double click the Icon “IP Camera Wizard” and a dialog box will pop up. Wizard Mode(if you not familiar the settings pls chose this mode):... - Page 9 User manual...
- Page 10 User manual (you can use One key Set or Manually set)
- Page 11 User manual Advanced Mode (if you are already familiar with the settings pls chose this mode): Basic Properties There are some device informations in the Basic Properties ,such as Device MAC,System Firmware Version, Web UI Version.
- Page 12 User manual Note: The software searches IP Servers automatically over LAN. 1 .The ip camera and the pc should be in the same LAN, if you not familiar how to configure your ip you can use one key set 2 To install more than one cameras in the LAN,all of the cameras port and IP address can not be same.
-
Page 13: Camera Login
User manual Camera Login in IE (LAN) You can access the camera through IP Camera Tool or IE directly. Click the inner RUL: “open” It will start your web browser automaticly. Enter your account and password on the login page as shown above Administrator’s username is: admin and no password…... -
Page 14: Camera Icon Functions
User manual 2.3 Camera Icon Functions Rotate the cameras(pan/title) Auto Pan/Titlt Ajust Pan/Tilt Speed: If you want to detect 4 or 9 views, need to click this ico Flip: To see the flip image. -
Page 15: Setting Details(User&Password)
User manual Mirror: To see the mirror image. Resolutions: can chose 320*240 or 640*480 Mode: can chose 50HZ ,60HZ or outdoor Brightness and Contrast:can set the brightness and contrast Record:Click icon to record videos Snapshot: Click icon to snap the picture. AUDIO: Click icon Camera MIC open, Local Voice input TALK: Click icon... - Page 16 User manual Alias Serrings: You can Input the new name as you like. Data&Time Settings: Data&Time Settings page. Users Settings:Eight accounts are acceptable for this system.Here the eight users can Configure their user names and password as administrator,Operator or Visitor. Administrator:You can sertup the advanced configurations of the IP Camera.
-
Page 17: Multi-Device Settings
User manual 2.4.1 Multi-Device Settings Use multiple cameras in LAN In the Multi-Device Settings page, you can see all devices searched in LAN. You can add more cameras list in LAN for monitoring... -
Page 18: Network Settings
User manual 2.4.2 Network Settings: Http Port: if multi cameras this port cannot be same in one LAN. 2.4.3Wireless Lan Settings: Click the Scan button (at least two times),select your wifi SSID, and write in your wifi’s password. -
Page 19: Ddns Service Settings
DDNS or Proxy Server: If you access the DDNS host through a proxy, you should input the Proxy IP.(if use our Built-in ddns,it’s should be user.suneyes.hk) DDNS or Proxy Port: Proxy Port.(if use our Built-in ddns, the port should be 808 or 80) -
Page 20: Mail And Ftp Serivce
User manual 2.4.5Mail and FTP Service Configure the E-mail box to receive and send mails. The E-mail box is used for receiving the images sent after alarm and the system IP address after successful dial-up. - Page 21 User manual Settings the FTP Service: 2.4.6Alarm Service Settings: Enter Alarm Service Settings page to configure Motion Detection function. Sheduler You can set the exact time when the alarms will be open on. Send Mail on Alarm...
- Page 22 User manual Sent picture and mail inform to customer’s e-mail after alarmed. (firstly you should finish the Mail Service Settings.) REC automatically and save to PC When you enable motion detect and open the camera monitoring page on the PC. If there is an alarm triggered, REC will start automatically for several seconds and save to the PC.
- Page 23 User manual Maintenance: Upgrade Device Firmware: pls follow your supplier instructions ,pls do not upgrade yourself. Restore Factory Settings: Restore factory settings of the device. Reboot Device:Rebboot the device. 3 IP Camera Super-Client 3.1 Step by Step...
- Page 24 User manual Registery ( you can find the register code from the label of disc ): 3.2 Search and Add equipment:...
- Page 25 User manual LAN:(local network) WAN(outside network): if you are using our built-in ddns:...
- Page 26 User manual if you use your own ddns:...
-
Page 27: Email&Motion Detection Alarms Settings
User manual 3.3 Email&Motion Detection Alarms Settings... -
Page 28: Record Settings By Schedule
User manual 3.4 Record Settings by Shedule 3,5 Paly Back the Videos Click... -
Page 29: Setting Storage Path
User manual 3.6 Setting Storage Path Click... -
Page 30: More Details Help About This Software
User manual 3.7 More details help about this software… click 4.HOW TO View in Outside Netwrok 4.1Using a router to access the Internet Using a router to access the Internet by shared ADSL If a router is set for dial-up Internet access, it is not required to set ADSL dial-up account and password on the IP Camera. - Page 31 User manual 4.1.1 Do port forwarding in your routers:...
-
Page 32: Static Ip User
4) Enter DDNS Settings Page and ennable DDNS service. Click <Submit> and the device will reboot 5) You can access the Camera from Internet by domain name( like: http://demo.suneyes.hk 4.2Static IP user Static IP user is not need to use DDNS for remote access. When finished the setting of the IP Camera in LAN, and port forwarding in the routers,you can access the Camera directly from Internet by the WAN IP. -
Page 33: How To Use Other Ddns
User manual Take the WRT54G router of LINKSYS for example, 1) Obtain the IP address of the router (LAN gateway address), user name and password for logon to the router from the network administrator, 2) Enter the LAN IP address of the router; Open the Status page to find out the WAN address of the router. -
Page 34: Use The Mobile Phone Browser
User manual 4) You only need to enter the domain name(domain name+Port number http://suneyes.kicks-ass.net:81/ ) in the IE address bar, the browser will visit the IP Camera. If multiple IP Camera are connected to the same router, enter DDNS dynamic domain +port number (for example, http://suneyes.vicp.net:85/... -
Page 35: Use The Mobile Software
Install the software in your phone by the two ways below: 1. Directly visit the website with your phone at http://3g.suneyes.hk A page will be appeared as below: Choose Chinese or English version, i.e. click English then have the following page:... -
Page 36: Faq
User manual 5 FAQ 5.1 Frequently Asked Questions Note: Any quesetions you would meet, please check Network connections firstly. Check the working status revealed by the indicators on the network server, hub, exchange and network card. If abnormal, check the network connections. 5.1.1 I have forgotten the administrator username and/or password. - Page 37 User manual Enable: Download unsigned ActiveX controls Enable: Initialize and script ActiveX controls not marked as safe Enable: Run ActiveX controls and plu-ins 5.1.5 Problems with network bandwidth The image frame rate is subjected to the following factors: 1, network bandwidth; 2, PC performance, network environment and display preference setting (brightness, theme, etc);...
- Page 38 User manual Step2: enter your information Step3: After a minute, you will receive a E-mail from DynDNS Support and it will give you a confirmation address (e.g. https://www.dyndns.com/account/confirm/vXMVT78-KvenhydmKMWH5kg) Step4: When the Account Confirmed, login and start using your account. Choose Add Host Services and enter Add New Hostname page.
- Page 39 User manual Step5: On the Add New Hostname page 1) input your Hostname. 2) Choose Host with IP address 3) Click Use auto detected IP address xxx.xx.xx.xxx Then click Create Host. Step6: Now you obtained a Dynamic Domain Name(Figure 4.6), and can use it in the DDNS Service Settings (details:2.5.3) 5.3 Specification Item...
-
Page 40: Obtaining Technical Support
User manual Video Frame 25 frame/sec(QVGA), 15 frame/sec(VGA) Communication interface One 10M/100Madaptive Ethemet interface Wi-Fi Module Supporting IEEE802.11b/g/n Power Supply DC 5V/1A Maximum Power < 5W ～+55 ～ +122 Operating Temperature ℃ ℃ /+14℉ ℉ ～+70 ～+158 ℃ ℃/ -44℉ ℉...
