Aeware IRMT-4 User Manual

Hide thumbs Also See for IRMT-4:
Table of Contents

Advertisement

Quick Links

Download this manual
������
�����������������������
�������������
�����������������������������������

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IRMT-4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aeware IRMT-4

Summary of Contents for Aeware IRMT-4

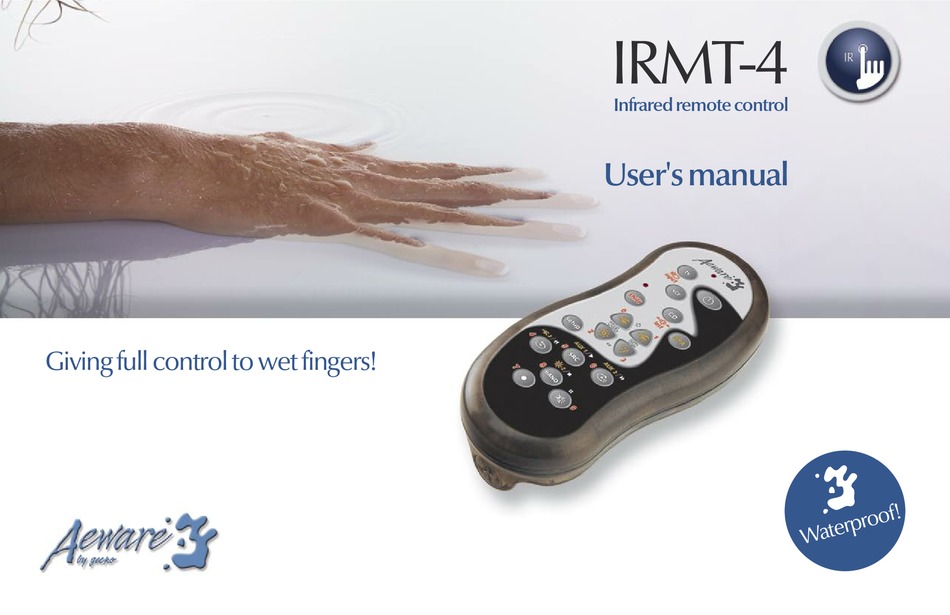

  • Page 1 ������ ����������������������� ������������� �����������������������������������...

  • Page 2: Table Of Contents

    IRMT-4 Aeware instructions table of contents Table of contents features ..................3 key charts ..................4 replacing batteries ..............10 programming device control ............11 searching for your code ............. 12 checking codes ................14 learning mode ................16 deleting a learned function ............

  • Page 4: Features

    Audio equipment (in.tune, CD, Tuner, Amplifier and Audio Cassette) Video equipment (TV, VCR and DVD) Home automation Congratulations! The IRMT-4 Aeware has 17 keys (up to 29 functions with double-function keys) and also features the following: Preprogrammed universal codes You own the industry’s best remote control. Your control...

  • Page 5: Key Charts

    IRMT-4 Aeware instructions Key/Icon Description When pressing a key, the red LED blinks to show that the remote control is working properly and sending signals. Use setup for all programming sequences. Press Power once to turn on or off the selected home entertainment device.
  • Page 6 IRMT-4 Aeware instructions key charts Key/Icon Description Press VOL + or - to increase or decrease volume Spa mode: Use to control Pump 1 and Light. VCR mode: Pressing *Record key will allow you to Record. CD mode: Pressing SRC will allow you to select a source between the following (in order): Tuner, CD, Aux.
  • Page 7 IRMT-4 Aeware instructions Key/Icon Description CD mode (MP3): Press to select folder up. Spa mode: Press to select Aux 2. VCR mode: Pressing will allow you to select forward. CD mode (radio): Press Band to select between FM1, FM2, FM3, AM1, AM2 and WB (weather band).
  • Page 8 IRMT-4 Aeware instructions key charts Key/Icon Description CD mode: Successive presses on CD will allow you to select from one of the following adjustments: FAD-FRONT: Front speaker only. FAD-REAR: Rear speaker only. FAD-ALL: Front and rear speakers. Other modes (TV/ VCR): Press TV once to recall last channel.
  • Page 9 IRMT-4 Aeware instructions Key/Icon Description CD changer/CD mode: Press CH - key to preview each song of the current disc for about 10 seconds (intro scan mode). Radio mode: Press CH - key to recall preset station 2. Press and hold down this key to transfer the current radio station to this key.
  • Page 10 IRMT-4 Aeware instructions key charts Key/Icon Description CD mode: Press to access Weather band mode. Press again to turn off weather band radio and return to previous mode. Other modes (TV/ VCR): Press once to switch the input of chosen device.

  • Page 11: Replacing Batteries

    IRMT-4 Aeware instructions Your remote control is powered by three AAA batteries 1• Unscrew and remove bottom cap. 2• Insert new batteries, making sure to match plus (+) ends with plus markings on the battery case. Refer to the label under your Notes: remote or see illustration below.

  • Page 12: Programming Device Control

    IRMT-4 Aeware instructions programming device control The IRMT-4 Aeware can control up to four different devices. Carry out the following instructions for each device you want to control. the LED will blink twice. Default setup code numbers: Write down your setup code 1•...

  • Page 13: Searching For Your Code

    IRMT-4 Aeware instructions If your device does not respond to the IRMT-4 Aeware after trying all codes listed for your brand, or if your brand is not listed at all, try searching for your code. Simply substitute the appropriate mode key (i.e., TV, VCR, CD or SPA) for the device you are checking and repeat steps 1-5.
  • Page 14 Instead of pressing Power, you can use 0,1, 2, 3, CH +, VOL +, Play and Stop. In Search mode, IRMT-4 Aeware will send IR codes from its library to the selected device, starting with the most popular code first or with the current programmed code.

  • Page 15: Checking Codes

    IRMT-4 Aeware instructions If you have set up the IRMT-4 Aeware using the “Searching For Your Code” procedure, you may need to find out which four-digit code is operating your equipment. Simply substitute the appropriate mode key (i.e., tv, vcr, CD or SPA) for the device you are checking and repeat steps 1-5.
  • Page 16 IRMT-4 Aeware instructions checked codes 5• Repeat step 4 three more Note: times for the remaining If a code digit is “0”, LED will not blink. digits. Use 2 for the second digit, 3 for the third digit, and Remember to press and hold shift key first to access 4 for the fourth digit.

  • Page 17: Learning Mode

    fluorescent lights could interfere 1• Press and hold setup until 2• Enter 9-7-5. LED will blink with a learning event. The source and target (IRMT-4 Aeware) LED blinks twice to initiate twice. Remember to press...
  • Page 18 LED. memory). At step 2, one long blink indicates low battery or memory full (i.e. 5• On the IRMT-4, press key 9• Exit Learning mode by the unit will not go into Learning mode if either of these conditions to be learned.

  • Page 19: Deleting A Learned Function

    IRMT-4 Aeware instructions If your memory is full, you will need to delete one or more functions on your IRMT-4 Aeware. Here is how to delete one function: Deleting a learned function: 1• Press and hold setup until 3•...
  • Page 20 IRMT-4 Aeware instructions deleting learning function Limitations: • There are certain device codes which are not learnable (or others that once they are learned can create a bad functionnality). • The unit can learn only one code per key. • All keys with the exception of shift, setup and the mode keys (tv, vcr, CD, SPA) can be learned on.

  • Page 21: Deleting All Learned Functions & Codes

    IRMT-4 Aeware instructions If your memory is full, you will need to delete one or more functions on your IRMT-4 Aeware. Here is how to delete all functions and codes: Deleting all learned functions: 1• Press and hold setup until 2•...
  • Page 22 & codes If your memory is full, you will need to delete one or more functions on your IRMT-4 Aeware. Here is how to delete all functions and codes: Deleting all learned functions and codes: 1• Press and hold setup until 2•...

  • Page 23: Reassigning Device Key

    The IRMT-4 Aeware can be set up to control a second TV or VCR, or any combination of three home entertainment devices. For example, to have the IRMT-4 Aeware control two TVs, you will need to reassign the unused VCR key to operate the second TV as follows: 1•...
  • Page 24 IRMT-4 Aeware instructions reassigning device keys To reassign key: Sequence Perform TV as 2nd VCR key: setup-9-9-2-vcr-tv TV as 2nd CD key: setup-9-9-2-cd-tv TV back to TV: setup-9-9-2-tv-tv VCR as 2nd TV key: setup-9-9-2-tv-vcr VCR as 2nd CD key: setup-9-9-2-cd-vcr...

  • Page 25: Changing Volume Lock

    IRMT-4 Aeware instructions The IRMT-4 Aeware is set to control volume of device through your TV while in TV or VCR mode. Note: In an Audio mode, you have separate control of your audio device's volume. If your TV is not remo- te controllable, or if you want volume to be controlled by a different device, you can change the Volume Lock setting to control a volume through a non-associated mode (e.g., through the CD in TV mode).
  • Page 26 Reset Volume control back to its original device setting: 3• Now, whenever you press 1• On the IRMT-4 Aeware, 2• Enter 9-9-3 and then press VOL + or VOL- on the IRMT- press and hold setup until VOL +.

  • Page 27: Troubleshooting

    LED blinks when you press a key, but home entertainment device or SPA does not respond. Solution: Make sure the IRMT-4 Aeware is aimed at your home entertainment device and is not further than 15 feet away. Problem: IRMT-4 Aeware does not control home entertainment devices or commands are not working properly.

  • Page 28: Code Table

    IRMT-4 Aeware instructions code table Setup codes for TVs: Setup codes for TVs: 0030, 0019 Cineral 0451, 0092 Dumont 0017 , 0019 GoldStar 0030, 0178 Admiral 0093, 0463 Citizen 0060, 0030 Dwin 0720, 0774 0019, 0056 Aiko 0092 0056, 0039...
  • Page 29 IRMT-4 Aeware instructions Setup codes for TVs: Setup codes for TVs: 0047 , 0054 Minutz 0021 0021, 0019 1247 , 1347 0154, 0156 Mitsubishi 0093, 0150 0056, 0039 Radio Shack 0047 , 0154 0178 0178, 0019 0135, 1347...
  • Page 30 IRMT-4 Aeware instructions code table Setup codes for TVs: Setup codes for TVs: Setup codes for VCRs: Scotch 0178 0178, 0056 0179, 0056 Admiral 0048, 0209 Scott 0236, 0180 0177 0016 Adventura 0000 0178, 0019 Tandy 0093 Aiko 0278 White Westinghouse 0463, 0623...
  • Page 31 IRMT-4 Aeware instructions Setup codes for VCRs: Setup codes for VCRs: Motorola 0035, 0048 Craig 0037 , 0047 Garrard 0000 0035 0240, 0072 Go Video 0526 0240, 0043 Multitech 0000, 0072 0271 0104, 0067 GoldStar 0037 , 0038...
  • Page 32 IRMT-4 Aeware instructions code table Setup codes for VCRs: Setup codes for VCRs: Pilot 0037 Samsung 0240, 0045 Symphonic 0000 XR-1000 0035, 0000 Pioneer 0067 Sanky 0048, 0039 0240 0072 Profitronic 0240 Sansui 0000, 0067 Yamaha 0038 Tatung 0041 Proscan...
  • Page 33 IRMT-4 Aeware instructions Setup codes for cd players: Setup codes for cd players: Setup codes for amplifiers: Aiwa 0406 Aiwa 0157 , 0124 Magnavox 0157 , 0305 Realistic 0179, 0420 Burmester 0420 Marantz 0029, 0157 0180 Carver 0269...
  • Page 34 IRMT-4 Aeware instructions code table Setup codes for tuners: Setup codes for tuners: 0531 Koss 0424 0080, 1023 Yamaha 0176, 0186 Adcom 0616 0181 Quasar 0039 Yorx 0195 Aiwa 0158, 0189 Linn 0189 Zenith 0857 0531, 0054 0121, 0405 Lloyd’s...
  • Page 35 IRMT-4 Aeware instructions Setup codes for DVD players: Setup codes for cassette players: Setup codes for home automation: Setup codes for LD players: Denon 0059 Harman/Kardon 0582 Aiwa 0029, 0197 0240 0558 Carver 0029 Lutron 0597 Mitsubishi 0059...
  • Page 36 �������� ������������ ����� ����������� �������������� ����������������������������������������������������������������� ������������������������������������������������� ����� ����������� ��������������������� ����������...
