Aeware IRMT-4 User Manual

Infrared remote control
Hide thumbs Also See for IRMT-4:
Table of Contents

Advertisement

Quick Links

See also: User Manual

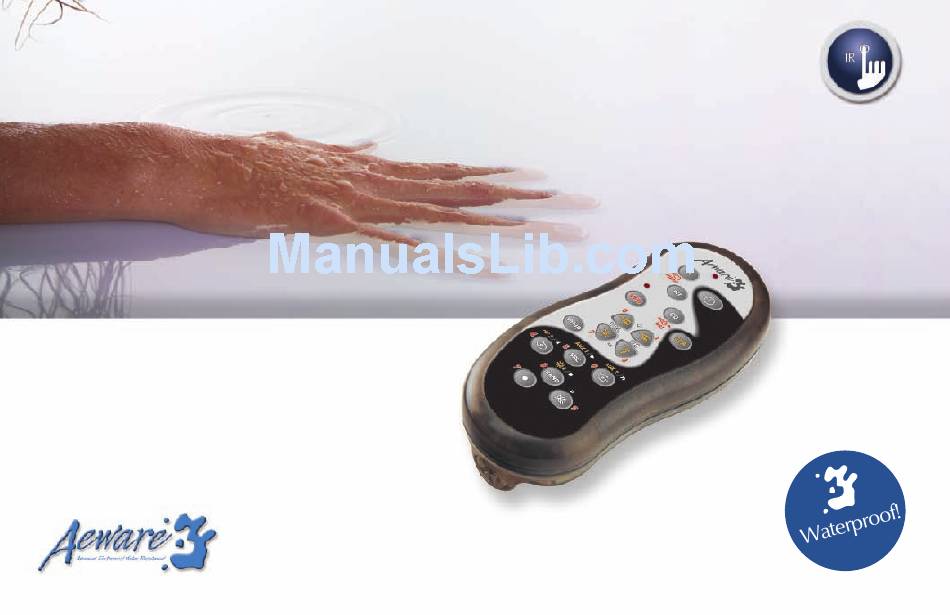

IRMT-4
Infrared remote control
User's manual
Giving full control to wet fingers!
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IRMT-4 and is the answer not in the manual?

Questions and answers

Related Manuals for Aeware IRMT-4

Summary of Contents for Aeware IRMT-4

  • Page 1 IRMT-4 Infrared remote control User's manual Giving full control to wet fingers! ™...

  • Page 2: Table Of Contents

    IRMT-4 Aeware instructions table of contents Table of contents features ..................3 key charts ..................4 replacing batteries ............... 8 programming device control ............. 9 searching for your code ............10 checking codes ................12 learning mode ................14 deleting a learned function ............16 deleting all learned functions &...

  • Page 4: Features

    Video equipment (TV, VCR and DVD) Home automation Congratulations! The IRMT-4 Aeware has 17 keys (up to 29 functions with has 17 keys (up to 29 functions with has 17 keys (up to 29 functions with double-function keys) and also features the following:...

  • Page 5: Key Charts

    IRMT-4 Aeware instructions Key/Icon Description When pressing a key, the red LED blinks to show that the remote control is When pressing a key, the red When pressing a key, the red working properly and sending signals. working properly and sending signals.
  • Page 6 IRMT-4 Aeware instructions key charts Key/Icon Description Press VOL + or - to increase or decrease volume Spa mode: Spa mode Spa mode Use to control Use to control Pump 1 and Light. VCR mode: Pressing * Pressing * Pressing Record key will allow you to Record.
  • Page 7 IRMT-4 Aeware instructions Key/Icon Description CD mode (MP3): Press to select folder up. Spa mode: Spa mode: Spa mode: Press Press to select Aux 2. to select Aux 2. VCR mode: Pressing will allow you to select forward.
  • Page 8 IRMT-4 Aeware instructions key charts Key/Icon Description CD mode: � � Press to access Weather band mode. Press again to turn off weather band radio and return to previous mode. Other modes (TV/ VCR): Press once to switch the input of chosen device.

  • Page 9: Replacing Batteries

    IRMT-4 Aeware instructions Your remote control is powered by three AAA batteries 1• Unscrew and remove bottom cap. 2• Insert new batteries, making sure to match plus (+) ends with plus markings on the battery case. Refer to the label under your Notes: remote or see illustration below.

  • Page 10: Programming Device Control

    IRMT-4 Aeware instructions programming device control The IRMT-4 Aeware can control up to four different devices. Carry out the following instructions for each device you want to control. the LED will blink twice. Default setup code numbers: Write down your setup code 1•...

  • Page 11: Searching For Your Code

    IRMT-4 Aeware instructions If your device does not respond to the IRMT-4 Aeware after trying all codes listed for your brand, or if your brand is not listed at all, try searching for your code. Simply substitute the appropriate mode key (i.e., TV,...
  • Page 12 0,1, 2, 3, CH +, VOL +, Play and Stop. In Search mode, IRMT-4 Aeware will send IR codes from its library to the selected device, starting with the most popular code fi rst or with the current programmed code.

  • Page 13: Checking Codes

    IRMT-4 Aeware instructions If you have set up the IRMT-4 Aeware using the “Searching For Your Code” procedure, you may need to fi nd out which four-digit code is operating your equipment. Simply substitute the appropriate mode key (i.e., tv, tv, tv vcr,...
  • Page 14 IRMT-4 Aeware instructions checked codes 5• Repeat step 4 three more Note: times for the remaining If a code digit is “0”, LED will not blink. digits. Use 2 for the second digit, 3 for the third digit, and Remember to press and hold shift key fi rst to access 4 for the fourth digit.

  • Page 15: Learning Mode

    1• Press and hold setup until 2• Enter 9-7-5. LED will blink with a learning event. The source and target (IRMT-4 Aeware) LED blinks twice to initiate twice. Remember to press...
  • Page 16 LED. memory). At step 2, one long blink indicates low battery or memory full (i.e. 5• On the IRMT-4, press key 9•Exit Learning mode by the unit will not go into Learning mode if either of these conditions to be learned. LED fl ashes pressing and holding exist).

  • Page 17: Deleting A Learned Function

    IRMT-4 Aeware instructions If your memory is full, you will need to delete one or more functions on your IRMT-4 Aeware. Here is how to delete one function: Deleting a learned function: 2• Enter 9-7-6. LED will blink 3•...
  • Page 18 IRMT-4 Aeware instructions deleting learning function Limitations: • There are certain device codes which are not learnable (or others that once they are learned can create a bad functionnality). • The unit can learn only one code per key. • All keys with the exception of shift,...

  • Page 19: Deleting All Learned Functions & Codes

    IRMT-4 Aeware instructions If your memory is full, you will need to delete one or more functions on your IRMT-4 Aeware. Here is how to delete all functions and codes: Deleting all learned functions: 1• Press and hold setup until 2•...
  • Page 20 & codes If your memory is full, you will need to delete one or more functions on your IRMT-4 Aeware. Here is how to delete all functions and codes: Deleting all learned functions and codes: 1• Press and hold setup until 2•...

  • Page 21: Reassigning Device Key

    The IRMT-4 Aeware can be set up to control a second TV or VCR, or any combination of three home entertainment devices. For example, to have the IRMT-4 Aeware control two TVs, you will need to reassign the unused VCR key to operate the second TV as follows: 1•...
  • Page 22 IRMT-4 Aeware instructions reassigning device keys To reassign key: Sequence Perform TV as 2nd VCR key: setup-9-9-2-vcr-tv TV as 2nd CD key: setup-9-9-2-cd-tv TV back to TV: setup-9-9-2-tv-tv VCR as 2nd TV key: setup-9-9-2-tv-vcr VCR as 2nd CD key: setup-9-9-2-cd-vcr...

  • Page 23: Changing Volume Lock

    IRMT-4 Aeware instructions The IRMT-4 Aeware is set to control volume of device through your TV while in TV or VCR mode. Note: In an Audio mode, you have separate control of your audio device's volume. If your TV is not remo- te controllable, or if you want volume to be controlled by a different device, you can change the Volume Lock setting to control a volume through a non-associated mode (e.g., through the CD in TV mode).
  • Page 24 Reset Volume control back to its original device setting: 3• Now, whenever you press 1• On the IRMT-4 Aeware, 2• Enter 9-9-3 and then press VOL + or VOL- on the IRMT- press and hold setup until VOL +.

  • Page 25: Troubleshooting

    LED blinks when you press a key, but home entertainment device or SPA does not respond. Solution: Make sure the IRMT-4 Aeware is aimed at your home entertainment device and is not further than 15 feet away. Problem: IRMT-4 Aeware does not control home entertainment devices or commands are not working properly.

  • Page 26: Code Table

    IRMT-4 Aeware instructions code table Setup codes for TVs: Setup codes for TVs: 0030, 0019 Cineral 0451, 0092 Dumont Dumont Dumont 0017, 0019 GoldStar 0030, 0178 Admiral 0093, 0463 Citizen 0060, 0030 Dwin 0720, 0774 0019, 0056 Aiko 0092 0056, 0039...
  • Page 27 IRMT-4 Aeware instructions Setup codes for TVs: Setup codes for TVs: 0047, 0054 Minutz 0021 0021, 0019 1247, 1347 0154, 0156 Mitsubishi 0093, 0150 0056, 0039 Radio Shack 0047, 0154 0178 0178, 0019 0135, 1347 0165, 0180 Logik...
  • Page 28 IRMT-4 Aeware instructions code table Setup codes for TVs: Setup codes for TVs: Setup codes for VCRs: Scotch 0178 0178, 0056 0179, 0056 Admiral 0048, 0209 Scott 0236, 0180 0177 0016 Adventura 0000 0178, 0019 Tandy 0093 Aiko 0278 White Westinghouse 0463, 0623...
  • Page 29 IRMT-4 Aeware instructions Setup codes for VCRs: Setup codes for VCRs: Motorola 0035, 0048 Craig 0037, 0047 Garrard 0000 0035 0240, 0072 Go Video 0526 0240, 0043 Multitech 0000, 0072 0271 0104, 0067 GoldStar 0037, 0038 MGN Technology 0240...
  • Page 30 IRMT-4 Aeware instructions code table Setup codes for VCRs: Setup codes for VCRs: Pilot 0037 Samsung 0240, 0045 Symphonic 0000 XR-1000 0035, 0000 Pioneer 0067 Sanky 0048, 0039 0240 0072 Profi tronic 0240 Sansui 0000, 0067 Yamaha 0038 Tatung 0041...
  • Page 31 IRMT-4 Aeware instructions Setup codes for cd players: Setup codes for cd players: Setup codes for amplifi ers: Aiwa 0406 Aiwa 0157, 0124 Magnavox 0157, 0305 Realistic 0179, 0420 Burmester 0420 Marantz 0029, 0157 0180 Carver 0269 California Audio Lab 0029...
  • Page 32 IRMT-4 Aeware instructions code table Setup codes for tuners: Setup codes for tuners: 0531 Koss 0424 0080, 1023 Yamaha 0176, 0186 Adcom 0616 0181 Quasar 0039 Yorx 0195 Aiwa 0158, 0189 Linn 0189 Zenith 0857 0531, 0054 0121, 0405 Lloyd’s...
  • Page 33 IRMT-4 Aeware instructions Setup codes for DVD players: Setup codes for cassette players: Setup codes for home automation: Setup codes for LD players: Denon 0059 Harman/Kardon 0582 Aiwa 0029, 0197 0240 0558 Carver 0029 Lutron 0597 Mitsubishi 0059...
  • Page 34 Advanced electronics! Water resistance! in U.S.A, available through in Canada, available through Spa Builders Systems Group Gecko Electronics Inc. www.aeware.ca 9225 Stellar Court, Corona 450 des Canetons, Quebec City (Quebec) 9919-100611 CA, USA 92883, 1.866.639.7274 G2E 5W6 Canada,1.800.78.GECKO...
