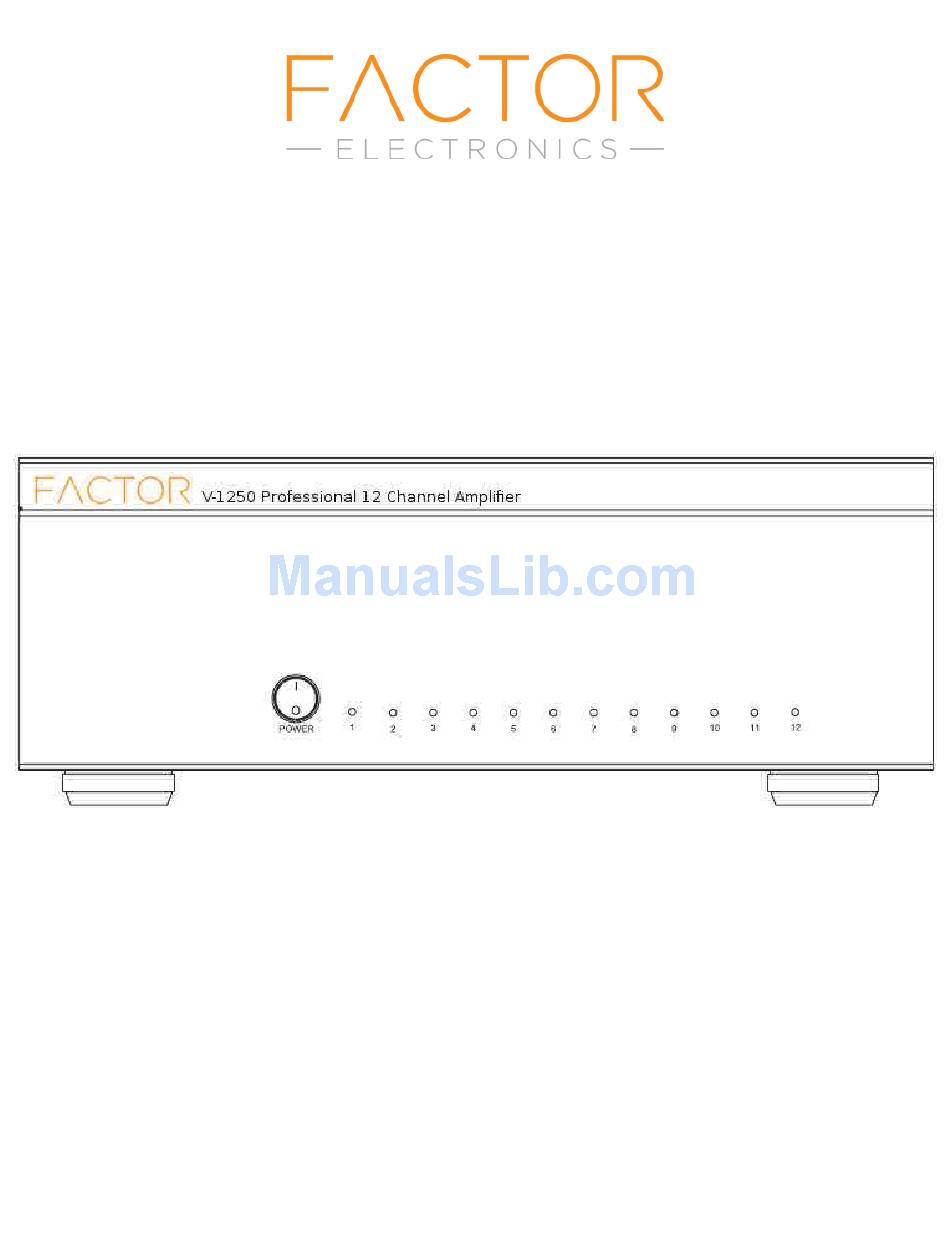

- Page 1 PREMIUMAUDIOVIDEOANDPOWERPRODUCTS V-1250 Professional 12 Channel Amplifier Owners Manual info@factorelectronics.com www.factorelectronics.com...
-
Page 2: Important Safety Instructions
IMPORTANT NOTE: THIS OWNER'S MANUAL IS PROVIDED AS AN INSTALLATION AND OPERATING AID. FACTOR ELECTRONICS DOES NOT ASSUME ANY RESPONSIBILITY AS TO ITS ACCURACY AND SHALL NOT BE LIABLE IN TORT OR CONTRACT FOR ANY DIRECT, CONSEQUENTIAL OR INCIDENTAL LOSS OR DAMAGE ARISING FROM THE INSTALLATION, USE OR INABILITY TO USE THIS PRODUCT. - Page 3 An auxiliary input is provided switchable on any or all zones which can be used for paging. Please take the time to read the entire manual to get the most form your V-1250. Unpacking The V-1250 amplifiers include the following parts:...
- Page 4 Diagram A Connections and controls info@factorelectronics.com www.factorelectronics.com...
- Page 5 It is possible to automate your ON/OFF times using the Factor Electronics Powersaver. This Insures the least amount of power consumption, maximum protection and longer life of the product.
- Page 6 Rear Panel Operations and Connections 1. Speaker Terminals- Connect your speaker wires here using good quality stranded copper speaker wire minimum 16 – 12awg. When the amplifiers are in normal mode you can safely connect one or two 8ohm speakers to each speaker terminal. When connecting two 8ohm speakers wired in parallel to each terminal the speaker impedance will be 4ohms.
- Page 7 These jacks can be used in multiply ways. The most common connection would be to add an additional V-1250 amplifier to expand your system to more zones. These Jacks can also be used to connect the V-1250 to other amplifiers like receivers, powered sub-woofers, music on hold inputs etc.
- Page 8 Single Source To Six Zones Connections: This is an example of a single source setup providing music to six zones using Factor Electronics VC-150 volume controls in each zone to control local volumes. info@factorelectronics.com www.factorelectronics.com...
- Page 9 Single Source To Six Zone Connections Plus Microphone Paging: This is an example of a single source setup providing music to six zones plus microphone paging to six zones. In this setup the volumes are controlled by the microphone pre-amp and the input source.
- Page 10 This is an example of six individual X-Music iPod sources providing independent music to six zones with individual volume control using the Factor Electronics VC-150 volume controls. The stereo output of each X-Music is connected to the IN jacks for each zone. Additional volume control is provided directly from the iPod level control and in some cases the VC-150 Is not used.
-
Page 11: Amplifier Channels
Dimensions W x H x D mm 423 x 140 x 400mm Shipping Weight 45lb/20.5kg In an effort to constantly provide our valued customers with the latest advancements in technology, Factor Electronics specifications are subject to change from time to time without notice. info@factorelectronics.com www.factorelectronics.com... - Page 12 The owner’s responsibilities are to provide proof of purchase and transportation to the dealer the unit was purchased from or transportation to Factor Electronics. This warranty does not apply to units that have been subject to misuse, abuse, neglect or improper installation, and does not apply to repairs or alterations by unauthorized personnel.
