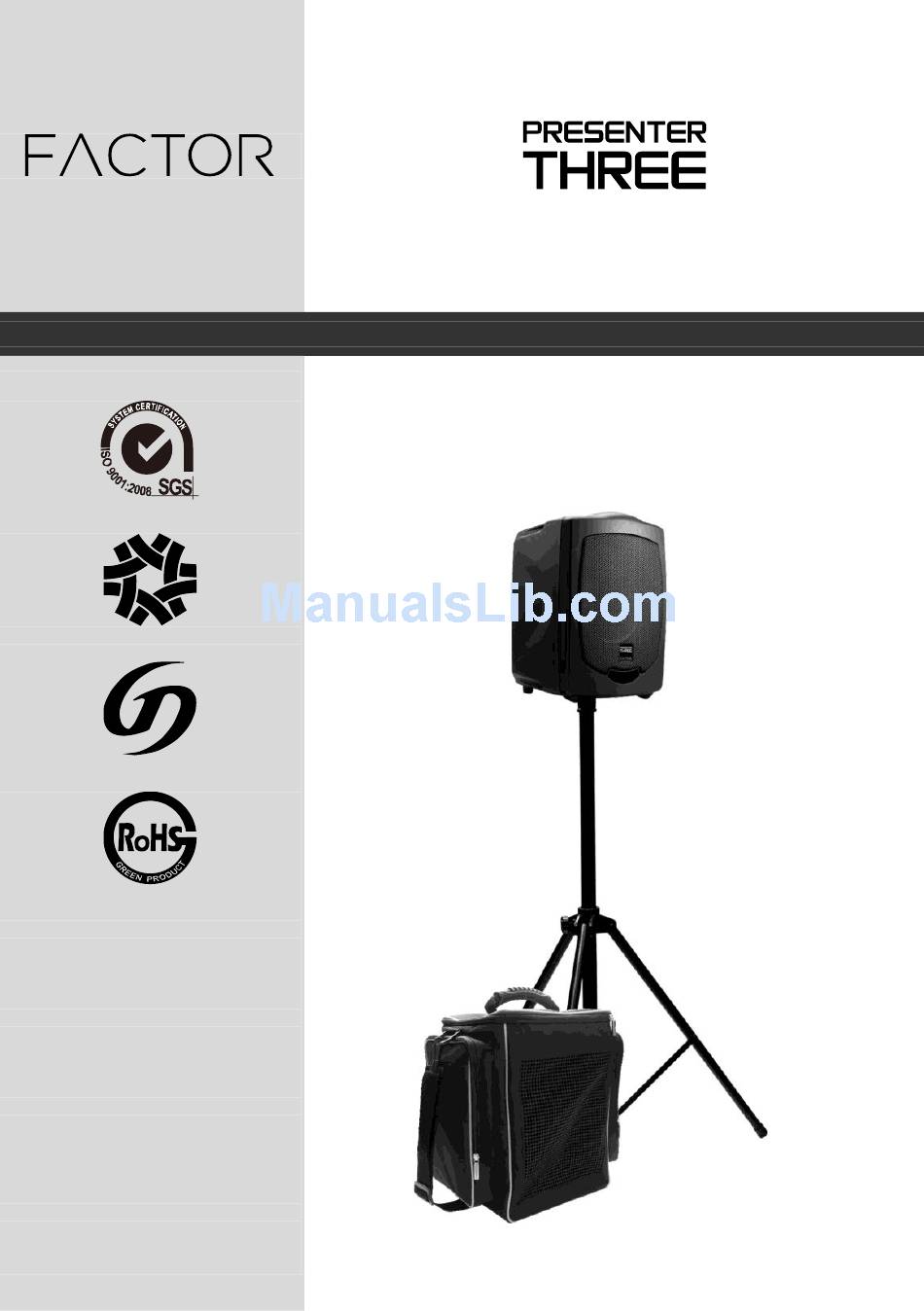

Page 1: Operation Manual
Wireless Portable Amplifier System Operation manual ISO 9001:2008 TAIWAN EXCELLENCE TAIWAN GOOD DESIGN GREEN PRODUCT I C : 3 5 6 3 A - S Q 5 0 1 6 I C : 3 5 6 3 A - S M 5 0 1 6... - Page 2 Congratulations and thank you for purchasing this all-in-one compact portable sound system. To ensure a trouble-free operation, please read this manual thoroughly and fully understand its controls and functions. Configuration All versions of PRESENTER-THREE comes equipped with the following: 1. A switch mode power supply. 2.
- Page 3 Parts and functions on PRESENTER-THREE control panel 1. Mic volume control 2. Aux volume control 3. Wireless mic 1 (WR1) 4. Wireless mic 2 (WR2) 5. Bass control 6. Treble control 7. Voice priority 8. Mic input 9. Aux input 10.
- Page 4 Operating procedures After unpacking the unit for the first time, please charge the unit for about 4~5 hours before any operation. This is absolutely necessary as the built-in rechargeable battery might have been discharged naturally due to long shipment and storage time, even though it has been fully charged in the factory prior to shipment.
- Page 5 Operating the CD player Parts and functions 2 3 4 5 6 7 8 9 10 1. LCD display 5. Eject 9. Infrared receiving LED 2. Play/pause 6. CD/USB selector 10. USB input 3. Stop 7. Repeat 11. Power/volume control 4.
- Page 6 FOLDER-UP In stop mode: Skip the starting play folder to next folder during stop mode, cyclic to the first folder if it is in the last folder. In program entry mode: Change the file for program select to next folder’s first file, cyclic to the first folder if it is in the last folder.
- Page 7 UHF handheld microphones（SQ-1016/SQ-1016V/SQ-5016） Parts and functions SQ-1016/1016V (UHF 16-freq) SQ-5016 (UHF LCD 16-freq.) Microphone parts and functions SQ-1016 SQ-1016V SQ-5016 Cartridge Battery weak/power LED Power switch Channel switch Volume control Battery compartment Bottom cap Locking button Audio mute switch Setting button Up button Down button Charging port...
- Page 8 Other settings (SQ-5016) 1. Channel setting Use UP or DOWN button to go to the CHANNEL/ FREQUENCY page. The cursor will flash to allow changes to be made. Pressing UP or DOWN button will increase or decrease the channel number. The corresponding frequency will change accordingly. When a desired channel is selected, it will be automatically saved and stored in the memory.
- Page 9 UHF belt-pack transmitters（SM-1016/SM-5016） Parts and functions Transmitter parts and functions SM-1016 SM-5016 Antenna Battery weak/audio mute indicator Power switch (Lavalier microphone) Mini XLR connector Audio mute switch Charging port Cover release button Charging contacts Setting button Up button Down button Channel switch Gain control (GT, high impedance) Gain control (MT, low impedance)
- Page 10 Battery installation Insert or replace the batteries according to the correct polarity after opening the compartment. Many batteries are known to have leakage problem of conductive and corrosive liquid. So please remove the batteries if they are not to be used for a long period. CHANNEL and GAIN setting (SM-1016/M-815/M-1005) Please use the attached small screw driver to set the channel.
- Page 11 Maintenance-free Lead Acid battery Guidelines for maintenance-free Batteries: 1. Battery should operate at temperatures between 15°C ~ 50°C. To ensure a longer life span, it should be kept between 5°C ~ 35°C. For optimum result, 20°C ~ 25°C will be ideal. When temperature falls 15 degrees below zero, battery will undergo some changes in its chemical contents and therefore cannot be recharged.
- Page 12 12I1300...
