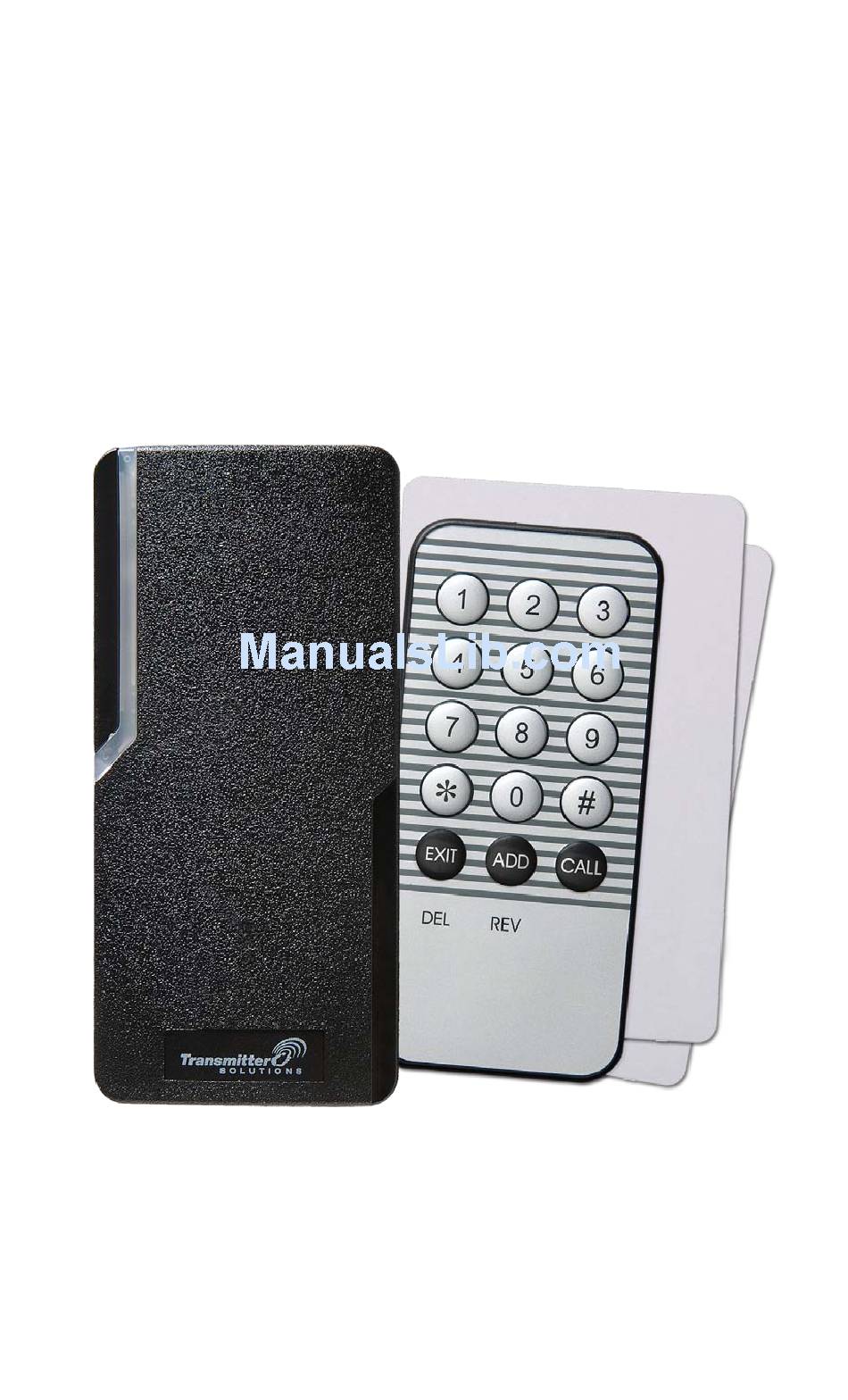

- Page 1 Model DOLCSAW10KH A Waterproof Stand Alone Proximity Reader DOLCSAW10KH User Manual...
-
Page 2: Packing List
DOLCSAW10KH Quick Reference Programming Guide Function description Choose from the relevant function below and input 888888 Enter programming mode Then you can do the programming (888888 is the defualt factory mastercode) To exit the programming mode Note: In order to start programming the master user must enter the... - Page 3 -circuit. The block enrollment function allows you to enroll a maximum 10,000pcs HID cards or EM cards at a time within 10 minutes. These features make the DOLCSAW10KH easy in operation, safe and reliable; it is an ideal choice for door access.
-
Page 4: Specifications
Specifications Supply Voltage DC12V±10% User capacity 10,000 Sleeping Current <15mA Card type HID&EM 125khz Card/Tag Card Reading Distance 3.1 in Wiegand interface Wiegand 26 Operating Temperature 140°F Operating Humidity Environment Confirm to IP68 Lock output load Max20A Alarm output load Max20A Adjustable Door Relay Time 00-99 seconds... - Page 5 Connect to the negative pole of the Lock Purple Orange L+/Alarm+ Connect to the positive pole of the lock and alarm equipment Connection Diagram DOLCSAW10KH Common Power Supply Special Power Supply exit btn exit btn Alarm Green...
-
Page 6: Sound And Light Indication
Short Pin, then read the Two Manager cards (Manager add card firstly, Manager delete card DOLCSAW10KH has been reset to factory secondly), after that the LED turns red, which means the default setting. Remarks: Reset to factory default setting, the users' information enrolled is still retained. - Page 7 9. DOLCSAW10KH Detailed Programming Guide (continued) Enter programming mode To add a card user (Method 1) Read Card This is the faster way to enter cards using ID Input Card number (8 digit) number auto generation. The card can be...
- Page 8 9.2 Door setting (continued) Anti-Pass Back Settings Anti-Pass back Disabled (Factory default) Anti-Pass back Master Mode: Anti-Pass back Auxiliary Machinery Mode (Note: the detailed wiring diagram and illustration, please refer to the “Advanced application” Door open detection Door Open Too Long (DOTL) warning. When used with an optional magnetic contact or built-in magnetic contact of the lock, if the door is opened normally, but not closed after 1 minute, the inside buzzer will beep automatically to remind people to close the door and continue for 1 minute before switching off...
-
Page 9: Advanced Application
Either an ID card reader (125 KHZ) or an IC card reader (13.56 MHZ) can be connected to the DOLCSAW10KH Cards are required to be added at the external reader, except where an external ID reader is used, in this case cards can be added at either reader or controller. See figure 1... - Page 10 10.3 Two DOLCSAW10KH units interconnected for a single door In this mode two DOLCSAW10KH units are used for a single door, one for entry and the other for exit. Either device acts as the controller and reader at the same time. Users can be enrolled on either of the devices.
- Page 11 See Figure 4 for the Connection Diagram. Door 1 with one DOLCSAW10KH and Door 2 with one DOLCSAW10KH , set DOLCSAW10KH on Door 1 as the Anti-Pass Back Auxiliary unit (3 2 #), other DOLCSAW10KH on Door 2 as the Anti-Pass Back Master unit (3 1 #). Then...
