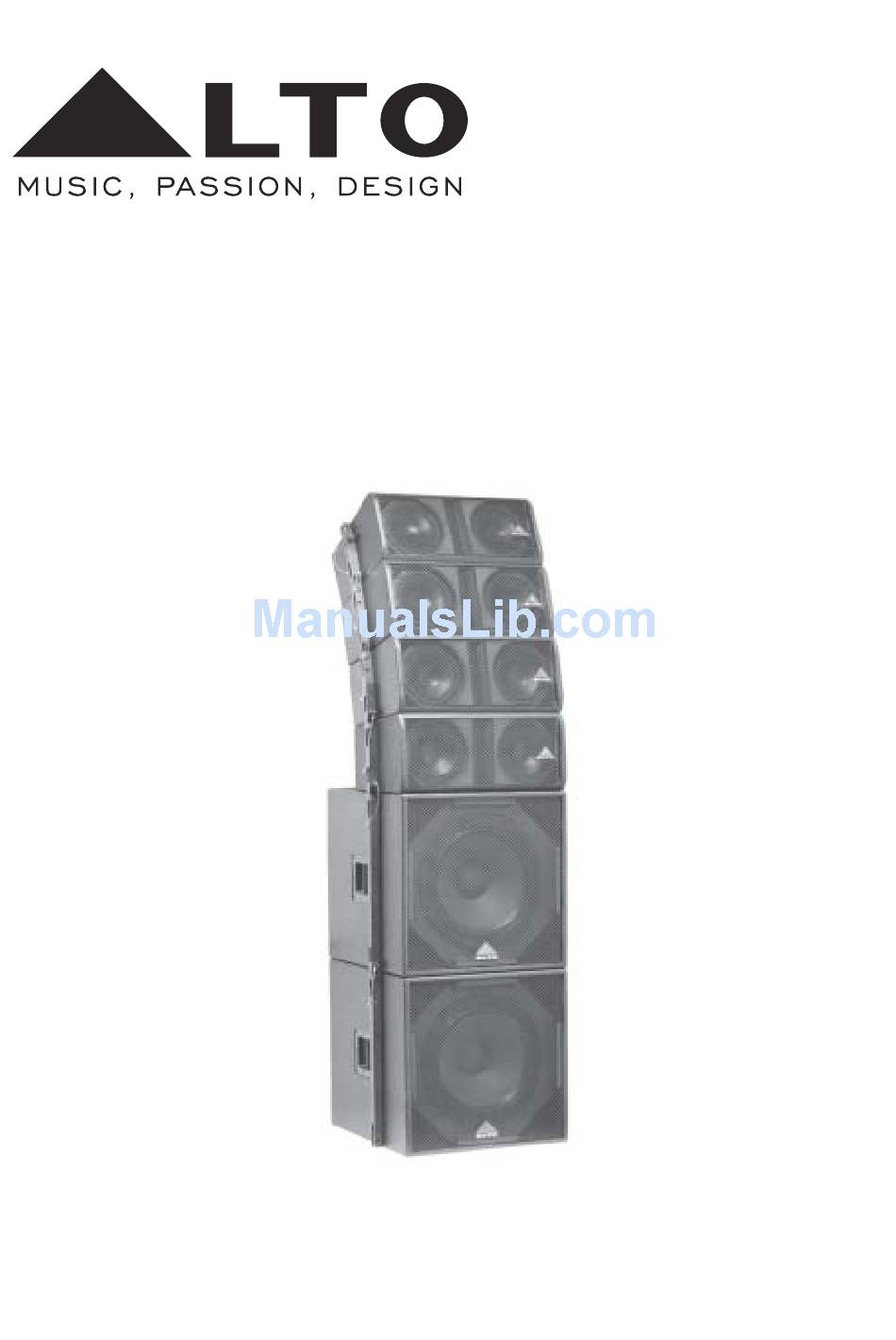

- Page 1 Manual REVO1 LINE ARRAY SPEAKER ENCLOSURES PASSIVE MODELS www.altoproaudio.com Version 1.0 OCT. 2008 English...
- Page 2 IMPORTANT SAFETY INSTRUCTION CAUTION WARNING To reduce the risk of electric shock RISK OF ELECTRIC SHOCK DO NOT OPEN and fire, do not expose this equipment to moisture or rain. TO REDUCE THE RISK OF ELECTRIC SHOCK PLEASE DO NOT REMOVE THE COVER OR Dispose of this product should THE BACK PANEL OF THIS EQUIPMENT.
-
Page 3: Table Of Contents
2. REVO1 SAT208P TECHNICAL SPECIFICATION ..............3 3. INTRODUCTION TO THE REVO1 SUB118P................4 4. REVO1 SUB118P TECHNICAL SPECIFICATION ..............5 5. LAYOUT OF CONNECTOR PANEL REVO1 SAT 208P............6 6. HIGH FREQUENCY CONFIGURATOR (HFC) ..............7 7. REVO1 MAXIMUM ARRAY SIZE ..................8 8. DEPLOYING THE SYSTEM IN SUSPENSION & COMPRESSION ..........9 9. -
Page 4: Introduction To The Revo1 Sat208P

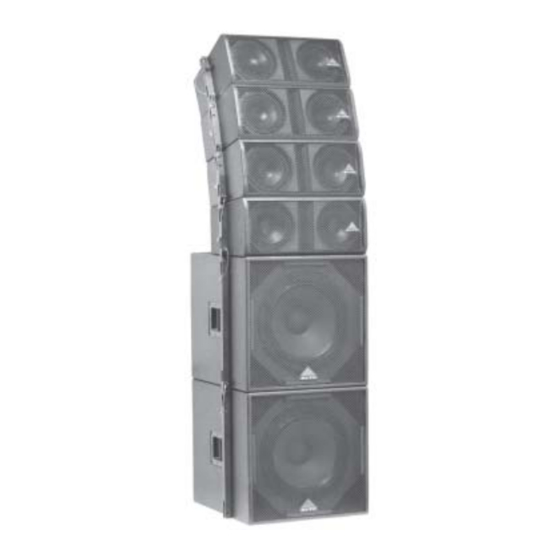

The REVO1 is a compact two-way passive, line array system, intended for use in arrays with fixed curvature, up to six cabinets of SAT208P . REVO1 is a versatile loudspeaker system for medium & large Indoor venues. it is suitable in small and medium outdoor scale application, or as a delay tower for large scale sound reinforcement system. -
Page 5: Revo1 Sat208P Technical Specification
2. REVO1 SAT208P TECHNICAL SPECIFICATION Model No. REVO1 SAT 208P Configuration Two-way, Passive or Bi-Amp, with a total of four speakers device Operating Frequency Range 65 Hz/20 kHz (-10 dB) Frequency Response 77 Hz/18 kHz (+/-3 dB) Maximum Peak SPL... -
Page 6: Introduction To The Revo1 Sub118P
3. INTRODUCTION TO THE REVO1 SUB118P The SUB118P is a vented subwoofer equipped with a single custom high power 18 Subwoofer with 4" " high-power sandwich copper voice coil on fiberglass former, double spider, ceramic magnet, and weather resistant cone. The enclosure is made with a 18mm multi-layer plywood, finished with anti-scratch black paint, with a strong perforated metal grille, two metal handles, one pole socket for satellite and four wheels. -
Page 7: Revo1 Sub118P Technical Specification
4. REVO1 SUB118P TECHNICAL SPECIFICATION Model No. REVO1 SUB 118P Configuration Vented Subwoofer, Passive or Direct Operating Frequency Range 37 Hz~200 Hz (-10 dB) Frequency Response 43 Hz~200 Hz (+/- 3 dB) Maximum Peak SPL 129 dB SPL (calculated) Power Rating (AES Standard) -
Page 8: Layout Of Connector Panel Revo1 Sat 208P
5. LAYOUT OF THE CONNECTOR PANEL REVO1 SAT208P 1 High Frequency Configurator (HFC) The High Frequency Configurator gives you the possibility to define the best sound pressure level in front of the audience. The HFC is included in the passive crossover and work only in Passive-Mode. -
Page 9: High Frequency Configurator (Hfc)
6. HIGH FREQUENCY CONFIGURATOR (HFC) 1 Medium Array Configuration The below is an example of applying the HFC in four SAT208P in array. In this particular configuration, the HFC on the top speaker is set at +3 dB, and the bottom speaker 0 dB. FLOOR 2 Small Array Configuration This is the example of the HFC application at two SAT208P in a small array, with tilted speaker set at... -
Page 10: Revo1 Maximum Array Size
Array Frame The following table defines the maximum number of speakers that may be suspended using the REVO1 FB-1 array frame. A security design factor is maintained for the speaker configurations indicated in the table. Maximum quantity of REVO1 SAT208P in array... -
Page 11: Deploying The System In Suspension & Compression
8. DEPLOYING THE SYSTEM IN SUSPENSION & COMPRESSION 1 Suspension +3dB +3dB +3dB +3dB +3dB +3dB +3dB +3dB 2 Compression +3dB FLOOR... -
Page 12: Speaker Management: Maxidrive3.4
9. Speaker management: MAXIDRIVE3.4+ USER PRESET:2S18+6208U13 REVO1 MAXIDRIVE3.4+ User Preset:2S18+6208U13 EDIT XOVER FILTER TYPE FILTER SHAPE FILTER FREQ PHASE OP1&2 LR24 125,0Hz LR24 37,2Hz OP3&4 Thru 2K00Hz LR24 82,5Hz OP5&6 Thru 2K00Hz LR24 82,5Hz EDIT OUT EQ FILTER SELECT FILTER TYPE... -
Page 13: Hook-Up: 12Xsat208P+8Xsub118P Configuration
HOOK 10. HOOK-UP: 12xSAT208P+8xSUB118P CONFIGURATION... -
Page 14: Hook-Up:8Xsat208P+4Xsub118P Configuration
HOOK 10. HOOK-UP:8xSAT208P+4xSUB118P CONFIGURATION... -
Page 15: Hook-Up: 4Xsat208P+2Xsub118P Configuration
HOOK 10. HOOK-UP: 4xSAT208P+2xSUB118P CONFIGURATION... -
Page 16: Revo1 Line Array Hardware Parts
11. REVO1 LINE ARRAY HARDWARE PARTS 20.1 17.5 14.9 12.1 10.6 13.4 16.1 18.7 21.3 23.7 REVO1 FB-1 REVO1 SH REVO1 SAT-HD-R REVO1 SUB-HD-L REVO1 SUB-HD-R REVO1 SAT-HD-L... -
Page 17: Control Elements: Maxidrive3.4+ Processor
12. CONTROL ELEMENTS: MAXIDRIVE3.4+ PROCESSOR Front Panel PREV PREV NEXT ENTER CLIP CLIP CLIP CLIP CLIP CLIP CLIP PRESET LIMIT LIMIT LIMIT LIMIT LIMIT LIMIT MAXIDRIVE3.4+ MAXIDRIVE3.4+ DELAY 12 12 OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT EDIT... -
Page 18: Control Elements: D4 Amplifier
13. CONTROL ELEMENTS: D4 Amplifier Front Panel 750W 4 SIG CLIP PROT SIG CLIP PROT SIG CLIP PROT SIG CLIP PROT (dB) (dB) (dB) (dB) SIG CLIP PROT SIG CLIP PROT SIG CLIP PROT SIG CLIP PROT (dB) (dB) (dB) (dB) Power Switch &... -
Page 19: Warranty
14. WARRANTY 1. WARRANTY REGISTRATION CARD To obtain Warranty Service, the buyer should first fill out and return the enclosed Warranty Registration Card within 10 days of the Purchase Date. All the information presented in this Warranty Registration Card gives the manufacturer a better understanding of the sales status, so as to provide amore effective and efficient after-sales warranty service. - Page 20 NO. 1, Lane 17, Sec. 2, Han Shi West Road, Taichung 40151, Taiwan www.altoproaudio.com Tel: 886-4-22313737 email:info@altoproaudio.com Fax: 886-4-22346757 All rights reserved to ALTO. All features and content might be changed without prior notice. Any photocopy, translation, or reproduction of part of this manual without written permission is forbidden. Copyright 2008 Seikaku Group NF03235-1.0...
