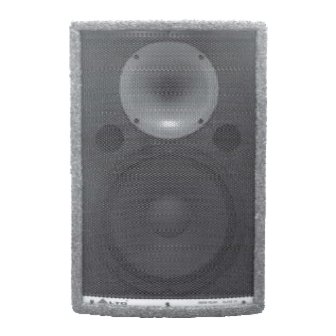

Elvis series passive full-range speakers
Hide thumbs Also See for ELVIS Series:

Advertisement

Quick Links

User's Manual
ELVIS Series
R
LTO
www.altoproaudio.com
Version 1.3 March 2005
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELVIS Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Alto ELVIS Series

  • Page 1 User's Manual ELVIS Series www.altoproaudio.com Version 1.3 March 2005 English...
  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN "Electric discharge" This symbol, alert you to the presence of uninsulated dangerous voltage inside the product enclosure, which constitutes a risk of electric shock. "Exclamatory point" This symbol, alert the user to the presence of important operating and maintenance instructions the owner's manual included to the product.
  • Page 3: Table Of Contents

    TABLE OF CONTENT 1. QUICK START - PASSIVE SPEAKER CABINET..................3 -. For Passive Full-range Speakers -. For Passive Subwoofer & Satellite Speakers 2. QUICK START - ACTIVE SPEAKER CABINET..................5 -. For Active Full-range Speakers -. For Active Subwoofer & Satellite Speakers 3.
  • Page 4: Quick Start - Passive Speaker Cabinet

    1. QUICK START - PASSIVE SPEAKER CABINET Make all initial connections with all the equipment powered off, and ensure that all the main volume controls are turned completely down. -. For Passive Full-range Speakers 1). Connect one side of the speaker cable to the Output CHA/CHB or Binding Post of your stereo power amplifier and the other side to the Input socket of your speaker cabinet.
  • Page 5: For Passive Subwoofer & Satellite Speakers

    -. For Passive Subwoofer & Satellite Speakers 1). Connect one side of speaker cable to the Output CHA/CHB or Binding Post of your stereo power amplifier and the other side to the Input socket of your subwoofer, with the second speaker cable connect the Output of the subwoofer to the Input of satellite.
  • Page 6: Quick Start - Active Speaker Cabinet

    2. QUICK START - ACTIVE SPEAKER CABINET3). Turn on your mixer first, then the active speaker cabinets.-. For Active Full-range Speakers1). Connect one side of the signal cable at your audio mixer in to Output Left /Right (with Stereo-Jack or XLR) andthe other side of the cable in to the Line Input (COMBO) of your active speaker cabinet (with Stereo-Jack or XLR).2). Connect the power cord to mains.QUICK STARTElvis Active Full-range Speakers5...
  • Page 7: For Active Subwoofer & Satellite Speakers

    -. For Active Subwoofer & Satellite Speakers 1). Connect one side of signal cable at your audio mixer in to Output Left /Right (with Stereo-Jack or XLR) and the other side of the cable in to the Left / Mono Input (COMBO) of the active subwoofer; with the second signal cable connect the Left Output of the subwoofer (Stereo/Mono-Jack or XLR) to the Line Input (COMBO) of the active satellite (with Stereo - Jack or XLR).
  • Page 8: Connection Plate

    3. CONNECTION PLATE - PASSIVE FULL-RANGE Speaker for ELVIS10 / ELVIS12 / ELVIS15 / ELVIS12M/ELVIS15M (1) INPUT: Receive the power coming from an external power amplifier (SPK +1/-1 connected; +2/-2 not connected). (2) THRU: Direct LINK for connect in parallel a second speaker cabinet (SPK +1/-1 connected; +2/-2 not connected). ELVIS 12 SOUND REINFORCEMENT SPEAKER SYSTEM Power Handling:...
  • Page 9: Active Full-Range Speaker For Elvis10A/Elvis12/Aelvis15A/Elvis12Ma/Elvis15Ma

    -. ACTIVE FULL- RANGE Speaker for ELVIS10A / ELVIS12A / ELVIS15A / ELVIS12MA/ELVIS15MA (1) Bi-polar main power switch. (2) Input AC power socket with main fuse. (3) Ground Swicth. (4) POWER, blue LED, indicate ON status. (5) SIGN / COMP, signal/compressor, green/red LED (6) LINE OUT at + 4dB on XLR connector (7) LINE IN at + 4dB on COMBO connector.
  • Page 10: Active Subwoofer Speaker For Elvis12Sa/Elvis15Sa

    -. ACTIVE SUBWOOFER Speaker for ELVIS12 SA / ELVIS15 SA (1) Bi-polar main power switch. (2) Input AC power socket with main fuse. (3) Ground Swicth. (4) POWER, blue LED, indicate ON status. (5) SIGN / COMP, signal/compressor, green/red LED LEFT signal output on XLR or Jack connector for active satellite, under electronic crossover at 125Hz.
  • Page 11: Wire Connections

    4. WIRE CONNECTIONS -. For Passive Speaker Cabinets Please use only the power connectors to make connections with other signal source equipment for the passive speaker cabinets. The power connector has four terminals: 1+, 1-, 2+, 2-. In our cabinets, only 1+/1- are used to connect the Speaker+/Speaker-, and 2+/2- are not used. -.
  • Page 12: Elvis Technical Specifications

    5. ELVIS TECHNICAL SPECIFICATIONS ELVIS10 ELVIS12 ELVIS15 ELVIS12M ELVIS15M 2-way vented box 2-way vented box 2-way vented box 2-way vented box 2-way vented box System type Continuous power 120W AES standard 180W AES standard 250W AES standard 180W AES standard 250W AES standard Peak Power Rating 240W Peak...
  • Page 13 ELVIS12SA ELVIS15SA Output Power IHF 250Watt IHF 350Watt IHF Output Power RMS 180Watt RMS 250Watt RMS Max SPL at 1mt 121 dB ( IHF Power ) 123 dB ( IHF Power ) Input Sensitivity Line 0dB/0.775V Input Impedance 30kohms-input/600ohms-output Connectors L/Mono-R IN on XLR/L-R OUT on XLR Subsonic Filter Electronic Crossover 125Hz at 24dB/oct.
  • Page 14 SEIKAKU TECHNICAL GROUP LIMITED SEKAKU ELECTRON INDUSTRY (H.K.) CO., LTD. No. 1, Lane 17, Sec. 2, Han Shi West Road, Taichung 40151, Taiwan http://www.altoproaudio.com Tel: 886-4-22313737 email: alto@altoproaudio.com Fax: 886-4-22346757 All rights reserved to ALTO. All features and content might be changed without prior notice.
