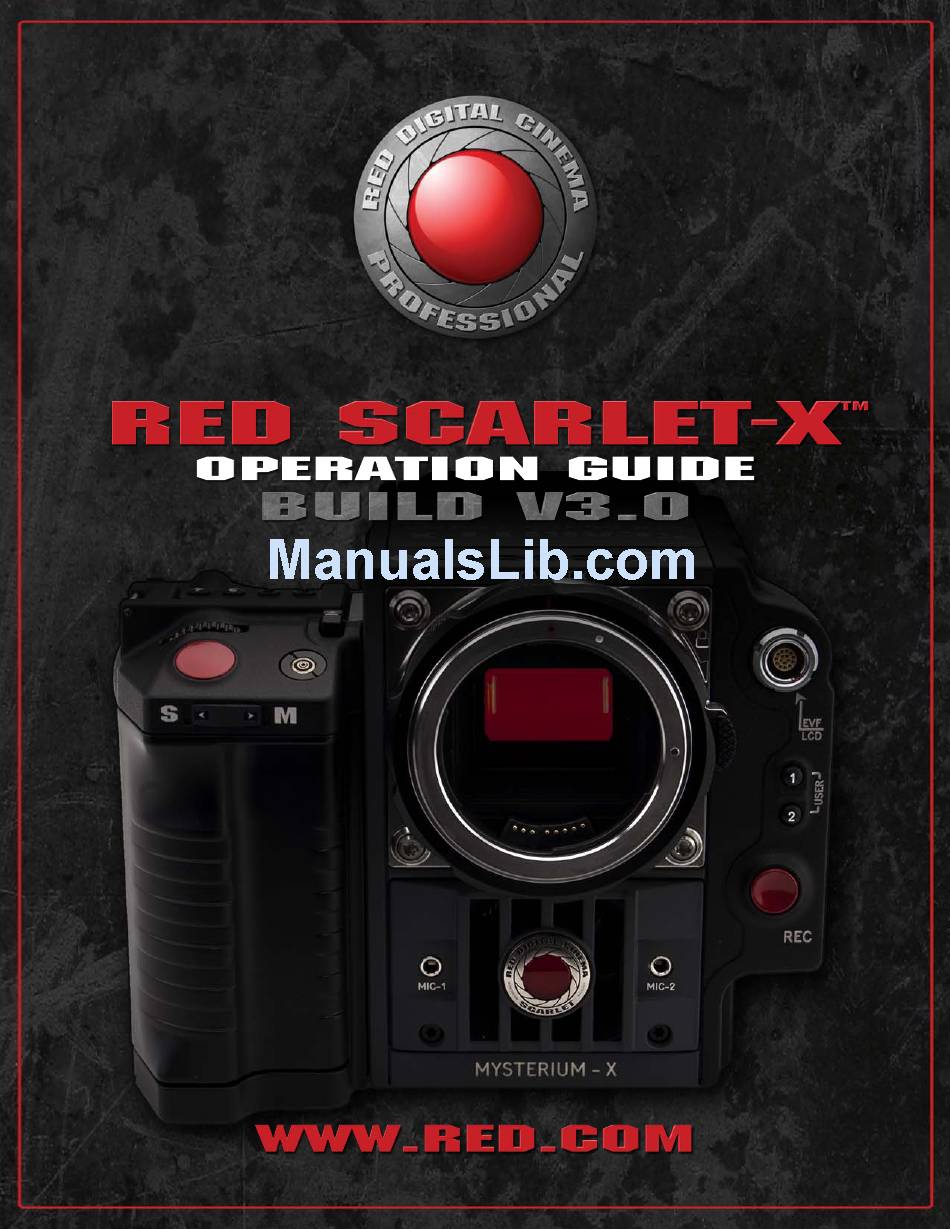

RED Scarlet-X Operation Manual

Red scarlet-x action camera
Hide thumbs Also See for Scarlet-X:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual

Advertisement

Table of Contents
loading

Related Manuals for RED Scarlet-X

Summary of Contents for RED Scarlet-X

  • Page 2: Table Of Contents

    THEORY OF OPERATION ... 11 FIRST TIME USE – SETTING Exposure Menu ......83 MYSTERIUM X® Sensor ..11 UP YOUR RED SCARLET-X ..53 Presets Menu ......83 Image Processing ....11 1. Attach Power Source ... 53 Create Preset ...... 84 HDRx™...
  • Page 3 OPERATION ......175 Underexposure (~ 2 stops) ..215 Overexposure (~ 2 stops) ..217 Control, Connectors and Display ........175 Appropriate Exposure .... 220 RED SCARLET-X™ Operation Guide Version 3.0 955-0003_v3.0, REV-A Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 4: Disclaimer

    RED reserves the right to revise this Operation Guide and make changes from time to time in the content hereof without obligation to notify any person of such revisions or changes. In no event shall RED, its employees or authorized agents be liable to you for any damages or losses, direct or indirect, arising from the use of any technical or operational information contained in this document.

  • Page 5: Compliance

    TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the users authority to operate this equipment. Note: This device complies with Part 15 of the FCC Rules Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 6: Austrailia And New Zeland Compliance Statements

    Caution: Regulations of the FCC and FAA prohibit airborne operation of radio-frequency wireless devices because there signals could interfere with critical aircraft instruments. Caution: If the device is changes or modified without permission from RED, the user may void his or her authority to operate the equipment.

  • Page 7: Information

    This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny- Ålesund Dette gjelder ikke for det geografiske området innenfor en radius av 20 km fra sentrum av Ny-Ålesund Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 8 For business users in the European Union, if you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. Responsible party: Red Digital Cinema® 34 Parker Irvine, CA 92618 Version 3.0 955-0003_V3.0, REV-A...

  • Page 9: Before You Start

    There are no user-serviceable parts inside. Alteration or repairs made to the camera, lens or other accessory, except by a RED authorized service facility, will void the Limited Warranty. Users are not permitted to make design changes or otherwise modify the operation of the camera, lenses or other accessories, without the express written approval of RED DIGITAL CINEMA.
  • Page 10 If there are any performance issues with your camera or accessories when operating within this temperature range, please file a support ticket on www.RED.com/support. O. The Side Handle, Side SSD Module, rear modules and Lens Mount are NOT HOT SWAPPABLE –...
  • Page 11 WARNING: Do not expose the battery to excessive heat. WARNING: Danger of explosion if an incorrect battery is charged with the RED Charger or is used to power the camera and accessories. Replace only with the same or equivalent type battery.

  • Page 12: Theory Of Operation

    A B4 mount to PL mount adaptor is also available to permit use of 2/3” HD lenses on the RED SCARLET- X camera. The optical coverage it provides is approximately equivalent to 16mm hence the maximum recording resolution with a B4 lens is 2K RAW (2048 x 1152 pixel) progressive scan.

  • Page 13: Hdrx

    A-track using the motion analysis data extracted from the X-track. • Exporting to EXR file format will give you a multi-view EXR with both exposures (like a stereo EXR). Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 14: Magic Motion

    AUDIO RECORDING The RED SCARLET-X can record up to two discreet channels of microphone level uncompressed 24-bit, 48 KHz audio (four channels of microphone level or line level audio inputs when equipped with a PRO I/O Module), that are synchronized with video and timecode, to REDMAG 1.8”...

  • Page 15: Line Level Analog Inputs

    In its default configuration, the RED SCARLET-X camera can simultaneously support one VIEWFINDER output (suitable for use by a BOMB EVF®, or RED LCD) plus one HD-SDI based PROGRAM output and one HDMI based PREVIEW output. Each output can support a set of overlay graphics including camera GUI, timecode, clip name and framing guides;...

  • Page 16: Hdmi

    For applications where use of an attached RED EVF or RED LCD is not desired – for example when working on a crane – the VIEWFINDER output can be transferred to the HD-SDI or HDMI outputs, supporting remote camera monitoring up to 200 ft away.

  • Page 17: Redmote

    REDMOTE® REDmote is a proprietary camera control unit for RED SCARLET-X cameras that attaches to the rear of the camera Brain or the back face of the rearmost expansion module. The REDmote may also be detached from the camera and operate over a proprietary REDlink™ 2.4Ghz wireless connection.

  • Page 18: Metadata

    For additional information about digital magazines, refer to APPENDIX B: MANAGING DIGITAL MEDIA. METADATA RED SCARLET-X cameras record extensive Metadata, which is data that describes the precise characteristics of the picture and sound signals in each frame of the recording. This includes camera...

  • Page 19: Smpte Timecode

    Under typical operating conditions, a REDVOLT® XL 90Wh battery will run the camera and accessories for about 90 minutes. A REDVOLT® 30Wh battery will run the camera and accessories for about 30 minutes. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 20: Camera Operational Controls

    CAMERA OPERATIONAL CONTROLS This section describes the available operational controls on the SCARLET-X camera Brain, Side SSD Module, Side Handle and REDmote accessories. BRAIN Power Status LED Power / Record Button Record Status LED Figure 4: Power / Record Button / Status LEDs •...

  • Page 21: Side Ssd Module

    LED Red Blinking = Running on Battery Below 5% • Record Status LED: Indicates status of camera for recording: o LED Off = No Media o LED Green = Ready to Record o LED Red Constant = Recording o LED Red Slow Blink = Recording, 25% Media Left...
  • Page 22 LED Off = No Media o LED Green = Ready to Record o LED Red Constant = Recording o LED Red Slow Blink = Recording, 25% Media Left o LED Red Fast Blink = Recording, 5% Media Left o LED Yellow = Finalizing o LED Yellow Blinking = Media Access (Format etc...)

  • Page 23: Side Handle

    Focus / Record Button LCD Display Adjustment Ring LCD Backlight Button Figure 6: RED Side Handle Controls - Top • Battery Door Release Button: Releases Side Handle battery door to permit battery exchange. • Focus / Record Button: Touch for Auto Focus, fully depress to Start or Stop Record.

  • Page 24: Front

    Figure 7: Side Handle Controls - Front • Stills / Movie Slider: Selects between STILLS and MOVIE modes of operation. NOTE: This switch is not active at this time. Default camera operation is MOVIE Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.

  • Page 25: Rear

    Rocker Switch System Keys 1- 3 Navigation Group Thumbwheel Lock Figure 8: RED Side Handle Controls - Rear • Menu Button: Press to access / camera setup menus. • Rocker Switch: Increases or decreases selected value based on parameter selected in USER KEYs.
  • Page 26 System Keys: Function is defined by System Firmware. The specific function of these keys may be programmed by the user. Upper: Toggles false color Exposure Check Center: Not currently defined Lower: Ejects (unmounts) the currently selected Media Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.

  • Page 27: Installation / Removal

    5. Rotate side handle down flush along side of camera brain. 6. Rotate thumbscrew upwards until tight. Ensure side handle is secure to camera brain. You may have to apply steady pressure to get the screw started. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 28: Quad Battery Module

    QUAD BATTERY MODULE Figure 10: Quad Battery Module Battery Status LED Battery Eject Button • Battery Status LED: Indicate current status of corresponding battery. • Battery Eject Button: Ejects corresponding battery to permit battery exchange. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.

  • Page 29: Installation / Removal

    1. Power down the camera if necessary. 2. Remove the REDmote if necessary. 3. Install the Adapter Plate. a. Place the adapter plate over the v-mount on the rear of the camera brain. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 30 Using a T-20 Torx, tighten the four (4) screws snug. c. Tighten the screws again in a cross pattern until tight. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 31 Insert Lip At Top of Adaptor Plate Rotate Battery Module Down Similar to Side Handle Installation Until Flush with Adaptor b. Rotate battery module down flush with the rear of the adaptor plate. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 32 Torx to rotate the lock on the adapter plate clockwise to secure the battery module. Press Battery Module Flush with Adaptor Rotate Lock Clockwise Until Red Dot Lines Up with Lock Icon To remove the Quad Battery Module and Adaptor Plate: 1. Power down the camera if necessary.

  • Page 33: Redmote

    User Key A – Press to execute user defined function. Default: Toggles Focus Assist Indicator User Key B – Press to execute user defined function. Default: Toggles False Color > RAW Check Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 34 For complete information refer to APPENDIX E: REDMOTE OPERATION > OPERATION > REDMOTE MENUS > SOFT MENU BUTTONS 4-8. • Power / Lock Slider: Slide and hold down to power up / down REDmote and or camera. Slide up to lock keys. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.

  • Page 35: Bomb Evf

    EVF User Key (B): Increases EVF display brightness. • EVF User Key (C): Decreases EVF display brightness. NOTE: The specific function of EVF user keys (B/C) may be programmed by the user. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 36: Touchscreen Lcd

    TOUCHSCREEN LCD Figure 14: RED Touchscreen LCD Backlight Adjust LCD User Key C LCD User Key D • Backlight Adjust: Adjusts LCD backlight intensity. Upper button +, Lower button - • LCD User Key C (B): Press to execute user defined function. Default: Toggles False Color > 1:1 Magnify.

  • Page 37: Basic Operation

    The optional Side Handle accepts one 30Wh REDVOLT® battery, which can power the camera and typical accessories for approximately 30 minutes when recording in 12 fps RAW 5K MOVIE mode. Figure 15: Side Handle Battery Compartment Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 38: Quad Battery Module

    The optional QUAD BATTERY MODULE accepts up to four 30Wh REDVOLT® batteries, which can power the camera and typical accessories. Figure 16: Quad Battery Module Battery layout is as shown: Uses the lowest charged battery first when more than one battery is installed. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 39 LED Green Blinking = Battery Used (100% - 11%) • LED Yellow Blinking = Battery (10% - 6%) • LED Red Blinking = Battery (5%- 1%) • LED Constant Red = Battery Discharged Remaining batteries will have a steady LED on module.

  • Page 40: External Dc Power

    Also shows battery location and status on REDmote. In this case RM (Rear Module) B3 (Bay 3). POWER shows installed batteries and state of charge. EXTERNAL DC POWER SCARLET-X accepts input voltages between 11.5V - 17V D.C and can draw a maximum current of 12 Amps. •...

  • Page 41: Power Up

    Figure 17: Power / Record Button / Status LEDs When an appropriate power source is connected to the Brain, the Power Status LED will illuminate Red. If it is illuminated, depress and then release the Power / Record button. The Power Status LED will initially go out and within 5 seconds illuminate Orange to confirm the camera is powering up, then it will illuminate Green, confirming the camera is powered up and ready to use.

  • Page 42: Power Down

    2. Depress and continue to hold the Power / Record button in its fully depressed position for a minimum of 5 seconds. When the button is released, INITIATING CAMERA SHUTDOWN will display and camera will power down. After Power Down, the Power Status LED will illuminate Red, if an appropriate power source is available. Version 3.0 955-0003_V3.0, REV-A...

  • Page 43: Graphical User Interface And Navigation

    GRAPHICAL USER INTERFACE AND NAVIGATION RED LCD/TOUCHSCREEN LCD, BOMB EVF, EXTERNAL MONITORS The following is a general description of the structure of the camera’s Graphical User Interface (GUI) which overlays the video monitor signal on the Viewfinder output(s) of the camera.
  • Page 44 Playback ICON : In the upper Left corner on the touchscreen LCD - Accesses the • Magnify: Tallies 1:1 if magnify is selected Playback Function • TC: Indicates presence of valid SMPTE timecode signal Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 45 NOTE: Shutter angle is displayed in Relative mode by default, as indicated by Yellow text. If the red bar is not on the parameter you wish to change, first use the Scroll Wheel to position the red bar under that parameter, then press ENTER, adjust with the Scroll Wheel and press ENTER a second time to confirm the value change.
  • Page 46 TC Gray - No analog time code is currently detected. • TC Red - Analog time code is being detected, but the use of it is not enabled. • TC Green - Analog time code is being used to jam the time of day time code. TC will revert to gray if the signal is no longer detected.
  • Page 47 Yellow = 10% - 6 % Red = 5% - 0% If using a RED BRICK battery connected to DC IN, power status displays BRICK and reports the % of remaining battery capacity and the displayed text is color coded as follows: •...
  • Page 48 RAW CLIP METER The RAW Clip meter looks a traffic light style meter and indicates if either of the Red, Blue or Green channels of the RAW sensor data are clipping. This meter is unaffected by White Balance, ISO, VIEW or LOOK settings and therefore represents a true measurement of the exposure levels of the sensor at all times.

  • Page 49: Side Handle

    Wireless Status: Displays signal strength • Frame Rate: Image capture rate when connected wirelessly • • Battery Indicator: Displays battery life or ISO Rating: Camera sensitivity charge status (shown) of REDmote Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 50: Navigating Menus

    Selects Advanced Settings menu. DOWN Selects standard Settings menu. As an example, position the Cursor under the Shutter Speed (24FPS) icon and press the UP Direction Key to access advanced adjustment values for Shutter Speed. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.

  • Page 51: Using Touchscreen Lcd

    Touching Media Status indicator will bring up the Media menu. Refer to SECONDARY MENUS > MEDIA for complete information. • Touching Power Status indicator will bring up the Power menu. Refer to SECONDARY MENUS > POWER for complete information. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 52: Power Down

    USING POWER STATUS DISPLAY 1. Select the POWER status located between the audio channels and media remaining indicator, to reveal the same menu illustrated above. 2. Select SHUTDOWN. 3. The camera will immediately power down. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.

  • Page 53: Touchscreen Opreration

    When locked, the main menu will be displayed. UNLOCK To unlock out the touchscreen and allow normal operation, touch and hold the LOCK icon until the MENU icon displays; indicating the touchscreen has been unlocked. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 54: First Time Use - Setting Up Your Red Scarlet-X

    DC IN power supply has priority and will power the camera instead of the battery. BATTERY Connect a RED battery to the camera in one of the following ways: SIDE HANDLE Attach a Side Handle and insert a REDVOLT battery.
  • Page 55 Insert battery into desired location and press until a click is heard and battery is seated. REMOVE 1. Press the battery eject button (A) for desired battery. 2. When battery pops out, remove battery from battery module (B). Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 56: Dc Power

    Identify a REDMAG 1.8” 64GB, 128GB or 256GB SSD that has not previously been recorded to, or is not a camera master and may therefore be erased and re-used. Aligned the RED logo of the SSD to the outside, and then push the SSD firmly, but without excessive force, into the slot in the Side SSD Module.

  • Page 57: Perform A Black Shading Calibration

    NOTE: If any clips will be erased on the attached media, you will be informed of the number. PERFORM A BLACK SHADING CALIBRATION Refer to SECONDARY MENUS > SETTINGS > MAINTENANCE > CALIBRATION for complete details for performing a Black Shading Calibration. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 58: Adjust Project Settings

    It is also the primary frame rate for acquisition, but variable speed (over-crank and under-crank) recordings can be made above and below this base frame rate using the VARISPEED menu. RECORD RESOLUTION Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.

  • Page 59: Recording

    Time Code and Edge Code values used by the camera are Non Drop Frame (NDF); Drop Frame (DF) is not supported. Audio is captured uncompressed at 24-bit resolution, 48KHz sample rate per channel. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 60: Record Indicator

    REDmote upper LED will illuminate Red, and the Timecode will turn Red. If using a BOMB-EVF, the LED on the front will illuminate Red if Tally is enabled SMPTE-RP188 timecode VITC-2 HANC metadata record flag will be enabled on HD-SDI outputs.
  • Page 61 The Playback function will display. For complete details, go to SECONDARY MENUS > SETTINGS > PLAYBACK. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 62: Menu Controls

    Touch the desired parameter for adjustment. • Slide your finger across the screen to scroll through the available parameter values. • When desired the parameter value has been selected, touch anywhere in the screen area to set. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.

  • Page 63: Advanced Setting Menus

    2. Press the field - a keypad type menu may appear to allow adjustments. 3. Press the desired parameter settings to adjust. 4. When desired selection is made, press anywhere in the screen area to set and exit the advanced settings submenu. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 64: Main Menu

    When a frame rate other than the current TIME BASE has been selected, the FPS text will turn Yellow and VARISPEED will be shown where the Audio Meter is normally displayed at the lower right of the display. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.

  • Page 65: Basic Settings

    On Touchscreen systems, a Keypad is available for direct numeric entry of the Varispeed FPS value. Touch the value bounded by the + and – labels to bring up, press outside the keypad to confirm the value. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 66: Iso (Sensitivity)

    You can chose either 1/3 or 1/4 stops. RED SCARLET-X DSMC TI PL MOUNT INSTALLED When a lens equipped with Cooke’s S4/i system is attached to the DSMC Ti PL Mount, the camera will display the current aperture (F stop) of the attached lens.
  • Page 67 When selected, the advanced settings menu allows fine control over the f-stop value under APERTURE and focal distance under FOCUS. APERTURE (F STOP) Provides the ability to enter the F stop value directly. Range depends on attached lens. Default depends on attached lens. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 68: 1/Sec (Exposure)

    Range is 1/24 sec – 1/8000 sec - Slowest available speed is 1 second per frame / frame rate, so for 24 fps it is 1/24 sec. Default is 1/48 Sec. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.

  • Page 69: Advanced Settings

    Provides the ability to enter the Exposure value as a Shutter Speed (1/xx sec). Range is 1/24 – 1/75301 Sec - Slowest available speed is 1/frame rate, so for 24 fps it is 1/24 Sec. Default is 1/48 Sec. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 70 Default is 180.0 Degrees As you adjust any of these three parameters, the camera will automatically calculate the equivalent value in the other units, but as a quick reference here are some common Speeds and Angles. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.

  • Page 71: White Balance

    1/1000 WHITE BALANCE BASIC SETTINGS Allows you to manually set Color Temperature in the range from 1,700 to 100,000 degrees Kelvin. Range is 1,700 K to 10,000 K. Default is 5600K. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 72: Advanced Settings

    PRESET Available preset options are: SHADE DAYLIGHT FLOURESCENT INCANDECENT Preset to 9,000K Preset to 5,600K Preset to 4,500K Preset to 2,800K CLOUDY FLASH TUNGSTEN Preset to 7,500K Preset to 5,500K Preset to 3,200K Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 73 NOTE: Selecting Calc White Balance calculates a new Tint value. This is maintained if the Color Temp is adjusted via the Color Temp parameter. If you select ANY presets, Tint will be reset to zero, which is the default value. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 74: Resolution

    Default is 4K HD The following Resolution options are available: • • • • • 4K HD Current RED SCARLET-X resolutions listed below with their respective size (in pixels). RESOLUTION X (WIDTH) Y (HEIGHT) 5120 2700 4096 2160 4K HD...

  • Page 75: Redcode

    Range is 3:1 to 18:1 Default is 8:1 REDCODE OPTIONS FOR VARIOUS FRAME RATES Min. frame rate is 1s per frame; max. frame rate is a function of REDCODE setting and record resolution: Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 76: Secondary Menus

    To turn HDRx on, navigate to the HDRx button using the Nav Group and press ENTER, or from the touchscreen directly touch the HDRx button. In the Lower Status Group of the Viewfinder screen, the HDR text will turn White, indicating HDRx is active. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.

  • Page 77: Stops

    Enables the Center or Spot focus square for use with manual focus. This mode provides additional focus assistance to the photographer using RED, YELLOW, and GREEN color changes to the focus spot window. Inadequate subject illumination and/or contrast may interfere with normal Focus Confirm operation.
  • Page 78 The subject is dark or distant. • There is inadequate contrast between the subject and background. • The scene has reflective highlights. • The subject is backlit. • There is inadequate surface contrast/detail inside the window. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 79 Enables the Center or Spot focus square for use with manual focus. This mode provides additional focus assistance to the photographer using RED, YELLOW, and GREEN color changes to the focus spot window. Inadequate subject illumination and/or contrast may interfere with normal Focus Confirm operation.

  • Page 80: Dsmc Canon Mount Electronically Supported Lenses

    Canon EF 35mm f/2 • Sigma 85mm f/1.4 EX DG HSM • Canon EF 400mm f/2.8L IS • Sigma APO 50-150mm f/2.8 II EX DC APO • Canon EF 400mm f/4.0 DO IS Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.

  • Page 81: Zones

    Provides a large, square target for focus. When objects located in the circle are in focus, the square will be Yellow or Green. When objects located in the square are out of focus, the square will be Red. Version 3.0 ©2011-2012 RED.COM INC.
  • Page 82 Provides a small, square target for precise focus (similar to Center focus, only smaller). When objects located in the square are in focus, the square will be Yellow or Green. When objects located in the square are out of focus, the square will be Red. SPOT FOCUS INDICATOR Moving The spot focus square can be moved around the screen.
  • Page 83 1. Navigate to the focus menu. 2. Press the down arrow on the Navigation Group. 3. The spot focus square line weight will increase and the Red cursor under FOCUS will dim slightly. 4. Press the ENTER button. 5. Use the directional arrows to move the Spot Focus square to the desired location.

  • Page 84: Red Scarlet-X Dsmc Ti Pl Mount + Lens

    RED SCARLET-X DSMC TI PL MOUNT + LENS When a RED SCARLET-X DSMC Ti PL Mount is installed and a Lens equipped with Cooke’s S4/i system (or equivalent is attached, the Focal Length and Focal Distance is displayed on the LCD, EVF and external monitors.

  • Page 85: Create Preset

    Press the Enter button on the New Name field, a keyboard will appear allowing you to enter the desired preset name. Use the arrow keys and Enter button, enter the desired name. When finished, press the Menu button to close the keyboard. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 86: Export / Import Preset

    When EXPORT PRESET is selected, this will export the CAMERA PRESTS from the camera to the external memory (1.8” SSD). Once a preset is exported, it will appear as a selection in the DISK PRESETS field. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 87 Once imported the preset will be listed under CAMERA PRESETS. NOTE: If no media is connected or no presets are saved to the media, this selection will remain Grayed out (until a preset is exported of course). Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 88: Delete Preset

    Once you have deleted the preset, you will either need to create a new one or import and existing one from external media. You will be asked to confirm if you want to delete the preset. REDmote will also display this message allowing you to respond. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.

  • Page 89: Media Menu

    When selected, a new dialog box will appear allowing you to add properties to the media highlighted in the Current Media box when formatting. Available options are REEL NO, CAM ID, CAM POS, and FORMAT to format the media with the values entered. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 90: Eject Media

    When formatting is complete, camera will display “The magazine was successfully re-formatted. The digital magazine is ready for immediate use. REDmote will also display this message. EJECT MEDIA When selected will Eject (unmount) the media highlighted in the Select Media box. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.

  • Page 91: Utilities

    SSD is in question. NOTE: If clips are present on the media, you will be informed of how many clips will be erased when you secure format the media. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 92: Settings Menu

    Available options are OFF, EXPOSURE, FOCUS, VIDEO, EDGE, MAGNIFY, and RAW. The Dialog is available by either going to SETTINGS > DISPLAY > TOOLS or simply clicking on the histogram in the lower left. Turns off any of the display modes in the first line. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 93 NOTE: Because the RAW data represents a wider color space than RGB, provided that the Red (clip) color is not present in EXPOSURE view, even if Red (clip) color is present in VIDEO view, the apparently clipped RGB highlights can be recovered in post production by adjustment of ISO, FLUT or changing the KNEE and WHITE values of the CURVE box.
  • Page 94 Green represents 18% Gray, Pink represents Skin Tone, Straw represents White, and Yellow, Orange and RED represent various degrees of signal clipping in RGB space. By adjusting ISO, FLUT and Shadow while looking at VIDEO check, the operator can ensure that Black, White and 18% Gray values conform to the desired levels on the HD-SDI and /or HDMI outputs.
  • Page 95 When selected, the icon “F √ ” will be displayed in the Lower Status Group. WARNING: This will potentially interfere with recordings done via HDMI/HD-SDI in "Clean" Mode! Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 96 NOTE: HDR mode cannot be modified when in Magnify 1:1 mode. NOTE: When in magnify mode, you will not be able to adjust frame rate or resolution. These options will be Grayed out. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 97 Zebras enable and adjust the upper and lower values for two independent Zebra indicators. One zebra may be used for highlight exposure, and the other for mid tone or shadows. Zebras will be visible when in 1:1 zoom. By default, Zebra 1 and 2 are disabled. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 98 To enable, select ZEBRA 2 check box. Areas of the image exposed within these ranges will be indicated by crosshatched overlays at + 45 degrees relative to vertical. Zebra 2 is shown in the image below. High IRE Change the desired setting between 1 and 99 (default is 47). Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 99 Color The color setting for AF Zones, AE Zone, Faces, Center, Grid and Look Around may be adjusted. Options are White, Blue, Yellow, Green, Red, or Black. Select the color that provides maximum contrast with the scene you are shooting.
  • Page 100 Look Around Highlights the look around area. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 101 NOTE: When operating in Relative mode, the shutter speed is reported in Yellow text. NOTE: If the operator requests a shutter speed that is outside the capability of the camera, the camera will automatically limit them when a limiting parameter changes. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 102 Frame guides can be set to your own preferences through the User Settings. Available options are Aspect Ratio, Scale X/Y and Offsets X/Y. Note that the selected size will be displayed in the bottom of the Frame Guide box. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 103 COLOR Sets the frame guideline color to White, Gray, Teal, Purple, Yellow, Green, Blue, Red, or Black. Select the color that provides maximum color contrast with the scene you are shooting. Default is White. TRANSPARANCY Sets the frame guide transparency. Available options are 0%, 25%, 50%, 75% and 100%.
  • Page 104 For both Title Guide and Action Guide, available options are OFF, 16:9, 14:9, 4:3, 2.4:1, 1.85:1, and User. Default is OFF. User Title Guide and Action Guide can be set to your own preferences through User Settings. Available options are Aspect Ratio and Scale. Bracket Line Style shown below. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 105 COLOR Sets Title Guide and Action Guide line color to White, Blue, Yellow, Green, Red, or Black. Select the color that provides maximum color contrast with the scene you are shooting. TRANSPARENCY Sets Title Guide and Action Guide transparency. Options are 0%, 25%, 50%, 75% and 100%.

  • Page 106: Look

    Adjusts color saturation. Range is 0.0 (monochrome) to +3.8 (super color). Default is 1.0. CONTRAST Adjusts the overall contrast of the image. Range is -1.0 (flat) to +1.0 (max contrast). Default is 0.0. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 107 GAIN The GAIN sub-menu permits adjustment of RED GAIN, BLUE GAIN and GREEN GAIN. Adjusts the gain of the RED channel only. Range is 0.0 (no Red) to 10.0. Default is 1.0. BLUE Adjusts the gain of the BLUE channel only. Range is 0.0 (no Blue) to 10.0. Default is 1.0.
  • Page 108 Blacks. COLOR/GAMMA The COLOR/GAMMA sub-menu permits adjustment of the monitor output Color Space and Gamma curve. Available options are REDGamma2, REDGamma3 and REDLogFilm. Default is REDGamma3. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.

  • Page 109: Project

    Knee, and White of the curve. PROJECT The project menu sets the operating parameters the camera will use for a given project. Options available are TIME BASE, TIME CODE and SLATE. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 110 Available options are 23.98, 24.00, 25.00, 29.97, 47.96, 48.00, 50.00, and 59.94. Default is 23.98. TIME CODE Selects the TIME CODE source to be used. Options are EXTERNAL TC and INTERNAL USER- PROVIDED TC. TIME CODE DISPLAY Allows you to choose between TOD and Edge display. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 111 When selected, a new dialog box will appear allowing you to add properties to the media. Available options are CAM ID, CAM POS and SET to set the values entered. CAMERA ID (SLATE) Identifies the camera with a letter A through Z. Default is A. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 112: Audio/Video

    Menu adjusts AUDIO INPUT, AUDIO OUTPUT, AUDIO CHANNELS, MONITOR CONTROL, and TEST SIGNALS. AUDIO INPUT Allows you to enable / disable and adjust levels for audio inputs (CAM ANALOG). Default is unchecked. Range 8 to 64 dB, default is 10 dB. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 113 Also, when audio is disabled and an audio jack is plugged in, the circle will remain Gray but the box around the signal will be highlighted (jack is detected by the camera). Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 114 AUDIO CHANNELS Allows selection of audio inputs and operational modes. INPUT Available inputs are CH 1/2 and CH 3/4. NOTE: For cameras not equipped with a PRO I/O module, options are CH 1/2. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 115 Available options are NONE, CAM ANALOG, PRO I/O ANALOG, PRO I/O AES A, and PRO I/O AES B. NOTE: For cameras not equipped with a PRO I/O module, options are NONE or CAM ANALOG. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 116 Enables linkage between Channel Gain controls. Limiter Enables signal limiter circuit. Limiter enabled adds 10dB of headroom for Microphone level inputs, or 4dB for Line Level inputs. OUTPUT Link Enables linkage between Output Channel Attenuation controls. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 117 MENUS, perform a double-tap on the LCD screen. HDMI Options are OFF, MENUS, PREVIEW, CLEAN, OVERLAY, 3D LEFT, and 3D RIGHT. Allows you to choose the output resolution for HDMI monitors. Available options are AUTO, 720p and 1080p. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 118 To enable a desired test signal, select the desired test signal box. To exit the test signal, tap the touchscreen one time or press the Enter or Menu button on the Side Handle or REDmote. SMPTE BARS CHIP CHART Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.

  • Page 119: Setup

    NOTE: RED SCARLET-X test signals are not recordable, they are provided to help align external video monitors connected via the HD-SDI or HDMI outputs. SETUP This menu permits a variety of system setup tasks to be accomplished. Options available are KEYS / SHORTCUTS, DATE / TIME, NETWORK, SERIAL, REMOTE, GPIO, and SYSTEM.
  • Page 120 Zoom In Speed 2 • Side Handle Tele Level +3 Zoom In Speed 3 • Side Handle Tele Level +4 Zoom In Speed 4 • Side Handle Tele Level -1 Zoom Out Speed 1 Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 121 Zoom Out Speed 1 • REDmote Tele Level -2 Zoom Out Speed 2 • REDmote Tele Level -3 Zoom Out Speed 3 • REDmote Tele Level -4 Zoom Out Speed 4 Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 122 • Zoom Out Speed 4 still • One Shot AF • False Color • Brain LCD Br. Up • Set focus mode for • Key Disabled movie • Next Value • Brain LCD Br. Down Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 123 DATE / TIME This menu allows the user to reset the battery backed up clock of the RED SCARLET-X camera. These values will be used to timestamp each recording as they are made to the RED MAG 1.8” SSD media.
  • Page 124 "CAM_A_L" and "CAM_A_R"). The default group is named "DEFAULT". Groups (like names) can be used to send commands to a selected group of devices. When selected a keyboard will appear. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 125 When selected a keyboard will appear. SERIAL PROTOCOL SCARLET-X can communicate to the outside world either via the Serial Port (RS-232, if RCP is selected as the SERIAL PROTOCOL) or the Ethernet Port (Gigabit-Ethernet). This menu allows the user to select the CTRL (RS232) Serial Port PROTOCOL. Available options are NONE, ELEMENT TECHNICA, 3ALITY SPC 7100 and 3ALITY SPC 7000.
  • Page 126 If the EXT check box is checked this camera can be controlled via TCP/IP from an external device. IP Address Permits the user to adjust the camera’s static IP address. Netmask Permits the user to adjust the Subnet Mask address. Gateway Permits the user to adjust the Gateway address. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 127 APPENDIX E: REDMOTE OPERATION > OPERATION > WIRELESS CONNECTION. SCAN FOR REDMOTES When selected, the camera will look for REDmotes that are turned on with wireless enabled. Searching will display. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 128 After scanning, the recognized REDmote MAC address will be listed in the drop down menu. PAIR REDMOTE Select the REDmote from the drop-down and select PAIR REDMOTE to pair the REDmote to the camera. You can also pair the attached REDmote by selecting ATTACHED REDMOTE. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 129 CAMERA INPUT Permits the function of the SYNC IN / GPI pin in the SYNC connector to be defined as: Sync In Accepts an Input Sync signal to control Shutter Start timing. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 130 Permits the function of the SYNC OUT / GPO pin in the CNTL connector to be defined as: Sync Out Provides an Output Sync signal to act as a Shutter Start tally. General Purpose Out Provides an Output Tally to act as a General Purpose Output tally signal. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 131 IMPORTANT: If Sync > Genlock mode is selected, DO NOT set fps to higher than 72fps, and to a speed NOT a multiple of the project base rate and genlock input. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 132 Sets a fixed fan speed to be used during Record. Range 25 – 100%. Default is 50%. Standby Speed Sets a fixed fan speed to be used during Standby. Range 25 – 100%. Default is 75%. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.

  • Page 133: Maintenance

    EVF Tally Light When checked, enables the Record Tally Red LED on the front of the EVF. MAINTENANCE The maintenance menu allows the user to check system status and information, save the camera diagnostic LOG to attached media, perform a software update, calibrate the sensor, perform a camera self test, and reset system settings to factory defaults.
  • Page 134 SAVE LOG Select to write camera’s .LOG file to the REDMAG 1.8” SSD. The .LOG file is a diagnostic tool that can assist RED with camera troubleshooting. After capture, upload the .LOG file to the RED customer service team contactable at www.RED.com/support.
  • Page 135 At a minimum put a lens cap on the lens (WARNING: Not all lens-caps completely block IR. They are made to protect the lens, not necessarily to block light...) • Preferably, take of the lens, and use the lens-mount cap provided by RED. Version 3.0 ©2011-2012 RED.COM INC.
  • Page 136 The user can select the CURRENT CALMAP. The dialog only show the calmaps stored in memory (FACTORY and USER HS in this case). BLACK SHADING (DEFAULT) This option uses fixed settings which are the same used for the factory calibration (around 23 Deg C). Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 137 2. Ensure a properly formatted SSD is attached to the camera and properly formatted. 3. Select OK to perform the Black Shading calibration. The calibration will make 2 passes. 4. A status screen will show progress of the Capturing step. Second pass shown. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 138 6. Once Analyzing is complete, a status screen will show progress of the Erasing step. 7. Once Erasing is complete, a status screen will show progress of the Programming step. 8. The camera will perform this procedure twice. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 139 When selected allows you to perform a self-test for the sensor and LCD Touchscreen. ENABLE / DISABLE SENSOR TEST PATTERN When selected enables / disables the sensor test pattern (White Screen). To turn on, select ENABLE SENSOR TEST PATTERN. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 140 To turn off, select DISABLE SENSOR TEST PATTERN. TOUCHSCREEN When selected allows you to perform a touchscreen self-test. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 141 RESTART…” Camera will automatically power down and will require you to manually power it up. NOTE: User key settings will be reset as well as any other changes from the cameras default settings. The REDmote will also require paring to communicate wirelessly with the camera. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 142: Playback

    UPPER CONTROLS From Left to Right are ISO, WHITE BALANCE, VIEW, PRESETS, MEDIA, SEETINGS, and META. Below the settings is the clip playback status bar. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 143 Allows you to change the ISO in the clip during playback. WHITE BALANCE Allows you to change the White Balance in the clip during playback. Advanced Menu Opens the advanced White Balance settings without the ability to Calculate. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 144 Name, Time Code, Frame Guide, Action Guide, and Title Guide. PRESETS Allows you to apply presets to the clip during playback. MEDIA When selected will list all available clips on the attached media. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 145 Side Handle / REDmote 1. Select the desired clip to playback and press the ENTER button. 2. Load will highlight. Select LOAD to load the clip in the player and allow playback. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 146 Allows you to toggle ON/OFF Exposure, Focus, Video, Edge, and RAW. Refer to SETTINGS MENU > DISPLAY > TOOLS for complete details about these options. Zebra Allows you to toggle ON/OFF Zebras. Refer to SETTINGS MENU > DISPLAY > ZEBRA for complete details about these options. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 147 Allows you to adjust the Color, Gain, FUT, and Curve of the image during playback. Refer to SETTTINGS MENU > DISPLAY > LOOK for complete details about these options. Record (Exit) When selected will exit playback to the main menu. META Displays current clip META information. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 148 Directional Pad: Pressing Left or Right to open and allow playback of the previous or next clip on the media. • ENTER Button: Pressing the ENTER button controls Play / Pause of playback. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 149 Displays the clip histogram. The histogram will change based on any changes made in the Upper Controls. When using the touchscreen, touch the histogram to display the TOOLS menu. PLAYBACK SPEED Allows you to select x1, x2, x4, x8, or x16 playback speed. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 150 Helps when the clip is rather long and you want to focus on a particular segment. The In (Red) and Out (Green) points will be displayed in the Clip Playback Status Bar. You can use the navigation group to select the exact location of the In and Out Points if desired.

  • Page 151: Power

    Below is what is displayed when the camera is connected to DC power and a REDvolt is installed into the side handle. REAR 1-4 denote the battery locations available in the optional QUAD BATTERY MODULE. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 152: Shutdown

    Power OFF controls are interlocked to prevent accidental powering down of the camera. For details on the different ways to power down your RED SCARLET-X, refer to BASIC OPERATION > POWER DOWN. 1. Enter the Secondary Menu using the touch screen, REDmote or Side Handle.

  • Page 153: Appendix A: Upgrading Camera Firmware

    1. Download v3.0.0 firmware from http://www.RED.com/support. 2. Uncompress the v3.0.0 firmware zip file. 3. Using RED STATION® REDMAG 1.8", copy the "force_upgrade" folder and its contents to the top level of the REDMAG¨ 1.8" SSD directory. Version 3.0 ©2011-2012 RED.COM INC.

  • Page 154: Multiple Cameras

    SSD as “READ-ONLY” by default and you cannot write the firmware to the SSD. RED Watchdog is identified by the RED Coin icon located on the Right side of the Menu Bar. Right-click on the icon to enter RED Watchdog settings and change to mount the drive as “READ-WRITE” to allow you to save the firmware to the SSD.

  • Page 155: Appendix B: Managing Digital Media

    Failure to do so may result in lost data or corrupted files. Refer to REMOVE MEDIA FROM CAMERA (UNMOUNT). This procedure outlines the formatting of REDMAG 1.8” SSD media using the RED SCARLET-X camera. Formatting the SSD media will take about 10 seconds.

  • Page 156: Media Capacity Remaining Status

    5. Once formatting is completed, the Viewfinder output(s) will display “THE MAGAZINE WAS SUCCESSFULLY FORMATTED THE DIGTAL MAGAZINE IS READY FOR IMMEDIATE USE”. MEDIA CAPACITY REMAINING STATUS The Viewfinder output(s) will display the remaining media capacity in the MEDIA indicator (100% is shown). Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.

  • Page 157: Eject Media From Camera (Unmount)

    At 10%, remaining capacity the media status will turn yellow, at 5% it will turn red. At 2%, remaining the camera will cease recording. This reserves a small amount of capacity for ancillary data to be written to the media.

  • Page 158: Using Side Handle

    NOTE: If the media was formatted using SECURE FORMAT, you cannot erase the media using an external source. Erasing of the media must be performed by formatting on the camera. MACINTOSH OS X 1. Connect the REDMAG 1.8” SSD via RED STATION REDMAG 1.8". Version 3.0 955-0003_V3.0, REV-A...

  • Page 159: Windows

    8. The media will need to be formatting by the camera before use. Refer to FORMATTING MEDIA. WINDOWS 1. Connect the REDMAG 1.8” SSD via RED STATION REDMAG 1.8". 2. Open Windows Explorer (go to my computer icon, right click and select EXPLORE).

  • Page 160: Appendix C: Charging Batteries

    BATTERY PERFORMANCE When fully charged to 16.4V (+/- 0.2V), the REDVOLT battery is designed to provide approximately 30- 45 minutes of operational time when powering in the RED SCARLET-X camera (this may vary depending on installed accessories and loads). DISCHARGE PROTECTION The battery is equipped with discharge protection.

  • Page 161: Red Travelcharger

    RED TRAVELCHARGER™ The RED Travelcharger has been designed to charge REDVOLT Li-ion batteries or equivalent. A completely discharged battery can be fully charged in approximately 90 minutes. The battery can also be partially charged, to approximately 80% capacity, in approximately 60 minutes.

  • Page 162: Charging Batteries

    1. Plug the supplied AC power cord into the charger’s AC input and then into the AC power source. 2. Verify that the charger’s LED status bar is solid Red (indicating ready to receive battery for charging). 3. Insert a REDVOLT battery into the charger. Charger status LED flashes Yellow while charging.

  • Page 163: Appendix D: Input / Output Connectors

    APPENDIX D: INPUT / OUTPUT CONNECTORS BRAIN FRONT Shown with PL Mount installed. MIC-1 3.5mm Audio Jack MIC-2 3.5mm Audio Jack Figure18: Brain Connectors - Front Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 164: Microphone Audio)

    Graphical User Interface, with a solid vertical witness mark that indicates 0dBu / 0.775 v RMS /-20dbFS. Peak Level Meter range is –36dBu to +20dBu (-54dBFS to 0dBFS) and provides input clip indication. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.

  • Page 165: Brain Rear

    BRAIN REAR HD-SDI Headphone SYNC (Video Sync) CTRL (RS232 Control) GIG-E (Ethernet) DC IN (Power Input) HDMI Figure 20: Brain Connectors - Rear Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 166: Hd-Sdi

    Day timecode, record tally flag and Clip Name information as SMPTE RP-188 VITC2 HANC metadata. NOTE: Default setting is PROGRAM. NOTE: HD-SDI video output is Progressive Scan; it does not support 1080i or 1080PsF modes. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.

  • Page 167: Headphone

    Volume: (master volume) Adjusts headphone volume equally for left and right outputs. Range is -18dB to 0dB in 1dB steps. Default is -9dB. NOTE: for maximum output signal quality, only use high impedance headphones. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 168: Sync (Video Sync)

    NOTE: The Shutter Sync / GPI Trigger uses a Schmitt trigger; 5 volt tolerant; 3.3v recommended. Current must be supplied by trigger source. Both edges of the input signal can be used as a trigger event. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 169 3.3V - Ground Transition • During Stop: Hold at Ground NOTE: A pre-fabricated SYNC interface cable is available from RED Digital Cinema. • P/N 790-0154 – Video Sync – Camera to 3 BNC – 3 ft. (1m) • White BNC: Shutter Sync / GPI •...

  • Page 170: Ctrl (Rs232 Control)

    When used as Sync Out, the signal is rising edge pulse at start of exposure. As a Tally, it is rising edge at start of record, falling edge at end of record. NOTE: A pre-fabricated CTRL interface cable is available from RED Digital Cinema. •...

  • Page 171: Gig-E (Ethernet)

    Data Pair B+ B1_DB- Data Pair B- Do Not Connect NOTE: Two pre-fabricated Ethernet interface cables are available from RED Digital Cinema. • P/N 790-0163 – Ethernet – Camera to Camera – 3 ft. (1m) • P/N 790-0159 – Ethernet – Camera to RJ45 – 3 ft. (1m) Version 3.0...

  • Page 172: Dc In (Power Input)

    NOT fabricate power cables with just one each of +VBATT and GROUND pins wired, as this may cause damage to the camera’s power supply; this is not covered by Warranty. NOTE: Two pre-fabricated DC Power input cables are available from RED Digital Cinema. •...

  • Page 173: Hdmi Out

    In addition to video data, the HDMI output also provides 4 channels of embedded audio. NOTE: Default setting is PREVIEW. NOTE: HDMI video output is Progressive Scan; it does not support 1080i or 1080PsF modes. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 174: Side Ssd Module

    The VIEWFINDER output Module to the front face of the Side SSD provides digital video, communications and power interconnection between the camera and a RED EVF or RED LCD digital display. Due to the requirement for absolute data integrity this requires a custom cable manufactured by RED, the pin-out of this interface is not published.

  • Page 175: Redmote

    The Mini USB connector (A) may be used to charge the REDmote from a 3 party USB power source. The REDmote interface connector (B) allows communication between the REDmote and SCARLET-X Brain or any expansion module when installed. Make sure these contacts are kept clean and free of any grease that may interfere with electrical contact.

  • Page 176: Appendix E: Redmote Operation

    On the upper left edge of the REDmote is the STILLS/MOVIE toggle switch (A) used to switch between STILLS operation (DOWN) and MOVIE operation (UP). The toggle switch is set to the MOVIE position, Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 177 LEDS UPPER The upper LED is used to signal power and record status. • Red - Startup / Recording. LOWER The lower LED is used to signal connection status. • Green - Connected.
  • Page 178 Auto Focus; a full press initiates still capture, or starts /stops a movie recording. When recording, the upper LED will illuminate Red and a Red dot will appear to the immediate left of the Timecode on the REDmote LCD display.

  • Page 179: Operation

    1 CONNECT Used when wireless function is used. Pressing Soft Menu Button 1 Connect will display a list of cached cameras (if previously connected), RESCAN and CANCEL or DISCONNECT. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 180 (DEFAULT in this case). Select the desired camera to connect to for wireless operation and press the Enter button. The REDmote will connect to the selected paired camera. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 181 To stop communicating wirelessly with the camera, select Soft Menu Button 1 Connect, the select DISCONNECT. 2 REMOTE When selected will toggle between REMOTE and LOCAL (in Red text). Remote Allows you to control the camera settings, however to see these settings you must be able to see the LCD or external monitors.
  • Page 182 3. Select the page you would like to set the parameter on. Refer to SOFT MENU BUTTONS 4-8. 4. Use the directional arrows on the Navigational Control to move the Red cursor to the desired location to place the parameter.
  • Page 183 When set will shut the REDmote down in the specified amount of time when the REDmote is detached from the camera AND the buttons have not been pressed during that time. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 184: Charging / Battery Life

    Charge status is shown by a “Battery” indicator at the lower Right corner of the screen. When battery charge is good, indicator is Green. When battery charge is marginal, indicator will be Yellow. When battery charge is low, the indicator turns Red. Ensure the battery is fully charged to Green before operating camera in a wireless configuration.
  • Page 185 STARTING UP, display SEARCHING (with flashing Green LED), then settle into IDLE mode. 4. Green battery indicator will blink, indicating REDmote is charging. 5. A fully discharged REDmote battery will be fully charged in approximately 7 hours. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 186: Connecting / Removing

    This section describes how to physically connect / remove the REDmote to / from an SCARLET-X or SCARLET-X Brain or to / from the back on an expansion module. On the lower left and right sides of the REDmote are V-lock release buttons (B, M) that must be depressed to release the REDmote from the camera or module.

  • Page 187: Wireless Connection

    To communicate to a desired camera wirelessly using the REDmote, perform the following procedure: 1. Ensure the REDmote and camera is both powered up. 2. Ensure REDmote is NOT physically connected to the camera. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 188 6. On the camera go to SECONDARY MENUS > SETTINGS > SETUP > REDMOTE. IMPORTANT: Ensure REDmote displays IDLE on the screen in the lower Left before continuing to the next step. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 189 1. On the REDmote press Soft Menu Button 1 under CONNECT. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 190 COMMUNICATION. Select NAME and a keyboard will appear, allowing you to select the camera name. This can also be performed after pairing the REDmote. 3. Select the desired camera and press the Enter button. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 191 “Searching” and the Green LED will flash (as the REDmote attempts to connect with the camera after losing the cameras wireless signal) until the REDmote is turned off or the camera is turned back on and REDmote automatically connects. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 192 2. When a camera is found, the REDmote will display “Camera: RESCAN…” and below that the name and MAC address (in parenthesis) of the camera. NOTE: If more than one camera has been connected wirelessly to this REDmote, multiple cameras may be listed. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.

  • Page 193: Power Up / Down

    UP along with the camera. NOT CONNECTED TO CAMERA To manually power UP the REDmote, depress and hold the Power / Lock Switch in the Down direction for 2 seconds then release. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 194 POWER UP / DOWN > POWER DOWN. If the Power / Lock Switch is pressed down in the power off position and held until the REDmote powers down, the battery storage life will be reduced Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.

  • Page 195: Accessing Camera Controls / Settings

    CHANGING CAMERA SETTINGS USING CAMERA LCD / EXTERNAL MONITOR AS REFERENCE To adjust a parameter value displayed on the camera’s Upper Status Group, first note the red colored bar (located under 24fps in this example), indicating the currently active parameter for instant adjustment.
  • Page 196 If there is a confirmation available (such as when performing a Black Shading Calibration) the REDmote will allow you to respond to the same prompts displayed on the camera. When the REDmote is docked to the camera, the messages and prompts will no longer display. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.

  • Page 197: Recording

    IMPORTANT: Before recording from a REDmote ensure the camera is properly powered, set up and media is connected. Refer to BASIC OPERATION. To record, press the Red REC (record) button on the REDmote (or any of the other available record buttons).
  • Page 198 3. Look for a device called RNDIS/ ...Gadget. 4. Change Configure IPv4 setting to “Manually” (as shown). 5. In the IP Address field, enter 192.168.0.1 (as shown). 6. The Status should change to “Connected” after changes. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 199 3. Navigate to the downloads folder and open the newly created SCARLET-X_vX.X.XX folder; or open it directly from the downloads window. 4. Open the REDmoteUpgrade_vXXX folder. 5. Open the MAC folder. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 200 NOTE: If REDmote does not connect, verify that the IP address set under CONFIGURING REDMOTE CONNECTION WITH COMPUTER (MAC) has held. If not, enter it again as outlined in the procedure. 8. Click "Select File" and navigate to the redmote.1.bin file located in the REDmote_firmware_vXXX folder. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 201 10. File transfer status will be displayed as a Blue bar. 11. “Updating Firmware” will be displayed with a Green status bar showing upgrade progress. REDmote will also display UPGRADE during this process. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 202 14. The REDmote Software Wizard will disconnect from the REDmote. 15. REDmote will reboot. 16. REDmote upgrade is complete. REDmote will display “POWER UP”, then “SEARCHING” once the upgrade has completed. Finally displaying “Camera: RESCAN…” and going into IDLE mode. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 203 1. Download the REDmote Update zip file to your desktop. 2. Uncompress the zip file. 3. Open the newly created folder. 4. Double-click on the REDmote_upgrade_setup.exe file to install the program. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 204 5. Select “I Agree” to the license agreement. 6. On the Choose Components screen, select Install REDmote Firmware. 7. Select “Next”. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 205 8. Choose location to install the REDmote Upgrade Utility . 9. Choose the location for the shortcut. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 206 NOTE: When properly connected to the PC, the battery charge indicator will be Green and blink. 3. Under Programs, locate REDmote_update and open the program. 4. The REDmote Upgrade Utility window will open. 5. Select “Connect” to establish communication between the REDmote and REDmote Update. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 207 8. Navigate to the *.bin file for updating the REDmote firmware. NOTE: If you choose an incorrect file, click on “Select File” again to locate the correct file. NOTE: Only one file can be added for upgrade. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...
  • Page 208 11. During the upgrade, the REDmote Software Wizard will display “Please Do Not Unplug” as well as a status bar showing “File transfer progress.” 12. During the upgrade, the REDmote will display “Upgrading Firmware” as well as a status bar showing upgrade progress. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 209 13. When upgrade is complete, the REDmote will automatically reboot and display “REBOOTING” on the screen. 14. The REDmote Software Wizard will display “Firmware Upgrade Successfully Done”. 15. Verify the current REDmote firmware version by selecting SETUP > SETUP SYSTEM on the REDmote. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 210: Operating Multiple Cameras Using A Single Redmote

    Soft Menu Button 1 again to list available cameras and re-select. The above image is shown for reference only. The MAC address will only display if two or more cameras have the same name. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.

  • Page 211: Operation

    APPENDIX F: 3D SETUP / OPERATION OVERVIEW The following information outlines basic procedures to connect two (2) RED SCARLET-X cameras together in a Master / Slave configuration for 3D operation, operation of cameras in Master / Slave configuration and clip naming conventions for clips recorded on those cameras. The MASTER camera will control only the METADAT parameters of both cameras.

  • Page 212: Slave Camera

    "left eye" and "right eye" camera in the stereo pair. The Reel No, Cam ID and Cam Pos can be set when formatting the media or after formatting by using the SET option. Refer to SECONDARY MENUS > MEDIA. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 213 IMPORTANT: This position is NOT recommended when recording in Master / Slave configuration. Master: A001_C001_******.R3D Slave: A001_C001_******.R3D Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 214: Connecting Cameras

    For example, when you change the Frame Rate on the Master camera, you will not see the change on the Slave camera until you set the Master camera at the new Frame Rate. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.

  • Page 215: Recording

    When the power/record button is pressed on the Master camera to start/stop recording, the Slave camera will also start/stop recording. POWER DOWN When the Master camera is powered down using the Secondary Menu > Power, the Slave camera will also power down. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 216: Appendix G: Exposure - Using False Color And

    In the image above it is obvious the camera is under exposed. The initial clues are the monitor is very dark, and the histogram is justified to the left. Also note that red bar at the left edge of the histogram and the vertical color stack to the right of the histogram is only at grey.
  • Page 217 These areas are indicated in purple. It is clear those areas are under the matchbox and coin, and between the bottle and cigar holder. ISO 800 - False Color: Video Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 218: Overexposure (~ 2 Stops)

    Note the red bar at the right edge of the histogram and the vertical color stack to the right of the histogram is showing red plus the three traffic lights to the right of that are all illuminated.
  • Page 219 Select False Color – Exposure: note the √ E icon in the GUI when active. This mode allows us to visualize where in the image over exposure is taking place. These areas are indicated in red. It is clear those areas are on the highlight on coin, and at the top right edge of the color chip test chart.
  • Page 220 Because the scene is over exposed, when the recorded .R3D file is color corrected in post-production, the scene’s highlight information will almost certainly be clipped, however the shadow information will probably display cleanly once pulled back down to an acceptable brightness. Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.

  • Page 221: Appropriate Exposure

    Note that there is no red bar on either the left or the right edges of the histogram and the vertical color stack to the right of the histogram is at yellow.

  • Page 222: 2011-2012 Red.com Inc

    (purple) or over exposure (red) in the image. In this case, there is a very small area of purple under the cracker box, and just a suggestion of red on the highlight on the coin, which suggested that the sensor is appropriately exposed for this scene.

  • Page 223: 2011-2012 Red.com Inc

    Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 224: Adjusting The Iso Rating

    RAW meters do not change – they always indicate what is happening at the sensor level and hence where the image is truly in noise or at clipping. ISO 6400 - No Exposure Adjustment Version 3.0 955-0003_V3.0, REV-A ©2011-2012 RED.COM INC.
  • Page 225 The technique is similar in principle to re-rating a film stock. With practice, the ISO rating can be used as a tool to assist ideal exposure based on the dynamic range identified within the scene. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 226: Appendix H: Post Production

    4K, 2K or 1080p image file. SOFTWARE TOOLS RED Digital Cinema provides a variety of software tools to aid postproduction. For proper color rendition using a Macintosh OSX computer, your monitor should be set to Adobe 1998, or to SMPTE-C display profile.

  • Page 227: Redcine-X® Pro

    2K resolution 10-bit DPX or 16-bit TIFF files. REDCINE-X PRO can also render clips into standalone QuickTime movies using specific HD video codecs. As RED SCARLET-X shoots progressive scan images, all QuickTime movies created by REDCINE-X PRO are also progressive scan.

  • Page 228: Maintenance

    OLPF surface. LCD SCREEN (TOUCHSCREEN / NON-TOUCHSCREEN) The specialized AR and AS coatings on RED TOUCH LCD displays must be treated with special care to avoid scratching. To help maintain the specialized AR and AS coatings on RED TOUCH LCD displays, the RED TOUCH LCD comes with a RED MicroFiber bag for cleaning and storage.

  • Page 229: Evf

    • Pre-packaged lens cleaner containing any additives, such as detergent, anti-static, fragrance, etc. For proper cleaning and storage, remember to protect the RED TOUCH LCD by storing it in the RED MicroFiber bag. Use Pancro Professional Lens Cleaner (P/N PANCROCLN) and Photographic Solutions PEC*PADs (P/N 05011) or equivalent to clean the viewfinder lens.

  • Page 230: Back Focus Adjustment

    BEFORE TO PERFORMING A BACK FOCUS ADJUSTMENT. TO REMOVE THE PLUG, USE A T-10 TORX DRIVER. NOTE: To be able to perform this procedure as written, you must have a PL mount and RED Focus™. Back focus is adjusted by turning the back focus adjustment on the top of the camera’s front plate using a T-10 Torx driver.
  • Page 231 A. Remove the camera lens or sensor cover if equipped. B. Install RED Focus onto the camera in the position shown. C. Ensure RED Focus is secured to the camera with the camera lock ring. RED Focus Properly Installed on Camera 4.
  • Page 232 7. Insert a T-10 Torx® screwdriver into the back focus adjustment screw. The screw is oriented at approximately 80° as shown. Performing Back Focus Adjustment – EPIC-M Shown, Scarlet-X Similar 8. Carefully and slowly, rotate the back focus adjustment screw to achieve optimum focus.

  • Page 233: Appendix J: Troubleshooting

    Ensure the REDmote is detached from the rear of the camera body and powered on. • Ensure the REDmote wireless in turned on. • Ensure camera does not display REDLINK Upgrade Required. Version 3.0 ©2011-2012 RED.COM INC. MARCH 2, 20955-0003_v3.0, REV-A...

  • Page 234: Appendix K: Technical Data

    Equivalent to S35mm (Motion) / APS-H (Still) lenses. PROJECT FRAME RATES 23.98, 24, 25, 29.97, 47.96, 48, 50, 59.97 4K : DPX, TIFF, OpenEXR (RED RAY via optional encoder) DELIVERY FORMATS 2K : DPX, TIFF, OpenEXR (RED RAY via optional encoder)

Table of Contents
