CONTENTS SAFETY PRECAUTIONS ..................OPERATING TEMPERATURE ................PARTS NAMES ..................... MANUAL OPERATION ..................OPTIMAL OPERATION ..................ADJUSTING AIR FLOW DIRECTION..............HOW THE AIR CONDITIONER WORKS..............MAINTENANCE....................... OPERATION TIPS ....................TROUBLESHOOTING TIPS................... Read This Manual Inside you will find many helpful hints on how to use and maintain your air conditioner properly.
Safety Precautions To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications. WARNING This symbol indicates the possibility of death or serious injury.
Page 5
! CAUTION When the air filter is to be Do not clean the air Ventilate the room well when removed, do not touch the conditioner with water. used together with a stove, metal parts of the unit. etc. It may cause an injury. Water may enter the unit and An oxygen shortage may occur.
Prior to Operation 1. Contact an installation specialist for installation. 2. Make sure the unit is grounded efficiently. 3. Do not use a damaged or non-standard power cord. 4. Do not share the same outlet with other appliances. 5. Do not use an extension cord. 6.

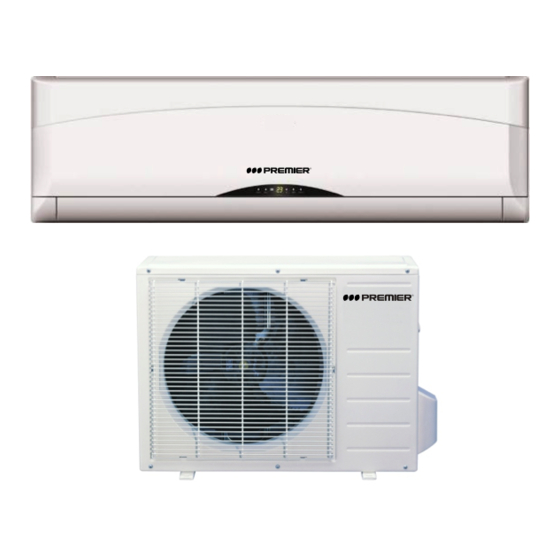

PARTS NAMES Indoor unit 1. Front panel Indoor unit 2. Air inlet 3. Air filter 4. Air outlet 5. Horizontal air flow grille 6. Vertical air flow louver 7. Display panel 8. Remote controller signal receiver 9. Remote controller 10. Manual control button Outdoor unit 11.
TEMPERATURE indicator A) Usually it displays the temperature settings. When change the setting temperature, this indicator begins to flash, and stops 20 seconds later. B) It displays the room temperature when the air conditioner is in FAN only operation. C) Displays the malfunction code or protection code. FREQUENCY indicator This indicator appears only when the compressor is in operation and indicates the current operating frequency.
Do not put any object near air inlet or air outlet, as the efficiency of the air conditioner may be reduced and the air conditioner may stop running. Clean the air filter periodically, otherwise cooling or heating performance may be reduced. Do not operate unit with horizontal louvre in closed position.
HOW THE AIR CONDITIONER WORKS SLEEP operation AUTO operation 7 hours timer off When you set the air conditioner in AUTO mode, it will automatically select cooling, heating(cooling/heating models only), or fan only operation depending on what Temperature temperature you have selected and the room temperature. The air conditioner will control room temperature 1 hour 1 hour...
MAINTENANCE WARNING It is necessary to stop the air conditioner and dis- connect the power supply before cleaning. Cleaning the indoor unit and remote controller CAUTIONS Use a dry cloth to wipe the indoor unit and remote controller. A cloth dampened with cold water may be used on the indoor unit if it is very dirty.
Page 12
4. Remove the Electrostatic Filter from its support frame as shown in the Figure on the left.(Not applicable to the unit without) Do not touch this Electrostatic Filter within 10 minutes after opening the inlet grille, it may cause an electric shock. Electrostatic Filter Clean the Electrostatic Filter with mild detergent or...
OPERATION TIPS The following events may occur during normal operation. 1. Protection of the air conditioner. Compressor protection The compressor can't restart for 3 minutes after it stops. Anti-cold air (Cooling and heating models only) The unit is designed not to blow cold air on HEAT mode, when the indoor heat exchanger is in one of the following three situations and the set temperature has not been reached.
Page 14
7. Dripping water may generate on the surface of the indoor unit when cooling in a high relatively humidity (relative humidity higher than 80%). Adjust the horizontal louver to the maximum air outlet position and select HIGH fan speed. 8. Heating mode (For cooling and heating models only) The air conditioner draws in heat from the outdoor unit and releases it via the indoor unit during heating operation.
Troubleshooting tips Malfunctions and Solutions Stop the air conditioner immediately if one of the following faults occur. Disconnect the power and contact the nearest customer service center. If the following code appears on the LED window, disconnect the power and contact the service people: E0,E1,E2,E3,E4,E5,E6,E7,E8 or P0,P1,P2,P3,P4.
AA-3821INV DISCHARGE SENSOR WHITE BROWN BLUE ~ ~ ~ ~ 4(2) Indoor Unit Outdoor Unit AA-3822INV WHITE BROWN ~ ~ ~ ~ 4(2) BLUE BLACK Indoor Unit Outdoor Unit AA-3834INV INDOOR WIRING DIAGRAM CN16 CN15 CN14 YELLOW OPTIONAL BLUE IONIZER...
Page 17
The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. 2020323A7038...
