Summary of Contents for Moxa Technologies IEX-402-VDSL2 Series

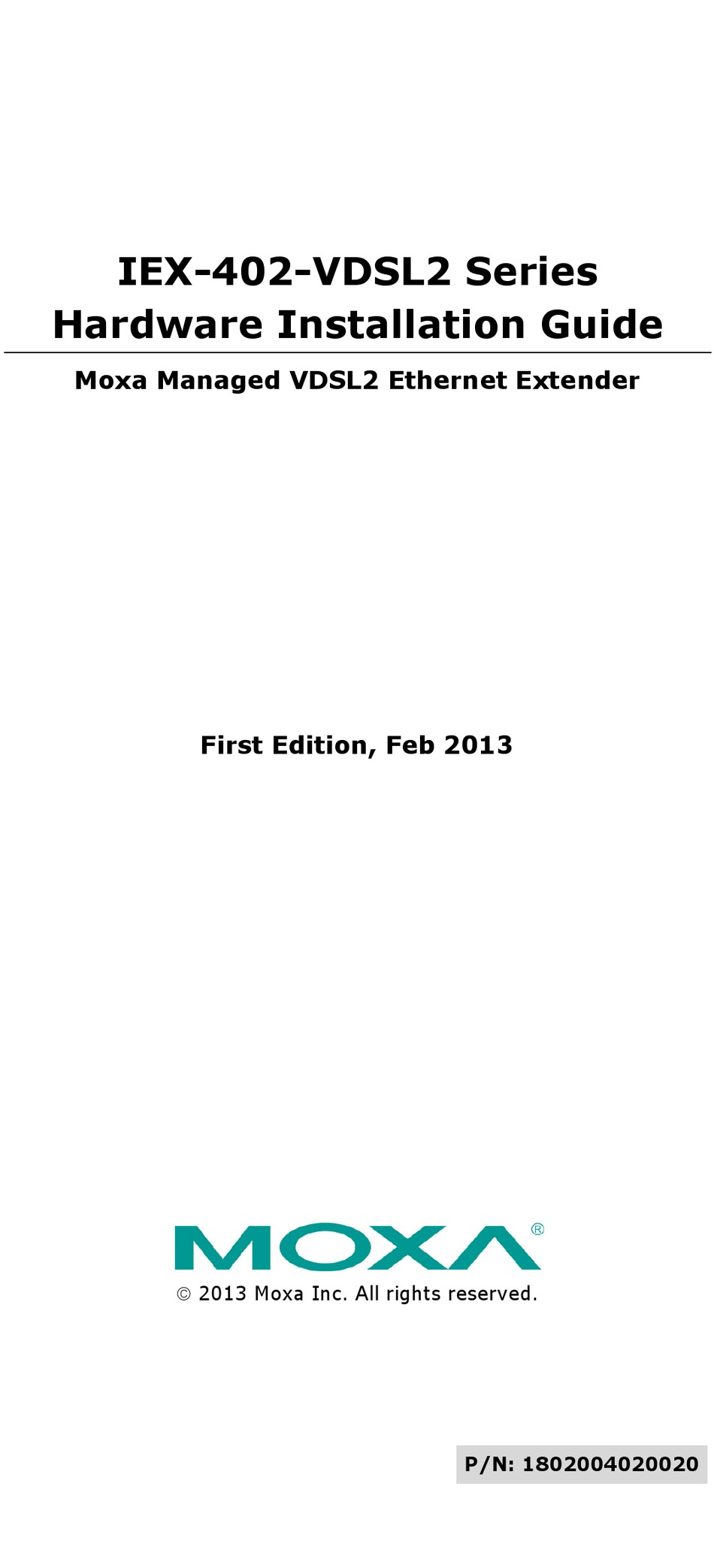

- Page 1 IEX-402-VDSL2 Series Hardware Installation Guide Moxa Managed VDSL2 Ethernet Extender First Edition, Feb 2013 2013 Moxa Inc. All rights reserved. P/N: 1802004020020...
- Page 1 IEX-402-VDSL2 Series Quick Installation Guide Moxa Managed VDSL2 Ethernet Extender Version 2.2, January 2021 Technical Support Contact Information www.moxa.com/support 2021 Moxa Inc. All rights reserved. P/N: 1802004020023 *1802004020023*...
-
Page 2: Package List
100 Mbps using the VDSL2 standard. The Ethernet extender is designed with one 10/100BaseT(X) and one DSL port. The IEX-402-VDSL2 series is designed for use in harsh operating environments. The DIN-rail mount, wide operating temperature range (-40 to 75°C), and dual power input make it ideal for installation in... -
Page 2: Package List
100 Mbps using the VDSL2 standard. The Ethernet extender is designed with one 10/100BaseT(X) and one DSL port. The IEX-402-VDSL2 series is designed for use in harsh operating environments. The DIN-rail mount, wide operating temperature range (-40 to 75°C), and dual power input make it ideal for installation in... - Page 3 IEX-402-VDSL2 Panel Layout Front Panel View 1. Terminal block for power input (PWR1, PWR2) 2. Power input PWR1/PWR2 LED 3. State LED 4. Fault LED 5. 10/100BaseT(X) port 6. DSL speed/SNR LED 7. Detachable 2-contact DSL port 8. Link/ACT LED 9.
- Page 3 IEX-402-VDSL2 Panel Layout Front Panel View 1. Terminal block for power input (PWR1, PWR2) 2. Power input PWR1/PWR2 LED 3. State LED 4. Fault LED 5. 10/100BaseT(X) port 6. DSL speed/SNR LED 7. Detachable 2-contact DSL port 8. Link/ACT LED 9.
-
Page 4: Din Rail Mounting
Mounting Dimensions - unit = mm (inches) DIN Rail Mounting The aluminum DIN rail attachment plate should already be fixed to the back panel of the IEX-402-VDSL2 when you take it out of the box. If you need to reattach the DIN rail attachment plate, make sure the stiff metal spring is situated towards the top, as shown in the following figures. -
Page 4: Din Rail Mounting
Mounting Dimensions - unit = mm (inches) DIN Rail Mounting The aluminum DIN rail attachment plate should already be fixed to the back panel of the IEX-402-VDSL2 when you take it out of the box. If you need to reattach the DIN rail attachment plate, make sure the stiff metal spring is situated towards the top, as shown in the following figures. -
Page 5: Wiring Requirement
STEP 2: Mounting the IEX-402-VDSL2 on the wall requires 4 screws. Use the switch, with wall mount plates attached, as a guide to mark the correct locations of the 4 screws. The heads of the screws should be less than 6.0 mm in diameter, and the shafts should be less than 3.5mm in diameter, as shown in the figure at the right. -
Page 5: Wiring Requirement
Wall Mounting (optional) For some applications, you will find it convenient to mount the IEX-402-VDSL2 on the wall, as shown in the following figures. STEP 1: Remove the aluminum DIN rail attachment plate from the IEX-402-VDSL2 rear panel, and then attach the wall mount plates as shown in the diagram as shown below. -
Page 6: Wiring The Redundant Power Inputs
• Use the type of signal transmitted through a wire to determine which wires should be kept separate. The rule of thumb is that wiring that shares similar electrical characteristics can be bundled together. • Keep input wiring and output wiring separate. •... -
Page 6: Wiring The Redundant Power Inputs
Wiring Requirement ATTENTION Safety First! Be sure to disconnect the power cord before installing and/or wiring your Moxa Ethernet Extender. Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes dictating the maximum current allowable for each wire size. If the current goes above the maximum ratings, the wiring could overheat, causing serious damage to your equipment Be sure to read and follow these important guidelines:... -
Page 7: 10/100Baset(X) Ethernet Port Connection
10/100BaseT(X) Ethernet Port Connection The 10/100BaseT(X) ports located on the IEX’s front panel are used to connect to Ethernet-enabled devices. Next, we show pinouts for both MDI (NIC-type) ports and MDI-X (HUB/Switch-type) ports, and also show cable wiring diagrams for straight-through and cross-over Ethernet cables. -
Page 7: 10/100Baset(X) Ethernet Port Connection
Wiring the Redundant Power Inputs Both power inputs can be connected simultaneously to live DC power sources. If one power source fails, the other live source acts as a backup, and automatically supplies the IEX-402-VDSL2 with power. The two 2-contact terminal block connectors on the IEX's top panel are used for IEX's two DC power inputs. -
Page 8: Restore Factory Defaults Button
Step 1: Insert the wires into the Ring/Tip terminals Step 2: To keep the wires from pulling loose, use a small flat-blade screwdriver to tighten the wire-clamp screws on the front of the terminal block connector. Step 3: Insert the plastic terminal block connector prongs into the terminal block receptor, which is located on the IEX’s top panel. -
Page 8: Restore Factory Defaults Button
RJ45 (8-pin) to RJ45 (8-pin) Straight-Through Cable Wiring RJ45 (8-pin) to RJ45 (8-pin) Cross-Over Cable Wiring DSL Port Connection The DSL port located on the IEX-402-VDSL2 has two connection options. One is the RJ45/RJ11 connector interface (2-wire on pin 4 and pin 5), the other is the screw detachable interface. -
Page 9: Dip Switches Settings
NOTE Do NOT power off the Ethernet extender when loading default settings. DIP Switches Settings The IEX-402-VDSL2 series provides 3 hardware DIP switches for advanced configurations, including CO/CPE, SPEED/SNR, and STD/INP. 1. CO/CPE DIP Switch: The default configuration is CO. -
Page 9: Dip Switches Settings
RJ45 (10-pin) Console Port Pinouts Description – RJ45 (10-pin) to DB9 (F) Cable Wiring RJ45 (10-pin) to DB25 (F) Cable Wiring Restore Factory Defaults Button Press and hold the Reset button for 5 seconds to load the factory default settings. Use a pointed object, such as a straightened paper clip or toothpick, to depress the Reset button. -
Page 10: Led Indicators
LED Indicators Color State Description Power is being supplied to the power input PWR1 PWR1 AMBER Power is not being supplied to the power input PWR1 Power is being supplied to the power input PWR2 PWR2 AMBER Power is not being supplied to the power input PWR2 System has passed self-diagnostic test on boot-up and is ready to run... -
Page 10: Led Indicators
DIP Switches Settings The IEX-402-VDSL2 series provides 3 hardware DIP switches for advanced configurations, including CO/CPE, SPEED/SNR, and STD/INP. 1. CO/CPE DIP Switch: The default configuration is CO. Designate the extender as a CO (central office) or CPE (customer premises equipment) device. -
Page 11: Specifications
DSL Speed/SNR LED Indicator Asymmetric Symmetric Tx Speed(Kbps) Tx speed(Kbps) (dB) 80001 - 100000 60001 - 100000 21-30 55001 - 80000 30001 - 60000 13-20 20001 - 55000 15001 - 30000 6-12 5001 - 20000 4001 - 15000 256 - 5000 256 - 4000 Specifications Technology... -
Page 11: Specifications
LED Indicators Color State Description Power is being supplied to the power input PWR1 PWR1 AMBER Power is not being supplied to the power input PWR1 Power is being supplied to the power input PWR2 PWR2 AMBER Power is not being supplied to the power input PWR2 System has passed self-diagnostic test on boot-up and is ready to run... - Page 12 Regulatory Approvals Safety UL 508 FCC Part 15 Subpart B Class A, CISPR (EN55022) class A EN61000-4-2 (ESD), Level 3 EN61000-4-3 (RS), Level 3 EN61000-4-4 (EFT), Level 3 EN61000-4-5 (Surge), Level 3 EN61000-4-6 (CS), Level 3 EN61000-4-8 Shock IEC60068-2-27 Freefall IEC60068-2-32 Vibration IEC60068-2-6...
- Page 12 DSL Speed/SNR LED Indicator Asymmetric Symmetric Tx Speed(Kbps) Tx speed(Kbps) (dB) 5 80001-100000 5 60001-100000 5 21-30 4 55001-80000 4 30001-60000 4 13-20 3 20001-55000 3 15001-30000 3 6-12 2 5001-20000 2 4001-15000 1 256-5000 1 256-4000 1 3-4 Specifications Technology Standards IEEE802.3, 802.3u, 802.3x, 802.1p,...
-
Page 13: Table Of Contents
Regulatory Approvals Safety UL 508 FCC Part 15 Subpart B Class A, CISPR (EN55022) class A EN61000-4-2 (ESD), Level 3 EN61000-4-3 (RS), Level 3 EN61000-4-4 (EFT), Level 3 EN61000-4-5 (Surge), Level 3 EN61000-4-6 (CS), Level 3 EN61000-4-8 Shock IEC60068-2-27 Freefall IEC60068-2-32 Vibration IEC60068-2-6...
