InMotion inM417 Manual

Led monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LED Monitor Manual
inM417 / inM419

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the inM417 and is the answer not in the manual?

Questions and answers

Related Manuals for InMotion inM417

Summary of Contents for InMotion inM417

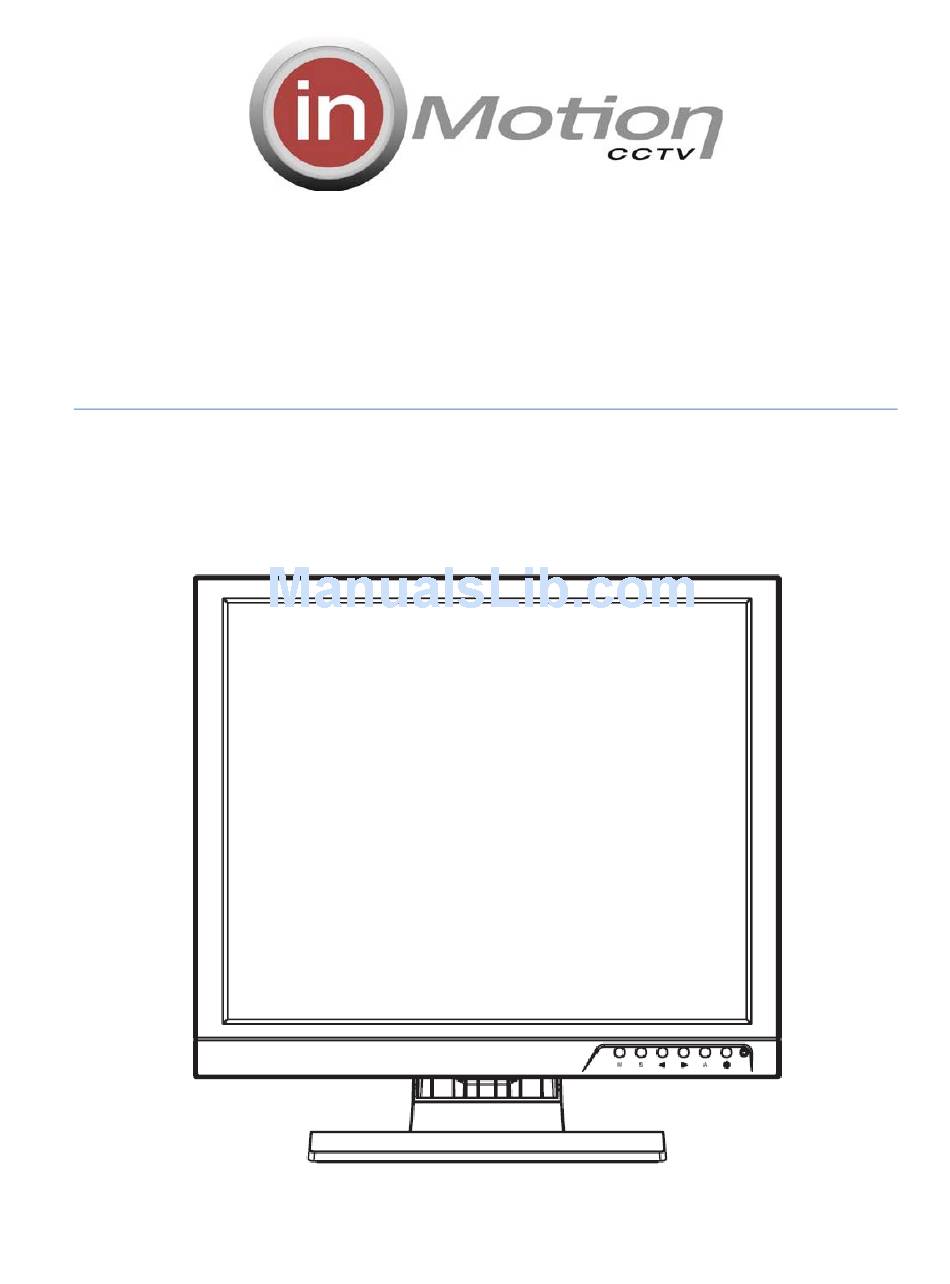

  • Page 1 LED Monitor Manual inM417 / inM419...

  • Page 2: Introduction And Package Contents

    Introduction and Package Contents Introduction Congratulations on your purchase. You can expect only the sharpest and most brilliant color images from this monitor. Featuring easy to use OSD controls and built in speakers, you will find this monitor both easy to use and a pleasure to look at. Package Contents One LED Monitor 12V DC Adapter/Power cord...
  • Page 3 VGA Resolution Table Item Resolution H Freq.(KHz) V Freq.(MHz) Note VESA 640x400@70Hz 31.46 70.080 Standard Industrial 640x480@60Hz 31.5 59.940 Standard VESA 640x480@72Hz 37.9 72.809 Standard VESA 640x480@75Hz 37.5 75.000 Standard VESA 720x400@70Hz 31.46 70.080 Standard Industrial 800x600@56Hz 35.15 56.25 Standard VESA 800x600@60Hz 37.9...

  • Page 4: Monitor And Osd Control

    Monitor and OSD Control Monitor and OSD Control The LED color monitor has a simple control layout for controlling the monitor and OSD (On Screen Display) functions. The table below summarizes the control keys and their related functions. Keys Function Description Toggle the display between standby mode and on.
  • Page 5 LED Status Display The following table describes the various power states of the LED monitor as represented by different LED colors. Power State LED Color Green Standby No power Blank Note: The LED will also be red if AV1 or AV2 is selected and there is no video signal detected.

  • Page 6: Quick Installation

    Quick Installation 1. Connect power cord and power adaptor. 2. Connect video cable • Make sure both the LED display and computer are turned off. • Connect the video cable from the LED display to the computer. 3. Turn ON LED display and computer •...

  • Page 7: Osd Control Function List

    OSD Control Function List A. Main OSD function menu Press on front panel to access OSD 1. Main menu functions as follows Picture setup: Setup for overall image quality Audio Setup: Setup of audio inputs General Setup: Setup of basic sittings PIP Setup: Setup for multiple signal display •...

  • Page 8: Picture Mode

    Picture Mode 1. Picture Mode Press “ ” OR “ ” to select the picture mode “User, Standard, Movie, Vivid ” 2. Contrast This is used to set the brightness of the screen. Press“ ” OR “ ” to adjust the parameter. 3.

  • Page 9: Setting Mode

    Setting Mode AV/HDMI Mode VGA Mode 1. Language Press -/ OR +/ to select language. 2. H. Position Move the display picture left or right. Press -/ OR +/ to adjust the parameter. 3. H Zoom Adjust the H-size of the display picture Press -/ OR +/ to adjust the parameter.
  • Page 10 PIP/POP Setup Mode 1. Multi Window Press “ ” OR “ ” to select “PIP, POP,Off ” mode. 2. SubSource Press “ ” OR “ ” to select “AV, VGA, HDMI ” mode. 3. Size Adjust the size of Sub Source window. Press “...
  • Page 11 Mounting VESA Bracket Lay the LED display face down on a towel or blanket. Note the 4 screws that secure the hinge on the lower part of the back casing. These may be removed to release the desk mount bracket if required. Attach a VESA compatible mounting bracket (VESA 75mm x 75mm is supported)

  • Page 12: Specifications

    Specifications...
  • Page 13 Specifications Size 17” 19” Composite Output (BNC) x 2 Composite Input (BNC) x 2 Single Connector (VGA) x 1, (RCA) x 2 (PC Audio) x 1, (HDMI) x 1 Speaker 1.5W x 2 Display Mode AV 1/ AV 2/ VGA / HDMI AC power AC 100~240V 50/60Hz Temperature...
  • Page 14 Caring for Your LED Monitor Caring for your LED Monitor The LED color monitor is a sensitive piece of electronic equipment. Proper care can prevent accidentally damaging the LED panel or the monitor itself. By following these guidelines you can ensure many years of trouble free use. 1.

  • Page 15: Frequently Asked Questions

    Frequently Asked Questions Power button does not respond Check the power cord to ensure that it is securely plugged into the monitor base and also into the electrical outlet. Ensure there is electrical power coming from the AC outlet. Use another device to check for power. Unplug the power cord of the monitor from the AC outlet;...

  • Page 16: Regulations And Maintenance

    Regulations and Maintenance FCC compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 17 Power Use the type of power indicated on the marking label. Plugs Do not remove any of the prongs of the monitor’s three-pronged power plug. Disconnect the power plug from the AC outlet under following conditions: If you will not use it for an indefinite period time. When the power cord or plug is damaged or frayed.

This manual is also suitable for:

Inm419
