InMotion inM497 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
9.7" LED Monitor Manual
inM497

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the inM497 and is the answer not in the manual?

Questions and answers

Related Manuals for InMotion inM497

Summary of Contents for InMotion inM497

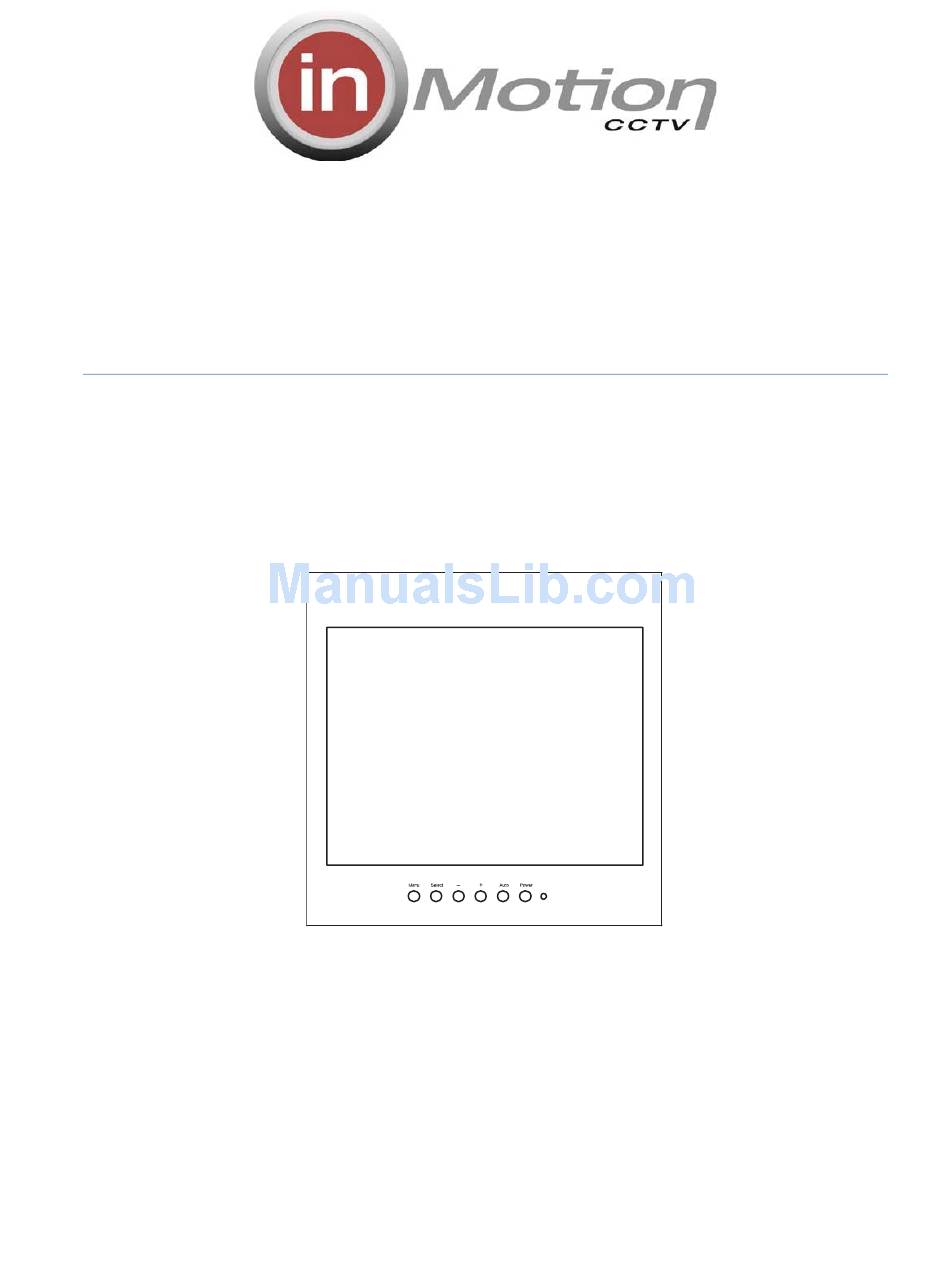

  • Page 1 9.7” LED Monitor Manual inM497...

  • Page 2: Introduction And Package Contents

    Please pay attention to the Regulations and Warnings Section of this user’s manual before setting up the display monitor. Failure to do so may inadvertently result in personal injuries or machine damage. inM497-1...

  • Page 3: Specifications

    Specifications Model inM497 General Diagonal size 9.7" Panel type Active Matrix TFT Aspect ratio Number of pixels 1024 x 768 Pixel pitch 0.192 x 0.192 mm Color depth 262K Colors Backlight Optical (typ.) Brightness 400 cd/m2 Contrast ratio 1,000 : 1...
  • Page 4 60.317 800x600@72 48.077 72.188 800x600@75 46.875 75.000 1024x768@60 48.363 60.004 1024x768@70 56.476 70.069 1024x768@75 60.023 75.029 Remark: The timing with presetting are recommended. Users have to adjust the timing manually. If it is not included in the presetting list inM497-1...

  • Page 5: Monitor And Osd Control

    Enter the main menu of the on-screen display (OSD). Auto Power Menu Select LED Status Display The following table describes the various power states of the LED monitor as represented by different LED color. Power State LED Color Green Standby No power Blank inM497-1...

  • Page 6: Osd Control Function List

    “ Cool , Warm , Normal “ 8. DNR Press -/ OR +/ to adjust the noise reduction. “High , Low, Off, Mid “ Note: VGA Mode: Contrast, Brightness, Color Temp., Auto Adjust. Sound Mode inM497-1...

  • Page 7: Setting Mode

    Press S/Select to Swap the Source of Main and Sub. Note: AV1 and AV2 , HDMI and VGA cannot be displayed at the same time on the monitor in PIP / POP mode. If POP mode is selected both images are scaled to fit the screen. inM497-1...
  • Page 8 6. Keep the LED monitor away from sharp object. Do not touch the screen with fingernails and pencils, etc. WARNING: Any unauthorized modification to this equipment could result in the revocation of the authorization to operate the equipment and void the product warranty. inM497-1...

  • Page 9: Frequently Asked Questions

    The audio cable should be connected to the lineout on the audio card and the line-in on the monitor. Ensure that the audio cable is properly connected. Inspect the audio cable for any apparent damage. Double check by switching to another audio cable to see if the audio works. inM497-1...

  • Page 10: Regulations And Maintenance

    Do not touch the screen directly with your fingers. You may damage the screen, and oil from your skin is difficult to move. Do not apply pressure to the screen. The LED is very delicate. inM497-1...
  • Page 11 Place the monitor on a flat and leveled surface. Place the monitor in a well-ventilated place. Keep the monitor away from: Extremely hot, cold or humid places, places directly under sunlight, dusty surroundings, equipment that generate strong magnetic fields. inM497-1...
