Summary of Contents for Sandstrom S4SSFF12

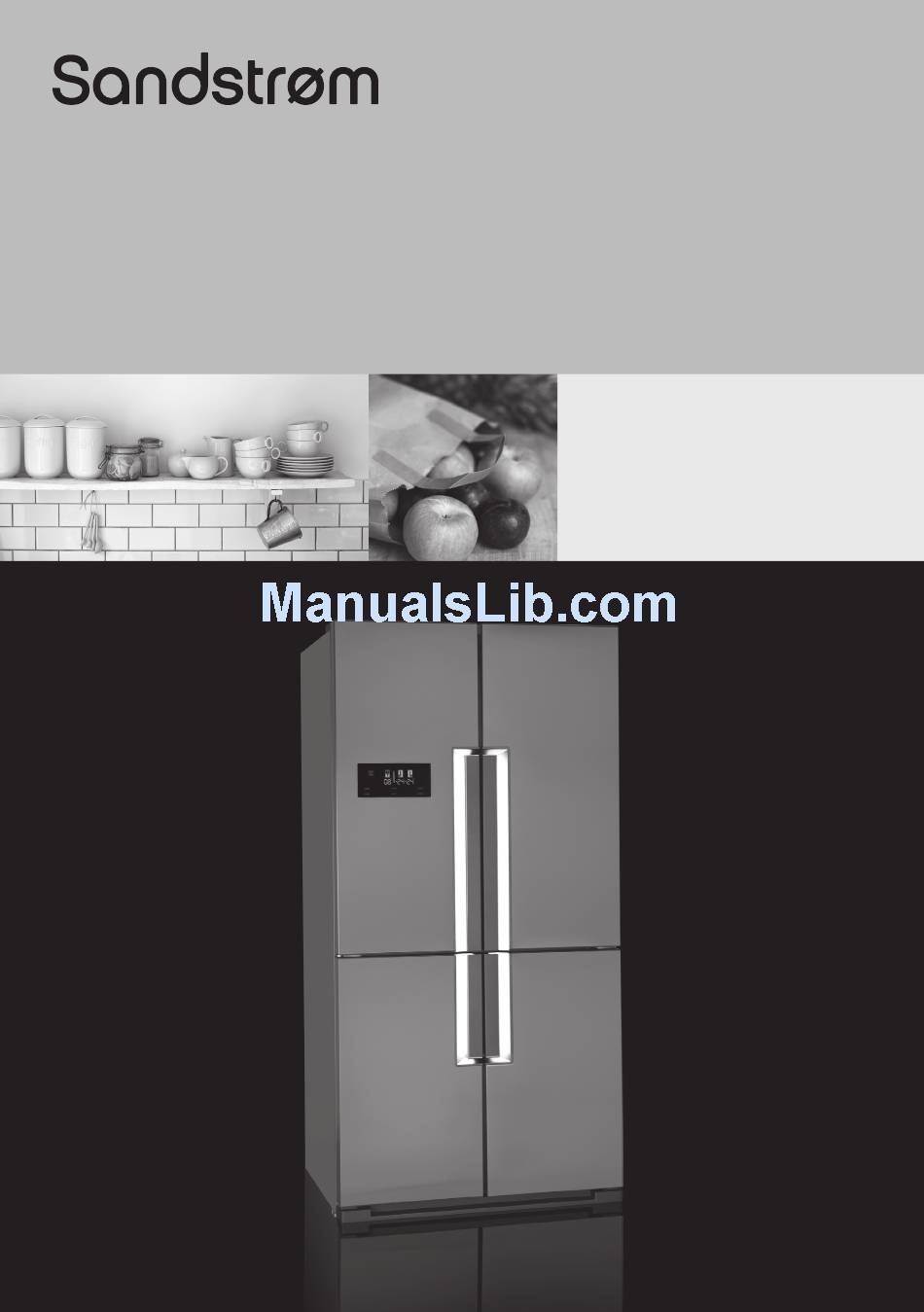

- Page 1 Instruction Manual Fridge Freezer S4SSFF12...
-
Page 3: Table Of Contents
Contents Unpacking ............................. 4 Installation ............................ 5 Location ..................................5 Spacers ..................................5 Cupboard ..................................5 Fridge Freezer ................................5 Wall ....................................5 Cupboard ..................................5 Location ..................................6 Levelling the Unit ..............................7 Cleaning Before Use ..............................7 Before Using Your Unit ............................7 Interior Accessories ..............................7 Product Overview ......................... 8 Display and Control Panel .............................9 Operation ............................ -
Page 4: Unpacking
Egg Tray x 2 Freezer Drawer Cover x 2 Lower Freezer Drawer x 2 Instruction Manual Fridge Freezer S4SSFF12 Upper Freezer Drawer x 2 Spacer x 2 Instruction Manual If items are missing, or damaged please contact Partmaster (UK only). -
Page 5: Installation
Installation INSTALLATION Location When selecting a position for your unit you should make sure the floor is a flat and firm surface. Do not stand your unit on carpet or rugs, which may obstruct the air flow around the unit. The room must be well ventilated with an average room temperature of between 16°C and 43°C. -
Page 6: Location
INSTALLATION Location When installing the unit, ensure that 150mm of free space is left at the top of the fridge freezer. 150mm 20mm Always ensure that the hinged frame on the left side fridge door is facing inwards when closing the door, otherwise the door will not close properly. -
Page 7: Levelling The Unit
INSTALLATION Levelling the Unit To do this use the two levelling feet at the front of the unit. If the unit is not level, the magnetic door seals will not align correctly. Cleaning Before Use Wipe the inside of the unit with a weak solution of Bicarbonate of soda. Then rinse with warm water using a ‘damp’... -
Page 8: Product Overview
Product Overview Internal Light Night Sensor Egg Tray Cheese-Butter Cheese-Butter Shelf with Cover Shelf Cover Adjustable Shelves Fresh Food Upper Fridge Drawer Cover Door Shelves Fresh Food Drawer Salad Bin Cover Door Railing Salad Bins Ice Trays Freezer Drawer Freezer Drawer Cover Cover Upper Freezer... -
Page 9: Display And Control Panel
Display and Control Panel The display control panel is on the front of the left side fridge door. Please see below for the details: 1. Door Handle Lights On / Off Indicator 2. Night Sensor Indicator 3. Fridge Compartment Temperature Indicator 4. -
Page 10: Operation
Operation Temperature Setting Fridge Compartment Temperature Setting Touch the cooler control repeatedly to adjust the fridge temperature between 2°C to 8°C and SC. • Freezer Compartment Temperature Setting • As a Freezer Mode Touch the zone 1 (left freezer compartment) or zone 2 (right freezer compartment) control repeatedly to adjust the freezer compartment temperature between -16°C to –24°C and SF. -
Page 11: Beverage Cooling (Q. Drink)
• Zone 1 (left freezer compartment) should be selected preferably. • The super freezing function will automatically deactivate after 24 hours or the freezer storage compartment temperature is reached. • If you are freezing large quantities of food in the freezer compartment, switch on super freezing 24 hours before the food is placed in the freezer compartment. -
Page 12: Door Handle Lights On / Off
Door Handle Lights On / Off To turn on the door handle lights, touch and hold the mode control for 3 seconds. The “door light on” • indicator will illuminate and the door illuminations will always be on. To turn off the door handle lights, touch and hold the mode control for 3 seconds. The “door light off” •... -
Page 13: Noises Inside The Unit
Noises Inside the Unit! You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them! These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. -
Page 14: Preparations For Freezing
Preparations for Freezing • Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better. • Leave cooked food to cool completely. Chill food before freezing if possible. •... -
Page 15: Cleaning
Cleaning Defrosting The compartments of this unit are frost free. With proper use, there should not be any frost accumulated. However, in the case of improper use of the freezer compartments, frost might build up in the freezer compartments after the unit has been used for a period of time. Scrape away the frost using a plastic scraper (not included). -
Page 16: Maintenance
Maintenance Changing the Internal / Door Handle Lights The refrigerator lights are LED panels. To change the light, please contact qualified service personnel. Care when Handling / Moving the Unit Hold the unit around its sides or base when moving it. Do not try lifting the unit on your own. We recommend 4 people lift or carry the product. -
Page 17: Helpful Tips And Guide
Helpful Tips and Guide • Repairs should only be carried out by a qualified technician in strict accordance with current local and national safety regulations. Unauthorised or incorrect repairs could cause personal injury or damage to the unit. • Before calling for service, please refer to Fault Codes and Fault Finding to solve some general problems by yourself. -
Page 18: Fault Finding
Fault finding Problem Possible Causes Remedy Your unit is not working. • No power to the unit. • Plug the unit into a mains socket and switch on • A fuse has blown. • Replace the fuse • Faulty power socket. •... -
Page 19: Fault Finding (Cont)
• cooler mode. zone 2 for 3 seconds to deactivate cooler mode. Specifications Brand Name Sandstrøm Model S4SSFF12 Appliance Category 7, Refrigerator - freezer Energy Efficiency Rating Annual Energy Consumption 481 kWh / annum Fridge Storage Volume 362 L Freezer Storage Volume (total) -
Page 20: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the unit and keep them for future reference. • Retain the manual. - Page 21 Normal energy Increased energy consumption consumption Installation site In a ventilated room. In an enclosed, unventilated room. Protected from direct sunlight. In direct sunlight. Not situated near to a heat source Situated near to a heat source (radiator, oven). (radiator, oven). Where the ideal ambient room Where there is a high ambient temperature is approx 20°C.
- Page 22 There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product. DSG Retail Ltd • Maylands Avenue • Hemel Hempstead Herts • HP2 7TG • England (IB-S4SSFF12-121011V2)
