Summary of Contents for Vesta Pro 600 VAC
-
Page 1: User Manual
USER MANUAL USER MANUAL Vesta Pro 600 / 800 VAC Uninterruptible Power System... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS –This manual contains important instructions for models Vesta Pro 600/800VAC that should be followed during installation and maintenance of the UPS and batteries. Safety – CAUTION! This UPS utilizes voltages that may be hazardous. Do not attempt to ... - Page 4 Unplug the UPS prior to cleaning and do not use liquid or spray detergent. Do not dispose of battery or batteries in a fire. The battery may explode. Do not open or mutilate the battery or batteries. Released ...
-
Page 5: System Description

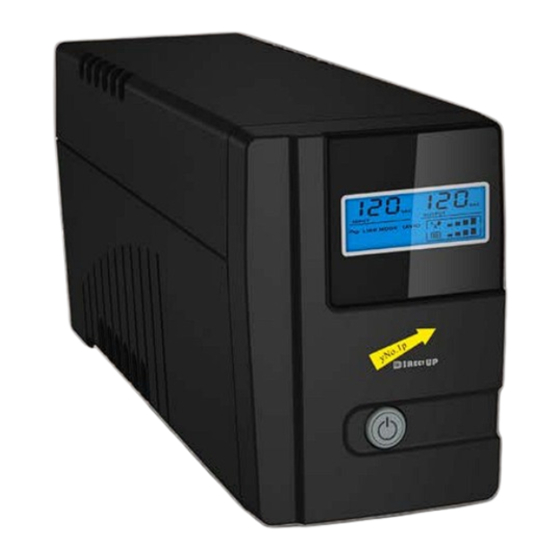

System Description Front Panel— LCD Back-Light Power “ON/OFF” Switch Back Panel— Communication Port(Option) AC Input Modem/Phone Line Surge Protection FUSE AC Output BREAKER... -
Page 6: Installation And Operation
Installation and Operation Installing the UPS is as easy as following the steps shown. Be aware of the Power Switch must be kept in the “ON” position, otherwise, the UPS will be disabled and your equipment will not be protected during a power failure. 1. -
Page 7: Modem/Phoneline Connection
4. Computer Connection Connect one computer-related device into each of the power receptacles supplied on the back of the UPS (maximum of three devices). 5. Modem/Phoneline Connection Plug incoming internet line into the “In” socket at the back of the UPS. Use one more Internet line cable and plug one end of the Internet line cable to the “Out”... - Page 8 7. Turn On/Off To turn on the UPS unit, press the power switch lightly. To turn off the UPS unit, press the power switch again (When swith ON，The LCD lighting.) 8. LCD Display Specification When LCD start to work, it will display all information for 3s a.
- Page 9 b. When in AVR mode, it will display as below. And the mark will flicker every 1second. c. When in battery mode, it will display as below. And the mark will flicker every 1second. Note: If I/P-V<20V，input voltage will display “000” d.
- Page 10 6).Load level definition: Load LEVEL Load bar Indication 0%~25% 25%~50% 50%~75% 75%~100% 7).Battery capacity definition: Battery LEVEL Battery bar Indication Battery voltage≤11V 11V≤Battery voltage≤11.5V 11.5V≤Battery voltage≤12.5V Battery voltage≥12.5V 8).When over load, the mark will flicker every 1second. 9).When battery low, the mark will flicker every 1second.
- Page 11 Software Installation -- WinPower -- WinPower is a brand new UPS monitoring software, which provides user-friendly interface to monitor and control your UPS. This unique software provides safely auto shutdown for multi-computer systems while power failure. With this software, users can monitor and control any UPS on the same LAN no matter how far from the UPSs Installation procedure: Go to the website:...
-
Page 12: Troubleshooting
Trouble Shooting Use the table below to solve minor UPS installation or operation problems. If any abnormal situations occur that are not listed above,please call service people immediately. Symptom Possible Cause Remedy No LCD display on 1. Missing battery. 1. Charge battery up to 8 the front panel. -
Page 13: Specification
Specification MODEL Vesta PRO 600 VAC Vesta PRO 800 VAC CAPACITY VA/W 600/360 800/480 Voltage Range 89-145VAC INPUT Frequency 50Hz/60Hz 50Hz/60Hz Voltage 120VAC(110VAC) Voltage Regulation +/- 10%(Battery Mode) OUTPUT Frequency 50Hz/60Hz Frequency Regulation +/-1 Hz(Battery Mode) Output Waveform Stepped Sine-wave...
