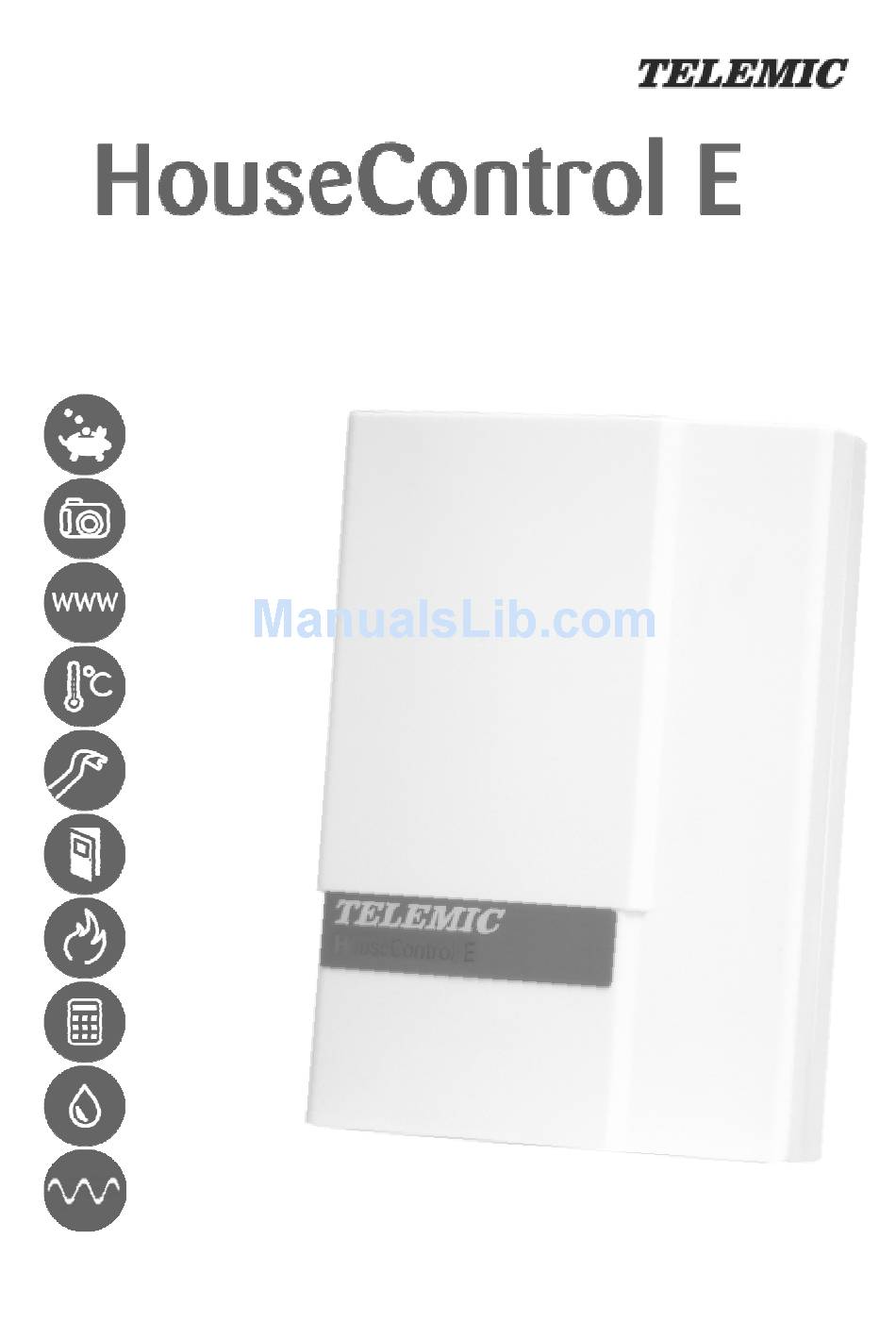

Page 1: Installation Manual
INSTALLATION MANUAL HOME ENERGY SAVINGS REMOTE CAMERA INTERNET USER INTERFACE TEMPERATURE ALARMS BURGLARY PROTECTION DOOR SECURITY FIRE SAFETY SECURITY KEYPAD WITH PROXIMITY TAGS PREVENTION OF WATER DAMAGES WIRELESS EXTENSIONS... -
Page 3: Installation Certificate
Installation Certificate This certificate states that Telemic Oy’s HouseControl remote control and alarm system has been installed in the real estate mentioned below. Property holder / holder of real estate Location of the real estate Real estate Alarm system type Central unit’s serial number... -
Page 5: Table Of Contents
INTRODUCTION........................2 PREPARATION........................2 ....................... 2 EQUIRED OOLS ......................3 ACKAGE ONTENTS ........................3 CCESSORIES INSTALLATION........................4 ’ ..................... 4 PENING OVER HCE+ ......................4 FROM NSIDE ........................4 ONNECTORS ........................5 ENTRAL ....................... 6 EMOTE AMERA ..................6 NDOOR EMPERATURE ENSOR .................. -
Page 6: Introduction
HouseControl E+ Installation Manual INTRODUCTION This manual describes the installation of HouseControl remote control and alarm system. The instructions in this manual can be applied to many kinds of houses. It is important that you plan carefully how you are going to install HouseControl. For example, to achieve finished look make sure the cables run inside the walls and other structures. -
Page 7: Package Contents
PREPARATION 2.2 Package Contents Battery backup unit package Central unit package Temperature sensors Battery Check the package contents: Central unit Moisture sensor Magnetic door switch (flush mounting) 2 temperature sensors Siren Motion sensor Smoke detector Battery backup unit And: Materials needed in installation Installation cable User’s Manual and Installation Manual 2.3 Accessories... -
Page 8: Installation
HouseControl E+ Installation Manual INSTALLATION 3.1 Opening Unit’s Cover There is a small curved indentation on the top of the central unit. Place your hand into the indentation and carefully detach the cover. The cover must be fastened with screws after installation is complete. -
Page 9: Central Unit
INSTALLATION Always use a screwdriver and pointed pliers when inserting wires into the connectors. Push spring clips almost directly from the top with a screwdriver. Before connecting individual wires to the connectors, peel off about 10 cm of the insulation from the cable. Join the uninsulated conductor to earth by using a connector strip (see separate wiring diagram). -
Page 10: Remote Camera
HouseControl E+ Installation Manual 3.5 Remote Camera You can connect Telemic Oy’s remote camera to your HCE+. When choosing a location for the remote camera it is important to respect privacy and know the law in your country. HouseControl can take a picture automatically when motion sensor detects movement. -
Page 11: Water Temperature Sensor
INSTALLATION 3.8 Water Temperature Sensor Slide the temperature sensor in the Hide the surplus of the cable. Connect the temperature sensor to casing pipe. the Temp3 connector as depicted in the separate wiring diagram. This sensor can be used for measuring other temperatures besides water, and it can be named to describe its usage better (see User’s Manual). -
Page 12: Moisture Sensor
HouseControl E+ Installation Manual Hide the excess of the cable. Connect the installation cable to the Door connector as depicted in the separate wiring diagram. Drill a hole in the door frame for flush mounting. Push the switch in the hole with your hands. -
Page 13: Smoke Detector
INSTALLATION Detach the cover of the motion sensor by opening the screw at the bottom. Connect the motion sensor to the central unit as depicted in the separate wiring diagram. It is recommended that you make the following adjustments to the motion sensor: Turn the red screw counter clockwise to 11 o’clock. -
Page 14: Security Keypad
HouseControl E+ Installation Manual 3.14 Security Keypad A security keypad is available as an accessory. Install the security keypad in the entrance hall in a place where it can be used easily. The operating mode (is monitoring on or off?) is displayed by the signal light on the security keypad. -
Page 15: Heater Relay
INSTALLATION To change user code: Switch to programming mode in security keyboard: Press start blinking. Bring installer’s key near the keypad. You will hear a short signal tone and only blinks. Key in installer code 1234 and press . You will hear a long signal tone and starts blinking. -
Page 16: Power Supply And Battery Backup Unit
HouseControl E+ Installation Manual Connect the device to the EXT relay. You can use the relay, for example, for controlling magnetic valve in water pipe and prevent water damages. Important: Make sure that max load 230VAC/6A is not exceeded under any circumstances. Important: When relay is used to steer inductive load (for example, another contactor), connect RC filter or EMC suppression component in parallel to load to stop voltage spikes when contactor releases. -
Page 17: Wireless Extension
SETUP AND TESTING request is disabled from the SIM card, the GSM connection has been opened by your operator, the GSM signal strength is sufficient in the area, and that the SIM card was placed properly in the SIM card slot (you will hear a click when it is locked). - Page 18 HouseControl E+ Installation Manual The operating mode does not change immediately if you use security keypad. There is a 30 second delay when switching monitoring off and a 45 second delay when switching monitoring on. There are no delays if you use text messages ALARM ON and ALARM OFF except the time it takes the message to travel in the GSM network.
- Page 19 SETUP AND TESTING Notes __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________...
- Page 20 HouseControl E+ Installation Manual Notes __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________...
- Page 21 SETUP AND TESTING...
- Page 22 HouseControl E+ Installation Manual Isoharjantie 6 Tel. +358 20 728 8740 71800 Siilinjärvi Fax +358 17 462 1212 FINLAND info@telemic.fi http://www.telemic.net...
