- Page 1 HouseControl - Keeps Your Home Safe and Secure USER’S MANUAL Read this manual carefully and keep it together with the unit.
-
Page 2: Table Of Contents
Contents INTRODUCTION ......................... 3 ......................3 SING OUSE ONTROL 1.1.1 Switching Monitoring On and Off................. 3 1.1.2 Receiving Alarms ......................4 1.1.3 Remote Control ......................5 ..........................6 EATURES 1.2.1 Alarms......................... 6 1.2.2 Burglar Alarm ......................7 Tamper Alarm .......................... 8 Perimeter Protection ........................ -
Page 3: Introduction

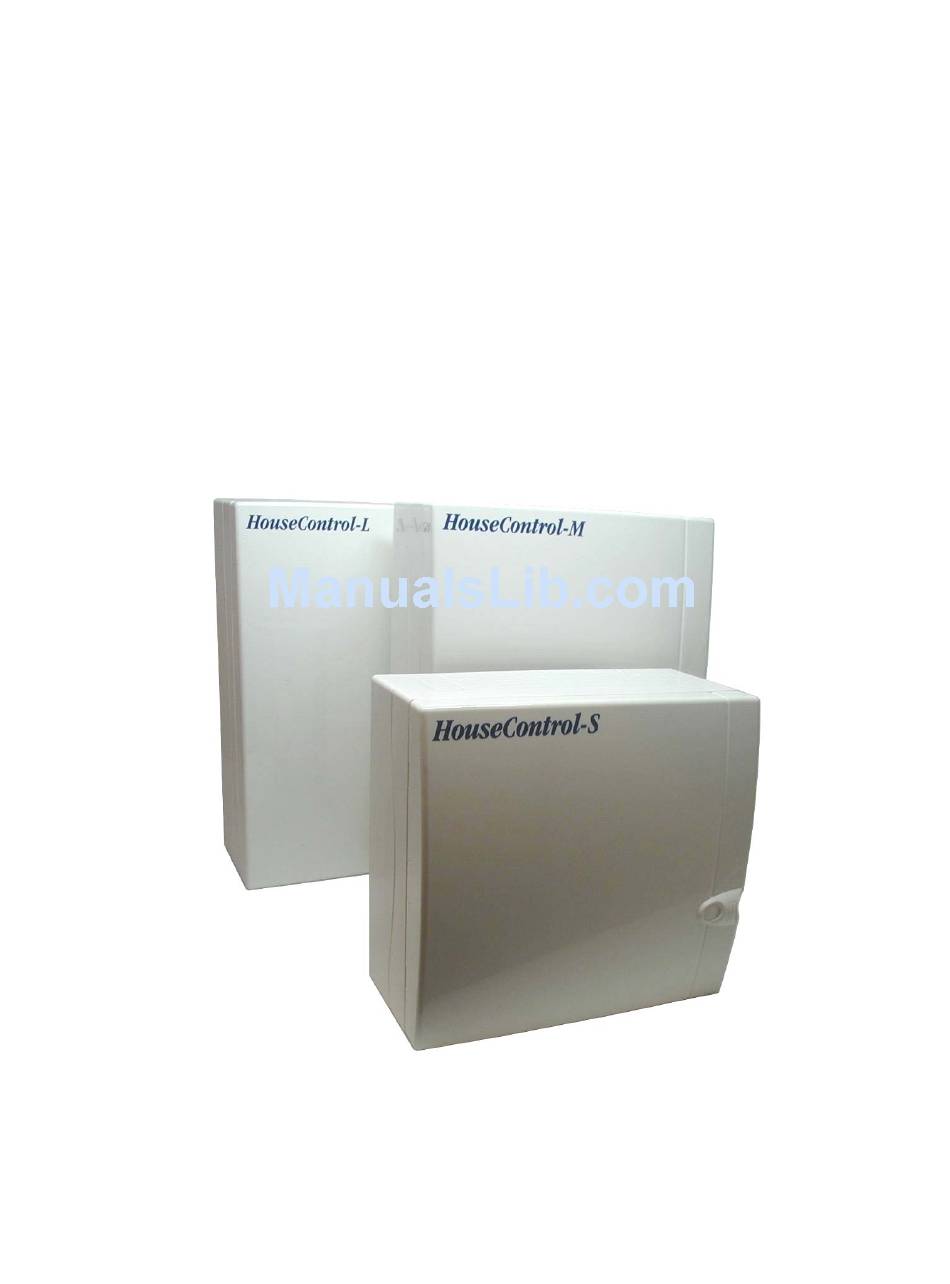

HouseControl’s GSM number. HouseControl is available in three models: S-, M-, and L-models. The S-model is the smallest one, and it is primarily, but not entirely, intended to be used as a burglar alarm in holiday homes. Larger M- and L- models are ideal for privately owned homes because there are many more aspects to monitor and control remotely than in holiday homes. -
Page 4: Receiving Alarms
You can find out whether monitoring is on or off just by looking at the red light on the security keypad or from the unit’s own signal light B (see Table 3). You can also ask it from your HouseControl with a text message (see 1.2.8) or a phone call. -
Page 5: Remote Control
All text message commands and questions must begin with the hash sign (#). You will find this character from the special characters menu in your mobile phone. HouseControl will reply to the sent command by confirming the action, or if a value such as temperature was asked, the current value is returned. If HouseControl did not understand the command or question, it responds with text message: Unknown command. -
Page 6: Alarms
HouseControl User’s Manual version 4.8 1.2 Features This section describes the basic features of HouseControl and their use. You will find the instructions for the most usual functions from the HouseControl Quick Guide that comes with the unit. The HouseControl Quick Guide is sufficient enough to get acquainted with the unit’s basic features. -
Page 7: Burglar Alarm
Home IN2:+ Burglar alarm Home IN11:+ Power failure 230V Home IN16:+ Temperature alarm T2: +9.4 Indoor 1 HouseControl might send you a text message on deactivation of the alarm as well (notice the minus after the colon): Home IN11:- Power 230V OK Home IN16:- Temperature T2: +17.4 Indoor 1 OK... -
Page 8: Tamper Alarm
Fire Alarm HouseControl switches off electricity from your home in the case of fire should there be no people in the house. Electrical fire may even go out if no for other reason than from the lack of electricity that kept the fire going. -
Page 9: Moisture Alarm
HouseControl not only sends a text message and makes an alarm phone call but also alarms people at home with the local alarm siren and yard lights. Moisture detection is on 24 hours a day. -
Page 10: Asking For Information
That signal light tells you the current operating mode of your HouseControl. There are eight outputs in the L-model HouseControl. Four (O1-O4) of which are power relays. Table 2. The table summarizes the outputs in the L-model HouseControl. -
Page 11: Electrical Heating
You can start electrical heating by sending text message #HEATING ON to the GSM subscription of your HouseControl. You have to use your heater’s own control unit for selecting the desired temperature and other settings before you can control heating remotely from your mobile phone. HouseControl will reply to the issued command with text message O1:1 HEATING ON, and your home will warm up to the temperature you selected from the heater’s control unit. -
Page 12: Yard Lights And Garage Door
The PIN code prompt must be always switched off from the SIM card before it can be inserted into HouseControl. You can switch it off from your SIM card by using your own mobile phone. Consult the instructions of your mobile phone for how to accomplish this. The PIN code prompt is on in all new SIM cards by default. -
Page 13: Signal Lights
There are two signal lights in L- and M-model HouseControls and one in the S-model HouseControl. The unit’s operating mode can be seen from signal light B. Signal light A is not relevant in HouseControl applications, and it is not discussed in this manual. -
Page 14: Basic Settings
Commands #heating on, #HEATING ON, and #Heating On result in the same thing. You can query the current settings of you HouseControl by appending a question mark at the end of the command. For example, command #P? gives you a listing of the phone numbers in the unit’s internal phone directory (see 2.5.1). -
Page 15: Naming The House
2.4 Naming the House HouseControl includes the name of the monitored house (your home) at the beginning of all alarm and scheduled messages. The name can be up to 20 characters long. Assigning a name to the monitored house... -
Page 16: Permission Levels
You can use so-called wild-card characters in the phone numbers you add in the phone directory. Wild- card characters enable the use of your HouseControl even if the phone number is not kept in the directory in its entirety. Two wild-card characters are available: ? matches any digit (exactly one) and * matches zero or more digits. -
Page 17: Sms Service Number
“The number you are trying to call cannot be reached…”, are not regarded as acknowledgements. HouseControl keeps on calling to the specified number even if it is not a valid or a legal phone number. HouseControl keeps also calling even if the called mobile phone is out of reach of the GSM network. -
Page 18: Temperatures
(this is true only for M- and L-model HouseControls). For example, the following command will instruct your HouseControl to send the first report after 60 minutes from the current moment. Messages are then sent once a week at the same time. -
Page 19: Internal (Device) Temperature Sensor T1
2.7.1 Internal (Device) Temperature Sensor T1 Your HouseControl hosts one internal temperature sensor T1 situated in the right bottom corner of the unit’s circuit board. It measures the temperature from the immediate surroundings of the unit. Internal temperature sensor T1 can have over ten degrees higher values than an external temperature sensor. -
Page 20: Trouble Shooting
HouseControl User’s Manual version 4.8 TROUBLE SHOOTING If your HouseControl fails to function properly, please go through the table below. Description of the problem is printed in bold characters. The first column offers a solution to the problem, and the second column describes the correct behaviour when everything is ok. - Page 21 The unit only alarms with phone calls: Set the GSM Short Message Service phone number to Alarm is also sent as a text message. directory memory cell 0. Alarm is sent every time monitoring is switched on: Check the wires of the alarming sensor. There is nothing in the “alarms”...
-
Page 22: Technical Specifications
The unit is not protected against water or any liquids. Even though M- and L-model HouseControls use supply voltage of 8-30V and S-model HouseControl 10-13.8V, please, keep in mind that external devices (such as motion detectors) might not tolerate such high voltages. - Page 23 Technical Specifications GUARANTEE Telemic guarantees this HouseControl product for 12 months against material defects and flaws in manufacturing this product starting from the date of purchase. Defects are corrected with replacement parts, by fixing the old elements, or by providing a new equivalent product for the customer.
-
Page 24: Index
HouseControl User’s Manual version 4.8 INDEX Adding a phone number ........15 Maintenance phone number........16 Alarm expiration............. 17 Measuring temperature ......... 18 Alarm message recipients ........17 Moisture alarm ............9 Answering machines ..........17 Antenna..............22 Asking for information ..........10 Operating modes ............. - Page 25 Index Toritie 3 Tel. +358 17 462 4444 71800 Siilinjärvi Fax +358 17 462 1212 FINLAND telemic@telemic.fi http://www.telemic.fi...
