Telemic HouseControl E+ User Manual

Hide thumbs Also See for HouseControl E+:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
+

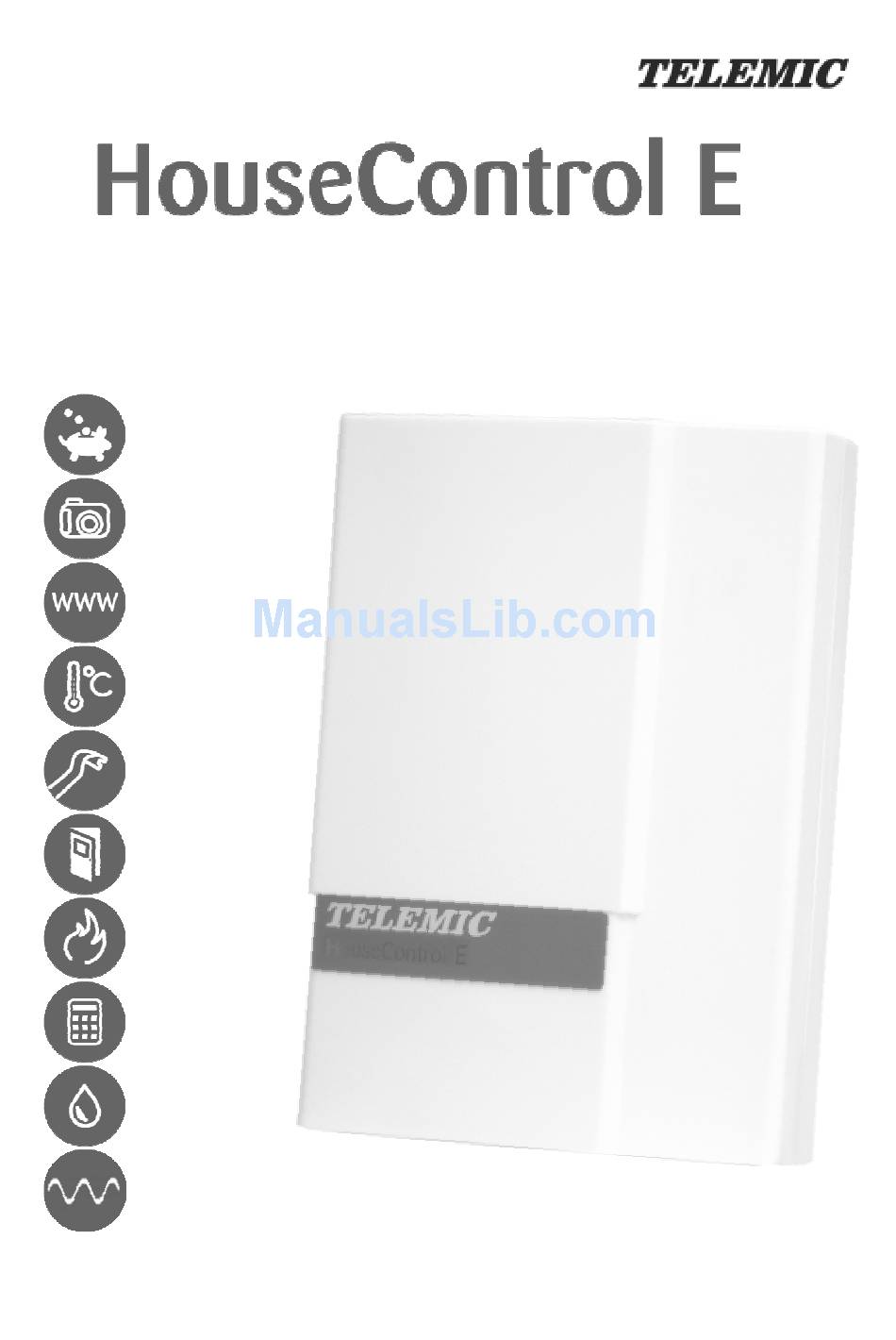

USER'S MANUAL
1.0
HOME ENERGY SAVINGS
REMOTE CAMERA
INTERNET USER INTERFACE
TEMPERATURE ALARMS
BURGLARY PROTECTION
DOOR SECURITY
FIRE SAFETY
SECURITY KEYPAD WITH PROXIMITY TAGS
PREVENTION OF WATER DAMAGES
WIRELESS EXTENSIONS
Read this manual carefully and keep it together with the unit.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HouseControl E+ and is the answer not in the manual?

Questions and answers

Related Manuals for Telemic HouseControl E+

Summary of Contents for Telemic HouseControl E+

  • Page 1 USER’S MANUAL HOME ENERGY SAVINGS REMOTE CAMERA INTERNET USER INTERFACE TEMPERATURE ALARMS BURGLARY PROTECTION DOOR SECURITY FIRE SAFETY SECURITY KEYPAD WITH PROXIMITY TAGS PREVENTION OF WATER DAMAGES WIRELESS EXTENSIONS Read this manual carefully and keep it together with the unit.

  • Page 3: Package Contents

    PACKAGE CONTENTS Check the package contents: Central unit Moisture sensor Magnetic door switch (flush mounting) 2 temperature sensors Siren Motion sensor Smoke detector Battery backup unit And: Materials needed in installation Installation cable User’s Manual and Installation Manual BATTERY BACKUP UNIT A battery backup unit is included in the package.
  • Page 4 PREPARATION Purchase a GSM subscription (SIM card) from a telecommunications operator. Prepaid subscriptions are discouraged because they stop working at some point when the balance runs out. Disable PIN code request from the SIM card. Insert the SIM card in your own mobile phone and disable it from the setup menu.
  • Page 5 You can send only one command in one text message. HouseControl replies with a text message. This command asks a report from your HouseControl. Telemic HC-E ALARM: OFF (Is monitoring on or off?)
  • Page 6 Operating mode after power failure You cannot change the operating mode if HouseControl is off; this might occur as a result of prolonged power failure and discharged battery. HouseControl returns to the same mode it was in before power failure when power is restored. If monitoring goes on and you move inside the house, an unnecessary burglar alarm is generated.
  • Page 7 This turns siren on or off. The siren is sounded SIREN ON / OFF automatically in some cases. This turns the heater connected to HouseControl on or off HEATER ON / OFF / nn or to nn degrees. Thermostatic control Thermostatic control allows you to keep the indoor temperature at a steady level.
  • Page 8 This switches external device (for example EXT ON / OFF / AUTO lighting) on or off. With EXT AUTO the external device is controlled by the operating mode. It is switched on or off at the same time when monitoring status is changed. This feature enables you to switch off power outlets or close water line when leaving home.
  • Page 9 This enables or disables the remote camera. Auto CAMERA ON / OFF / AUTO setting causes picture to be taken when motion sensor is activated (someone is in the house). If you have a remote camera connected to your HouseControl, you can enable it with command CAMERA ON.
  • Page 10 If you receive this symbol from HouseControl instead of an actual picture, there are problems in the connection between the central unit and the remote camera. Multimedia settings are correct and the GSM signal strength is sufficient, but the problem is in the connection of the remote camera. You cannot take a picture from a phone that is in mobile telephone exchange.
  • Page 11 ALARMS In the case of an alarm, HouseControl sends a text message to the first five phone numbers in the phone directory (locations 1 – 5). In some alarm cases, HouseControl makes a phone call and sounds the siren as well. Some alarms are only sent to the phone number in directory location 1.
  • Page 12 INSTALLATION AND TESTING Installation Manual contains detailed information about installation and testing of your HouseControl and it comes with every HouseControl product. You can test smoke detectors and carbon monoxide detectors according to the manufacturer’s instructions (for example, using a test button). The test alarm must be at least 10 seconds long for HouseControl to react to it.

  • Page 13: Trouble Shooting

    TROUBLE SHOOTING Status light is off: Switch power on and wait 30 seconds. Make sure the battery backup cable is connected properly to the central unit. Make sure the central unit’s power switch is ON. Status light is on (does not blink) and a phone call does not get connected to the unit: Check whether the PIN code request is enabled.
  • Page 14 Security keypad does not react to proximity keys: Use only one key at a time in front of the security keypad. Make sure you are not using the installer’s key. The sensitive reader may stop reading keys if there has been a strong power surge (voltage spike) or magnetic field.

  • Page 15: Technical Specifications

    Telemic Oy. Telemic Oy is not liable to compensate for direct or indirect losses. This guarantee does not cover expenses incurred by transporting or sending the unit to the nearest licensed service.
  • Page 16 Notes _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________...
  • Page 17 Notes _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________...
  • Page 18 Notes _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________...
  • Page 20 Isoharjantie 6 Tel. +358 20 728 8740 71800 Siilinjärvi Fax +358 17 462 1212 FINLAND info@telemic.fi http://www.telemic.net...
