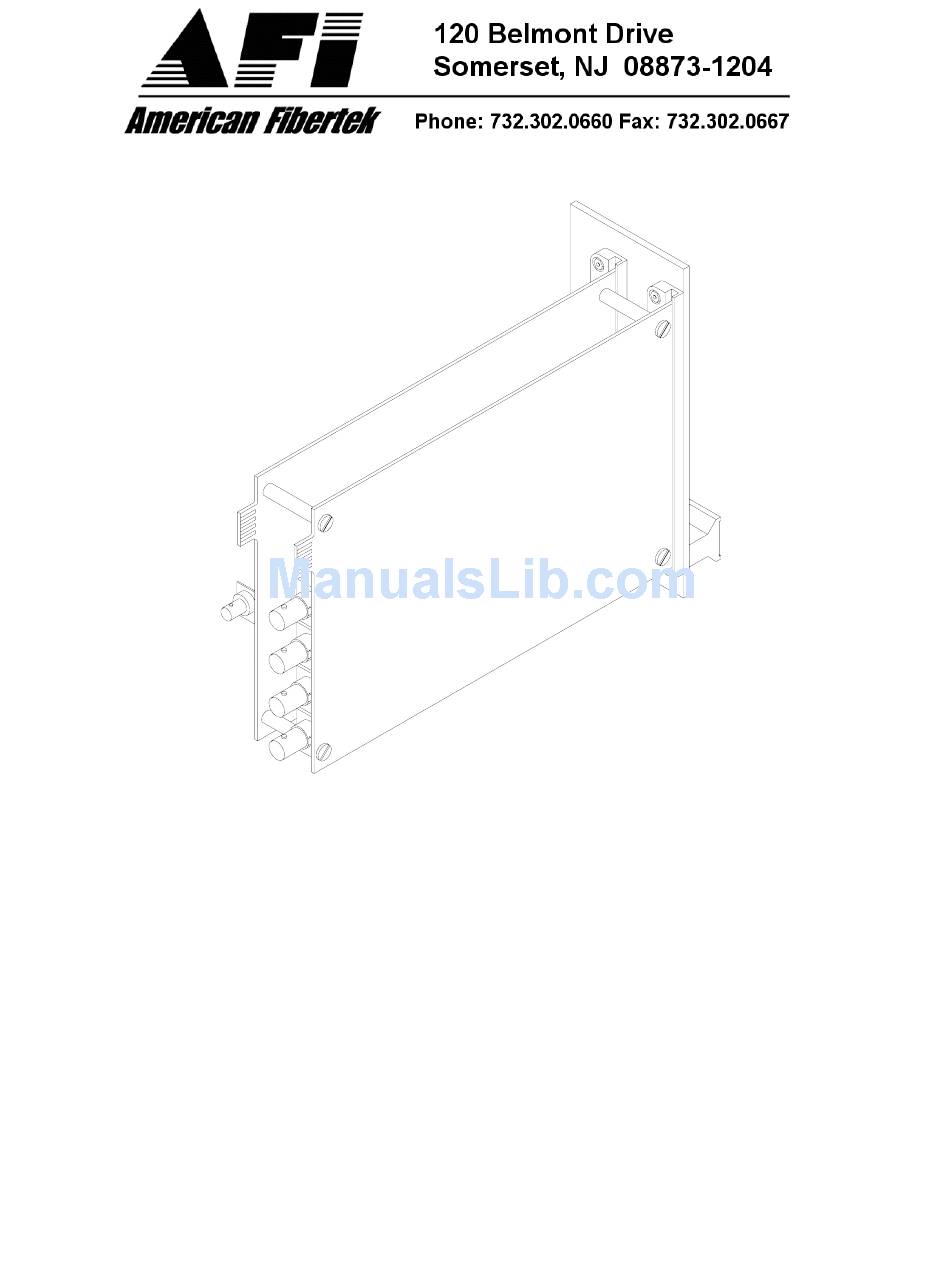

- Page 1 Instruction Manual RR-404 Four Channel Video Receiver © Copyright 2003, American Fibertek, Inc. 0708JD...
- Page 2 The 404 Series product is designed to operate over an optical loss budget range of 0 to 6 dB with a maximum distance of up to 1.5 km. The RR-404 operates on 50 um or 62.5 um multimode fiber. Refer to the data sheets for detailed performance specifications.
- Page 3 Power Status Green Voltage Present Voltage Not Present A bi-color LED indicator monitors the optical signal that is being sent to the RR-404 from the MT-404 or RT-404. Optical input status associated with this LED is summarized below. Optical Level Indicator...
- Page 4 LIFETIME WARRANTY INFORMATION American Fibertek, Inc warrants that at the time of delivery the products delivered will be free of defects in materials and workmanship. Defective products will be repaired or replaced at the exclusive option of American Fibertek. A Return Material Authorization (RMA) number is required to send the products back in case of return.
