American Fibertek MR-05B Instruction Manual

Fiber optic audio receiver

Advertisement

Quick Links

Instruction Manual
MR-05B
Audio Receiver
© Copyright 2008, American Fibertek, Inc. 1021JD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MR-05B and is the answer not in the manual?

Questions and answers

Summary of Contents for American Fibertek MR-05B

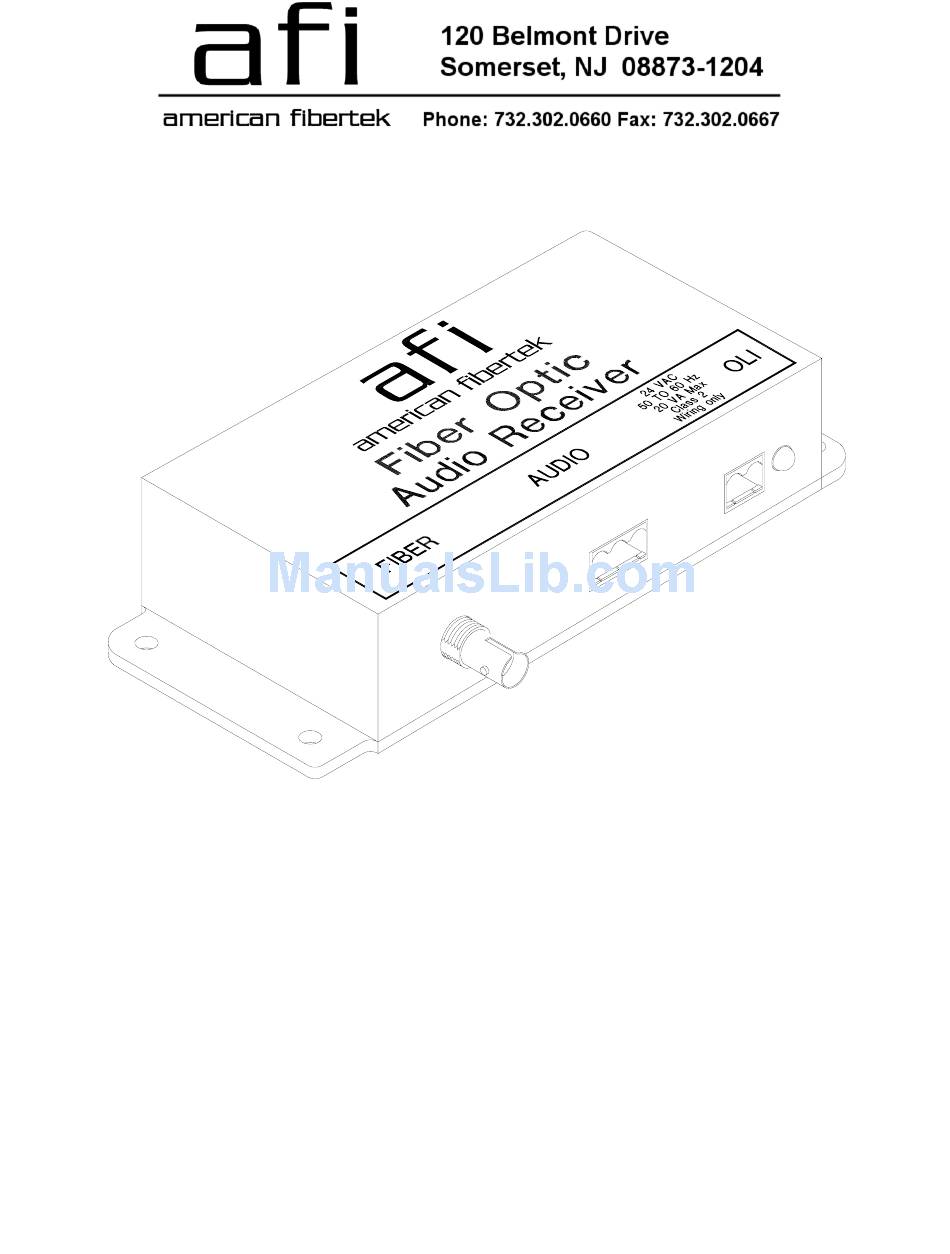

  • Page 1 Instruction Manual MR-05B Audio Receiver © Copyright 2008, American Fibertek, Inc. 1021JD...
  • Page 2 The 05B Series product is designed to operate over an optical loss budget range of 0 to 16 dB. The MR-05B operates on 50 um or 62.5 um multimode fiber. Refer to the data sheets for detailed performance specifications.
  • Page 3 This unit requires a 24 VAC power source with an isolated output for proper operation. Current draw is approximately 2.5 VA maximum. In the USA and in Canada an American Fibertek PS-24 is supplied with this unit. ANSI/NFPA 70 Class 2 wiring is recommended.
  • Page 4 A bi-color LED indicator monitors the optical input power of the audio signal that is being received at the MR-05B from the MT-05B or the RT-05B. AC power and optical input status associated with this LED are summarized below.
