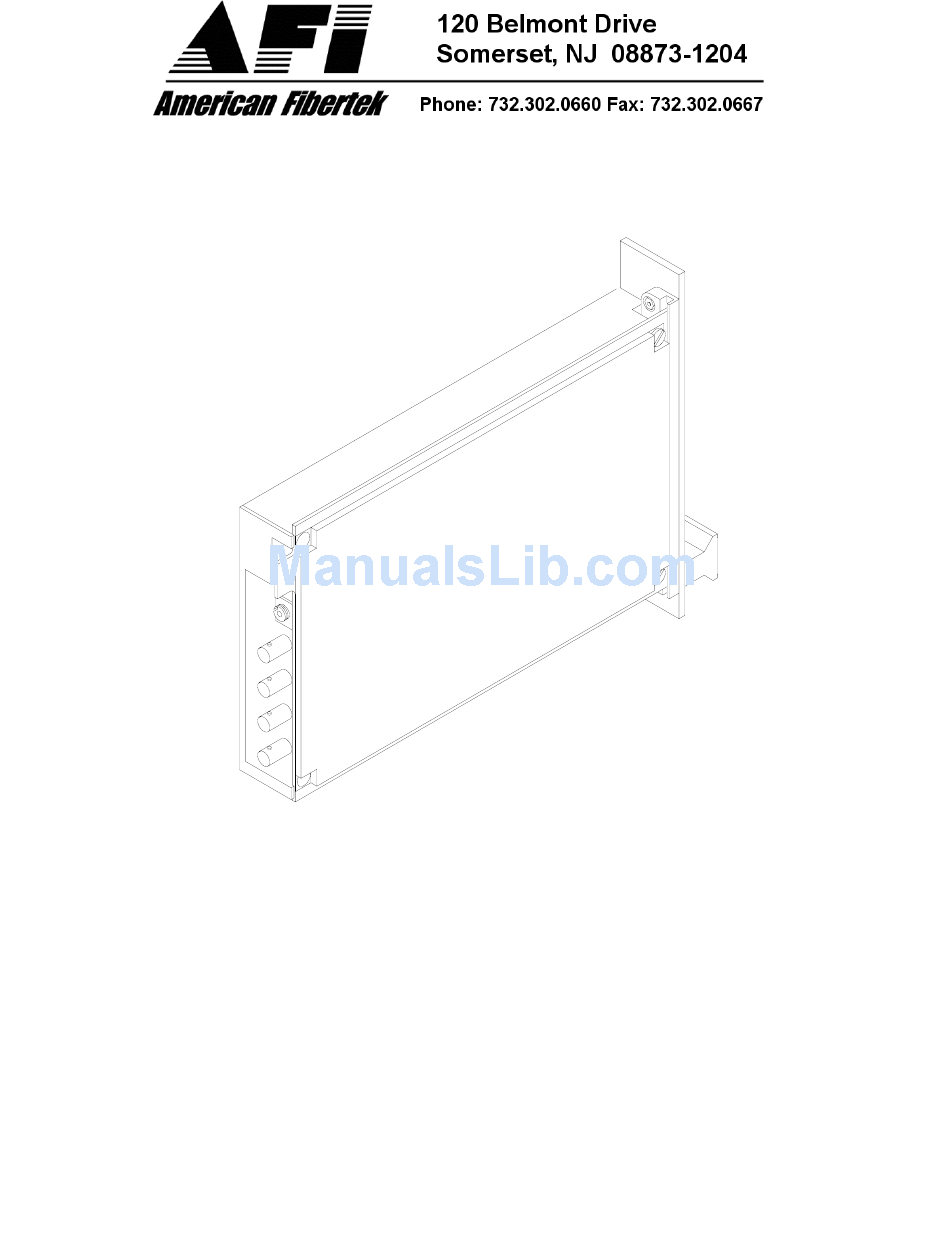

Instruction Manual

RR-940D-SL

Four Channel Video Receiver

With Diagnostic Interface

Table of Contents

Need help?

Do you have a question about the RR-940D-SL and is the answer not in the manual?

Page 2 FUNCTIONAL DESCRIPTION The RR-940D-SL operates as half of a transmitter / receiver pair for the transmission of four channels of high performance 10 bit digital NTSC, PAL, RS170, or RS343 video signals. The RR-940D-SL is designed to operate with the RT-940D-SL video transmitter over one singlemode fiber optic cable.
Page 3 Power to the unit is supplied by the subrack. Please refer to the SR-20D and PSR-2 instructions for further details. POWER CONNECTION Power is supplied to the unit via a four finger backplane connector. The RR-940D-SL can be inserted into the subrack or removed from the subrack with power applied to the backplane. FIBER CONNECTION The fiber optic connection is made via a FC/PC connector located on the back of the unit.
Page 4 VIDEO 1 THROUGH VIDEO 4 A bi-color LED indicator is provided for each of the four video outputs of the RR-940D-SL. DC power and video status associated with each of these LED’s are summarized below. Video Presence LED DC Power Status...
