Summary of Contents for Jeasun HD96

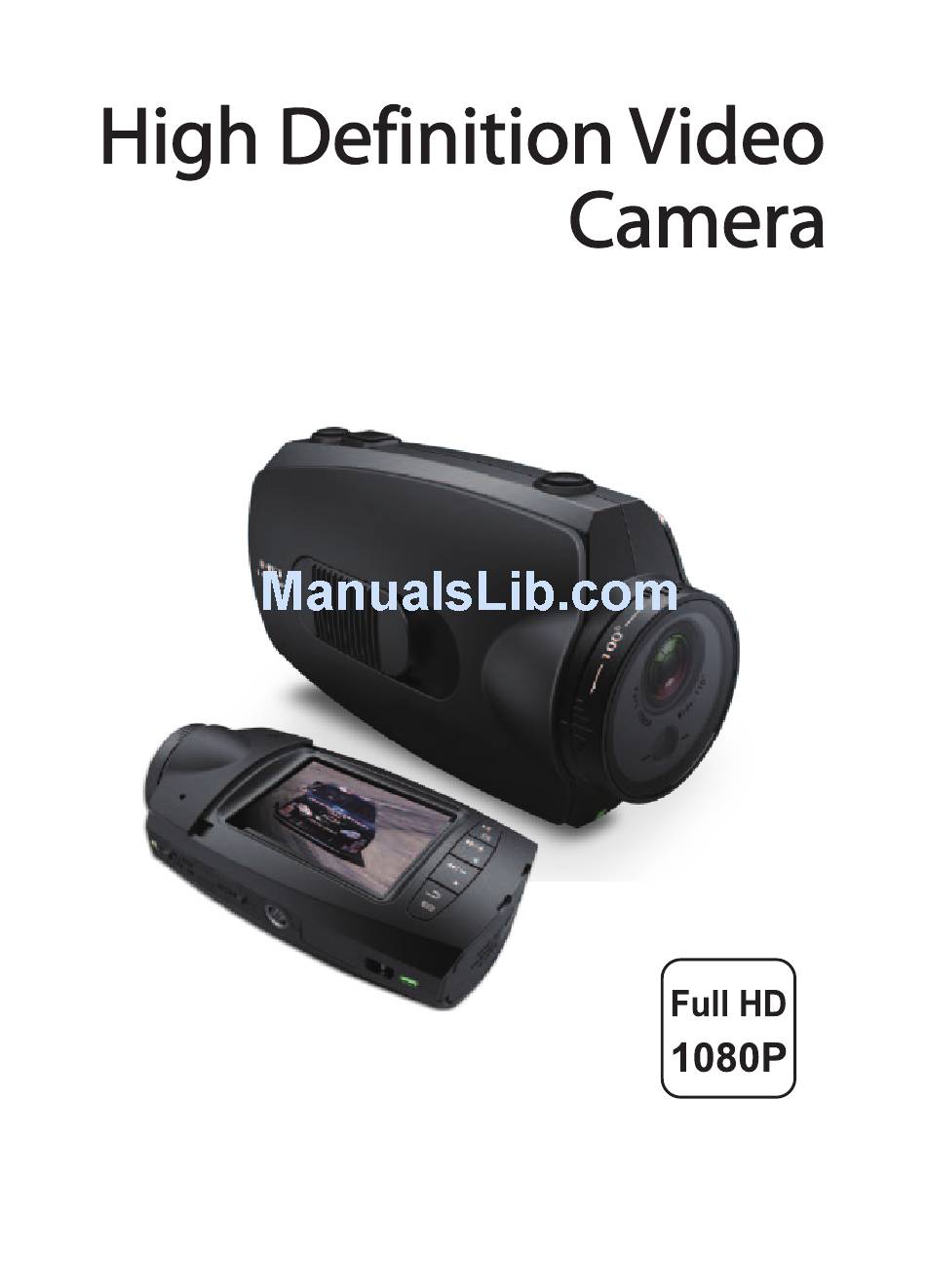

- Page 1 All-in-one type Full HD sports camera with 2.0” screen...
- Page 3 Getting Started PREFACE Thank you for purchasing the high resolution digital camcorder. The camcorder is a small, all-in-one design that is convenient for you to record activities anytime and anywhere. With the high speed dynamic photograph function, it can clearly record any activity, and let you share the experience with anybody. Please read this manual carefully to ensure you understand it before using this product.
-
Page 4: Product Structure
Getting Started PRODUCT STRUCTURE MAIN UNIT 1. 110°lens 2. Horizontal laser light 3. Camera shutter 4. [ ]Press and Hold for 2 seconds to power on or power o the Cam 14. Locking key of rear cover 5. Recording key 15. -
Page 5: Basic Operations
Basic Operations Basic Operations Installing the Battery 1. Slide the lock on the rear cover and it will automatically open. (Refer to picture1) 2. Follow the instructions. Insert the battery with the correct Polarity (+/-). (Refer to picture2) 3. Push the rear cover closed. (Refer to picture3) Picture1 NOTE: IF YOU DO NOT INTENT TO USE THE PRODUCT FOR A LONG TIME, PLEASE REMOVE THE BATTERY. -
Page 6: Recording Instructions
Basic Operations Basic Operations Recording Instructions 1.Press [ ] key and hold for 2 seconds to power up the camera. 2. Adjust the lens to the proper angle. a) Face a blank surface and press [ ] to turn on the lasers ( The lasers will disappear in 15 seconds). - Page 7 Basic Operations Basic Operations Start / stop Recording Via Wired Remote Press [ ] key ( hold for 2 seconds ) to power up the camera. 1. Connect wired remote to the DIGITAL interface of camera (Refer to picture 1) 2: Press REC key on the wired remote to start recording, recording indicator ( red ) turns on and ashes when it is recording.
-
Page 8: Playback Instructions
Basic Operations Basic Operations Picture Shooting Instructions In standby mode , press key to take photos. (Refer to picture1) Picture Resolution: 5 mega pixels Picture Size: 2560 x 1920 Picture1 Playback Instructions 1. Playback on the camera a)Press and push the screen cover backwards to open it. (Refer to picture1) b)Gently press LCD key , and the screen will come on. -
Page 9: Mount Installation
Mount Installation Mount Installation MOUNTS A .Cradle: with two 1/4 tripod threads tted for use with other mounts as shown below, this camera can be widely used with any equipment and any application. B. Goggle Strap Mount: can be xed on to your goggle strap and any other elastic band or strap. - Page 10 Mount Installation Main Mount Step 1 Step 2 1 × Hand screw Main Mount Note: 1) Other mounts require this main mount for installing 2) Tripod thread on device for installing on surface Bar Mount Bike bar Step 1 Step 2 3 ×...
-
Page 11: Flat Mount
Mount Installation Main Mount Flat Mount 3 × Flat Mount Helmet Flat Mount Step 1: push at mount to main mount Step 3: paste the camera to your helmet Step 2: peel o the sticker Note: 1) Other mounts require this main mount for installing 2) Tripod thread on device for installing on surface Vented Helmet Mount Mount... - Page 12 Mount Installation Goggle Strap Mount Main Mount Goggle Goggle Strap Mount Step 1: install mount to goggle Step 2: push the device with main mount to the mount Strong Suction Cup Choice A Choice B Screw the suction cup to Screw the suction cup to the tripod thread in the device.
- Page 13 Mount Installation Mini Tripod Choice B Choice A Screw the suction cup to Screw the suction cup to the tripod thread in the device. the tripod thread in the main mount. Lanyard Rope Step 3 Step 1 Step 2 Screen Cover Then when you are recording, the screen cover will not be lost.
-
Page 14: Waterproof Case
Mount Installation Waterproof Case Step 1 Step 2 Step 3 Step 4 Note: 1) Before load the device into the waterproof case, please slide switch of recording, and note the direction of device. Note: After load device into waterproof case, please lock it Note: Press the button of power to start recording... - Page 15 Mount Installation OPERATING INSTRUCTIONS 2. Connect to other TV/Display devices to playback. a)Connect one end of AV-out cable to the DIGITAL interface on the base of the camera, and connect the other end of AV-out cable to your TV or other display device.( Refer to picture1) b)Turn on the TV or display device, and enter into the AV-in mode.
- Page 16 OUTPUT CONNECTION Connect to external MIC Connect MIC device to camera for capturing higher quality audio. MIC-IN Picture1 Connect to HD TV via HDMI Connect HDMI cable to HDMI interface on the camera and HDMI interface of TV. The LCD will turn o automatically when connected to TV.
-
Page 17: Connect To Power Source
OUTPUT CONNECTION Connect to PC via USB Connect USB to the Digital interface of camera and USB port on the PC. (Refer to picture1) Picture1 Connect to power source 1. Connect the power line to DIGITAL interface of camera, power light (Red) is on when it is connected. -
Page 18: Resolution Setting
SYSTEM SETTINGS Setting Operational Approach Press[MODE] to switch into system function settings mode. 1: Press key to shift the yellow cursor, choose the setting function, press OK key to set up. 2. Press key to choose the needed function, press OK again. Press MODE to switch into system function settings mode. -
Page 19: Motion Detection Setting
SYSTEM SETTINGS Record Mode Setting NTSC PAL When using in di erent countries, choose the TV system according to local standard. The image will be ickeringly if the TV system is set incorrectly. External MIC VOL Setting The volume of external MIC or audio equipment can be set, and there are 7 grades that can be selected. -
Page 20: Language Setting
SYSTEM SETTINGS TV Type Setting PAL NTSC Choose the correct video output system when connecting AVOUT to TV. The image on the TV will be ickering if the TV system is incorrect Time Setup Setting There is year / month / day / hour / minute to set up on the camera. Beep Sound Setting When you operate the camera, the key tone can be set to on or o . -
Page 21: Camera Spec
Specifications DVR Spec Hardware Software Digital Screen Loop Recording 2.0" 960×240 TFT LCD Recording Motion Detection Format Real time stamp Codec H.264 1920X1080(30/25 fps) Record Type:PAL/NTSC 1440X1080(30/25 fps) Internal Mic volume setting Recording Resolution 1280X720(30/25 fps) External Mic volume setting Snap Shot Function in Preview/ 848X480(60/50 fps) Record/Playback mode... - Page 22 Accessories Goggle Strap Mount Flat Mount Bar Mount Vented Helmet Mount Rubber Belt x 3 3M sticker x 3 Lanyard Rope Carry Pouch HDMI HDMI Elastic Strap USB Cable HDMI Cable AV-OUT Cable Wired Remote Microphone AC Charger Battery NOTE: ALL CONTENTS ABOVE ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
- Page 23 All-in-one type Full HD sports camera with 2.0” screen...
