Summary of Contents for Jeasun CUBICCAM

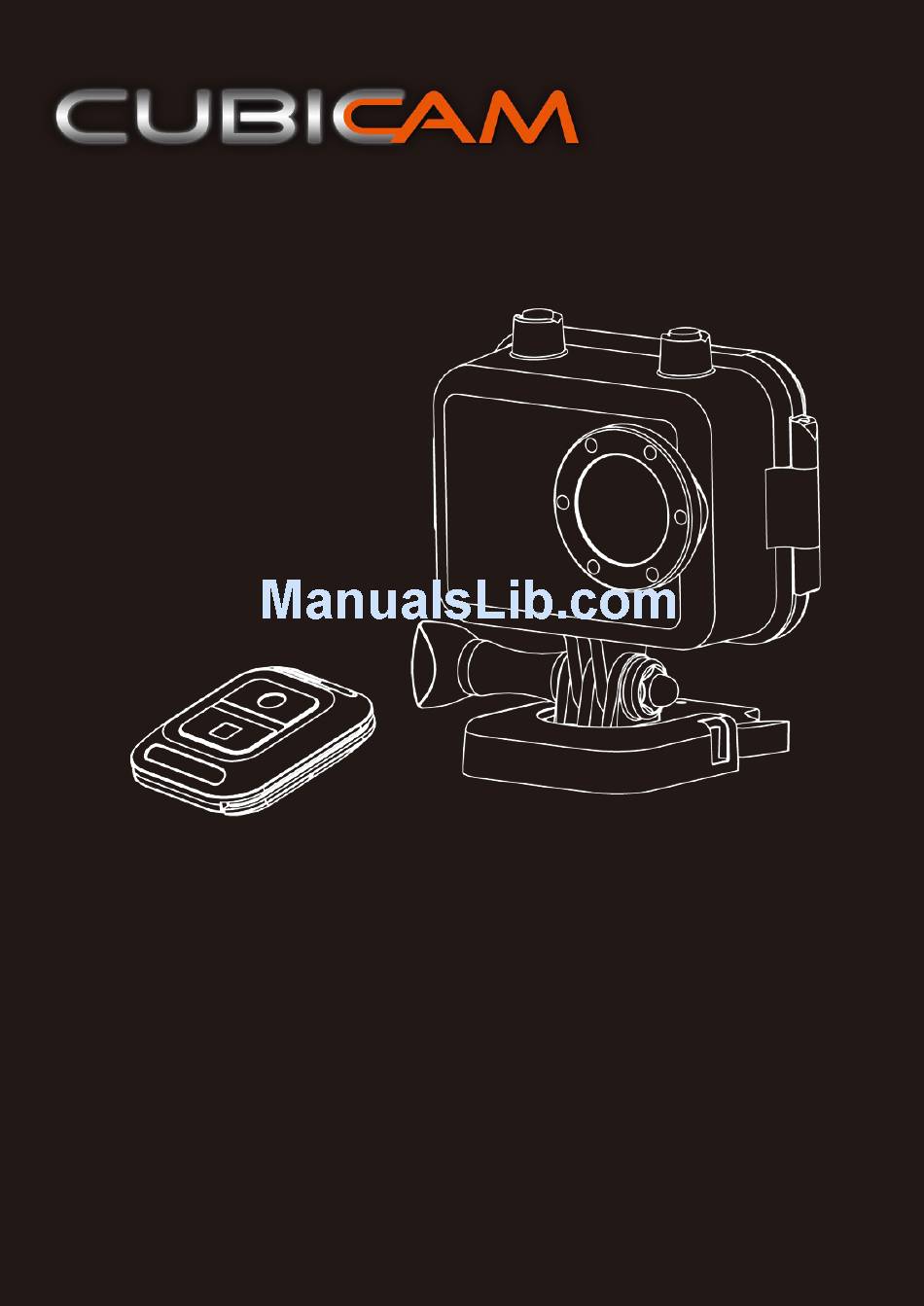

- Page 1 User Manual Please read the user manual clearly for avoiding any wrong opeartion, current manual is not the newest and not complete, please contact us if any query. ~ 1 ~...
-
Page 2: Table Of Contents
—————————— —————————— Catalog Main Feature ..............................4 Install and Use ..............................5 Camera body buttons ..........................5 Remote controller ............................6 Install Battery .............................. 7 Close back cover ............................7 Install Memory Card ........................... 8 Install waterproof housing .......................... 9 Install the Mounts ............................. - Page 3 Self-Timer ..............................27 System Setting ..............................28 Language Setting ............................. 28 Date & Time Setting ..........................29 Image Flip ..............................31 Light Frequency ............................31 Auto Power OFF ............................32 Auto Screen OFF ............................33 Volume ..............................34 Format ............................... 34 Reset .................................
-
Page 4: Main Feature
Main Feature 480 x 240，1.5” TFT LCD Screen 5.0MP FULL HD CMOS sensor 170° Super wide angle FOV( field of view) under 720P, 127 ° under 1080P 720P H.264 Compression into MP4 video format 50 Meters ( 167 Feet) Waterproof ... -
Page 5: Install And Use
Install and Use Camera body buttons 1. Power/REC (red) & Power charge Indicator 8.UP & Zoom+ (green) 9.Menu button 2.Remote control indicator ( Blue ) 10.Down & Zoom- / Remote Pair 3.MIC 11.Power ON & Picture Capture 4.Tripod screw hole 12.USB Port 5.MIC input 13.HDMI Port... -
Page 6: Remote Controller
Remote controller Start video record Remote to start video record only under Camera Powered ON, not valid if camera is OFF. Stop video record Remote to Stop the video record. Remote Pair with Camera Power on the camera first, then Press & hold the MENU button and at the same time Press & hold the REC button on the remote controller ( about 2 seconds ), if the camera Blue and Green indicator turns ON and start to record automatically, means paired successfully. -
Page 7: Install Battery
Install Battery Please install the battery according to the graphic: Open the battery cover Install the battery ( Note: label side face up) Close back cover ~ 7 ~... -
Page 8: Install Memory Card
Install Memory Card 1.Install the TF card according to graphic 2.Camera without built-in memory, support 1GB~32GB TF card external memory expand 3. After installed the SD card, rest available memory could be checked on the screen Screen won't display the SD card icon if without valid SD card installed correctly Screen will display the SD card... -
Page 9: Install Waterproof Housing
Install waterproof housing As arrowhead showed in graphic below, pull "A" locker, "B" locker will slack off at same time automatically Put the camera into the waterproof housing as graphic below: Close the cover Close the locker "B" first, and then press the "A" locker to locked-in. ~ 9 ~... -
Page 10: Install The Mounts
Install the Mounts Please choose the suitable mount to finish the installation according to different use. Waterproof Housing buttons instruction: ： Note Waterproof housing max depth is 50 Meters ( 167 Feet) A pot of fog or water globule would glue to the inside cover, it is allowed and won't effect the camera working. -
Page 11: Video Record And Capture
Video record and Capture 1.Press POWER button 3 seconds to turn on the camera, press REC button to start the video record, a red icon will flash on the screen during this time. Press " <" and " >" button to zoom, press REC again to stop the video record and video will be saved at the same time. -
Page 12: Video Playback
Video Playback Press MENU button to enter the main menu of camera, use " < " and ">" to choose the video folder, the quantity of video clips will display on the corner. Press REC button to enter the folder, video clip thumbnail will showed like below: Press "<"... -
Page 13: Browse Pictures
Browse Pictures Press MENU button to enter the main menu, use "<" and ">" to choose the picture folder, picture quantity will display on the corner. Press REC button to enter the picture folder, picture thumbnail will show like below: Press "<"... -
Page 14: Delete Files
Delete files Long press MENU button under playing back or browsing state, delete option menu will display on the screen Use "<" and ">" to make setting: No：cancel current operation and quit Yes：confirm current operation and quite ALL：confirm delete all files in the folder Press REC button to confirm operation ：... -
Page 15: Connect To Television
Connect to Television 1.USB-RCA cable connect with TV ( output) Find out the USB-RCA cable in standard accessories, USB side insert to camera, RCA side insert to TV ( Yellow for Video, White for Audio) 2. HDMI cable connect with TV (output) Please insert the A type connector to the TV , insert C type connector to camera ：... -
Page 16: Connect With Computer
Connect with Computer Connect the camera with computer via USB cable, available for data transfer, power charge and firmware update. Power on the camera after connect it with the computer by USB cable, and the screen will display “ USB connected”... -
Page 17: Battery Power Charge
Battery Power Charge Install the battery ( Note: label side face up) Charge by computer Note: Power charge by computer, please make sure the camera is POWER OFF state. The green charging indicator will turn on, indicator will turn off after full charged. ~ 17 ~... -
Page 18: Full Charge Time And Using Time
Full charge time and Using time Full charge time Standby time Video Record Time 3.5 Hours in Power ON state Approximately：110 Minutes Approximately: 3.5 Hours （1080P） 2 Hours in Power OFF state Battery Icon instruction >75% >35% electric quantity electric quantity >10% <10% electric quantity... -
Page 19: System Menu
System Menu Booting picture & screen instuction Icon on Screen 1920x1080 Video resolution Video record 28000M Available rest memory Picture capture Rest time of video record Continuous capture 15：33：24 in memory 2010/09/21 Year/Month/Date Memory card System time Battery 04：27：48 ~ 19 ~... -
Page 20: Main Menu
Main Menu Video folder Picture folder If here has video clip or picture in the folder, on the corner of icon will display the quantity number like graphic below: Video setting System setting ~ 20 ~... -
Page 21: Record Setting
Record Setting Record Mode Press MENU button enter the main menu, and select the Record setting menu as below, press REC button to enter. Video record setting menu will display as below: a. Normal REC : Means the camera will start the video record after press the REC button normally under real-time preview state, press REC button again to stop video record and save the video clip. - Page 22 b. Motion detect: Means the camera will start the video record only when the lens detected movement, camera will not stop video record until here without movement in the picture. ： Note The movement detect will start after 10 second only when first time setting did. First time default video record time is 1 minute, if here also have movement after recorded 30 seconds, system will continue record another 30 seconds, camera will not stop video record if movement always happen in the picture except battery empty or memory full.
- Page 23 d. Auto REC: Camera will start video record automatically after power ON. After the “ Auto REC” option selected, then still need to set a time under “ Auto REC time” as below: OFF：Not activated 10 Seconds：Camera will start video record in 10 Seconds after power ON ( start the vehicle). 20 Seconds：Camera will start video record in 20 Seconds after power ON ( start the vehicle).
-
Page 24: Loop Record
Loop Record The camera will delete the earliest video clip for newest video clip if memory is not enough. Select the “ Loop Setting” and press “ REC” button to enter the time setting. OFF：Loop record is not activated 1 Minute: 1 minute per video clip. 5 Minutes: 5 minutes per video clip. -
Page 25: Video Resolution
Video Resolution Choose suitable resolution for different purpose, lower resolution will save power and memory for longer time record. Resolution Frame Rate Ratio 1920x1080 Full HD 1080P 30FPS 16：9 1440x1080 Full HD1080P 30FPS 4：3 1280x720 HD 720P 60FPS 16：9 1280x720 HD 720P 30FPS 16：9... -
Page 26: Time Stamp
Time Stamp Date and Time will display on the video clip if “ Enable” this feature. Photo Size A setting option of the picture resolution when take a picture. Continuous Shot Press MENU to enter the main menu, use < > button to select “ Continuous shot” menu, press REC to confirm and choose the quantity of one shot. -
Page 27: Self-Timer
Self-Timer Press POWER button to active this feature, camera will take pictures in every 10 seconds if no other operation during this. ： Note If will not available for the Continuous Shot and Self-Time feature after power OFF, will turn to normal capture automatically. -
Page 28: System Setting
System Setting Press MENU to enter the main menu, System setting icon showed as below, select and press REC button to enter. Language Setting Select the language and press REC button to confirm. ~ 28 ~... -
Page 29: Date & Time Setting
Date & Time Setting 1.Date Setting: Enter date setting, press REC to select the option, and press REC again to next option 2011：Year option, Red color means changeable 10：Month option, press REC to select and use “<” or “>” to change 15：Date option, press REC to select and use “<”... - Page 30 2. Time Setting 03: Hour 15: Minute Same operation as date setting. ~ 30 ~...
-
Page 31: Image Flip
Image Flip Active this function when you need to install the camera at upside down position, to make right video recorded. The recorded image will flip 180° . Light Frequency Please choose the correct frequency according to your country or area, picture would flash if incorrect frequency set. -
Page 32: Auto Power Off
Auto Power OFF If you want the camera power off automatically after some time, then active this function and set a time. Press REC button to enter and confirm setting. OFF：Not actived 5 Mins：Camera will power OFF after 5 minutes whatever state 10 Mins：Camera will power OFF after 10 minutes whatever state 20 Mins：Camera will power OFF after 20 minutes whatever state ~ 32 ~... -
Page 33: Auto Screen Off
Auto Screen OFF For power saving or other purpose, we would need to turn off the screen. Press REC button to enter and confirm the setting. OFF：Not actived 1Minute：Camera will turn off the screen automatically whatever state 5Minutes：Camera will turn off the screen automatically whatever state Recommend to turn on this function for longer time working. -
Page 34: Volume
Volume Volume option for Button press and speaker. Format ： Note Date can not recover after formatted, please make copy before this operation. ~ 34 ~... -
Page 35: Reset
Memory Info To show the used memory and rest available memory of SD card. Reset The system will reset to the factory-set if do this operation. ： Note If the user updated the firmware, would need to reset the system once to make the software work normally. ~ 35 ~... -
Page 36: Firmware Update
Firmware Update Download the firmware package from official website or local distributers website, the package as below: After released: Copy the firmware “EGOHD1080P-V1.00.bin” to the root directory of SD card (Do not modify the file name) Install the SD card ~ 36 ~... -
Page 37: Version
Firmware Update Select “ Start” and press REC button to confirm the update operation, camera will reboot automatically after finished, if here without correct firmware in the SD card, system will notice on screen. Version To check the version of current running software. ( Model No. – Version ) ~ 37 ~... -
Page 38: Specifications
Specifications Item Spec Remark Built in memory 32MB TF Card 1-32GB Support SDHC size 1.5 inch resolution 480x240 size 1/2.5 inch CMOS sensor Image pixel 2592H x 1944V Basic Spec video Output interface HDMI/USB/RCA Built in audio Output interface HDMI/USB/RCA speaker Built in PC interface... - Page 39 Item Spec Remark Image flip 180° upright Video quality option Support record under screen off File protection while low power Auto power OFF option 5、10、20 minutes FULL HD1920x1080 30FPS FULL HD 1440x1080 30FPS Video record FULL HD1280x720 60FPS Optional Record FULL HD1280x720 30FPS spec QVGA 848x480 60FPS...
- Page 40 、、、、、、、、、、、、、、、、、、 Please login www.jeasun.net for more product information. ~ 40 ~...
