Summary of Contents for SHOWTEC LED Pixel Track Pro v4

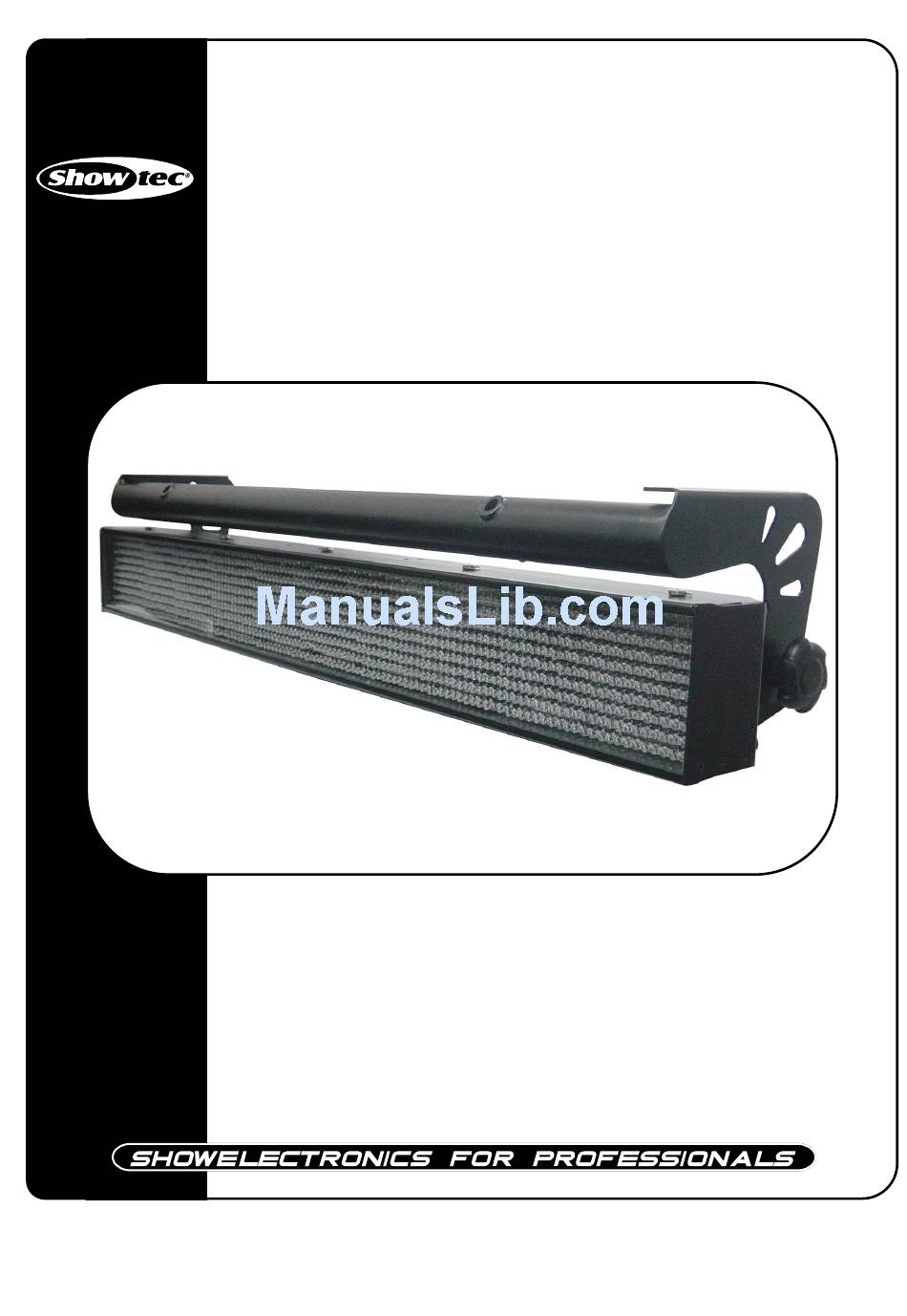

- Page 1 LED Pixel Track Pro ORDERCODE 42205...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec LED Pixel Track Pro Product Guide ™ Warning.................…...……………..…………………………….………… Safety-instructions……………………………………………………………………………………………………… Operating Determinations.…………………………………………………………………………………………... Rigging.………………………………………………………………………………………………………………….. Return Procedure……………………………………………………………………………........Claims……………………………………………………………………………............Description................…...………………………………………….………..… Features and Overview ………………………………...….……………….………….……………………….……… Backside……………………………………………………………………………………………………………………. Installation................…...…………………………………….………………… Set Up and Operation..............……..…………………………………….……….. LED Pixel Track Pro ............………………………………………………..…….. Multiple LED Pixel Track Pro’s..............……………………………………..…….. Panel Functions……..……………………………………………………………………………….……...……………. -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • Showtec LED Pixel Track Pro • User manual LED Expected Lifespan LEDs gradually decline in brightness over time. -
Page 5: Operating Determinations
If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 6: Rigging
Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Procedure: If the LED Pixel Track Pro is lowered from the ceiling or high joists, professional trussing systems have to be used. - Page 7 Floor Mount Mount the fixture on the floor as illustrated below. Improper installation can cause serious damage to people and property ! Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable...
-
Page 8: Return Procedure
Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 9: Description
Description of the device Features LED Pixel Track Pro is a LED system from Showtec. • 840 LEDs (280 Red, 280 Green, 280 Blue) • 15º beam angle: 2471LUX@1m, 1200LUX@2m, 730LUX@3m, 486LUX@4m, 320LUX@5m. • Digital display • 3 and 5 PIN DMX input + output connector •... -
Page 10: Installation
Fig. 3 Installation Remove all packing materials from the LED Pixel Track Pro. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. -
Page 11: Set Up And Operation
Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. One LED Pixel Track Pro 1. -
Page 12: Panel Functions
Panel Functions Fig. 5 Fig. 6... -
Page 13: Manual Operation
Manual Operation Press the Select button to change between Red, Green or Blue. Green Blue (000-255) (000-255) (000-255) Use the UP/DOWN buttons to change the Color intensity from 0-255. You can combine all 3 colors to mix your own desired color. Stand-alone Operation Press the Select button to change Fade, Chase or Speed. -
Page 14: Dmx Operation
DMX Operation The LED Pixel Track Pro’s built-in controller will automatically detect the presence of a DMX signal. When you put the DMX cable in the device, the display will change from N to Y. In order to receive a DMX signal, the built-in controller must be attached to a DMX controller by a 3-pin DMX cable and the DMX controller must be turned on. - Page 15 Each section or pixel = 7x Red, 7x Green and 7x Blue In the most advanced mode (MODE 160) you can control 40 different sections. You can control Red, Green, Blue and Dimmer of each section (4x40). Fig. 7 1 Section (Pixel): 7 Red 4 Sections (Pixels): Aa 7 Green...
- Page 16 MODE R/G/B/Dimmer R/G/B/Dimmer R/G/B/Dimmer R/G/B/Dimmer R/G/B/Dimmer R/G/B/Dimmer/ R/G/B/Dimmer Chase/Speed/Fade Cells 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 5 6 7 1 2 3 4 5 6 7 8 1 2 3 4 1 2 3 4 1 2 3 4...
-
Page 17: Examples
EXAMPLES DMX Channels (MODE 4) Channel 1 – Red 0-255 Gradual adjustment Red from 0 – 100% Channel 2 – Green 0-255 Gradual adjustment Green from 0 – 100% Channel 3 – Blue 0-255 Gradual adjustment Blau from 0 – 100% Channel 4 –... -
Page 18: Maintenance
4. If you are unable to determine the cause of the problem, do not open the LED Pixel Track Pro, as this may damage the unit and the warranty will become void. 5. Return the device to your Showtec dealer. -
Page 19: Product Specifications
Product Specification Model: Showtec LED Pixel Track Pro Voltage : AC 230V-50Hz (CE) Power consumption: 120W (full output) Fuse: 250V / T2A Neutrik input and output power connector DMX Input : 3+5-pin XLR Male connector DMX Output : 3+5-pin XLR Female connector 840 LEDs (280 Red, 280 Green, 280 Blue) 15º...
