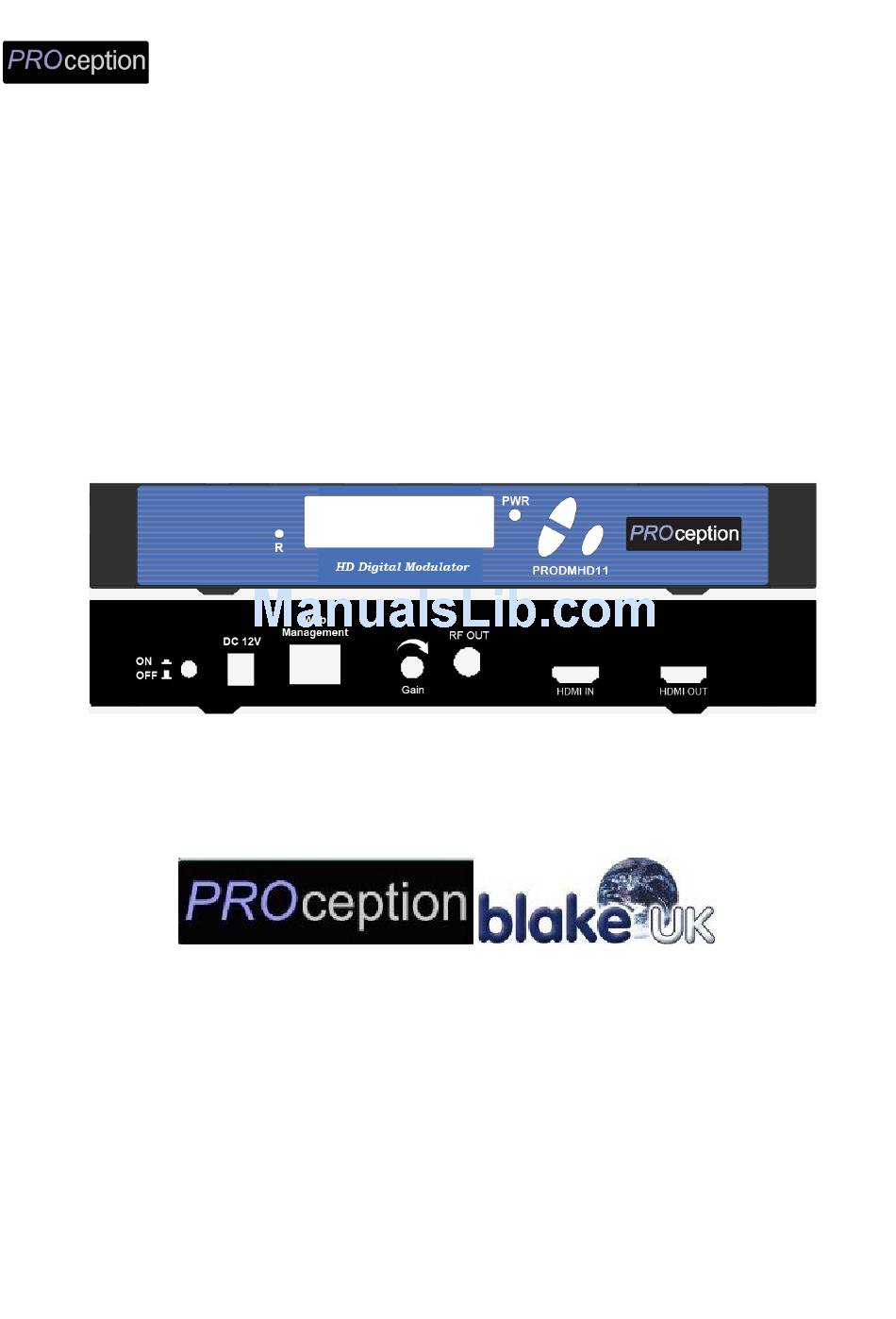

- Page 1 INSTALLATION & CONFIGURATION MANUAL PRODMHD11 Single HD Encoder/Modulator BLAKE U.K. LTD. 177-187 Rutland Road, Sheffield S3 9PT, UK TEL: 0114-275-9729 FAX: 0114-275-6061 https://www.blake-uk.com/...
-
Page 2: Table Of Contents
UNPACKING and INSPECTION ..................................... 6 HARDWARE INSTALLATION and CONNECTIONS ............................. 6 MODULATOR SETUP AND CONFIGURATION .................... 7 INITIAL SETUP TO FACTORY DEFAULT ................................. 7 MODULATOR CONFIGURATION ..................................7 APPENDIX: WINDOWS 8 SETTINGS ......................18 PRODMHD11 HD Encoder/Modulator Notes ..................21 PRODMHD11 Manual V1.1... -
Page 3: Safety Precautions
If the device has been in a cold environment allow it to warm to room temperature for at least 2 hours before connecting power PACKAGE CONTENTS This package contains: One PRODMHD11 HD Encoder/Modulator One Adapter One installation/configuration manual Inspect the package before starting installation to ensure there is no damage and all supplied contents are present. -
Page 4: Product Description
COFDM. The unit features programmable channel and LCN. The unit's front-mounted LCD display allows for easy configuration and adjustments. The compact and economical PRODMHD11 Modulator is perfect for multi-video distribution solutions in the commercial and institutional market (hotels, motels, sports bars, restaurants, hospitals, casinos, business and university campus, digital signage, etc.) as well as home entertainment systems. -
Page 5: Specifications
Operating Temperature F to +104 F (0 C to +40 Storage Temperature F to +140 F (-10 C to +60 Languages English Dimensions 236mm x 155mm x 35mm Weight 880g *Specifications subject to change without prior notice PRODMHD11 Manual V1.1... -
Page 6: Installation
5. Use a quality RJ45 cable to connect the Web Management port to a computer RJ45 port for setup/manage the unit. 6. Connect the included adapter to the unit's DC 12V Power plug. 7. Connect the adapter to an appropriately rated AC power outlet. PRODMHD11 Manual V1.1... -
Page 7: Modulator Setup And Configuration
OK button to set the channel. LCN – Use the Scroll Up/Down button to change the LCN. The LCN default value is 101. Once the desired LCN is selected press the OK button to set the LCN. PRODMHD11 Manual V1.1... - Page 8 ON the unit. Release the UP and DOWN buttons when the LCD shows Reset To Default. The unit will reset to factory default. Caution: Once this process is complete the unit will automatically reset to the factory default settings. All settings or changes to the encoder/modulator will be lost. PRODMHD11 Manual V1.1...
- Page 9 Connect a CAT5e cable from the switch to a PC. 2. Set the PC via the Control Panel to “Obtain an IP address automatically” Start- Control Panel View Network Status and Tasks 3. Select 'Change Adapter Settings' from the left plane PRODMHD11 Manual V1.1...
- Page 10 4.Select Local Area Connection Icon Then Right Click – Select Properties Internet Protocol Version 4(TCP/IPv4) Properties 5. Select “Obtain an IP address automatically” & “Obtain DNS server address automatically” PRODMHD11 Manual V1.1...
- Page 11 7. After selecting Network, the encoders will show up on the right side under Media Devices. Each device will show up by Device Address. (ex. PROCEPTION-001, 002, 003...) Right Click on the icon for the Encoder you want to setup. Select View device webpage...
- Page 12 8. Welcome page will be displayed as shown (figure for example) 9. Select the Common Setup tab. User will be presented with encoders 'Authentication Required' screen. 10. Enter User Name and Password. User Name: admin Password: Admin123 PRODMHD11 Manual V1.1...
- Page 13 11. Common Setup Remark: The Attenuation in the Common Setup is reserved. Please adjust the attenuation by adjusting the Gain control from the unit. PRODMHD11 Manual V1.1...
- Page 14 12. RF Setup PRODMHD11 Manual V1.1...
- Page 15 13. Encoder Setup PRODMHD11 Manual V1.1...
- Page 16 14. Network Setup PRODMHD11 Manual V1.1...
- Page 17 15. Administration PRODMHD11 Manual V1.1...
-
Page 18: Appendix: Windows 8 Settings
If using Windows 8 PC, move the mouse to the bottom or top right corner of the screen and select Settings. Select Control Panel. In the Control Panel window select Category and then select Large or Small icons. PRODMHD11 Manual V1.1... - Page 19 Select Network and Sharing Centre. Select Change Adapter Settings. Right click on your connected network and select Properties. PRODMHD11 Manual V1.1...
- Page 20 Select Use the following IP address and Use the following DNS server addresses to change your computer's IP address and/or DNS server addresses. To get IP settings automatically using DHCP, click Obtain an IP address automatically, and then click OK. Select OK to save. PRODMHD11 Manual V1.1...
-
Page 21: Prodmhd11 Hd Encoder/Modulator Notes
PRODMHD11 HD Encoder/Modulator Notes PRODUCT NOTES: ITEM VALUE DEVICE NAME PURCHASE DATE INSTALLATION DATE SERIAL NUMBER FIRMWARE VERSION PRODMHD11 Manual V1.1...
