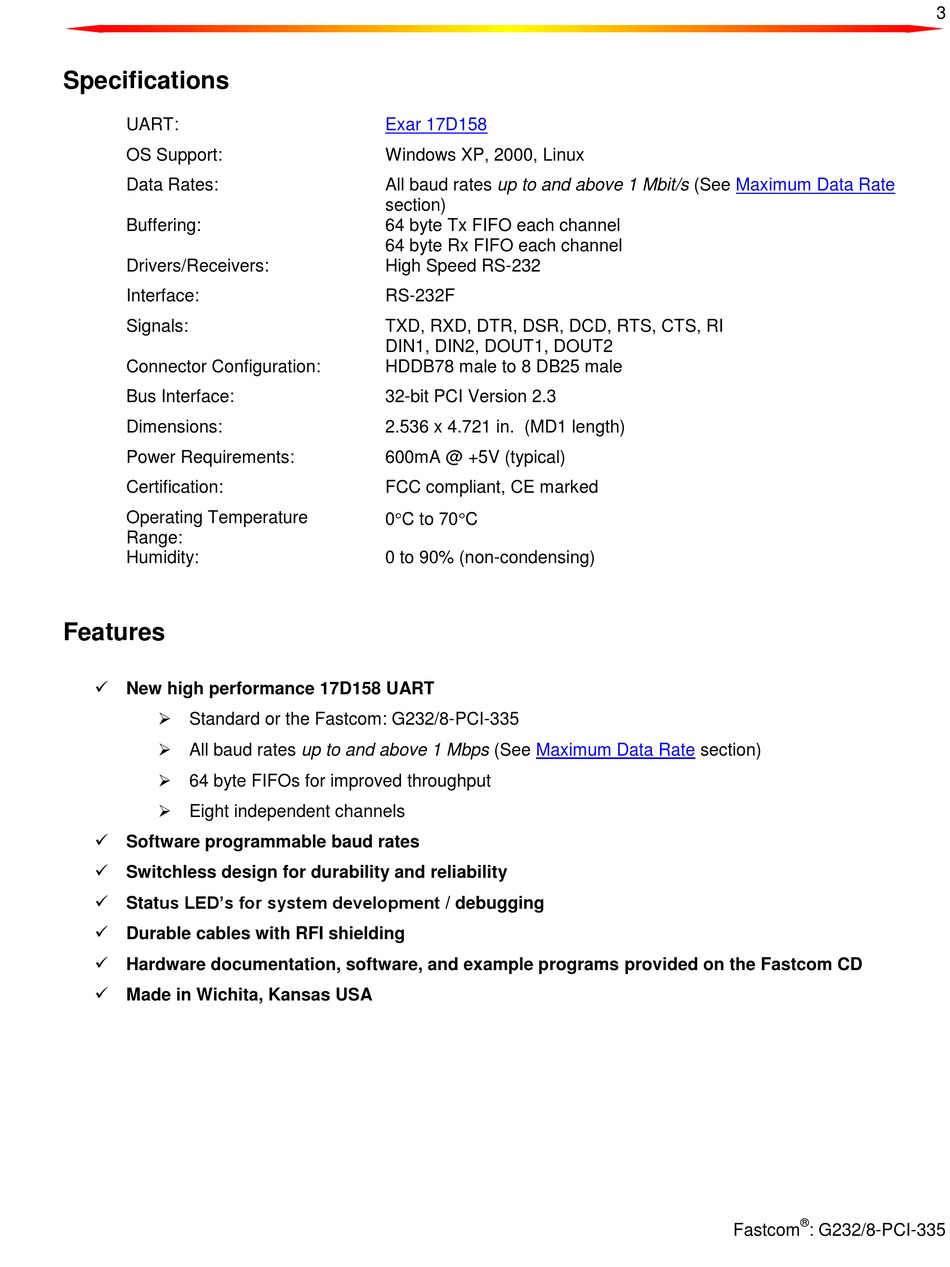

Specifications

UART:
OS Support:
Data Rates:
Buffering:
Drivers/Receivers:
Interface:
Signals:
Connector Configuration:
Bus Interface:
Dimensions:
Power Requirements:
Certification:
Operating Temperature
Range:
Humidity:

Features

 New high performance 17D158 UART
 Standard or the Fastcom: G232/8-PCI-335
 All baud rates up to and above 1 Mbps (See
 64 byte FIFOs for improved throughput
 Eight independent channels
 Software programmable baud rates
 Switchless design for durability and reliability
 Status LED's for system development / debugging
 Durable cables with RFI shielding
 Hardware documentation, software, and example programs provided on the Fastcom CD
 Made in Wichita, Kansas USA
Exar 17D158
Windows XP, 2000, Linux
All baud rates up to and above 1 Mbit/s (See
section)
64 byte Tx FIFO each channel
64 byte Rx FIFO each channel
High Speed RS-232
RS-232F
TXD, RXD, DTR, DSR, DCD, RTS, CTS, RI
DIN1, DIN2, DOUT1, DOUT2
HDDB78 male to 8 DB25 male
32-bit PCI Version 2.3
2.536 x 4.721 in. (MD1 length)
600mA @ +5V (typical)
FCC compliant, CE marked
0 C to 70 C
0 to 90% (non-condensing)
Maximum Data Rate
Maximum Data Rate
section)
®
Fastcom : G232/8-PCI-335
